pengenalan
This manual provides detailed instructions for the safe and efficient use of your podoru Foldable 10000mAh Wireless Portable Charger. Please read this manual thoroughly before operating the device and retain it for future reference.
The podoru Magsafe Battery Pack in light blue, featuring its foldable stand and digital LED display.
Ciri-ciri Produk
- Kapasiti Tinggi 10000mAh: Provides extended power for your devices.
- Pengecasan Wayarles Magnetik: Designed for iPhone 12/13/14/15/16 series with strong magnetic adsorption.
- Penyangga boleh lipat: Integrated stand supports both horizontal and vertical viewsudut untuk kemudahan.
- Pengecasan Berbilang Peranti: Supports simultaneous charging of up to three devices via wireless, USB-A, and USB-C outputs.
- Pengecasan Cepat: Features 15W Max wireless charging, 22.5W Max USB-A PD output, and 20W Max USB-C output.
- Paparan LED Digital: Clearly shows the exact remaining power percentage.
- Perlindungan Keselamatan Unggul: Built-in safeguards against overcharge, overcurrent, overvoltage, litar pintas, dan suhu tinggi.
- Padat dan Mudah Alih: Lightweight design for easy carrying in pockets or backpacks.
Persediaan
Pengecasan Awal Bank Kuasa
Before first use, fully charge your podoru Magsafe Battery Pack. Connect a USB-C cable to the power bank's USB-C input port and the other end to a compatible power adapter (not included). The digital LED display will show the charging progress, indicating 100% when fully charged.
Understanding the LED Display
The integrated LED display provides real-time information about the battery pack's charge level. The percentage shown indicates the remaining power. Charging icons may also appear to indicate active charging.
Compatibility and Case Usage
This power bank is designed for magnetic attachment to iPhone 12, 13, 14, 15, and 16 series. For optimal magnetic suction and charging efficiency, it is recommended to use the power bank with a MagSafe-compatible phone case or without a case. Non-magnetic phone cases may prevent proper adsorption and charging.
For best performance, use with MagSafe-compatible cases or no case.
Arahan Operasi
Wireless Charging (MagSafe)
- Ensure your iPhone is a compatible model (iPhone 12/13/14/15/16 series).
- Align the magnetic power bank with the back of your iPhone. The strong magnets will snap it into place.
- Wireless charging will begin automatically. The LED display on the power bank will show its remaining charge.
Magnetic attachment for wireless charging.
Pengecasan Berwayar
The power bank supports wired charging via its USB-A and USB-C ports.
- Keluaran USB-A: Connect your device's USB-A charging cable to the USB-A port on the power bank.
- Output USB-C: Sambungkan kabel pengecas USB-C peranti anda ke port USB-C pada power bank.

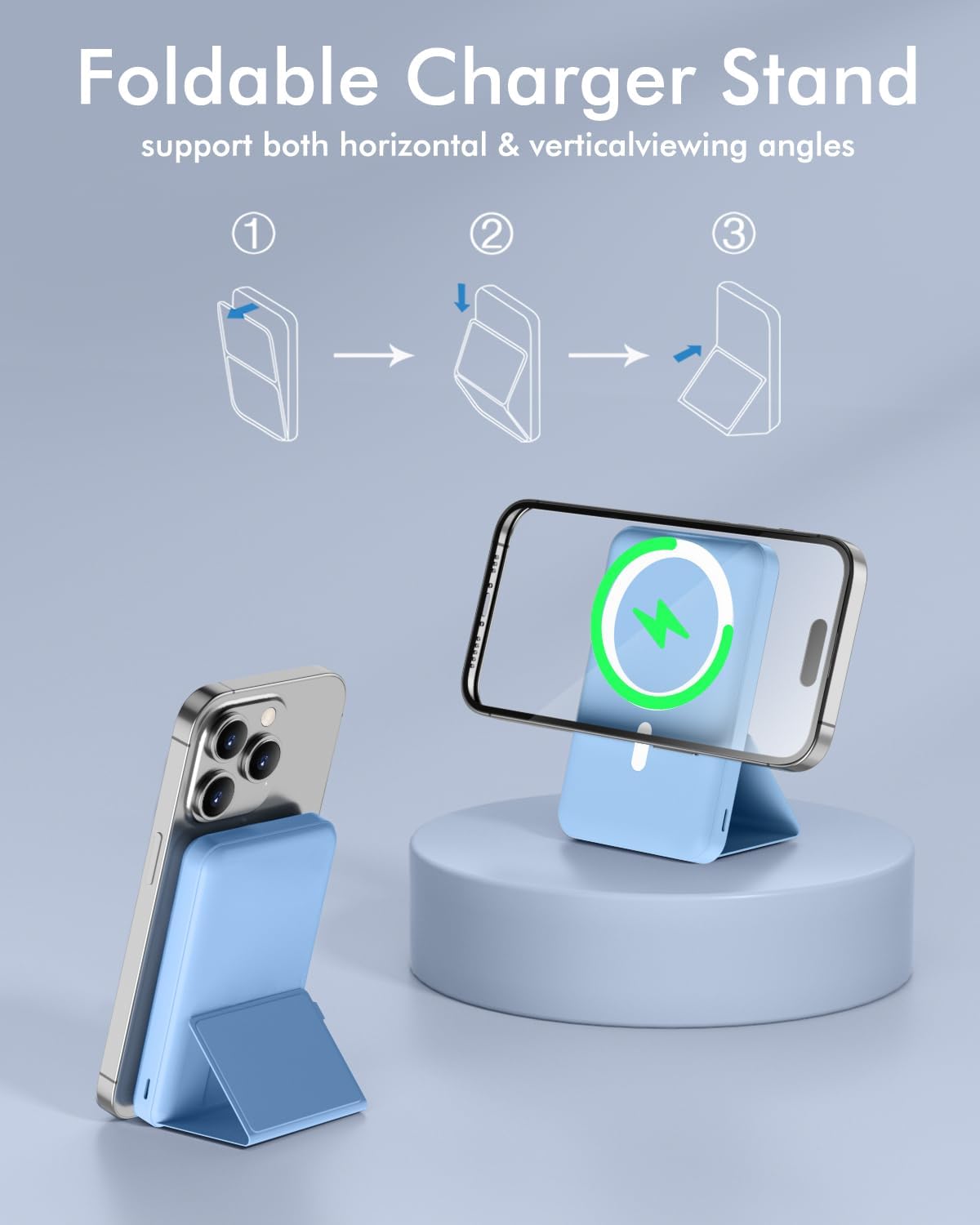

Menggunakan Pendirian Boleh Lipat
The integrated foldable stand allows you to prop up your iPhone while it's magnetically attached to the power bank. This is useful for hands-free viewdalam atau panggilan video.
- Gently pull out the foldable stand from the back of the power bank.
- Laraskan pendirian mengikut kehendak anda viewing angle. It supports both horizontal and vertical orientations.
- Place your iPhone (with the power bank attached) onto the stand.
The foldable stand provides versatile viewsudut-sudut.
Simultaneous Charging of Multiple Devices
The podoru Magsafe Battery Pack can charge up to three devices concurrently:
- One device via wireless (MagSafe).
- One device via USB-A output.
- One device via USB-C output.
Charge up to three devices simultaneously.
Penyelenggaraan
Penjagaan dan Pembersihan Am
- Keep the power bank dry. Avoid exposure to moisture or liquids.
- Bersihkan permukaan dengan kain lembut dan kering. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
- Simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
Ketahanan Bateri
- Avoid fully discharging the battery pack frequently.
- Jika menyimpan untuk tempoh yang lama, cas bank kuasa kepada kapasiti kira-kira 50-70%.
- Recharge the power bank every 3-6 months if not in use to prevent deep discharge.
Menyelesaikan masalah
Isu dan Penyelesaian Biasa
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Power bank tidak dicas | Faulty cable or adapter; loose connection. | Cuba kabel USB-C dan penyesuai kuasa yang berbeza. Pastikan sambungan selamat. |
| Peranti tidak dicas secara wayarles | Non-magnetic phone case; misaligned device; device not compatible. | Remove non-magnetic case or use a MagSafe-compatible one. Realign device. Confirm iPhone 12/13/14/15/16 series compatibility. |
| Pengecasan perlahan | Using a non-fast charging adapter/cable; multiple devices charging simultaneously. | Use a PD-compatible power adapter and cable. Disconnect other devices to prioritize charging speed for one. |
| Paparan LED tidak berfungsi | Battery fully discharged; internal fault. | Charge the power bank for at least 30 minutes. If issue persists, contact customer support. |
Ciri Keselamatan
The podoru Magsafe Battery Pack incorporates multiple safety protection systems to prevent damage to the device and connected electronics. These include:
- Perlindungan Caj Terlebih
- Perlindungan Arus Lebih
- Overvoltage Perlindungan
- Perlindungan Litar pintas
- Perlindungan Suhu Tinggi
Internal safety mechanisms protect against various electrical issues.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | KT-D013 |
| Kapasiti Bateri | 10000 mAh (Lithium Polimer) |
| Output Pengecasan Tanpa Wayar | 5W, 7.5W, 10W, 15W Maks |
| Keluaran USB-A | 22.5W Max PD |
| Output USB-C | Maksimum 20W |
| Input USB-C | Maksimum 18W |
| Input Kilat | Maksimum 18W |
| Dimensi Produk | 4.09 x 2.68 x 0.86 inci (104 x 68 x 21 mm) |
| Berat Barang | 6.7 auns (0.41 lb) |
| warna | B-Sierra Blue (as per product listing) |
Waranti & Sokongan
For warranty information and customer support, please refer to the documentation included with your purchase or contact the manufacturer directly. The product is verified by Transparency, ensuring authenticity.
Manufacturer: Shenzhen Zhilianxintong Electronics Co., Ltd
