1. Pengenalan
Thank you for choosing the SPKPAL S135 Computer Soundbar. This manual provides essential information for setting up, operating, and maintaining your new soundbar. The S135 is designed to enhance your audio experience with rich stereo sound, dynamic RGB lighting, and versatile connectivity options for your desktop computer, PC, laptop, or monitor.
2. Kandungan Pakej
- SPKPAL S135 Computer Soundbar
- Manual Pengguna
3. Produk Lebihview
The SPKPAL S135 features dual full-range speaker units for clear stereo sound, dynamic RGB lighting, and convenient controls. It offers both wired and wireless connection methods.
Image: The SPKPAL S135 soundbar with an exploded view showing its internal speaker components, emphasizing its 360-degree rich clear stereo sound and dual full-range speaker units.

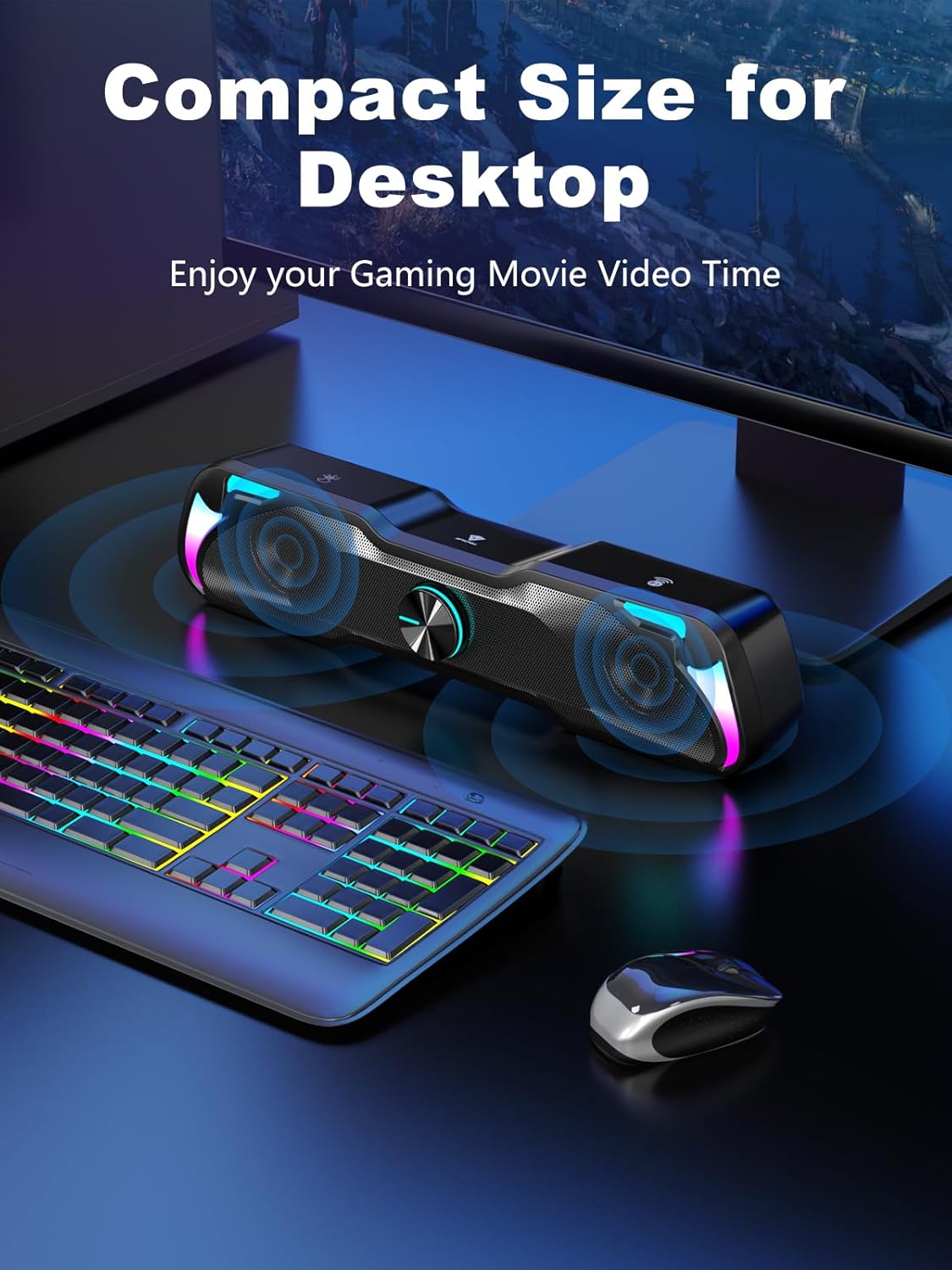

Image: The SPKPAL S135 soundbar positioned on a desk, demonstrating its compact size suitable for desktop setups, alongside a keyboard and mouse.
4. Persediaan
4.1 Sambungan Kuasa
- Connect the USB-A cable from the soundbar to a USB port on your computer or a 5V/2A USB power adapter (not included).
- Ensure the power source provides sufficient power (DC 5V=2A Max) for optimal performance.
4.2 Sambungan Audio
The SPKPAL S135 offers two connection methods:
- Wired Connection (3.5mm AUX): Plug the 3.5mm audio cable into the AUX port on the soundbar and the audio output jack on your device (e.g., computer, laptop).
- Sambungan Bluetooth (Bluetooth 5.0):
- Pastikan bar bunyi dihidupkan.
- On the right side of the soundbar, gently swipe two fingers over the Bluetooth logo from front to back to switch to Bluetooth mode. The indicator light will flash, indicating pairing mode.
- On your device (e.g., smartphone, laptop), enable Bluetooth and search for "SPKPAL S135".
- Select "SPKPAL S135" to pair. Once connected, the indicator light will become solid.
Image: An illustration detailing the USB power connection and the two audio connection methods: a wired 3.5mm Aux cable and wireless Bluetooth 5.0 pairing, compatible with various devices like phones, tablets, and computers.
5. Arahan Operasi
5.1 Kuasa Hidup/Mati dan Kawalan Kelantangan
The large rotary knob on the front of the soundbar controls both power and volume.
- Hidupkan/Mati Kuasa: Rotate the knob clockwise until you hear a click to turn on the soundbar. Rotate counter-clockwise until you hear a click to turn it off.
- Pelarasan Kelantangan: Rotate the knob clockwise to increase volume and counter-clockwise to decrease volume.
Imej: A terperinci view of the soundbar's central rotary knob, illustrating its use for convenient power control and volume adjustment.
5.2 Kawalan Pencahayaan RGB
The dynamic RGB lighting can be controlled via a touch-sensitive area on the left side of the soundbar.
- Hidupkan/Matikan: Gently swipe two fingers over the touch-sensitive area on the left side of the soundbar from front to back to toggle the RGB lighting on or off.
Image: A close-up of the soundbar highlighting the touch-sensitive area on its left side, used for turning the cool dynamic RGB lighting on or off.
6. Penyelenggaraan
To ensure the longevity and optimal performance of your SPKPAL S135 soundbar, follow these maintenance guidelines:
- Pembersihan: Gunakan kain lembut dan kering untuk membersihkan permukaan bar bunyi. Jangan gunakan pembersih cecair atau bahan yang melelas.
- Storan: Simpan bar bunyi di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
- Elakkan Cecair: Keep the soundbar away from water and other liquids to prevent damage to internal components.
- Tangani dengan Berhati-hati: Elakkan menjatuhkan atau mendedahkan bar bunyi kepada hentaman yang kuat.
7. Penyelesaian masalah
If you encounter any issues with your SPKPAL S135 soundbar, please refer to the following troubleshooting steps:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada bunyi |
|
|
| Bluetooth tidak berpasangan |
|
|
| Pencahayaan RGB tidak berfungsi |
|
|
8. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Nombor Model | S135 |
| Dimensi (L x W x H) | 33.7 x 8.7 x 8.7 cm (lebih kurang 13 x 3.4 x 3.4 inci) |
| Berat badan | 570 gram (lebih kurang 1.26 paun) |
| Kuasa Output Pembesar Suara Maks | 3 Watt |
| Teknologi Ketersambungan | USB (power), 3.5mm Aux, Bluetooth 5.0 |
| Mod Keluaran Audio | Surround (2.0 Channel) |
| bahan | plastik |
| Ciri Khas | LED Light (RGB) |
| Peranti Serasi | Komputer riba, Komputer Peribadi |
| Jenis Kawalan | Touchpad (RGB/Bluetooth mode), Rotary Knob (Volume/Power) |
| Saiz Pembesar Suara | 13.1 Sentimeter |
| Sumber Kuasa | Electric Cable (USB) |
| Input | DC 5V=2A Maks |
| Respons Kekerapan | 300Hz ~ 20KHz |
| Nisbah Isyarat-ke-Bunyi | ≥ 45dB |
| Panjang Kabel | 1.2 meter |

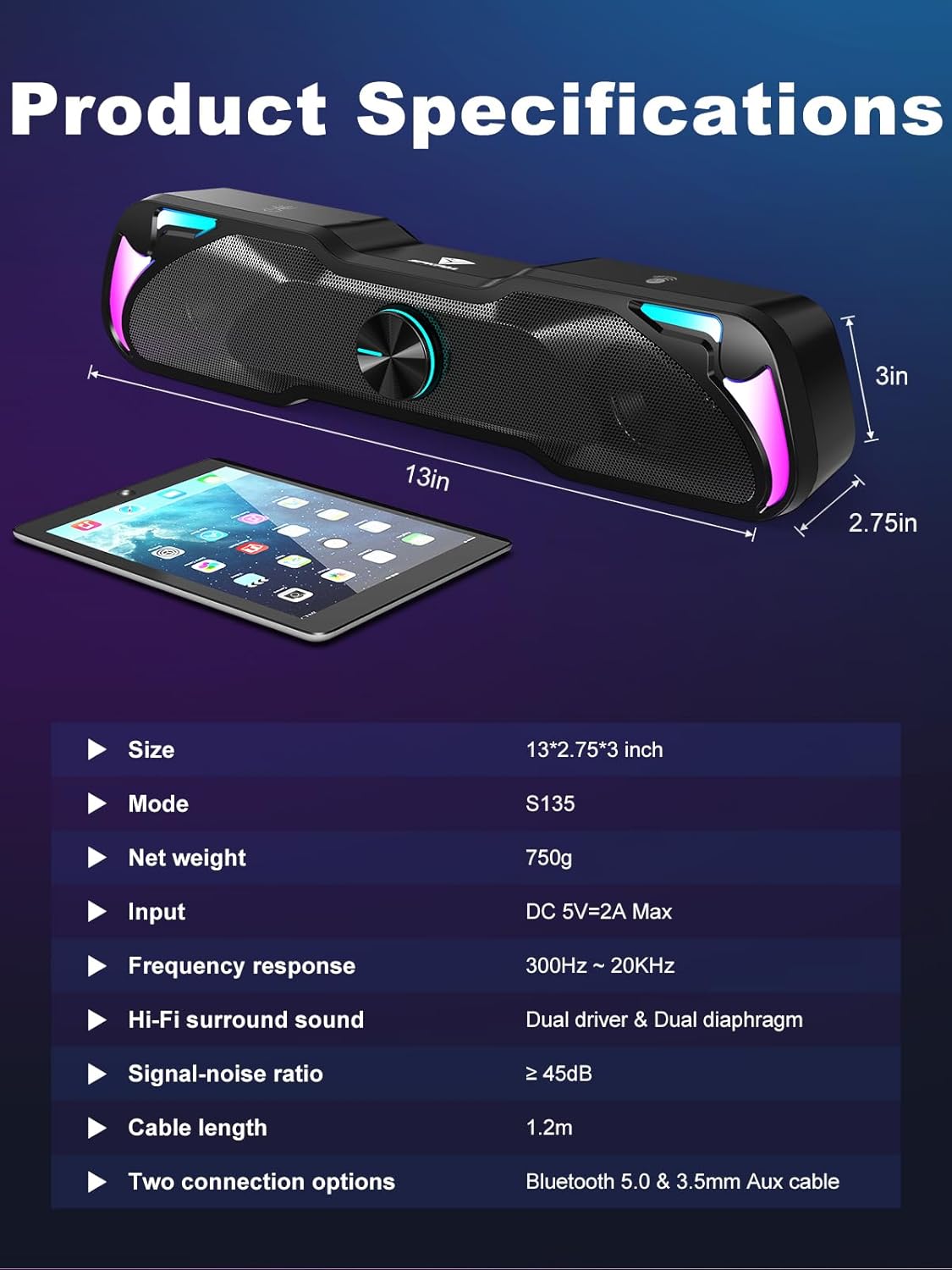

Image: A visual representation of the SPKPAL S135 soundbar's product specifications, including its dimensions, weight, power input, frequency response, and connectivity details.
9. Waranti dan Sokongan
SPKPAL products are designed for reliability and performance. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your purchase or visit the official SPKPAL webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.
