CO-Z FYXES-SGO-RA 280W Sliding Gate Opener Instruction Manual

1. Produk Lebihview

This manual provides detailed instructions for the installation, operation, and maintenance of your CO-Z FYXES-SGO-RA 280W Sliding Gate Opener. This system is designed to automate sliding gates up to 600 kg (1322 lbs) in weight and 12 meters (40 ft) in length, offering convenience and security for residential and commercial applications. Please read this manual thoroughly before installation and use to ensure safe and correct operation.

2. Maklumat Keselamatan

Arahan Keselamatan Penting: Always follow these safety guidelines to prevent injury or damage.

• Pastikan semua sambungan elektrik mematuhi kod dan peraturan tempatan.
• Pastikan kawasan di sekitar pintu pagar bebas daripada halangan semasa operasi.
• Do not allow children to play near the gate or operate the remote controls.
• The system includes infrared sensors for obstacle detection. If an obstacle is detected, the gate will stop and reverse. Regularly check these sensors for proper function and clear any debris.
• The motor features overheat protection. If the motor overheats, it will temporarily cease operation until it cools down.
• In case of power failure, use the manual release keys to operate the gate manually.
• Perform regular inspections and maintenance as described in this manual.

Imej: Selesaiview of the safety features integrated into the CO-Z sliding gate opener system.

3. Kandungan Pakej

Sahkan bahawa semua komponen yang disenaraikan di bawah terdapat dalam pakej anda.

Image: Visual representation of all items included in the CO-Z sliding gate opener package.

• 1 x Control plate and motor
• 2 x Manual release keys
• 2 x Alat Kawalan Jauh
• 1 x plat pemasangan
• 12 x Nylon Zipper (0.35 m each)
• 2 x Limit switches with accessories
• 4 x M8 foundation bolts
• 4 x M6 × 18 mounting bolts
• 4 x M8 × 40 Hex Bolts
• 24 x Self-tapping screws
• 24 x Mounting ear studs
• 8 x Pencuci Rata M8
• 8 x M8 Elastic Washers (Spring Washers)
• 8 x M8 Kacang
• 2 x Infrared sensors
• 1 x Manual Pengguna

Nota: Nylon zipper racks cannot be used together with steel zipper racks.

4. Spesifikasi

Image: Key specifications of the CO-Z sliding gate opener.

Image: Dimensions of the gate opener components.

5. Pemasangan dan Persediaan

The CO-Z sliding gate opener is designed for straightforward installation. Ensure you have all components listed in Section 3 before beginning.

5.1 Penyediaan Tapak

• Ensure the gate slides smoothly and freely without obstruction.
• Clear the area where the motor will be mounted, ensuring a stable and level surface.
• Plan the routing for electrical wiring and sensor cables.

5.2 Memasang Motor

1. Position the mounting plate on the prepared surface next to the gate. Ensure it is level and at the correct height for the gate's rack.
2. Mark the positions for the M8 foundation bolts.
3. Drill holes and secure the mounting plate using the M8 foundation bolts, flat washers, elastic washers, and nuts.
4. Attach the motor unit to the mounting plate using the M6 x 18 mounting bolts.

5.3 Installing the Nylon Racks

1. Attach the nylon zipper racks to the bottom frame of your sliding gate.
2. Ensure the racks are aligned with the motor's sprocket and maintain a small clearance (approx. 1-2mm) between the rack and the sprocket to allow for gate movement.
3. Use the self-tapping screws and mounting ear studs to secure the racks firmly along the entire length of the gate.
4. Verify that the gate moves smoothly across the entire travel path without binding or excessive friction with the sprocket.

5.4 Installing Infrared Sensors

1. Mount the two infrared sensors on opposite sides of the gate opening, ensuring they face each other directly.
2. Position them at a height where they can detect potential obstructions (e.g., vehicles, pedestrians).
3. Connect the sensors to the control board according to the wiring diagram provided in the full user manual.
4. Test the sensors to ensure they correctly detect obstructions and trigger the gate to stop and reverse.

5.5 Sambungan Elektrik

• Connect the main power supply to the control board. Ensure the power supply matches the motor's requirements.
• All electrical work should be performed by a qualified electrician if you are unsure.
• Refer to the detailed wiring diagram in the complete user manual for specific connections.

Imej: Cthample of a properly installed gate opener and gate.

6. Arahan Operasi

Once installed, the CO-Z sliding gate opener offers various operating modes and features for convenient access control.

6.1 Operasi Kawalan Jauh

• The system supports up to 40 remote controls. Two remote controls are included.
• To open or close the gate, press the designated button on the remote control. The remote range is up to 30 meters (98.4 ft).
• Refer to the full user manual for instructions on programming additional remote controls.

6.2 Pedestrian Mode

The pedestrian mode allows the gate to open partially, providing enough space for foot traffic without fully opening the gate. This feature enhances convenience and reduces wear on the motor. Consult the full user manual for activation and adjustment of pedestrian mode settings.

6.3 Fungsi Auto-Tutup

The gate opener can be configured to automatically close after a set period. This system offers 3 self-closing presets (e.g., 12, 24, 36 seconds or 15, 30, 45 seconds depending on model configuration). Refer to the control board settings in the full user manual to enable and adjust the auto-close timer.

6.4 Keluaran Manual

Sekiranya berlaku kuasa outage or system malfunction, the gate can be operated manually using the provided manual release keys. Insert the key into the lock on the motor unit and turn it to disengage the motor, allowing the gate to be pushed open or closed by hand.

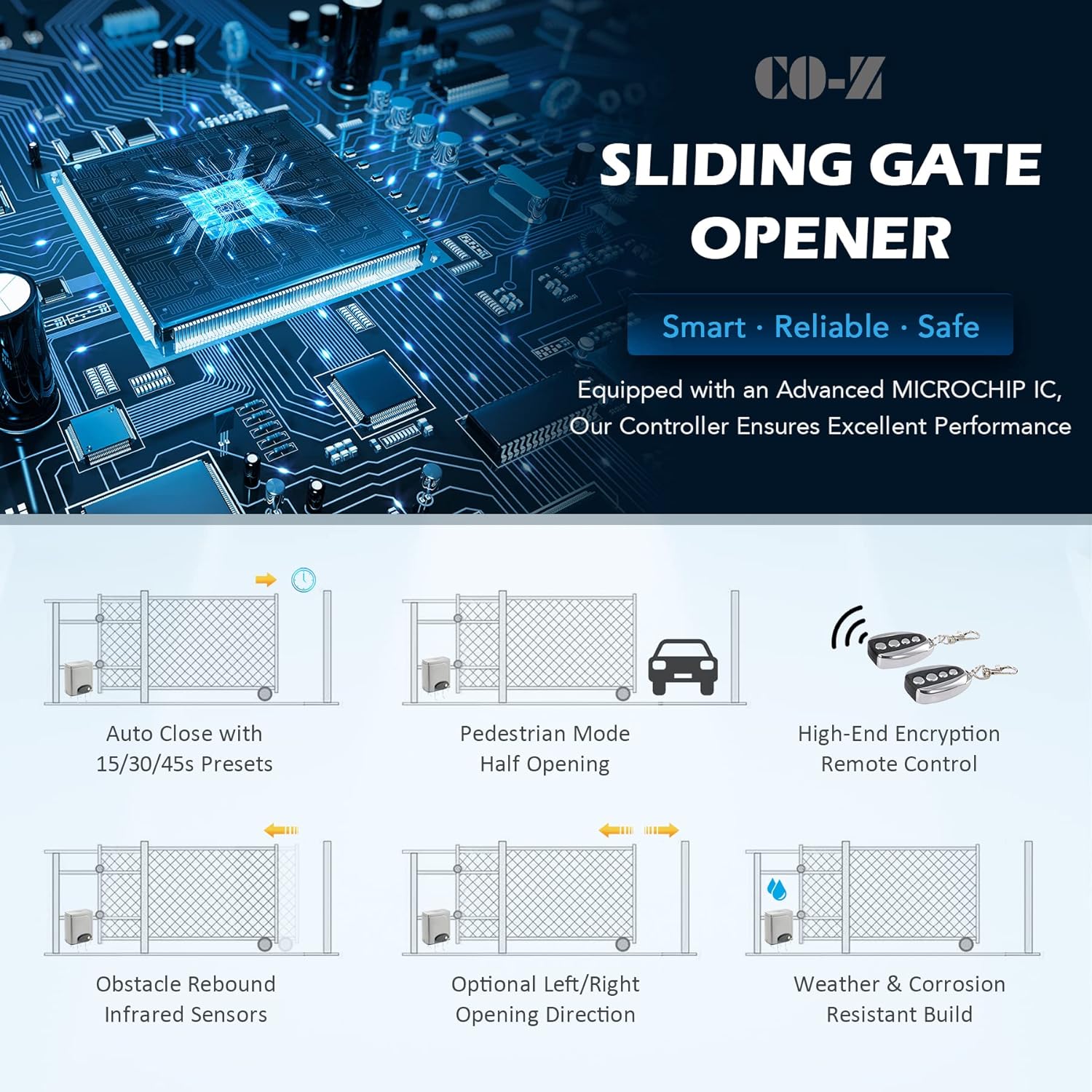

Image: Smart features and operational modes of the gate opener.

7. Penyelenggaraan

Regular maintenance ensures the longevity and reliable operation of your CO-Z sliding gate opener.

• Bulanan: Inspect the gate's movement. Ensure it slides freely without excessive friction. Clean the nylon racks and the motor's sprocket to remove any dirt, leaves, or debris.
• Suku tahunan: Check all mounting bolts and screws for tightness. Verify that the infrared sensors are clean and properly aligned. Test the obstacle detection feature by placing an object in the gate's path.
• Setiap tahun: Inspect electrical wiring for any signs of wear or damage. Lubricate any moving parts of the gate (hinges, rollers) as recommended by the gate manufacturer.
• Keep the motor housing clean and free from dust and moisture. The IP44 rating provides protection against splashes, but direct water jets should be avoided.

8. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi. Untuk masalah yang lebih kompleks, hubungi sokongan pelanggan.

9. Waranti dan Sokongan

For warranty information, please refer to the documentation included with your purchase or contact CO-Z customer support directly.

If you encounter issues not covered in this manual or require further assistance, please contact CO-Z customer service. Provide your model number (FYXES-SGO-RA) and a detailed description of the problem for efficient support.

You can often find additional support and contact information on the official CO-Z webtapak atau melalui peruncit anda.
