VINABTY MBE741 Replacement Remote Control User Manual

pengenalan

This manual provides instructions for the VINABTY MBE741 replacement remote control. This remote is designed to be compatible with various AKAI LCD/LED TV models, including ATE-48N1104K, ATE-55N1104K, and ATE-55D1044K. It offers a direct replacement for your original remote without requiring complex programming.

Persediaan

Pemasangan Bateri

The VINABTY MBE741 remote control requires two AAA batteries for operation. No programming or setup is needed; simply insert the batteries, and the remote will be ready to use.

1. Cari petak bateri di belakang alat kawalan jauh.
2. Luncurkan penutup petak bateri ke bawah atau ke luar untuk membukanya.
3. Masukkan dua bateri AAA, pastikan terminal positif (+) dan negatif (-) sejajar dengan tanda di dalam petak.
4. Luncurkan penutup petak bateri kembali ke tempatnya sehingga ia berbunyi dengan selamat.

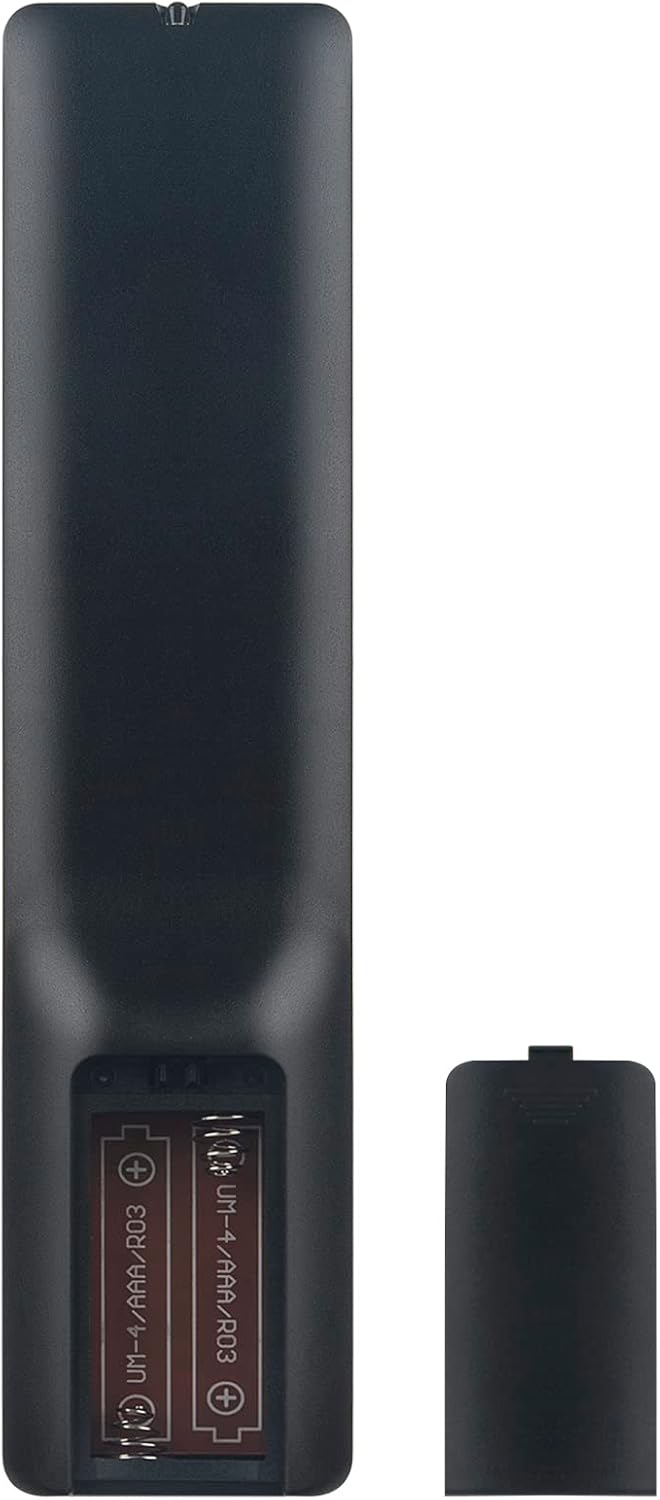

Image: Back of the remote control with the battery compartment open, illustrating correct battery placement.

Arahan Operasi

Once batteries are installed, the remote control is ready for immediate use with compatible AKAI LCD/LED TVs. Point the remote directly at your television's infrared receiver.

Imej: Depan view of the remote control, displaying all function buttons.

Fungsi Utama Selesaiview

• KUASA: Menghidupkan atau mematikan TV.
• TV / RADIO: Beralih antara mod TV dan Radio.
• Butang Nombor (0-9): Pemilihan saluran langsung.
• VOL +/-: Melaraskan tahap kelantangan.
• CH +/-: Menukar saluran ke atas atau ke bawah.
• MATI: Membisukan atau menyahredamkan bunyi TV.
• MENU: Mengakses menu utama TV.
• OK: Mengesahkan pilihan dalam menu.
• Anak Panah Navigasi (Atas, Bawah, Kiri, Kanan): Menavigasi melalui pilihan menu.
• KELUAR: Keluar dari menu atau fungsi semasa.
• SUMBER: Memilih sumber input (HDMI, AV, dll.).
• MEDIA Controls (Play, Pause, Stop, Rewind, Fast Forward, Skip): Mengawal main balik media.
• EPG: Memaparkan Panduan Program Elektronik.
• SARIKATA: Menogol sari kata ke hidup atau mati.
• LANG / AUDIO: Changes audio language or track.
• MOD P: Selects picture modes.
• S-MOD: Selects sound modes.
• DISPLAY: Shows on-screen information.
• Other Function Buttons (GOTO, ANGLE, REPEAT, A-B, FAV, TEXT, HOLD, FREEZE, SLEEP, SIZE, ZOOM, ASPECT, SUBPAGE, D.SETUP, INDEX, TITLE, D.MENU): Provide access to specific TV features as labeled.

Penyelenggaraan

Pembersihan

Untuk membersihkan alat kawalan jauh, gunakan kain lembut dan kering. Untuk kotoran degil, gunakan sedikit kainampen the cloth with water or a mild cleaning solution. Avoid using abrasive cleaners, alcohol, or solvents, as these can damage the remote's surface or internal components.

Penggantian Bateri

Replace batteries when the remote control's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA alkaline batteries. Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or malfunction.

Menyelesaikan masalah

Remote control is not responding:

• Semak Bateri: Ensure batteries are inserted correctly with the correct polarity (+/-). Replace old batteries with new AAA alkaline batteries.
• Garis penglihatan: Make sure there are no obstructions between the remote control and the TV's infrared sensor. Point the remote directly at the TV.
• Sensor Jauh: Ensure the TV's infrared sensor is clean and not covered.

Some buttons do not work:

• While this remote is designed for broad compatibility, some specific TV models might have unique functions not directly mapped to a button. Refer to your TV's original manual for specific feature access.
• Ensure the remote is in the correct mode (e.g., TV mode if applicable, though this remote is generally universal for the listed models).

Spesifikasi

Waranti dan Sokongan

VINABTY is committed to customer satisfaction. If you encounter any issues with your product or require assistance, please contact our customer support. We aim to provide a satisfactory response within 24 hours.

For support inquiries, please refer to the contact information provided with your purchase or on the VINABTY official webtapak.
