Generic Commercial 304 Stainless Steel Step-Heating Kettle

1. Pengenalan

Thank you for choosing the Generic Commercial 304 Stainless Steel Step-Heating Kettle. This appliance is designed for efficient and safe water heating in commercial environments such as restaurants, bars, factories, hotels, and hospitals. Please read this manual thoroughly before operation to ensure proper use, maintenance, and to prevent potential hazards.

2. Arahan Keselamatan Penting

• Always connect the appliance to a properly grounded electrical outlet with the correct voltage (220V).
• Jangan rendam perkakas, kord kuasa, atau palamkan ke dalam air atau cecair lain.
• Ensure the water pipe connection is secure to prevent leaks.
• Keep the ventilation opening at the rear of the casing clear to prevent overheating.
• Do not operate the appliance if the power cord or plug is damaged. Contact qualified service personnel for repair.
• Avoid touching hot surfaces. Use the anti-scald handle on the faucet.
• The appliance features automatic dry-burning protection; however, always ensure adequate water supply during operation.
• Perkakas ini bertujuan untuk kegunaan komersial sahaja.
• Cabut plag perkakas dari salur keluar kuasa sebelum membersihkan atau apabila tidak digunakan.

3. Produk Lebihview

The Generic Commercial Step-Heating Kettle is constructed from durable 304 stainless steel, ensuring longevity and hygiene. It features intelligent microcomputer control for efficient and safe operation.

Komponen Utama:

• Panel Kawalan: Digital display and buttons for setting and monitoring.
• Faucet: 304 stainless steel with an anti-scald handle for dispensing hot water.
• Dulang Titisan Boleh Tanggal: Collects spills and is easy to clean.
• Saluran Masuk Air: Connection point for the external water supply.
• Pembukaan Pengudaraan: Located at the rear for heat dissipation.
• Elemen Pemanas: 2500W pure stainless steel, food-grade material for rapid heating.

Rajah 3.1: Depan view of the Commercial Step-Heating Kettle (Black and Stainless Steel models). This image displays the main body, control panel, faucet, and drip tray.

Rajah 3.2: Sisi view of the stainless steel model, highlighting its compact and functional design.

Figure 3.3: Internal structure illustrating the insulation layers for energy efficiency.

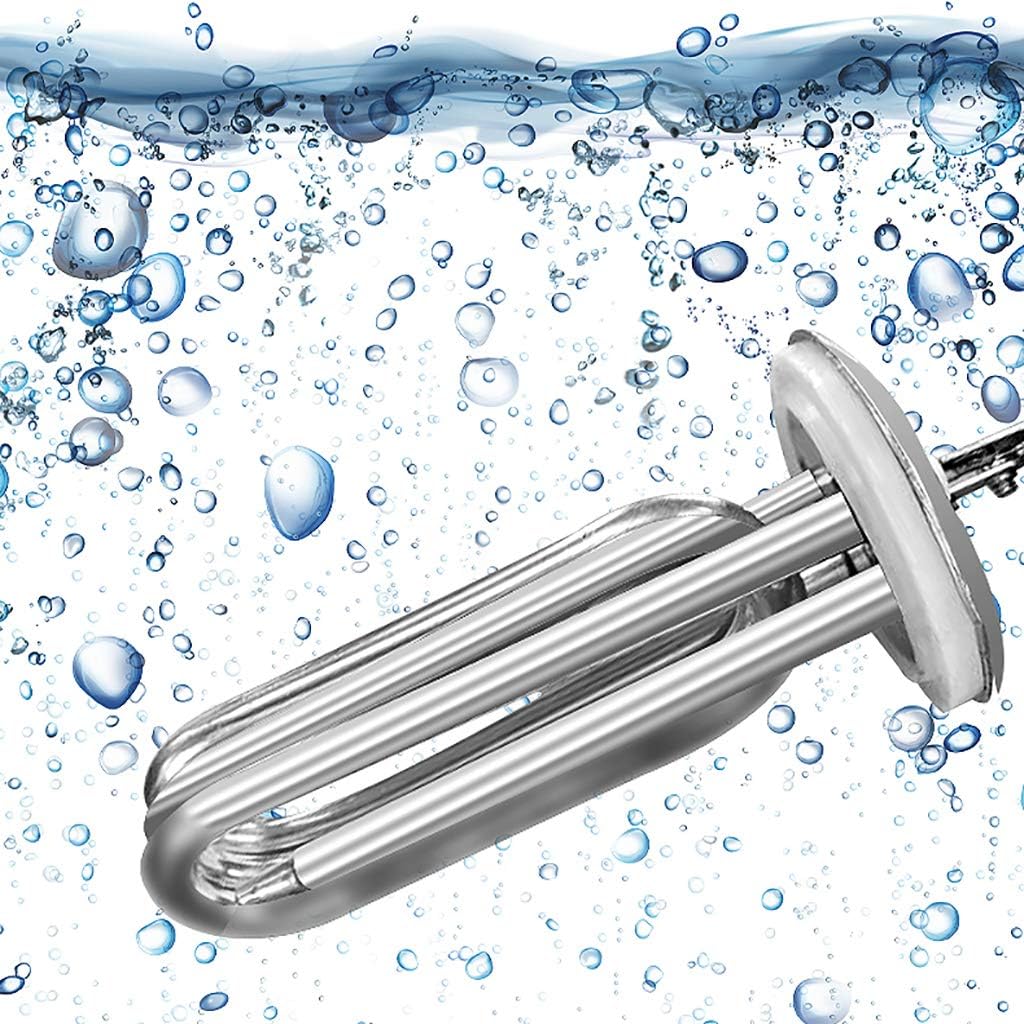

Figure 3.4: The 2500W pure stainless steel heating tube, designed for rapid and safe water heating.

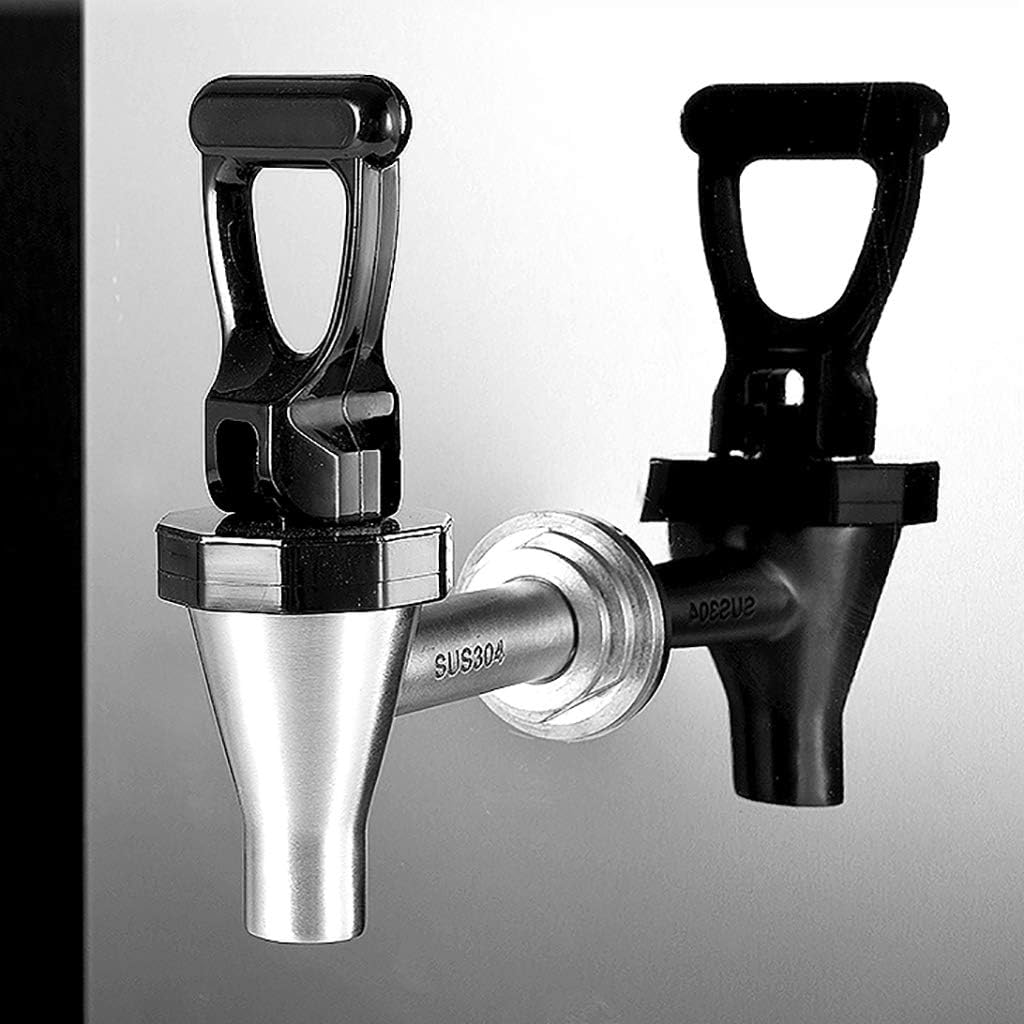

Figure 3.5: Detail of the 304 stainless steel faucet, featuring an anti-scald handle for user safety and drip-free operation.

4. Persediaan dan Pemasangan

1. Membongkar: Carefully remove the kettle from its packaging. Inspect for any damage during transit.
2. penempatan: Place the kettle on a stable, level, heat-resistant surface. Ensure there is adequate space around the unit for ventilation, especially at the rear.
3. Sambungan Air: Connect the appliance to a potable water supply using appropriate plumbing. Ensure all connections are tight to prevent leaks. The kettle features fully automatic water intake once connected.
4. Sambungan Kuasa: Palamkan kord kuasa ke salur keluar elektrik 220V yang dibumikan.
5. Pembersihan Awal: Before first use, it is recommended to fill the kettle with water, boil it, and then discard the water to clean any manufacturing residues. Repeat this process 2-3 times.

5. Arahan Operasi

1. Hidupkan kuasa: Once connected to water and power, the kettle will automatically begin to fill with water. The control panel will display the current status.
2. Proses Pemanasan: The kettle utilizes a step-by-step heating method, which efficiently boils water in layers, preventing repeated boiling and ensuring fresh hot water. The microcomputer control monitors water levels and initiates heating automatically.
3. Pemantauan Paras Air: Intelligent water level probes ensure the kettle automatically stops heating if water levels are too low, preventing dry burning.
4. Mengeluarkan Air Panas: To dispense hot water, simply press or pull the faucet handle. The anti-scald design ensures safe operation.
5. Temperature Control (if applicable): Refer to the control panel instructions for specific temperature adjustment features. (Note: Specific temperature control details are not provided in the source, so this is a general instruction.)

6. Penyelenggaraan dan Pembersihan

Pembersihan dan penyelenggaraan yang kerap akan memastikan jangka hayat dan prestasi optimum cerek anda.

• Pembersihan Harian:
  • Cabut plag perkakas dan biarkan sehingga sejuk sepenuhnya.
  • Remove the drip tray and empty any collected water. Wash the drip tray with mild soap and water, then rinse and dry thoroughly.
  • Lap bahagian luar cerek dengan iklanamp cloth. Do not use abrasive cleaners or scouring pads, as they can damage the stainless steel finish.
• Mengurangkan:
  • Depending on water hardness, mineral deposits (limescale) may accumulate inside the kettle. Descale regularly to maintain efficiency.
  • Use a commercial descaling solution suitable for stainless steel appliances, following the manufacturer's instructions. Alternatively, a solution of white vinegar and water can be used.
  • After descaling, rinse the interior thoroughly several times with fresh water to remove any residue.
• Pembukaan Pengudaraan: Periodically check and clean the ventilation opening at the rear to ensure it is free from dust and debris.

7. Penyelesaian masalah

Sebelum menghubungi sokongan pelanggan, sila rujuk isu dan penyelesaian biasa berikut:

8. Spesifikasi

Rajah 8.1: Dimensi produk untuk perancangan pemasangan.

9. Waranti dan Sokongan

Untuk maklumat jaminan atau sokongan teknikal, sila rujuk dokumentasi pembelian atau hubungi peruncit anda. Simpan bukti pembelian anda untuk sebarang tuntutan jaminan.

If you have any questions or require assistance, please contact customer service through the platform where the product was purchased.
