pengenalan
Thank you for choosing the Jectse Mini HD 1080P WiFi Camera. This compact and versatile camera is designed for indoor security and surveillance, offering features such as 1080P video recording, night vision, motion detection, and real-time monitoring via a mobile application. Please read this manual carefully to ensure proper setup and operation of your device.
Image: The Jectse Mini HD 1080P WiFi Camera, showcasing its compact design and connectivity ports.
Ciri-ciri Produk
- Video HD 1080P: Records high-definition video at 1080 pixels.
- Penglihatan Malam: Equipped with 6 photosensitive lenses for clear night vision.
- Pengesanan Pergerakan: Automatically detects movement and sends alerts.
- Kesambungan WiFi: Supports WiFi network connection for remote viewing via mobile app.
- Rakaman Gelung: Overwrites older footage apabila kad memori penuh.
- Reka Bentuk Magnetik: Strong magnetic force for easy attachment to metallic surfaces. Includes a magnetic bracket for adjustable angles.
- Bateri Terbina dalam: Provides up to 60 minutes of operation on a full charge.
- Saiz padat: Ultra-small body for easy portability and discreet placement.
- Storan Boleh Dikembangkan: Supports Micro SD cards up to 128GB (card not included).
Image: Visual representation of the camera's key features, including night vision, HD quality, remote access, hotspot, video/audio recording, and storage capabilities.
Kandungan Pakej
Sila semak pakej untuk item berikut:
- 1 x Jectse Mini HD 1080P WiFi Camera
- 1 x Manual Arahan
- 1 x Pendakap Magnetik
- 1 x Kabel Pengecas USB Mikro
Persediaan
1. Mengecas Kamera
Before first use, fully charge the camera. Connect the Micro USB charging cable to the camera's charging port and the other end to a 5V/1A USB power adapter (not included). A full charge takes approximately 30 minutes (from 0% to 100%).
2. Memasukkan Kad Mikro SD (Pilihan)
To enable video recording and storage, insert a Micro SD card (up to 128GB, not included) into the designated slot on the camera. Ensure the card is inserted correctly. The camera supports continuous recording for up to 21 hours with a 128GB card.
Image: The camera's Micro SD card slot, illustrating its storage capability for continuous recording.
3. Sambungan Apl Mudah Alih
Download the dedicated mobile application from your smartphone's app store. Follow the in-app instructions to connect the camera to your home or office WiFi network. This allows for real-time viewing dan kawalan.

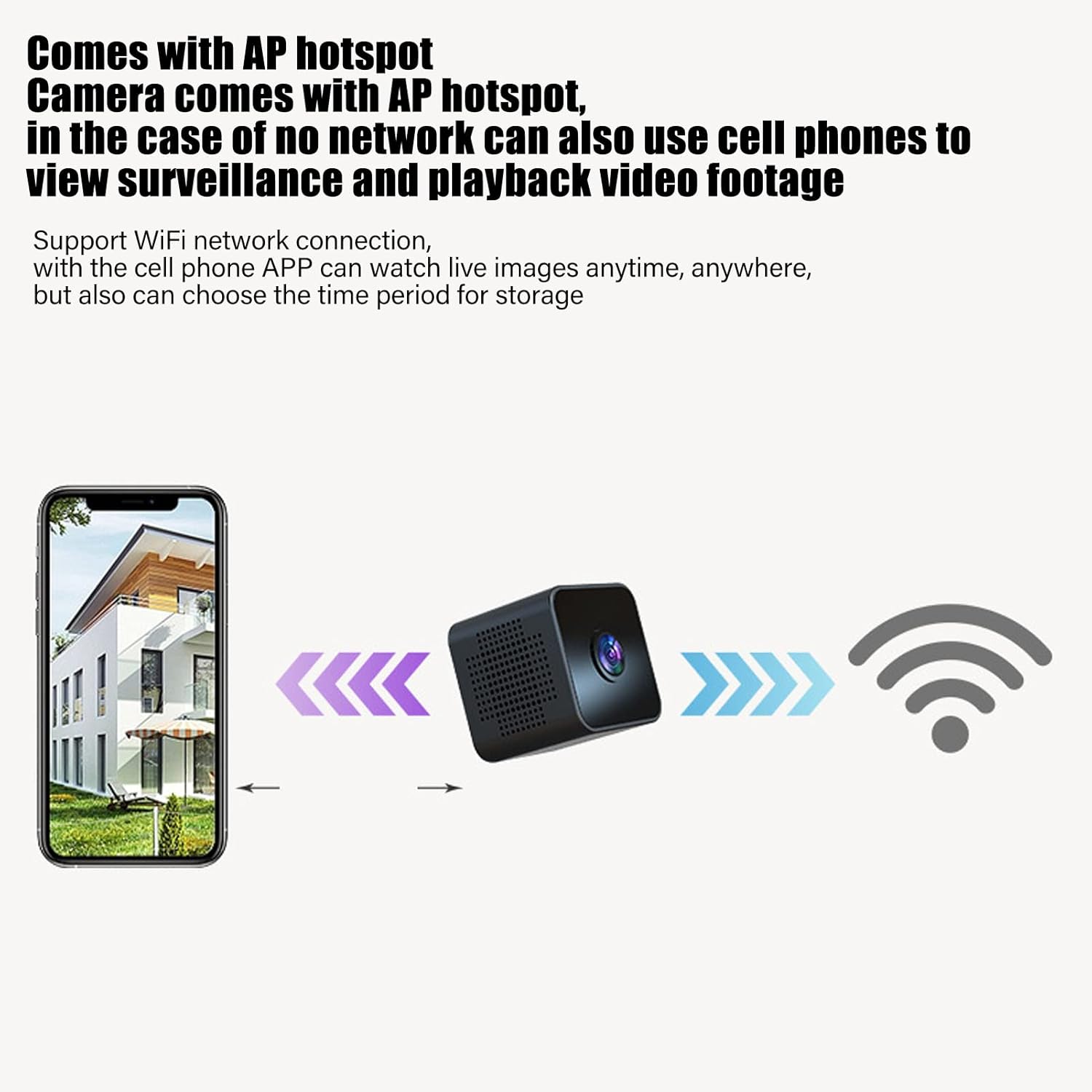

Image: Diagram showing a smartphone connecting to the camera, indicating remote viewing and control via the mobile app.
Arahan Operasi
Hidupkan/Mati Kuasa
Refer to the instruction manual included in the package for specific power on/off procedures. Typically, a long press of the power button will turn the device on or off.
Pemantauan masa nyata
Once connected to the mobile app, you can view video langsung footage from the camera anytime, anywhere. The app also allows you to set specific time periods for video storage.
Pengesanan Pergerakan
The camera features intelligent motion detection. When movement is detected in the camera's field of view, an alarm notification will be sent to your mobile app. This feature helps monitor your premises effectively.
Image: Illustration of the motion detection function, where the camera identifies movement and triggers an alert on a connected smartphone.
Penglihatan Malam
The camera is equipped with high-definition night vision capabilities, ensuring clear video even in low-light conditions. The night vision mode can be manually activated or set to open at specific times via the app.
Image: A visual comparison demonstrating the clear picture quality of the camera, highlighting its HD capabilities.
Rakaman Gelung
When a Micro SD card is inserted, the camera will continuously record. If the memory card becomes full, the camera will automatically overwrite the oldest video files to make space for new recordings, ensuring continuous surveillance without manual intervention.
Pemasangan Magnetik
The camera features a strong magnetic back, allowing it to be easily attached to any metallic surface. Use the included magnetic bracket to adjust the camera's angle for optimal viewing.
Image: Two perspectives of the mini camera, emphasizing its small size and magnetic design for flexible placement.

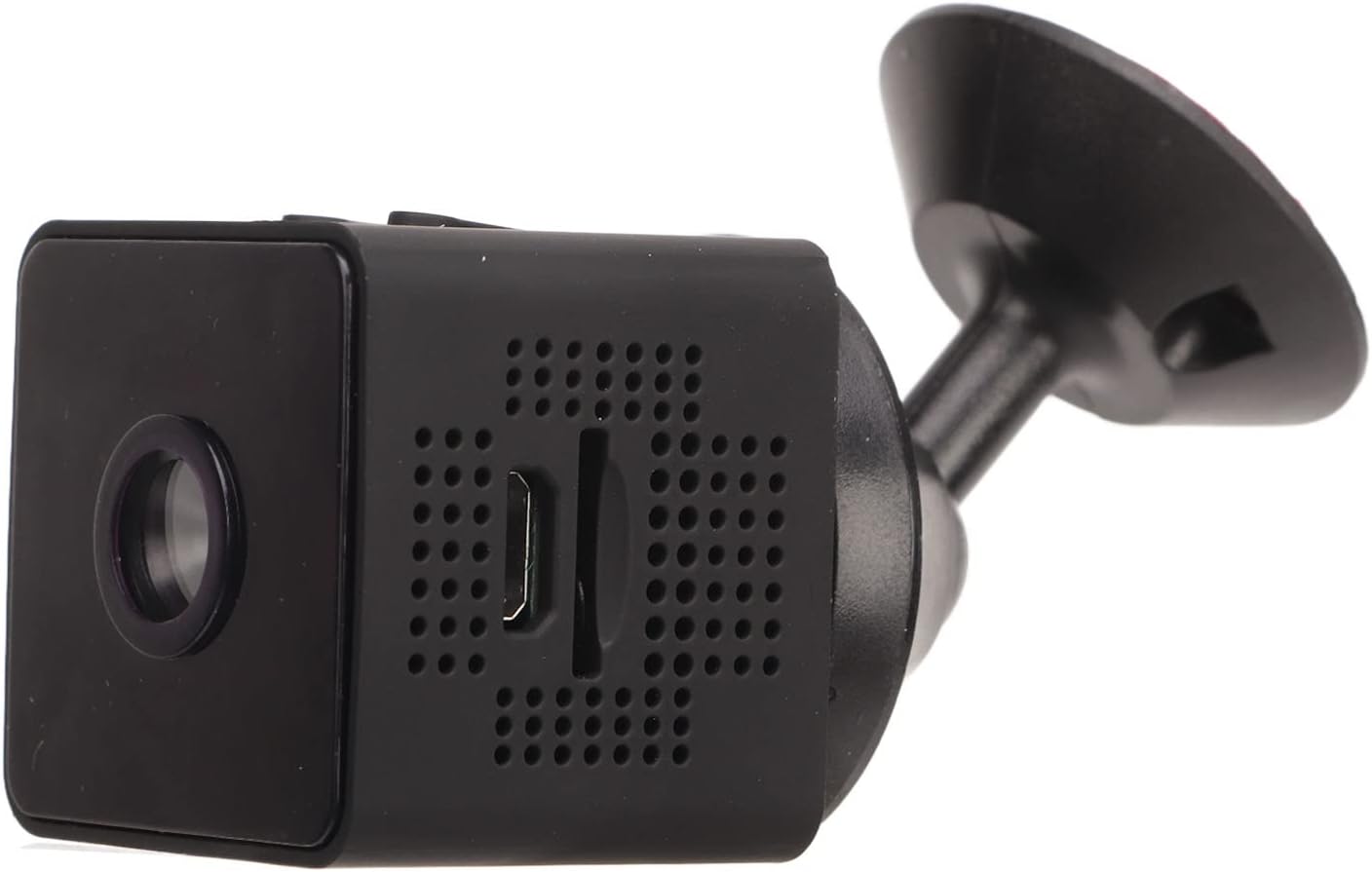

Imej: Sisi view of the camera, showing how it connects to the magnetic bracket for adjustable positioning.
Penyelenggaraan
- Pembersihan: Gunakan kain lembut dan kering untuk membersihkan kanta dan badan kamera. Elakkan menggunakan pembersih cecair atau bahan kasar.
- Storan: Simpan kamera di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
- Penjagaan Bateri: Untuk memanjangkan hayat bateri, elakkan daripada kerap mencas sepenuhnya bateri. Cas kamera secara berkala, walaupun tidak digunakan secara aktif.
- Kemas kini Firmware: Check the mobile application periodically for any available firmware updates to ensure optimal performance and security.
- Keadaan Persekitaran: This camera is designed for indoor use. It is not waterproof and should not be exposed to rain, moisture, or submerged in water.
Menyelesaikan masalah
| Masalah | Penyelesaian yang Mungkin |
|---|---|
| Kamera tidak dihidupkan. | Ensure the camera is fully charged. Connect it to a power source and wait for the charging indicator. |
| Tidak dapat menyambung ke WiFi. | Check your WiFi network credentials. Ensure the camera is within range of your router. Restart the camera and your router. Follow the app's connection guide carefully. |
| Tiada rakaman video. | Verify that a Micro SD card is properly inserted and formatted. Check if the card has sufficient free space. |
| Kualiti video yang teruk. | Ensure the camera lens is clean. Check your network connection speed if streaming remotely. |
| Pengesanan gerakan tidak berfungsi. | Check the motion detection settings in the mobile app. Ensure the camera's view adalah jelas dan tidak terhalang. |
Spesifikasi
| Jenis Produk | Kamera WiFi Mini |
| Nombor Model | Jectseot42hdk8wq |
| Resolusi Video | 1080P HD |
| Teknologi Penderia Imej | CMOS |
| Teknologi Ketersambungan | Wayarles (WiFi) |
| Sumber Kuasa | Built-in Rechargeable Battery (350 mAh) / Corded Electric (via Micro USB) |
| Hayat Bateri | Approx. 60 minutes (continuous recording) |
| Antara Muka Pengecasan | USB Mikro (5V/1A) |
| Tempoh Pengecasan | Approx. 30 minutes (0%-100%) |
| Penyimpanan | Kad SD Mikro (sehingga 128GB, tidak disertakan) |
| Standard Pemampatan Video | H.264 Main, H.264 Baseline, MJPEG, JPEG Baseline |
| Format Tangkapan Video | MP4 |
| Penglihatan Malam | Infrared (IR) with 6 photosensitive lenses, Color Night Vision |
| Pengesanan Pergerakan | Yes (App-controlled alerts) |
| Kaedah Kawalan | Aplikasi Mudah Alih |
| bahan | Plastik ABS |
| Approx. Product Dimensions | 3 x 3 x 3 cm |
| Penggunaan yang Disyorkan | Keselamatan Dalaman |
| Tahap Ketahanan Air | Not waterproof; designed for indoor use. |
Note: All data is measured manually and may contain minor discrepancies.
Waranti dan Sokongan
For warranty information and technical support, please refer to the contact details provided on the product packaging or the official Jectse webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.
If you encounter any issues not covered in this manual, please contact customer support for assistance.
