Manual Pengguna Ashdown Studio MiniRig 2 x 10 inci 250-watt Bass Head dan Kabinet

1. Pengenalan

The Ashdown Studio MiniRig is a compact yet powerful bass amplification system designed for bassists seeking classic Ashdown tone and comprehensive control. This unit combines a 250-watt solid-state bass amplifier head with a 2x10-inch speaker cabinet, offering versatility for practice, studio recording, and live performances. This manual provides essential information for the setup, operation, and maintenance of your Studio MiniRig.

2. Ciri-ciri Utama

• 250W Solid-state Bass Amplifier Head with Passive/Active Switch
• Footswitchable Overdrive
• 4-ohm 2 x 10" Speaker Cabinet
• Output Fon Kepala
• Keluaran DI
• Gelung FX

3. Persediaan

Follow these steps to set up your Ashdown Studio MiniRig:

1. penempatan: Position the 2x10 speaker cabinet on a stable, level surface. Place the amplifier head securely on top of the cabinet.
2. Sambungan Kuasa: Memastikan amplifier's power switch is in the 'OFF' position. Connect the supplied power cable to the AC input on the rear panel of the amplifier head and then to a suitable mains power outlet.
3. Sambungan Pembesar Suara: Connect the speaker output from the amplifier head to the input on the speaker cabinet using a high-quality speaker cable. Ensure a secure connection at both ends.
4. Sambungan Instrumen: Connect your bass guitar to the 'INPUT' jack on the front panel of the amplifier head. Use the 'PASSIVE/ACTIVE' switch to match your instrument's output level.
5. Tetapan Awal: Before powering on, set all EQ controls to their center (12 o'clock) position, and turn the 'GAIN' and 'VOLUME' controls fully counter-clockwise.

Rajah 3.1: Depan view of the Ashdown Studio MiniRig, showcasing yang amplifier head atop the 2x10 speaker cabinet.

4. Kawalan dan Sambungan

4.1 Kawalan Panel Hadapan

• MASUKKAN: 6.35mm jack for connecting your instrument.
• Suis PASIF/AKTIF: Selects input sensitivity for passive or active bass pickups.
• PRA-GAIN: Melaraskan tahap perolehan input.
• PEMANDU: Controls the amount of valve-emulated overdrive.
• BASS, LO-MID, MIDDLE, HI-MID, TREBLE: Penyamaan 5-jalur untuk membentuk ton.
• JILID: Kawalan kelantangan keluaran induk.
• FIZIKAL: 6.35mm stereo jack for private practice.

4.2 Sambungan Panel Belakang

• Suis kuasa: Berpusing amphidup atau mati.
• Input KUASA: Connects to mains power via the supplied cable.
• PENCERAMAH: Connects to the speaker cabinet.
• DI OUT (XLR): Balanced XLR output for connecting to a mixing console or recording interface.
• FX LOOP (SEND/RETURN): Untuk menyambungkan pemproses kesan luaran.
• FTSW (Footswitch): Input for an optional footswitch to control features like overdrive.

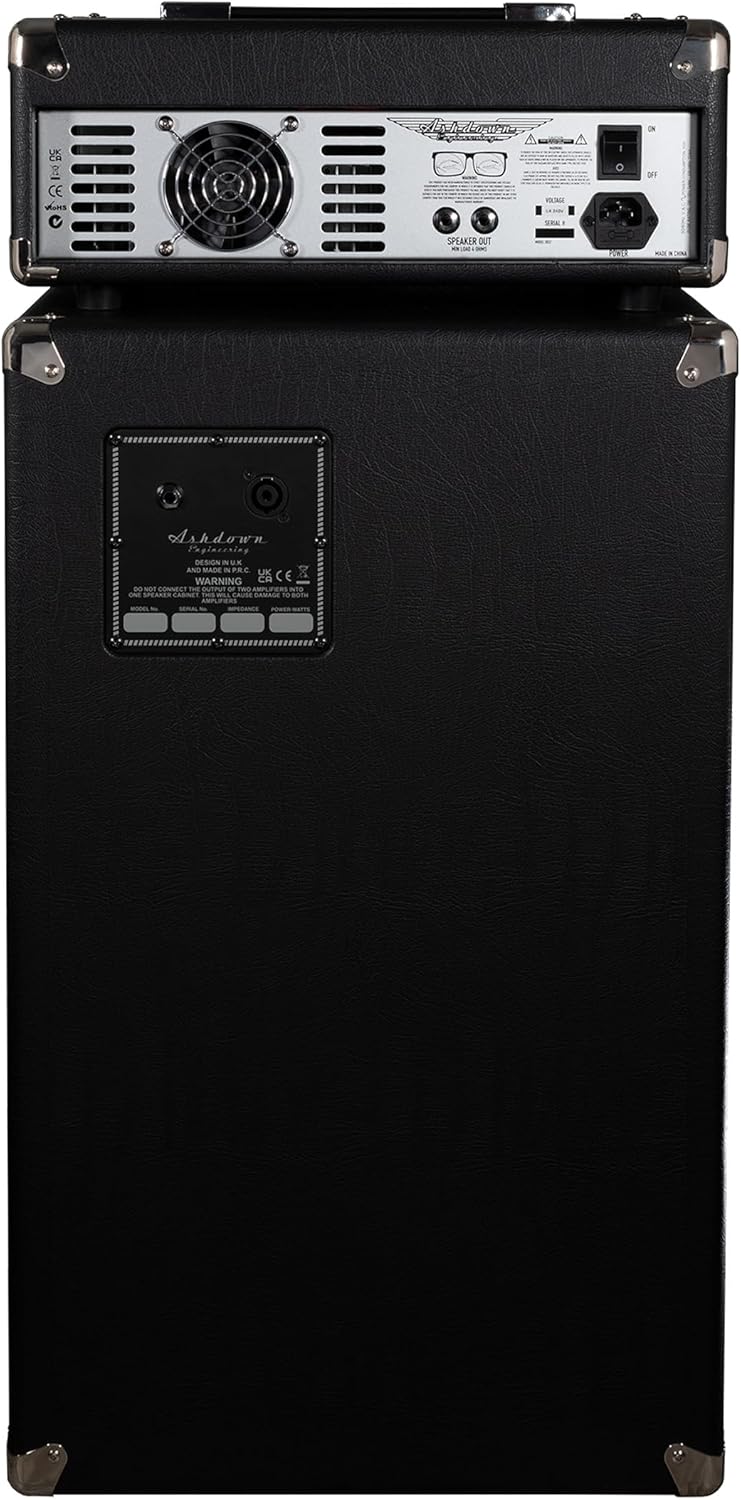

Figure 4.1: Rear panel of the Studio MiniRig, displaying input/output jacks, power switch, and other connections.

5. Operasi

1. Hidupkan kuasa: After all connections are made, switch the 'POWER' button to the 'ON' position.
2. Melaraskan Keuntungan: Slowly increase the 'PRE-GAIN' control until you achieve your desired input level. Avoid excessive gain to prevent unwanted distortion, unless using the overdrive feature.
3. Pembentukan Nada: Use the 5-band EQ controls (BASS, LO-MID, MIDDLE, HI-MID, TREBLE) to sculpt your desired bass tone. Experiment with these controls to find the sound that best suits your playing style and environment.
4. Overdrive: Engage the 'DRIVE' control to add valve-emulated overdrive. An optional footswitch can be used for hands-free activation during performance.
5. Jumlah Induk: Gradually increase the 'VOLUME' control to reach your desired overall output level.
6. Fon kepala: For silent practice, plug headphones into the 'HEADPHONES' jack. This will mute the speaker output.

Figure 5.1: The Ashdown Studio MiniRig set up with a bass guitar, illustrating its compact size in a home environment.

6. Sound and Power

The Studio MiniRig delivers 250 watts of solid-state power through two 10-inch custom speakers. This configuration provides a commanding tonal presence and classic Ashdown low-end tone. The amplifier head features a 5-band EQ for precise tone shaping and a footswitchable valve-emulated overdrive for added tonal versatility. The custom-designed speakers are optimized to reproduce the full frequency range of your bass with clarity and punch.

7. Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan bahagian luar amplifier and cabinet. Avoid abrasive cleaners or solvents.
• Storan: Store the unit in a dry, cool environment away from direct sunlight and extreme temperatures.
• Pengangkutan: When transporting, ensure all cables are disconnected and the unit is securely packed. Utilize the integrated side handle for safe carrying.
• Pengudaraan: Pastikan pengudaraan yang betul di sekeliling amplifier head to prevent overheating. Do not block any vents.

Rajah 7.1: Sisi view of the Studio MiniRig cabinet, showing the integrated carrying handle for portability.

8. Penyelesaian masalah

• Tiada Kuasa: Check the power cable connection at both the amplifier and the wall outlet. Ensure the power switch is 'ON'.
• Tiada Bunyi: Verify that your instrument cable is connected correctly. Check the speaker cable connection between the head and cabinet. Ensure 'VOLUME' and 'PRE-GAIN' controls are not at zero. If headphones are plugged in, unplug them to enable speaker output.
• Bunyi Herot: Reduce the 'PRE-GAIN' or 'DRIVE' controls. Check your instrument's output level. Ensure speaker impedance matches the ampkeperluan pengawas.
• Dengungan/Bunyi bising: Ensure all cables are properly shielded and connected. Try using a different power outlet.

9. Spesifikasi

10. Waranti dan Sokongan

For detailed warranty information and customer support, please refer to the documentation included with your product or visit the official Ashdown Engineering website. You can typically find contact information for technical support and service centers there.
