Reer Mama Basal Thermometer Instruction Manual

1. Pengenalan

The Reer Mama Basal Thermometer is designed for precise measurement of basal body temperature (BBT). This device assists in determining fertile days, thereby increasing the probability of pregnancy. It features high measurement accuracy with two decimal places and includes a flexible tip for comfortable oral use. Measurement data can be automatically transferred to a free companion application via Bluetooth for easy documentation and cycle tracking.

2. Maklumat Keselamatan

• This thermometer is intended for measuring basal body temperature orally. Do not use for other purposes.
• Keep the device and its components out of reach of children. Small parts can be a choking hazard.
• The thermometer is not a contraceptive device. It only assists in identifying fertile periods.
• Consult a healthcare professional for any medical concerns or before making any decisions based on temperature readings.
• Do not expose the thermometer to extreme temperatures, direct sunlight, or strong impacts.
• Jangan cuba membuka atau membaiki peranti sendiri.

3. Kandungan Pakej

Sila pastikan semua item ada dalam pakej:

• 1x Reer Mama Basal Thermometer
• 1x Bateri CR2032 (prapasang atau berasingan)
• 1x Penutup Pelindung
• 1x Manual Arahan

4. Produk Lebihview

Familiarize yourself with the components of your Reer Mama Basal Thermometer:

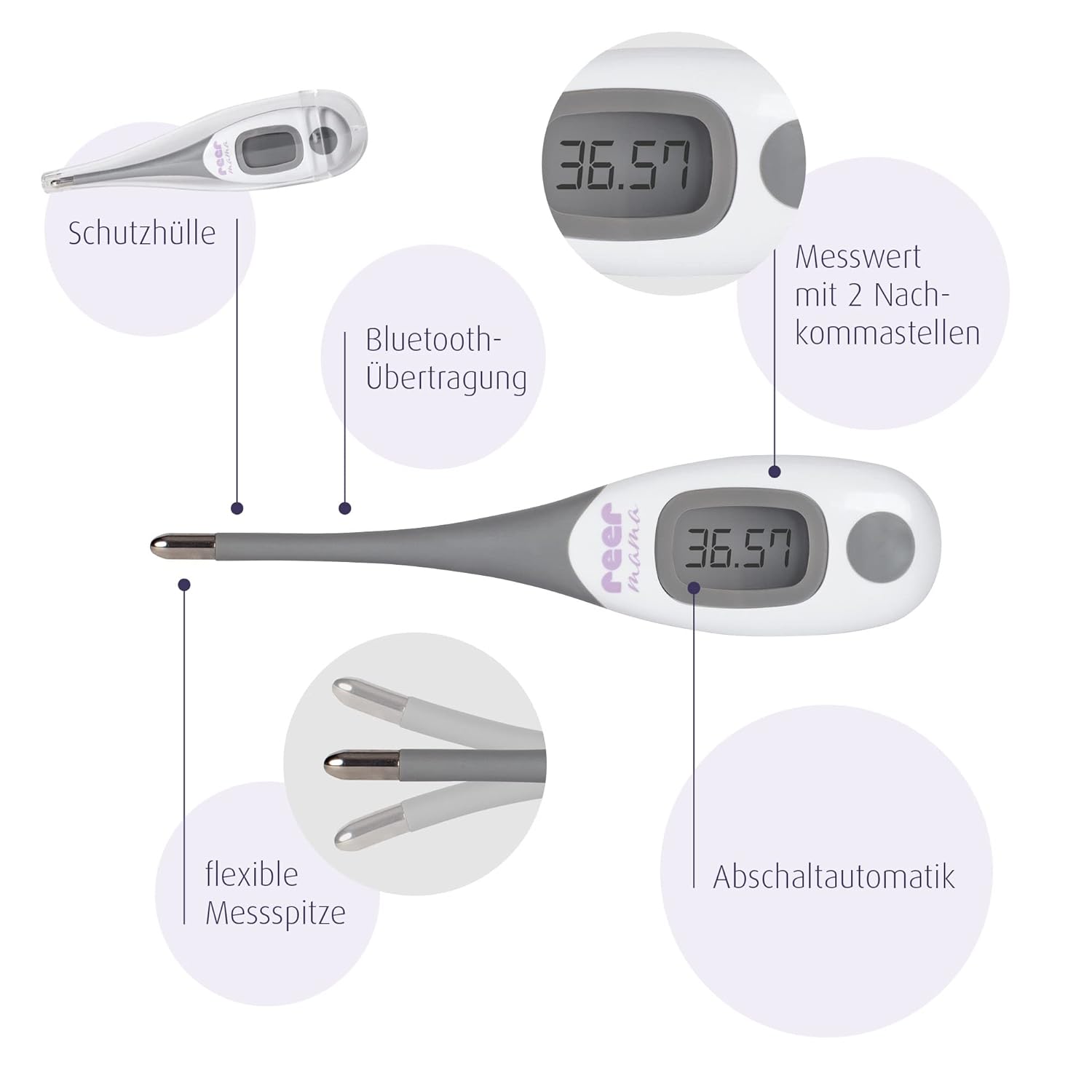

Image 4.1: Components of the Reer Mama Basal Thermometer. This image highlights the protective cover, flexible measuring tip, the digital display showing a temperature with two decimal places, the Bluetooth transmission capability, and the automatic shut-off function.

• Flexible Measuring Tip: Ensures comfortable and secure placement during oral measurement.
• Paparan Digital: Shows temperature readings with two decimal places for high precision.
• Butang Pengukuran: Used to power on/off the device and initiate measurements.
• Penutup Pelindung: For hygienic storage and transport of the thermometer.

5. Persediaan

5.1 Pemasangan Bateri

The thermometer comes with a CR2032 battery. If not pre-installed, or for replacement:

1. Gently twist and pull off the battery compartment cover located at the end of the thermometer.
2. Masukkan bateri CR2032 dengan sisi positif (+) menghadap ke atas.
3. Pasang semula penutup petak bateri, pastikan ia ditutup dengan selamat.

5.2 Muat Turun Aplikasi dan Penggandingan Bluetooth

To utilize the data documentation feature, download the free companion app and pair your thermometer:

1. Cari untuk the 'Reer Mama' app in your smartphone's app store (iOS or Android) and install it.
2. Dayakan Bluetooth pada telefon pintar anda.
3. Open the Reer Mama app and follow the on-screen instructions to add a new device.
4. Press the measurement button on the thermometer to turn it on. The app should detect the thermometer for pairing.
5. Confirm the pairing request on your smartphone. The connection is fast and easy.

Image 5.1: Connecting the Reer Mama Basal Thermometer to the companion app via Bluetooth for automatic data transfer.

6. Arahan Operasi

6.1 Taking a Basal Temperature Measurement

For accurate basal body temperature readings, follow these steps:

1. Take your temperature immediately after waking up, before getting out of bed, eating, or drinking.
2. Press the measurement button to turn on the thermometer. A short beep will sound, and the display will show the last measured temperature or 'Lo'.
3. Place the flexible tip of the thermometer under your tongue, as far back as comfortable, and close your mouth.
4. Hold the thermometer in place until a series of beeps indicates the measurement is complete. This typically takes a few minutes.
5. Baca suhu yang dipaparkan di skrin.

Image 6.1: Proper oral placement of the basal thermometer for measurement.

6.2 Data Transfer and Documentation

After measurement, the data can be transferred to the app:

1. Ensure your smartphone's Bluetooth is active and the Reer Mama app is open.
2. The thermometer will automatically attempt to transfer the measurement value to the app.
3. Verify that the temperature reading appears in the app. The app allows for documentation of measurement values and determination of fertile days.

Image 6.2: Visual representation of temperature data documentation and fertility day determination using the thermometer and app.

6.3 Pemadaman Automatik

The thermometer features an automatic shut-off function to conserve battery life. It will turn off automatically after a period of inactivity.

7. Penyelenggaraan dan Penjagaan

Proper care ensures the longevity and accuracy of your thermometer:

• Pembersihan: After each use, clean the thermometer tip with a soft cloth moistened with rubbing alcohol or a mild disinfectant. Do not immerse the entire thermometer in water.
• Storan: Store the thermometer in its protective cover in a cool, dry place, away from direct sunlight and extreme temperatures.
• Penggantian Bateri: Replace the CR2032 battery when the low battery indicator appears on the display. Follow the instructions in Section 5.1.

8. Penyelesaian masalah

If you encounter issues with your Reer Mama Basal Thermometer, refer to the following common problems and solutions:

9. Spesifikasi

10. Waranti dan Sokongan

This Reer Mama Basal Thermometer is manufactured to high-quality standards and complies with CE regulations. For warranty information, please refer to the specific terms provided at the point of purchase or contact Reer customer service directly. If you have any questions, require technical assistance, or need to report a defect, please contact the manufacturer or your retailer.

Manufacturer: Reer

Webtapak: www.reer.de (Please check for local contact information)
