ISDT N24 Smart Battery Charger User Manual

1. Pengenalan

The ISDT N24 Smart Battery Charger is a versatile and advanced charging station designed for various rechargeable battery types. It features independent multi-channel quick charging, a full-color LCD touch panel for displaying current job parameters and battery performance, and supports firmware upgrades for enhanced functionality.

Important Safety Note: The N24 charger does not support charging 1.5V & 5.0V lithium rechargeable batteries. If you are unsure of your battery type, please select 'Auto' mode to prevent potential accidents during charging.

Gambar 1: Lebihview of the ISDT N24 Smart Battery Charger.

2. Kandungan Pakej

• 1x ISDT N24 Charger
• 1x AC Wall Adapter
• Manual Pengguna (dokumen ini)

3. Persediaan

1. Buka Pembungkusan Pengecas: Carefully remove the ISDT N24 charger and all accessories from the packaging.
2. Sambungkan Kuasa: Connect the provided AC Wall Adapter to the Ø6.5 DC jack on the charger. Plug the adapter into a suitable power outlet. The charger's LCD screen will power on.
3. Pemeriksaan Awal: Before first use, inspect the charger for any visible damage.

Figure 2: The N-Series chargers, including the N24 model.

4. Arahan Operasi

4.1 Memasukkan Bateri

The N24 charger supports 1-24 AA/AAA cells. Insert batteries into the available slots, ensuring correct polarity. The charger will automatically detect the battery type and initiate charging based on default or previously set parameters.

Figure 3: Independent multi-channel quick charge feature with batteries inserted.

4.2 LCD Touch Panel and Navigation

The bright 2.4” high-resolution IPS LCD touch screen displays current job parameters and battery performance. Use the touch interface to navigate menus and adjust settings.

Figure 4: Full color LCD touch panel displaying battery parameters.

4.3 Mod Kerja

The charger offers professional work modes to meet various battery maintenance needs:

• caj: Pengecasan bateri standard.
• Pelepasan: Discharges batteries.
• Kitaran: Charges and discharges batteries multiple times to optimize performance.
• Activation (Refresh): Revitalizes problematic batteries by fully discharging and then fully charging them.
• Analisis: Provides detailed information about battery health and capacity.

Figure 5: Professional work modes menu on the charger's display.

4.4 Keserasian Jenis Bateri

The N24 charger provides all-in-one control for a wide range of battery types, including Li-Ion, LiHV, LiFe, NiMH, NiCd, and NiZn batteries. It features automatic battery type identification with intelligent charge algorithm matching.

Figure 6: Visual representation of various compatible battery types.

4.5 Tetapan Boleh Laras

You can customize various settings via the touch screen:

• Input Power Limit: Adjust the maximum input power (e.g., 36W, 48W) to match your power source.
• Caj Arus: Set the charge current per slot from 0.1A to 1.5A.
• Lampu latar: Laraskan kecerahan skrin.
• Buzzer: Kawal isyarat yang boleh didengar.
• Bahasa: Pilih bahasa pilihan anda.

4.6 Kemas kini Firmware

The charger's firmware is upgradeable. Connect the charger to your computer to update to the latest firmware for optimal performance and new features. Download the ISD (PC) version from the ISDT official webtapak.

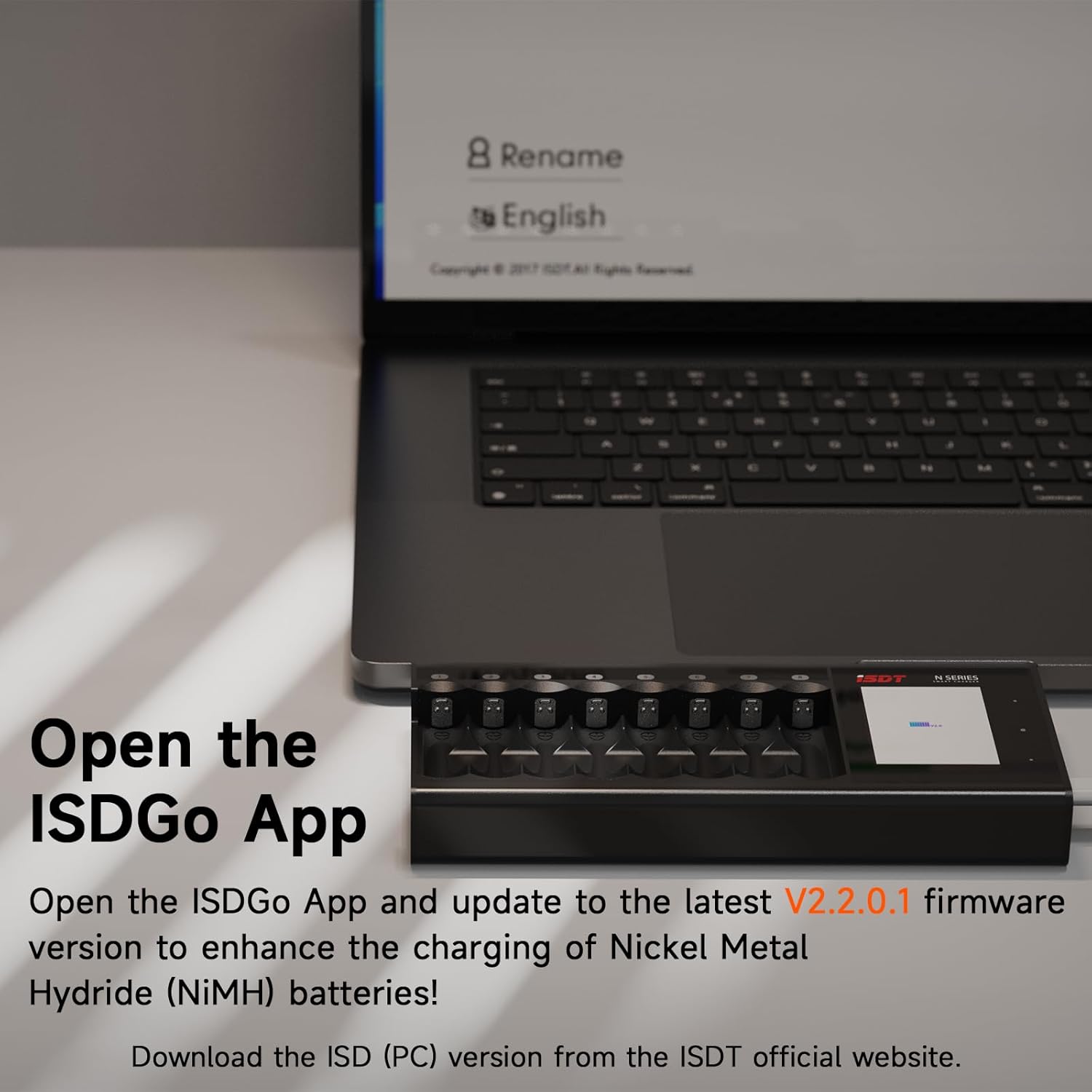

Figure 7: Instructions for updating firmware via the ISDGo App.

5. Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the charger's exterior. Avoid using abrasive cleaners or solvents. Ensure no liquids enter the charging slots or ports.
• Storan: Simpan pengecas di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau apabila tidak digunakan.
• Penjagaan Bateri: For optimal battery longevity, avoid completely draining batteries before recharging. Utilize the 'Cycle' or 'Activation' modes periodically for batteries exhibiting reduced performance.
• Pelesapan Haba: The aluminum alloy shell with an internal heat-conductive silica gel cooling system ensures efficient heat dissipation. Ensure the charger is placed in a well-ventilated area during operation.

6. Penyelesaian masalah

• Pengecas Tidak Dihidupkan: Ensure the AC wall adapter is securely connected to both the charger and a working power outlet. Check the power outlet with another device.
• Battery Not Charging/Recognized:
  • Sahkan bateri dimasukkan dengan kekutuban yang betul.
  • Ensure the battery type is compatible with the charger (refer to Section 4.4).
  • If using 'Auto' mode, ensure the battery is not a 1.5V or 5.0V lithium type, as these are not supported.
  • Clean battery contacts and charger slots if dirty.
  • Try the 'Activation' mode for deeply discharged or problematic batteries.
• Pengecasan perlahan: Check the 'Charge Current' setting (Section 4.5) and ensure it is set to your desired level. A lower current setting will result in slower charging.
• Terlalu panas: While the charger has a cooling system, ensure it is in a well-ventilated area. If batteries or the charger become excessively hot, discontinue use and allow them to cool. Reduce the charge current if necessary.

7. Spesifikasi

8. Waranti dan Sokongan

ISDT products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the official ISDT webtapak atau hubungi perkhidmatan pelanggan mereka secara langsung. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.
