1. Pengenalan
This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your FSE CP-40 Stainless Steel Coffee Percolator. Please read this manual thoroughly before initial use and retain it for future reference. The FSE CP-40 is a durable 40-cup capacity coffee percolator designed for institutional, commercial, or large-event use, featuring automatic temperature control and a clear water level gauge.
Imej: Depan view of the FSE CP-40 Stainless Steel Coffee Percolator, showcasing its polished stainless steel exterior, black handles, spigot, and water level gauge.
2. Arahan Keselamatan Penting
Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan, sentiasa ikuti langkah berjaga-jaga keselamatan asas ini:
- Baca semua arahan sebelum mengendalikan perkakas.
- Jangan sentuh permukaan panas. Gunakan pemegang atau tombol.
- Untuk melindungi daripada bahaya elektrik, jangan celupkan kabel, palam, atau alat ke dalam air atau cecair lain.
- Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
- Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian, dan sebelum membersihkan perkakas.
- Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara. Hubungi perkhidmatan pelanggan untuk pemeriksaan, pembaikan atau pelarasan.
- Penggunaan lampiran aksesori yang tidak disyorkan oleh pengilang perkakas boleh mengakibatkan kebakaran, renjatan elektrik atau kecederaan kepada orang.
- Jangan gunakan di luar rumah.
- Jangan biarkan kord tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
- Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
- Sentiasa pasangkan plag pada perkakas dahulu, kemudian palamkan kord ke dalam salur keluar dinding. Untuk memutuskan sambungan, matikan mana-mana kawalan kepada "mati", kemudian tanggalkan palam dari alur keluar dinding.
- Jangan gunakan perkakas untuk kegunaan selain daripada yang dimaksudkan.
- Ensure the brew stem is properly seated in the urn heat well before operation. Failure to do so can cause improper brewing or damage.

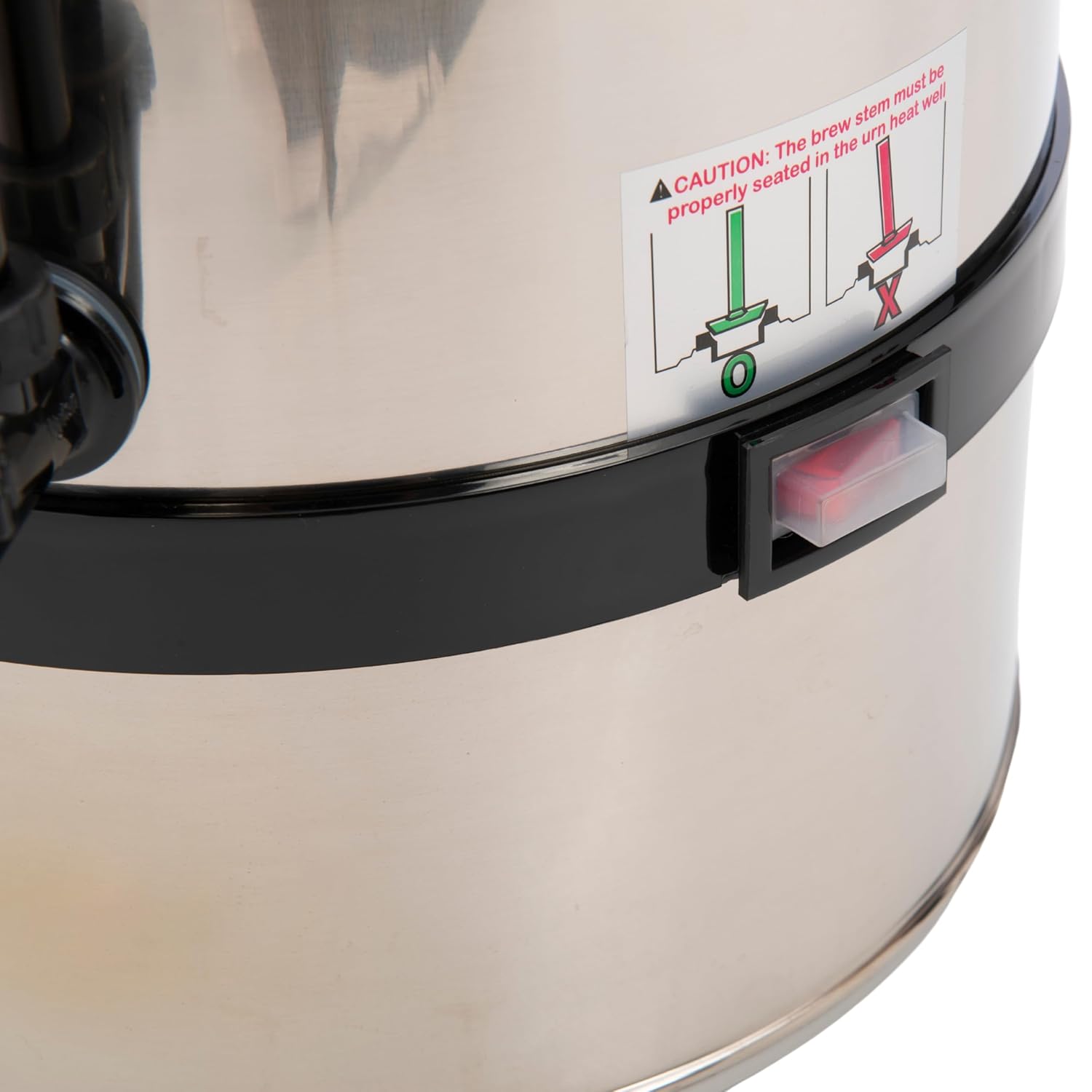

Imej: Dari dekat view of the red power switch and a warning label on the FSE CP-40, illustrating the correct and incorrect seating of the brew stem.
3. Komponen Produk
The FSE CP-40 Coffee Percolator consists of the following main parts:
- Tudung: Stainless steel cover with a heat-resistant knob.
- Bakul Kopi: Holds coffee grounds during brewing.
- Percolator Stem: Connects the coffee basket to the heating element, allowing water to circulate.
- Badan Tempayan: Stainless steel container with heat-resistant handles.
- Tolok Paras Air: Clear polycarbonate tube indicating the amount of coffee remaining.
- Spigot: Dispenses brewed coffee.
- Lampu Penunjuk: Red light that illuminates when brewing is complete and coffee is kept warm.
- Suis kuasa: On/Off switch for operation.
Imej: Atas view of the FSE CP-40 percolator lid, showing its domed shape and black knob.
Image: A hand lifting the lid off the FSE CP-40 percolator, revealing the interior.
Imej: Dalaman view of the FSE CP-40 percolator, highlighting the central brew stem and the perforated base where the coffee basket rests.
Image: Close-up of the FSE CP-40 percolator's black spigot and the clear water level gauge with cup markings.
4. Arahan Persediaan
Before first use, wash all removable parts (lid, coffee basket, percolator stem) in warm, soapy water, rinse thoroughly, and dry. Wipe the exterior of the urn with a damp kain.
- penempatan: Place the percolator on a stable, level, heat-resistant surface away from walls or other appliances. Ensure adequate ventilation.
- Assemble Internal Parts: Insert the percolator stem into the heat well at the bottom of the urn. Place the coffee basket onto the percolator stem.
- Tambah Air: Fill the urn with cold, fresh water to the desired level, indicated by the water level gauge. Do not fill above the maximum fill line.
- Tambah serbuk kopi: Add regular or percolator grind coffee to the coffee basket. Use approximately 1 tablespoon of coffee per cup (5 oz.) of water, adjusting to taste. Do not use fine grind coffee as it may seep through the basket.
- Tudung Selamat: Place the lid securely on the urn.
5. Arahan Operasi
- Pasangkan: Palamkan kord kuasa ke soket elektrik 120V AC standard.
- Mulakan Pembuatan Bir: Flip the power switch to the 'ON' position. The percolator will begin the brewing cycle.
- Brewing Indicator: The red indicator light will illuminate when the brewing process is complete. The percolator will then automatically switch to a 'keep warm' function, maintaining the coffee at an optimal serving temperature.
- Hidangan: To dispense coffee, press down on the spigot handle. Release the handle to stop the flow.
- Selepas Penggunaan: When all coffee has been served or when the percolator is no longer needed, flip the power switch to the 'OFF' position and unplug the unit from the wall outlet.
6. Pembersihan dan Penyelenggaraan
Regular cleaning ensures optimal performance and extends the life of your percolator.
- Cabut dan Sejukkan: Always unplug the percolator and allow it to cool completely before cleaning.
- Buka: Remove the lid, coffee basket, and percolator stem. Discard used coffee grounds.
- Bahagian Basuh: Wash the lid, coffee basket, and percolator stem in warm, soapy water. Rinse thoroughly and dry completely.
- Bahagian Dalaman Urn Bersih: Fill the urn with warm, soapy water and use a soft brush or sponge to clean the interior. Pay attention to the heat well area. Rinse thoroughly multiple times to remove all soap residue.
- Bahagian Luar Tempayan Bersih: Lap bahagian luar tempayan dengan iklanamp cloth. Do not immerse the urn body in water.
- Pembersihan Keran: Periodically, the spigot may need more thorough cleaning. If removable, disassemble and clean all parts. Ensure no coffee residue builds up, which can affect flow.
- Mengurangkan: Over time, mineral deposits may accumulate. To descale, fill the urn with a solution of equal parts white vinegar and water. Let it sit for an hour, then run a brew cycle with the solution (without coffee grounds). Rinse thoroughly with fresh water several times.
- Storan: Store the clean and dry percolator in a cool, dry place.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kopi tidak dibancuh | Not plugged in; Power switch off; Brew stem not seated correctly; No water. | Ensure unit is plugged in and power switch is ON. Verify brew stem is properly inserted. Check water level. |
| Kopi terasa lemah | Not enough coffee grounds; Coarse grind coffee; Brewing too quickly. | Increase coffee grounds. Use regular or percolator grind. Ensure proper water-to-coffee ratio. |
| Coffee tastes bitter/too strong | Too many coffee grounds; Fine grind coffee; Over-extraction. | Reduce coffee grounds. Avoid fine grind. Ensure brewing cycle completes naturally. |
| Serbuk kopi dalam kopi yang telah dibancuh | Fine grind coffee; Coffee basket overflowed. | Use regular or percolator grind. Do not overfill coffee basket. |
| Spigot drips or leaks | Residue buildup; Loose spigot. | Clean spigot thoroughly. Tighten spigot if it is designed to be tightened. |
8. Spesifikasi
- model: CP-40
- kapasiti: 40 cups (5 oz. each) / 1.6 gallons
- Bahan: Keluli Tahan Karat
- Kuasa: 120V, 1350W, 11.25 Amps
- Dimensi: 18.5 x 10.25 x 11.5 inci
- Berat: 9.5 paun
- Ciri Khas: Kawalan Suhu Automatik
- Pensijilan: Tersenarai ETL, Sanitasi ETL
9. Waranti dan Sokongan
For warranty information or technical support, please refer to the warranty card included with your product or contact FSE customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
Pengeluar: fse
Tarikh Mula-mula Tersedia: 6 Januari 2023
