1. Pengenalan
This manual provides essential information for the safe and efficient use of your Intex PureSpa Calacatta Square Hot Tub, Model 28464EX. Please read all instructions carefully before installation and operation. This 4-person inflatable spa features 140 powerful air bubble jets and 4 hydro jets, an integrated heating system, and a stylish Calacatta marble-inspired design.
Image 1.1: The Intex PureSpa Calacatta Square Hot Tub, Model 28464EX, shown in an outdoor setting.
2. Maklumat Keselamatan Penting
Always follow basic safety precautions when installing and using this electrical product. Failure to follow these instructions can result in injury or death.
- Do not permit children to use this product unless they are supervised at all times.
- Do not use the spa if the temperature is below 4°C (40°F).
- The spa should be placed on a flat, level surface capable of supporting the weight of the filled spa and occupants.
- Always disconnect the power plug from the electrical outlet before removing, cleaning, servicing, or making any adjustment to the product.
- Do not operate the spa if the cover is not properly secured.
- Consult a physician before use if you are pregnant, have heart disease, high blood pressure, diabetes, or any other health condition.
3. Kandungan Pakej
Pastikan semua komponen berada dalam keadaan baik dan lengkap:
- Tab Spa Kembung
- Spa Control Unit (with integrated inflation system)
- Penutup Bertebat
- Kain Tanah
- Storage and Transport Bag
- Kartrij Penapis (2)
- Dispenser Kimia
- Kit Tampalan Pembaikan
4. Arahan Persediaan
4.1 Penyediaan Tapak
Choose a flat, level, and stable surface for your spa. Ensure the area is free from sharp objects and debris. The surface must be able to support the weight of the filled spa (approximately 795 liters of water plus occupants).
4.2 Laying the Ground Cloth
Unfold the ground cloth and place it on your chosen site. This provides an additional layer of protection for the spa's base.
Image 4.1: The protective ground cloth should be placed on a level surface before setting up the spa.
4.3 Inflasi
- Unpack the spa tub and place it on the ground cloth.
- Sambungkan hos inflasi dari unit kawalan ke injap inflasi spa.
- Pasangkan unit kawalan ke soket elektrik yang dibumikan.
- Press the inflation button on the control panel to begin inflating the spa. Inflate until the spa walls are firm to the touch, but not over-inflated.
- Once inflated, disconnect the hose and securely close the inflation valve.
4.4 Memenuhi Spa
Fill the spa with fresh tap water to the indicated maximum fill line. Do not overfill.
5. Arahan Operasi
5.1 Panel Kawalan Selesaiview
The PureSpa features a wireless, rechargeable control panel for easy operation. Familiarize yourself with the buttons and display.
Image 5.1: The wireless control panel allows for easy adjustment of spa functions.
5.2 Memanaskan Air
Press the heater button on the control panel. Use the temperature adjustment buttons to set your desired water temperature (range: 10°C to 40°C / 50°F to 104°F). The heating indicator light will illuminate. The heating system will automatically turn off once the set temperature is reached.
5.3 Activating Jets
Press the bubble jet button to activate the 140 air bubble jets for a relaxing massage. Press the hydro jet button to activate the 4 directional hydro jets for a more targeted massage. You can use both types of jets simultaneously.
Image 5.2: The spa features both invigorating air bubble jets and powerful hydro jets.
5.4 Sistem Penapisan
The filtration system operates automatically to keep the water clean. Ensure filter cartridges are installed correctly and cleaned regularly.
6. Penyelenggaraan
6.1 Kimia Air
Maintain proper water chemistry using appropriate spa chemicals. Test the water regularly and adjust pH, alkalinity, and sanitizer levels as needed. Refer to your chemical manufacturer's instructions.
6.2 Pembersihan dan Penggantian Kartrij Penapis
The filter cartridges should be cleaned frequently, ideally after each use or every few days, depending on usage. Rinse them with a garden hose. Replace cartridges every 2-4 weeks, or when they remain dirty after cleaning.
6.3 Spa Cleaning
Periodically drain and clean the spa tub. Use a soft brush and mild cleaning solution. Rinse thoroughly before refilling.
6.4 Perlindungan Spa
Always use the insulated cover when the spa is not in use to retain heat and keep debris out. Secure the cover straps to prevent accidental removal.

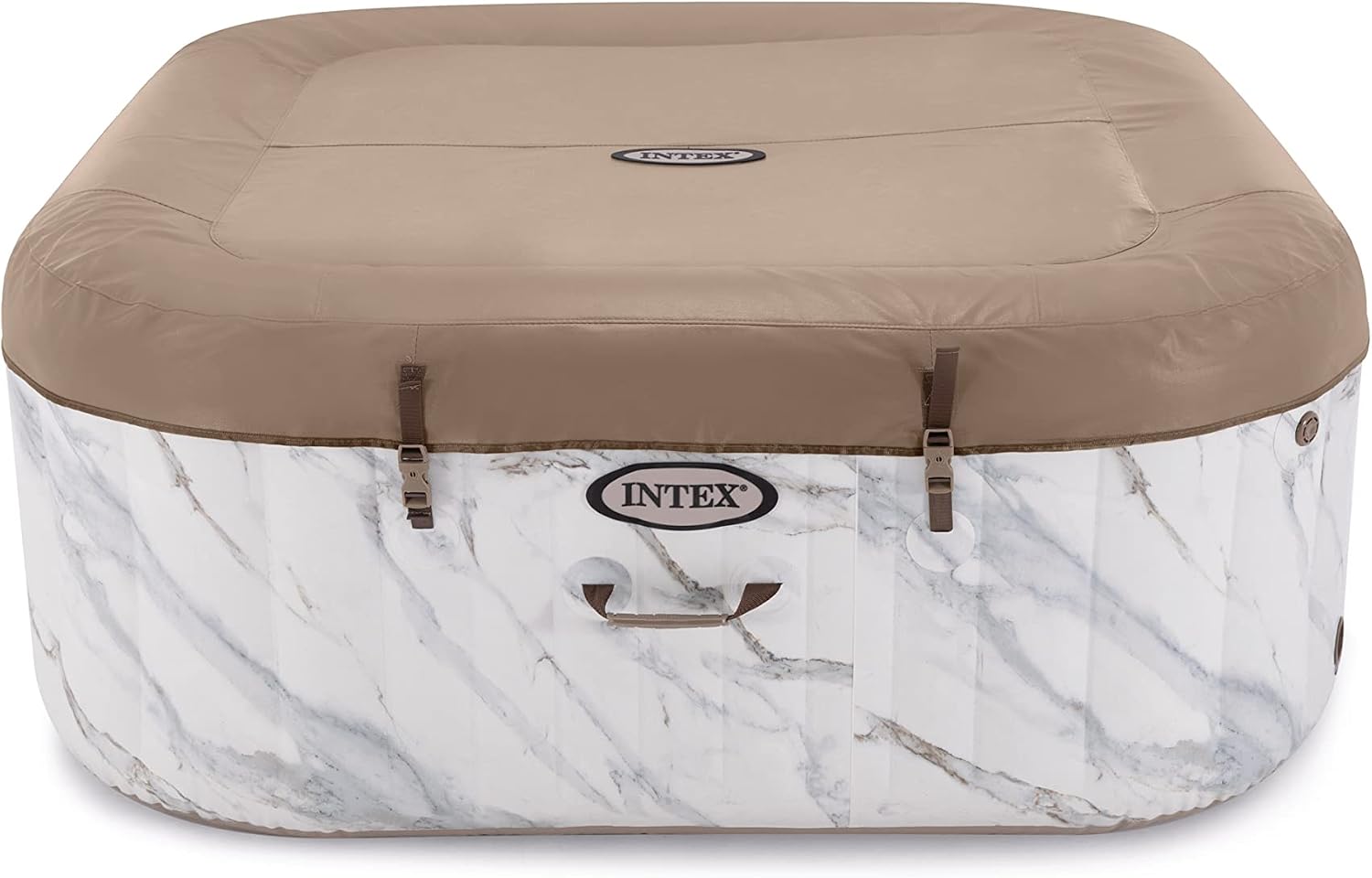

Image 6.1: The insulated cover helps maintain water temperature and keeps the spa clean.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Spa tidak dipanaskan | Heater button not activated; filter clogged; water level too low; ambient temperature too cold. | Ensure heater is on; clean/replace filter; add water to fill line; ensure ambient temperature is suitable. |
| Jet tidak berfungsi | Jet button not activated; air blower/pump issue; power supply problem. | Activate jet function; check power connection; consult support if issue persists. |
| Air keruh | Dirty filter cartridge; improper water chemistry; heavy usage. | Clean/replace filter; test and adjust water chemistry (sanitizer, pH); shock treat the water. |
| Spa kehilangan udara | Penutup injap inflasi longgar; tusukan kecil. | Tighten valve cap; locate and repair puncture using the provided repair kit. |
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 28464EX |
| Jenama | Intex |
| bentuk | Segi empat |
| Kapasiti Tempat Duduk | 4 orang |
| Kapasiti Air | 795 Liter |
| Outer Dimensions (L x W x H) | 211 x 211 x 71 cm (83 x 83 x 28 inci) |
| Inner Dimensions (L x W) | 160 x 160 cm (63 x 63 inci) |
| bahan | Polychlorure de vinyle (PVC), Vinyl |
| Number of Air Jets | 140 |
| Number of Hydro Jets | 4 |
| Julat Pemanasan | 10°C - 40°C (50°F - 104°F) |
| Voltage | 220 Volt |
| Berat Barang (kosong) | 53.7 Kilogram (118.4 lbs) |
| Perhimpunan Diperlukan | ya |

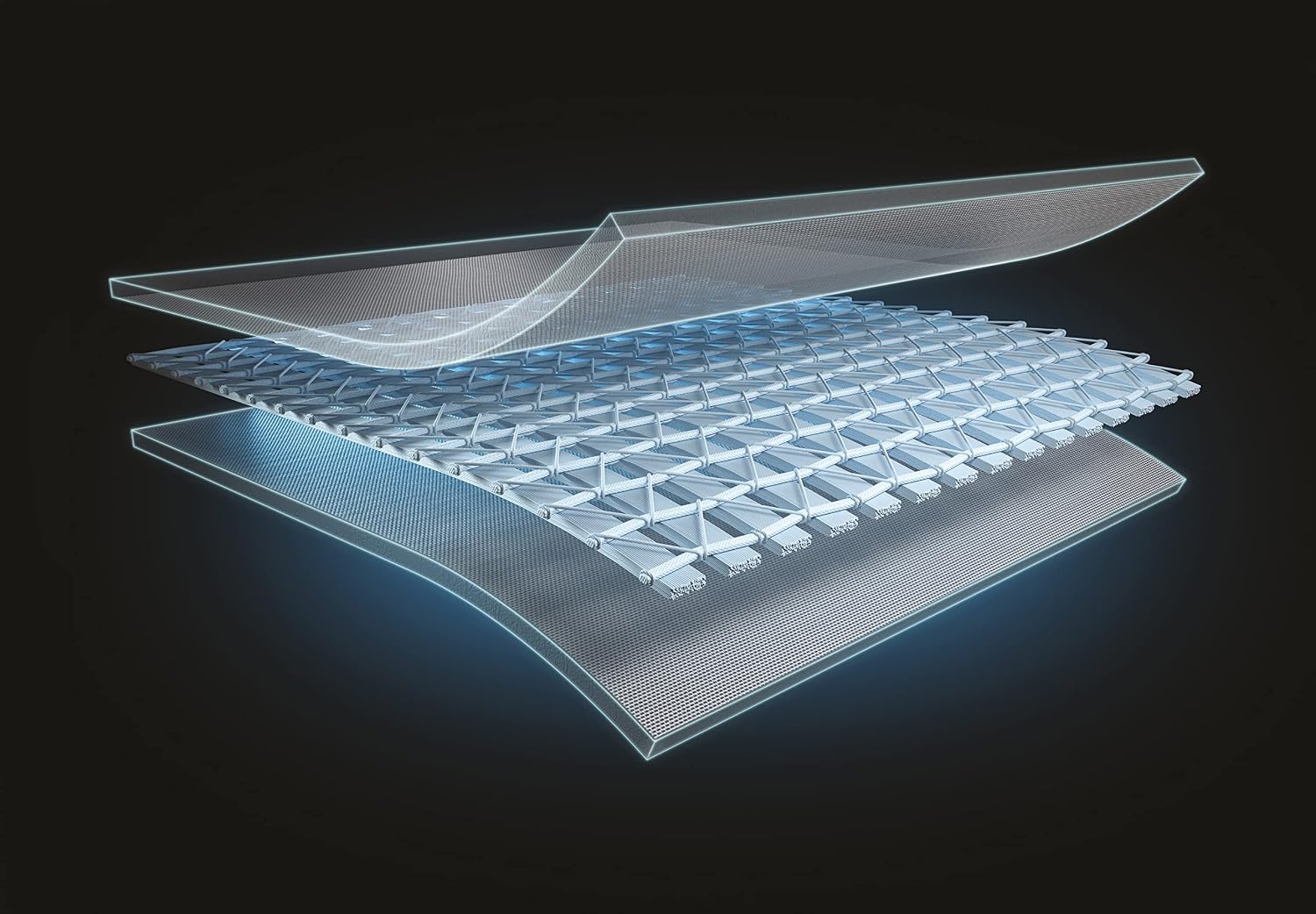

Image 8.1: The durable multi-layered PVC and Vinyl construction ensures product longevity.
9. Waranti dan Sokongan
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Intex webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
If you encounter issues not covered in the troubleshooting section, contact Intex customer service for assistance. Contact details can typically be found on the Intex webtapak atau dalam pembungkusan produk anda.
