pengenalan
This manual provides essential information for the safe and efficient use of your Maclean MCE303 NW LED E27 Bulb. Please read these instructions carefully before installation and operation. Keep this manual for future reference.
Image: Packaging of the Maclean MCE303 NW LED E27 Bulb, showing product details and energy efficiency class.
Persediaan dan Pemasangan
The Maclean MCE303 NW LED E27 Bulb is designed for easy installation into standard E27 sockets. Follow these steps for safe setup:
- Matikan: Before attempting any installation, ensure the power supply to the light fixture is turned off at the main switch or circuit breaker.
- Sahkan Jenis Soket: Confirm that your light fixture has an E27 screw-in socket. This bulb is not compatible with other socket types.
- Skru Dalam Mentol: Carefully screw the LED bulb into the E27 socket clockwise until it is snug. Do not overtighten.
- Pulihkan Kuasa: Once the bulb is securely installed, restore power to the light fixture.
- Kefungsian Ujian: Turn on the light switch to verify the bulb is working correctly.
For optimal performance, ensure the fixture provides adequate ventilation around the bulb.

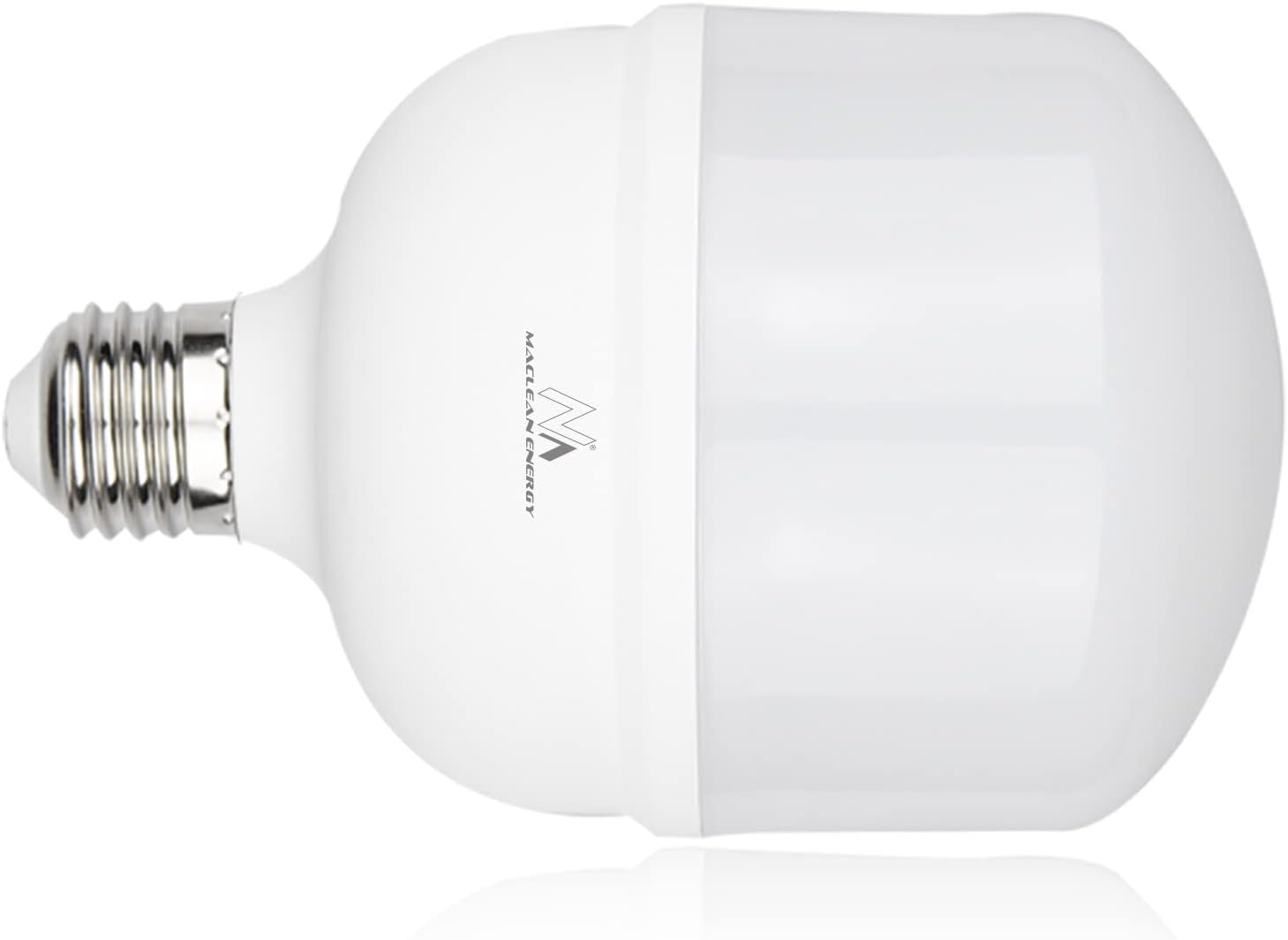

Imej: Jarak dekat view of the Maclean MCE303 NW LED E27 Bulb, highlighting its E27 screw base.
Arahan Operasi
The Maclean MCE303 NW LED E27 Bulb operates like a standard light bulb. It is designed for immediate full brightness upon switching on.
- Hidupkan/Mati: Use the existing light switch connected to the fixture to turn the bulb on or off.
- Warna terang: This bulb provides a neutral white light at 4000 Kelvin, suitable for various environments requiring clear, bright illumination.
- Kecekapan Tenaga: The bulb consumes only 38 Watts while providing a high luminous flux of 3990 lumens, offering significant energy savings compared to traditional incandescent bulbs.
Image: A graphic illustrating the extended lifespan of LED technology (50,000 hours) compared to CFL bulbs (15,000 hours).
Penyelenggaraan
The Maclean MCE303 NW LED E27 Bulb requires minimal maintenance due to its long lifespan and durable design.
- Pembersihan: Ensure the power is off before cleaning. Use a soft, dry cloth to gently wipe the bulb. Do not use liquid cleaners or abrasive materials.
- Penggantian: Replace the bulb only after it has cooled down completely. Always ensure the power is off before replacing.
- Pelupusan: Dispose of the LED bulb according to local regulations for electronic waste. Do not dispose of with general household waste.
Menyelesaikan masalah
If you encounter issues with your Maclean MCE303 NW LED E27 Bulb, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Mentol tidak menyala. | Tiada kuasa pada lekapan, sambungan longgar atau mentol rosak. | Check power supply. Ensure bulb is screwed in tightly. Test with another working bulb. |
| Mentol berkelip-kelip. | Loose connection, incompatible dimmer switch, or voltage turun naik. | Tighten bulb. Ensure dimmer switch is LED-compatible (this bulb is not specified as dimmable). Check household wiring for stable voltage. |
| Kecerahan berkurangan. | Dust accumulation or end of bulb lifespan. | Clean the bulb gently. If the bulb is near its rated lifespan (20,000 hours), consider replacement. |
Jika masalah berterusan selepas mencuba penyelesaian ini, hubungi khidmat pelanggan.
Spesifikasi
Detailed technical specifications for the Maclean MCE303 NW LED E27 Bulb:
| Ciri | Perincian |
|---|---|
| Jenama | Maclean |
| Nombor Model | MCE303 NW |
| Jenis Mentol | LED |
| Jenis Cap | E27 |
| Penggunaan Kuasa | 38 Watt |
| Fluks Bercahaya | 3990 Lumen |
| Suhu Warna | 4000 Kelvin (Putih Neutral) |
| Indeks Paparan Warna (CRI) | 80 |
| Sudut Rasuk | 200 Darjah |
| Purata Jangka Hayat | 20,000 Jam |
| Voltage | 240 Volt |
| Kelas Kecekapan Tenaga | F |
| Dimensi (Pakej) | 17 x 11 x 11 cm |
| Berat Barang | 10 gram |
Image: EU Energy Label for the Maclean MCE303 NW LED E27 Bulb, showing an 'F' energy efficiency rating and 38 kWh/1000h consumption. View Maklumat Produk EPREL
Maklumat Waranti
Specific warranty details for the Maclean MCE303 NW LED E27 Bulb are not available in the provided product data. Please refer to the retailer or manufacturer's official webtapak untuk terma dan syarat jaminan semasa.
Sokongan Pelanggan
For further assistance, technical support, or inquiries regarding your Maclean MCE303 NW LED E27 Bulb, please contact Maclean customer service through their official channels. Contact information was not provided in the product data.
