pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your SALCAR RV11 WiFi Smart Thermostatic Radiator Valve. This device allows for precise temperature control in individual rooms, enhancing comfort and energy efficiency through smart home integration.
Kandungan Pakej
Sila sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:
- 3x SALCAR RV11 Thermostatic Radiator Valves
- 18x Adapters (3x RA, 3x RAV, 3x RAVL, 3x Canleffi, 3x Giacomini, 3x M28)
- 3x Adapter Screws
- 1x Manual Pengguna
Image: Contents of the SALCAR RV11 package, showing the three smart radiator valves, a selection of adapters for different radiator types, mounting screws, and the instruction manual.
Ciri-ciri Produk
The SALCAR RV11 Smart Thermostatic Radiator Valve offers a range of features designed to optimize your home heating system:
- Kesambungan WiFi: Control your heating remotely via a 2.4 GHz WLAN network using the Smart Life or Tuya app.
- Penjimatan Tenaga: Reduce energy consumption by up to 30% through precise temperature settings and programmable schedules for individual heating zones.
- Remote & Voice Control: Manage your heating anytime, anywhere via the Smart Life app. Compatible with Amazon Alexa and Google Assistant for voice commands.
- Pengesanan Terbuka Tetingkap: Automatically detects open windows and adjusts the temperature to 12°C for 30 minutes to prevent energy waste.
- Fungsi Kunci Kanak-kanak: Prevents unauthorized changes to settings. Activate by long-pressing the middle button for 3 seconds.
- Perlindungan Fros: Activates when the room temperature drops below 5°C, heating until it reaches 8°C to prevent pipe damage.
- Anti-Calcification Function: Performs a routine descaling cycle every Monday at 12:00 PM to prevent valve rust and extend product lifespan.
- Fungsi Tidur: The display darkens after 5 seconds of inactivity to save energy and prolong battery life.
- Penggera Bateri Rendah: Memberitahu anda apabila bateri perlu diganti.
Image: The SALCAR RV11 thermostat head on a radiator, highlighting its key features such as WiFi connectivity, frost protection, and app control.
Persediaan dan Pemasangan
1. Pemasangan Bateri
The SALCAR RV11 requires three AAA batteries (not included). Open the battery compartment, insert the batteries according to the polarity markings, and close the compartment securely.
2. Memasang Termostat
The thermostat comes with various adapters to ensure compatibility with most radiator valves. Follow these steps:
- Keluarkan kepala termostatik sedia ada anda daripada injap radiator.
- Select the appropriate adapter for your valve type (e.g., RA, RAV, RAVL, Canleffi, Giacomini, M28).
- Attach the chosen adapter to the radiator valve. Ensure it is securely fastened.
- Screw the SALCAR RV11 thermostatic head onto the adapter. Tighten it firmly but do not overtighten.
Image: Step-by-step illustration of how to install the SALCAR RV11 thermostat head onto a radiator valve using different adapters.
3. Connecting to WiFi and App
To enable smart control, connect your thermostat to your home's 2.4 GHz WiFi network via the Smart Life or Tuya Smart app:
- Download the "Smart Life" or "Tuya Smart" app from your smartphone's app store (available for iOS and Android).
- Daftar atau log masuk ke akaun anda.
- Add a new device in the app. Select "Thermostat" or "Radiator Valve" from the device list.
- Follow the in-app instructions to put the thermostat into pairing mode (usually involves a button press sequence on the device).
- Enter your 2.4 GHz WiFi network credentials when prompted by the app.
- Once connected, you can rename your thermostat and begin controlling it remotely.

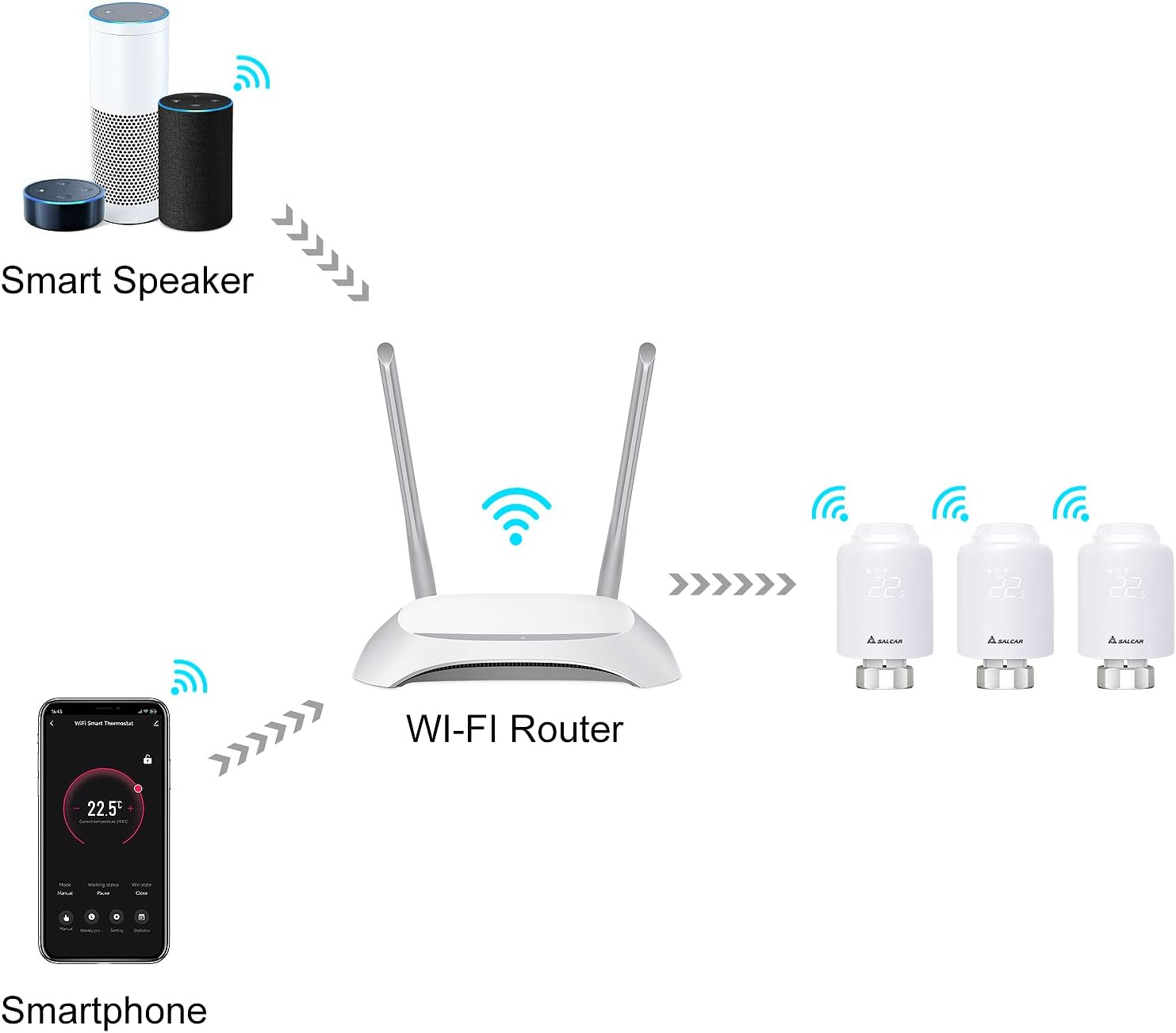

Image: Network diagram illustrating the connection flow from a smartphone to the WiFi router, and then to multiple SALCAR RV11 thermostats and smart speakers for integrated control.
Arahan Operasi
Kawalan Manual
You can adjust the temperature directly on the device:
- Rotate the outer ring of the thermostat clockwise to increase the temperature.
- Rotate the outer ring counter-clockwise to decrease the temperature.
- The current set temperature will be displayed on the screen.
Image: Demonstrates manual temperature adjustment by rotating the outer ring of the SALCAR RV11 thermostat.
Kawalan Aplikasi (Kehidupan Pintar / Tuya Smart)
The app provides comprehensive control and scheduling options:
- Pelarasan Suhu: Use the app interface to set your desired temperature.
- Penjadualan: Create custom heating schedules for different days and times to match your routine.
- Pemilihan Mod: Switch between manual, automatic, or holiday modes.
- Feature Activation: Enable or disable features like Window Open Detection, Child Lock, and Frost Protection directly from the app.
Image: The Smart Life app interface on a smartphone, demonstrating remote control capabilities for the SALCAR RV11 thermostat.
Fungsi Perkongsian Peranti
You can share control of your SALCAR RV11 thermostats with other family members through the Smart Life or Tuya Smart app. This allows multiple users to remotely manage the heating settings.
Image: Visual representation of the device sharing feature, enabling multiple users to control the thermostat via their smartphones.
Integrasi Rumah Pintar
The SALCAR RV11 is compatible with popular voice assistants, allowing for convenient hands-free control.
Connecting with Amazon Alexa & Google Assistant
- Ensure your SALCAR RV11 thermostat is successfully connected to the Smart Life or Tuya Smart app.
- Open the Amazon Alexa app or Google Home app on your smartphone.
- Navigate to the "Skills & Games" section (Alexa) or "Works with Google" section (Google Home).
- Cari untuk "Smart Life" or "Tuya Smart" and enable the skill/service.
- Link your Smart Life/Tuya Smart account with your Alexa/Google account.
- Discover devices. Your SALCAR RV11 thermostats should now appear and be controllable via voice commands.
Perintah Suara Cthamples:
- "Alexa, set living room temperature to 22 degrees."
- "Hei Google, berapakah suhu di dalam bilik tidur?"
- "Alexa, hidupkan pemanas di dapur."
Image: A user interacting with smart speakers (Google Home and Amazon Alexa) to control the SALCAR RV11 thermostat using voice commands.
Penyelenggaraan
Penggantian Bateri
When the low battery alarm is triggered, replace the three AAA batteries promptly to ensure continuous operation. The device will display a low battery warning. Ensure correct polarity when inserting new batteries.
Anti-Calcification Cycle
The SALCAR RV11 automatically performs an anti-calcification cycle every Monday at 12:00 PM. This function helps prevent the valve from seizing due to mineral buildup, especially during periods of non-use, thereby extending the lifespan of the valve.
Pembersihan
Wipe the exterior of the thermostat with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the device's surface.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peranti tidak bersambung ke WiFi | Incorrect WiFi password; 5GHz network used; device too far from router; router issues. | Ensure correct 2.4 GHz WiFi password. Move device closer to router. Restart router. Re-attempt pairing process. |
| Thermostat not responding to commands | Low batteries; device offline; app issue. | Replace batteries. Check WiFi connection. Restart the app. |
| Bacaan suhu tidak tepat | Thermostat is too close to the radiator or in a draft. | The thermostat measures temperature at its location. Consider the placement relative to heat sources or drafts. Adjust set temperature accordingly. |
| Child Lock activated unexpectedly | Accidental long press of the middle button. | Long-press the middle button for 3 seconds to deactivate the child lock. |
| Radiator heating when it shouldn't (e.g., low battery) | When batteries are critically low, the valve may default to an open position to prevent freezing. | Gantikan bateri dengan segera. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | SALCAR |
| Nombor Model | RV11 |
| Teknologi Ketersambungan | Wi-Fi (2.4 GHz) |
| Sumber Kuasa | Dikuasakan Bateri (3x AAA, tidak termasuk) |
| Voltage | 15 Volt (voltan operasi dalamantage) |
| Jenis Pengawal | Google Assistant, Amazon Alexa, Smart Life/Tuya App |
| Kegunaan Khusus | Kawalan Suhu |
| Lampu latar | ya |
| Dimensi Pakej | 13.5 x 13.2 x 11.1 cm |
| Berat Barang | 660 grams (for the pack of 3) |
Waranti dan Sokongan
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official SALCAR webtapak. Simpan resit pembelian anda sebagai bukti pembelian.
