Danicub Automatic Vacuum Sealer Instruction Manual

pengenalan

The Danicub Automatic Vacuum Sealer is designed to extend the freshness of various food items, including fruits, vegetables, fish, meat, nuts, and snacks. This appliance helps prevent freezer burn, reduce food spoilage, and minimize waste, making meal preparation more efficient.

Image: The Danicub Automatic Vacuum Sealer shown with a vacuum-sealed steak and various fresh produce, illustrating its primary function.

Maklumat Keselamatan

• Baca semua arahan sebelum menggunakan perkakas.
• Jangan rendam kord kuasa, palam atau perkakas dalam air atau cecair lain.
• Jauhkan perkakas daripada kanak-kanak.
• Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• Gunakan hanya aksesori yang disyorkan oleh pengilang.
• Jangan gunakan di luar rumah.
• Ensure the vacuum chamber is clean and dry before each use to prevent electrical hazards.

Produk Selesaiview dan Komponen

The Danicub Vacuum Sealer features a practical and compact design, incorporating several key components for efficient food preservation.

• Panel Kawalan: Features buttons for various sealing modes and operation.
• Bilik Vakum: Area where the vacuum bag is placed for air removal.
• Jalur Pengedap: Heats to create a secure seal on the bag. This model features a double sealing strip for enhanced durability.
• Bag Roll Rack: Integrated storage for vacuum bag rolls up to 12 inches wide.
• Sliding Cutter: Allows for easy and precise cutting of custom-sized bags from a roll.
• External Vacuum Port: For use with external containers like canning jars or wine bottles.
• Penyimpanan Kord Kuasa: Convenient area at the bottom of the unit for cord management.

Image: An annotated diagram highlighting the key features and components of the vacuum sealer.

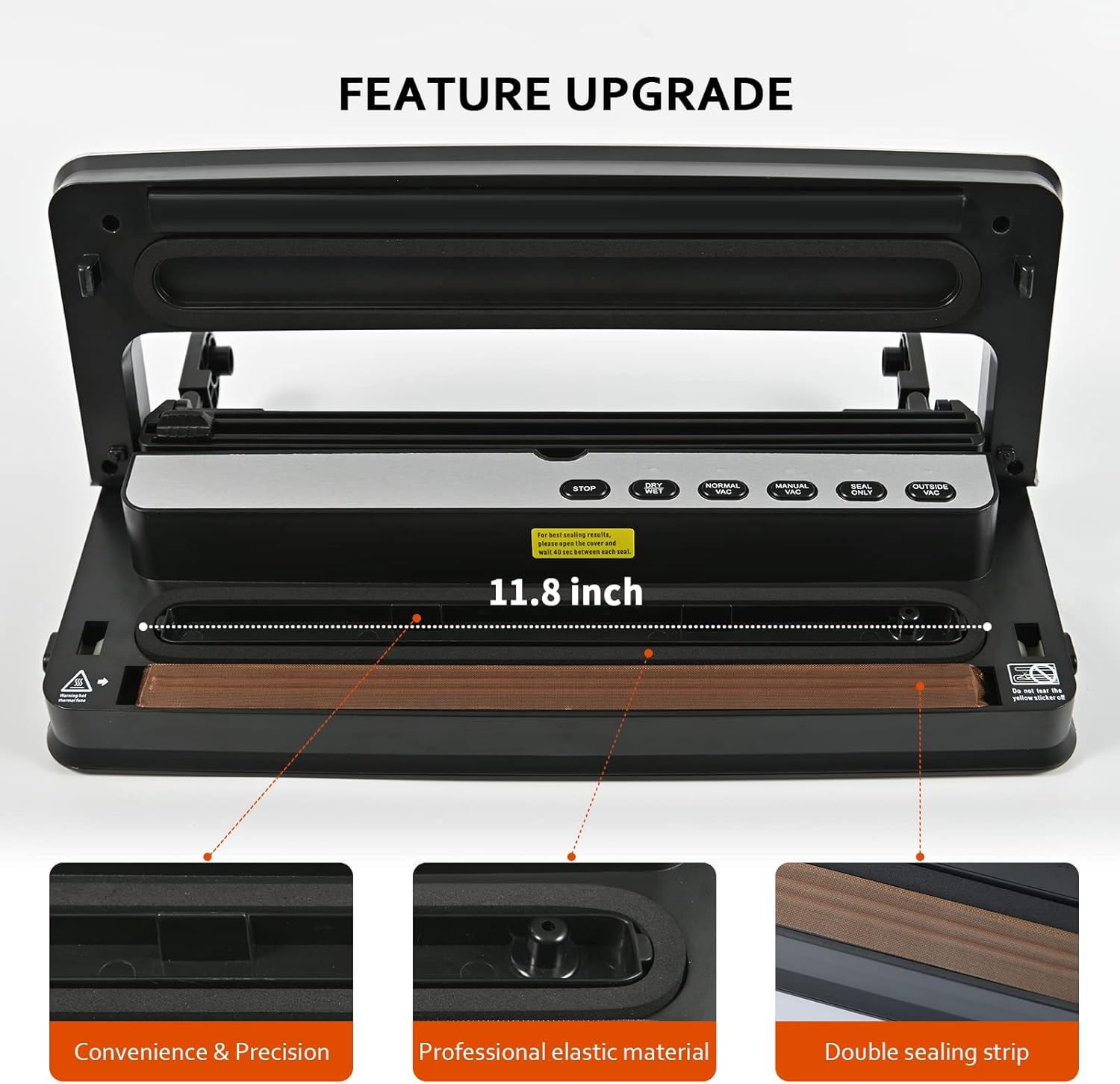

Imej: Satu dalaman view of the vacuum sealer, emphasizing the 11.8-inch sealing area and the double sealing strip.

Persediaan

Before first use, ensure all packaging materials are removed. Place the vacuum sealer on a flat, stable, and dry surface.

Aksesori yang disertakan:

The Danicub Vacuum Sealer comes with a comprehensive starter kit:

• 1 x Danicub Vacuum Sealer
• 1 x Manual Pengguna (dokumen ini)
• 1 x Air Suction Hose (for external vacuuming)
• 1 x Placeholder (for storage)
• 6 x Medium Vacuum Bags (7.8 x 11.8 inches)
• 6 x Large Vacuum Bags (11.8 x 15.7 inches)

Image: A visual representation of the complete starter kit included with the vacuum sealer.

Preparing Vacuum Bags:

If using a bag roll, utilize the integrated sliding cutter to create custom-sized bags. Ensure the bag is long enough to accommodate the food item and allow for proper sealing.

Image: Demonstrates the use of the integrated bag roll rack and sliding cutter for preparing custom-sized vacuum bags.

Arahan Operasi

The Danicub vacuum sealer offers six distinct sealing modes for optimal food preservation.

General Vacuum Sealing Steps:

1. Place the food item inside a vacuum bag, ensuring the open end of the bag is clean and dry.
2. Open the lid of the vacuum sealer and place the open end of the vacuum bag into the vacuum chamber. Ensure the bag is flat and extends across the sealing strip.
3. Close the lid firmly, pressing down on both sides until you hear a locking sound, indicating it is securely latched.
4. Select the desired sealing mode (see "Sealing Modes" section below).
5. Press the corresponding button to start the vacuum and sealing process. The machine will automatically complete the cycle.
6. Once the indicator light turns off, the process is complete. Press the lock release buttons on both sides to open the lid and remove the sealed bag.

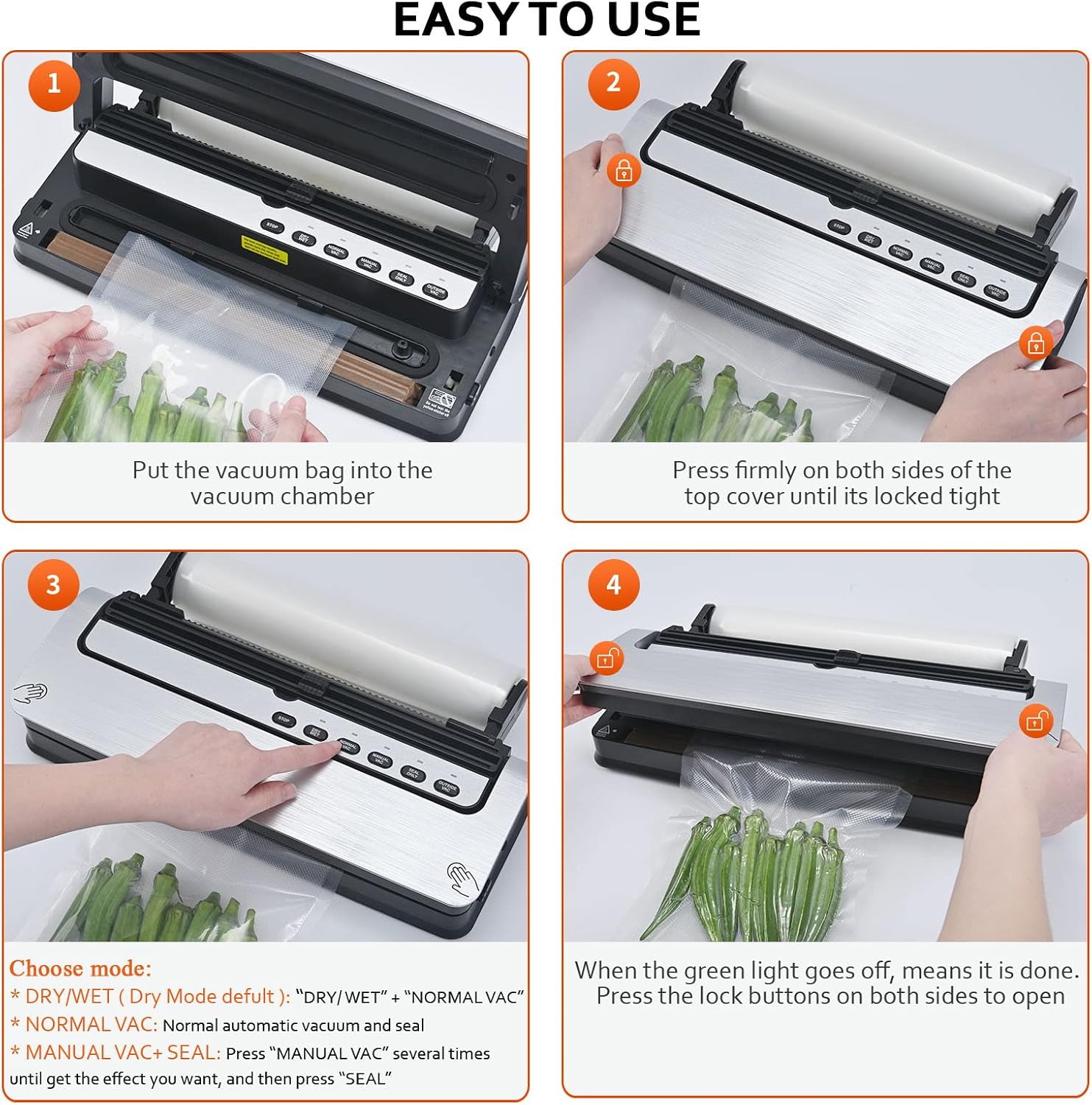

Image: A step-by-step visual guide demonstrating the ease of operation for the vacuum sealer.

Mod Pengedap:

The vacuum sealer is equipped with six modes to cater to different food types and preservation needs:

• DRY (Green light): Optimized for dry food items such as nuts, grains, and dried fruits.
• WET (Red light): Designed for moist or wet food items, like fresh meat, fish, or marinated foods.
• BIASA: Standard vacuum and seal function for most daily food items.
• MANUAL: Allows the user to control the vacuum effect. Press the "MANUAL VAC" button repeatedly to achieve the desired vacuum level, then press "SEAL" to seal the bag. This is useful for delicate items.
• METERAI: This mode only seals the bag without vacuuming. It can be used to reseal bag rolls or other bags that do not require vacuuming.
• LUAR: For use with external vacuum containers, such as wide-mouth canning jars or wine bottles, using the air suction hose.

Imej: Tamatview of the six distinct sealing modes available on the Danicub vacuum sealer.

Sistem Vakum Luaran:

To use the external vacuum function with jars or containers:

1. Connect one end of the air suction hose to the external vacuum port on the side of the sealer and the other end to the port on your compatible external container (jars, containers, wine corks).
2. Ensure the container lid is properly sealed or the wine cork is securely in place.
3. Press the "OUTSIDE VAC" button on the control panel. The machine will begin to remove air from the container.
4. Once the vacuum is complete, the machine will stop automatically. Remove the hose.

Image: Demonstrates the connection and use of the external vacuum system with a container.

Bag Compatibility:

The Danicub vacuum sealer is compatible with various types of vacuum bags. For optimal vacuum sealing, textured vacuum bags are recommended. Non-textured simple bags can be sealed but not vacuumed. Mylar aluminum foil bags and non-textured folding-angle bags can be both vacuumed and sealed.

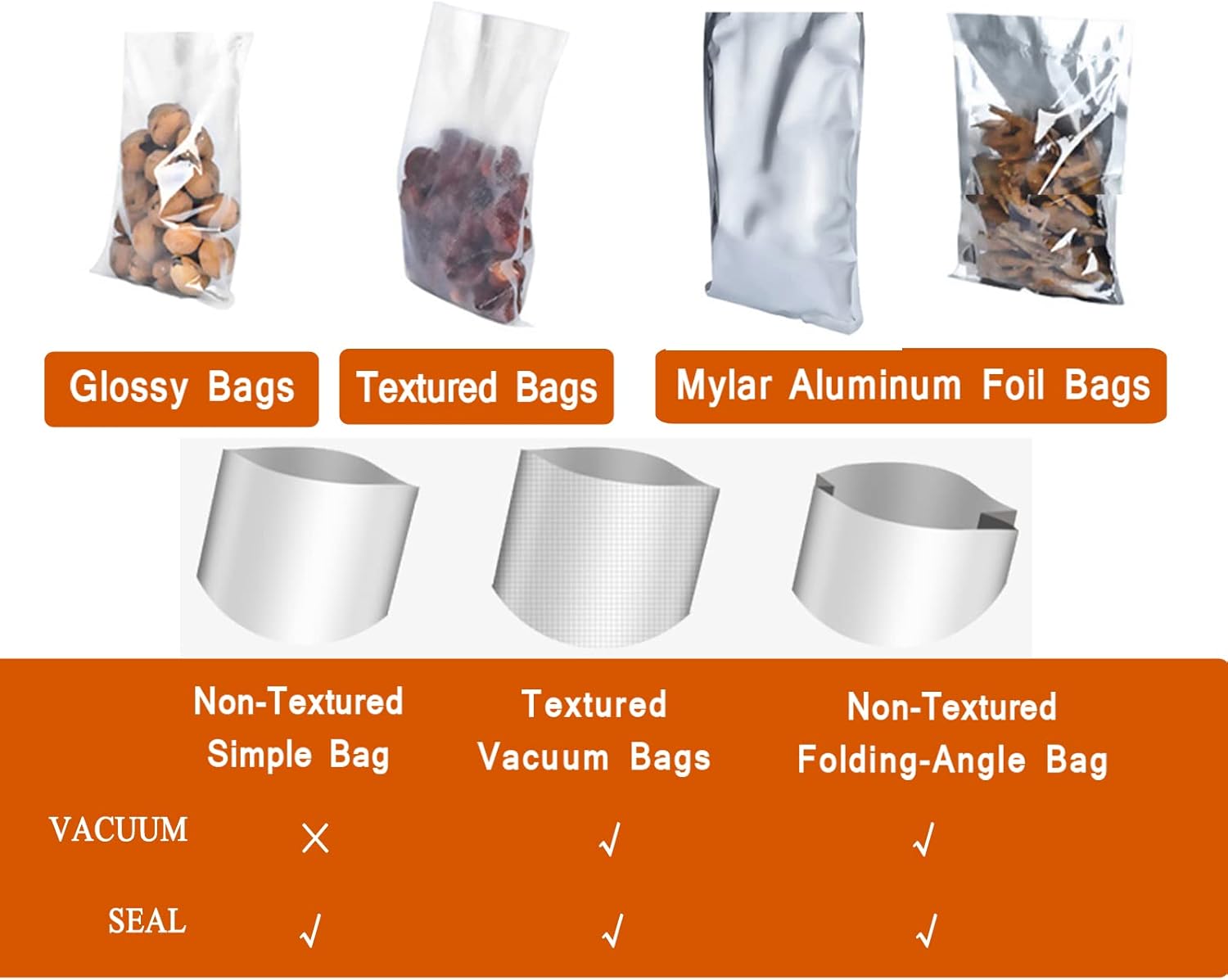

Image: A compatibility chart detailing which types of bags are suitable for vacuuming and sealing with the appliance.

Penyelenggaraan dan Pembersihan

Pembersihan dan penyelenggaraan yang kerap akan memastikan jangka hayat dan prestasi optimum pengedap vakum anda.

• Cleaning the Vacuum Chamber: The vacuum chamber is removable for easy and safe cleaning. After each use, especially after sealing moist foods, remove the vacuum chamber and wipe it clean with a damp cloth. Ensure it is completely dry before reassembling.
• Membersihkan Bahagian Luar: Lap bahagian luar perkakas dengan lembut, damp kain. Jangan gunakan pembersih yang melelas atau rendam unit di dalam air.
• Jalur Pengedap: Periodically check the sealing strip for any debris or residue. Clean gently with a damp kain. Pastikan ia kering sebelum digunakan.
• Storan: After use, ensure the placeholder is inserted into the machine. Store the appliance in a dry place.

Imej: Dari dekat view of the removable vacuum chamber, highlighting its ease of cleaning.

Menyelesaikan masalah

Spesifikasi

• Jenama: Danicub
• model: Automatic Dry/Moist Food Sealer (ASIN: B0BNCX74GS)
• Bahan: ABS
• warna: Perak
• Dimensi Produk: 15.7"L x 6.5"W x 3.2"H
• Berat Barang: 3.1 paun
• Sumber Kuasa: AC
• Mod Operasi: Automatik
• Wattage: 90 watt
• Voltage: 120 Volt
• Lebar Meterai Maks: 11.8 inci

Waranti dan Sokongan

The Danicub Automatic Vacuum Sealer comes with a Waranti 24 bulan dari tarikh pembelian. Waranti ini meliputi kecacatan pembuatan dan kerosakan dalam penggunaan biasa.

For technical support, warranty claims, or any inquiries regarding your product, please contact Danicub customer service. Refer to the contact information provided on the product packaging or the official Danicub webtapak untuk saluran sokongan yang paling terkini.

For more information and product registration, visit the official Danicub Store on Amazon.
