pengenalan
The Kingsong KS-N11 is a high-performance electric scooter designed for daily commuting and recreational use. It combines robust engineering with user-friendly features to provide a reliable and enjoyable riding experience. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your KS-N11 electric scooter.
Key features include dual 1200W motors for powerful acceleration, a double suspension system for a smooth ride, and a wide, comfortable platform. The integrated digital display offers real-time speed and battery charge monitoring.

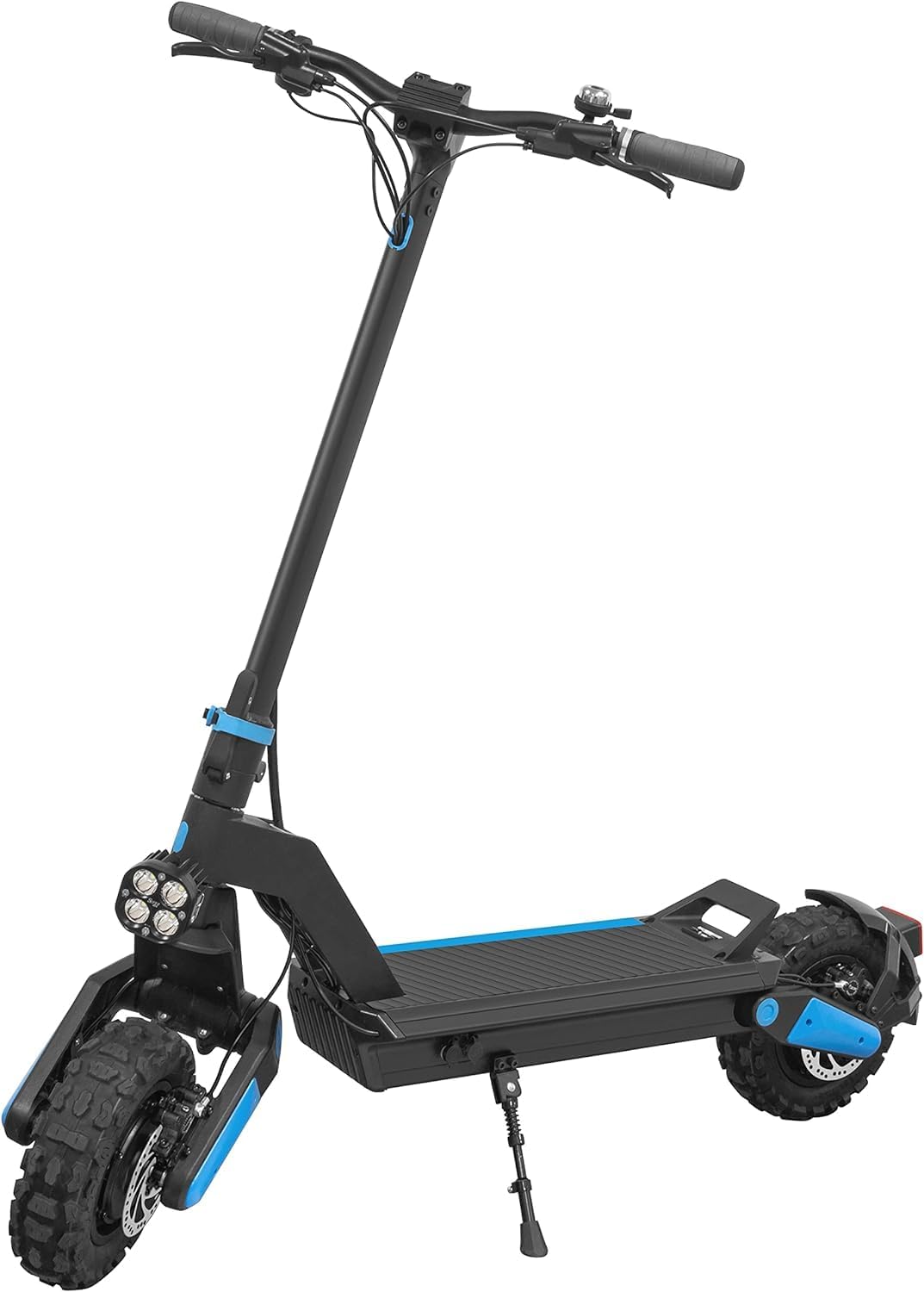

Imej: Bahagian hadapan view of the Kingsong KS-N11 Electric Scooter, highlighting its robust design and large wheels.
Spesifikasi Produk
Image: Kingsong N11 Electric Scooter with an overlay of its key specifications, including motor power, range, and speed.
| Ciri | Perincian |
|---|---|
| Nama Model | KS-N11 |
| Kuasa Motor | 2 x 1200 W |
| Max Speed (Limited) | 25 km/h (factory setting) |
| Julat Maks | Sehingga 80 km |
| Saiz Roda | 11 inci (27.94 cm) |
| Penggantungan | Front and Rear (Double Suspension) |
| Jenis Brek | Hydraulic Disc Brakes (Front and Rear) |
| Bateri | 1 Litium-ion (termasuk) |
| Kapasiti Berat Maks | 140 kg |
| Dimensi Produk (L x W x H) | 134.5 x 55.6 x 125.3 cm |
| Berat Produk | 47 kg |
| Bahan Bingkai | aluminium |
| Komponen yang Disertakan | Pengecas AC |
Panduan Persediaan
Before your first ride, ensure the scooter is properly assembled and charged.
- Membuka kotak: Carefully remove the scooter and all components from the packaging. Retain packaging for future transport or storage.
- Perhimpunan Hendal:
Unfold the handlebar stem and secure it in the upright position using the locking mechanism. Ensure it clicks firmly into place. Adjust the handlebar height if necessary using the quick-release lever, then secure it.
Image: Left: Close-up of the scooter's folding mechanism. Right: View of the handlebar with brake levers and bell.
- Caj Permulaan:
Locate the charging ports on the side of the scooter deck. Connect the provided AC charger to the scooter and then to a power outlet. The charging indicator on the charger will show the charging status (typically red for charging, green for fully charged). For the first use, charge the battery fully, which may take several hours.
Image: Close-up of the dual charging ports located on the side of the scooter's deck.
- Pemeriksaan Tayar: Check tire pressure before your first ride and regularly thereafter. Refer to the tire sidewall for recommended pressure.
Arahan Operasi
Familiarize yourself with the controls and features before riding.
- Hidupkan/Mati Kuasa: Tekan dan tahan butang kuasa pada paparan digital untuk menghidupkan atau mematikan skuter.
- Paparan Digital:
The integrated digital display shows real-time speed, battery level, and other important indicators. Monitor the battery level to avoid running out of power during your ride.
Image: Close-up of the digital display on the handlebar, showing current speed and battery charge indicators.
- Pecutan: Use the throttle control (typically a thumb lever or twist grip) to accelerate. Apply throttle gradually for smooth acceleration.
- Brek:
The KS-N11 is equipped with front and rear hydraulic disc brakes for effective stopping power. Use both brake levers simultaneously for balanced and controlled braking. Practice braking at low speeds to get a feel for the system.
Image: Left: Rear wheel showing the hydraulic disc brake system. Right: Front wheel with hydraulic disc brake and suspension components.
- Sistem Penggantungan: The dual suspension system absorbs shocks and vibrations, providing a comfortable ride over varied terrain.
- Lampu:
Activate the front headlight and rear taillight for improved visibility, especially during low-light conditions or night riding. The front headlight provides ample illumination for your path.
Image: Left: Close-up of the powerful multi-LED front headlight. Right: Rear light of the scooter.
Penyelenggaraan
Regular maintenance ensures the longevity and safe operation of your Kingsong KS-N11 scooter.
- Penjagaan Bateri:
Charge the battery regularly, even if the scooter is not in use, to maintain battery health. Avoid completely draining the battery. Store the scooter in a cool, dry place when not in use, and avoid extreme temperatures.
- Penyelenggaraan Tayar:
Check tire pressure weekly and inflate to the recommended PSI (pounds per square inch) found on the tire sidewall. Inspect tires for wear, punctures, or damage regularly.
Imej: Jarak dekat view of the robust tire tread, indicating suitability for various terrains.
- Brake System Check:
Regularly inspect the brake levers, cables, and disc rotors for any signs of wear or damage. Ensure the brakes respond effectively. If you notice reduced braking performance, consult a qualified technician.
- Pembersihan:
Bersihkan skuter dengan iklanamp cloth. Avoid using high-pressure water jets or harsh chemicals, which can damage electronic components. Ensure the scooter is dry before charging or storing.
- Pemeriksaan Am:
Periodically check all screws and bolts for tightness. Ensure the folding mechanism and suspension components are clean and operating smoothly.
Imej: View of the scooter's wide deck and integrated kickstand.
Menyelesaikan masalah
This section addresses common issues you might encounter with your KS-N11 scooter.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Skuter tidak dihidupkan. | Bateri lemah; sambungan longgar; butang kuasa rosak. | Charge the battery fully. Check all visible cable connections. If problem persists, contact support. |
| Julat atau kuasa yang dikurangkan. | Under-inflated tires; cold weather; battery degradation; riding uphill frequently. | Check and inflate tires to recommended pressure. Battery performance can be affected by temperature. Ensure battery is fully charged before each ride. |
| Brakes feel spongy or ineffective. | Air in hydraulic lines; worn brake pads; misaligned calipers. | Do not ride the scooter if brakes are not fully functional. Have the brake system inspected and serviced by a qualified technician. |
| Bunyi luar biasa semasa operasi. | Loose components; debris in wheels/brakes; motor issue. | Inspect the scooter for any loose parts. Check wheels and brakes for obstructions. If noise persists, seek professional inspection. |
For issues not listed here or if solutions do not resolve the problem, please contact Kingsong customer support.
Waranti dan Sokongan
Warranty information for the Kingsong KS-N11 Electric Scooter is typically provided with your purchase documentation or can be found on the official Kingsong webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.
For technical support, spare parts, or service inquiries, please contact Kingsong customer service through their official channels. Always refer to your specific region's warranty terms and conditions.
Note: No official seller videos were found in the provided product data. For visual guides, please refer to the manufacturer's official webtapak atau pusat perkhidmatan yang dibenarkan.
