Fenton RP161 Bluetooth Stereo Turntable - Walnut User Manual

1. Pengenalan dan Maklumat Keselamatan

Terima kasih kerana membeliasing the Fenton RP161 Bluetooth Stereo Turntable. This manual provides essential information for the safe and correct operation of your device. Please read it thoroughly before use and retain it for future reference.

Arahan Keselamatan Penting:

• Jangan dedahkan unit kepada hujan atau lembapan untuk mengelakkan kebakaran atau kejutan elektrik.
• Pastikan pengudaraan yang betul; jangan sekat sebarang bukaan pengudaraan.
• Letakkan unit pada permukaan yang stabil dan rata.
• Gunakan hanya penyesuai kuasa yang dibekalkan dengan unit.
• Jangan cuba menservis unit ini sendiri. Rujuk semua servis kepada kakitangan yang berkelayakan.
• Jauhkan unit daripada cahaya matahari langsung, sumber haba dan medan magnet yang kuat.

2. Produk Lebihview

The Fenton RP161 is a versatile stereo turntable featuring integrated speakers and Bluetooth connectivity. It supports three playback speeds for various record types.

Rajah 2.1: Secara keseluruhan view of the Fenton RP161 Turntable.

Komponen:

• Penutup habuk: Melindungi pinggan dan tonearm daripada habuk.
• Pinggan: The rotating surface where records are placed.
• gelendong: Central pin for placing records.
• Penyesuai 45 RPM: Digunakan untuk memainkan rekod 7 inci dengan lubang tengah yang besar.
• Tonearm: Memegang kartrij dan stilus.
• Stilus (Jarum): Membaca alur rekod itu.
• Suis Pemilih Kelajuan: Allows selection of 33, 45, or 78 RPM.
• Suis Berhenti Automatik: Engages or disengages the automatic stop function.
• Tombol Kelantangan/Kuasa: Controls power and audio output level.
• Penceramah Bersepadu: Built-in audio output.
• Output Talian RCA: Untuk menyambung ke sistem audio luaran.
• Input Kuasa DC: Untuk menyambungkan penyesuai kuasa.

Figure 2.2: Tonearm, Speed Selector, and Auto Stop Switch.

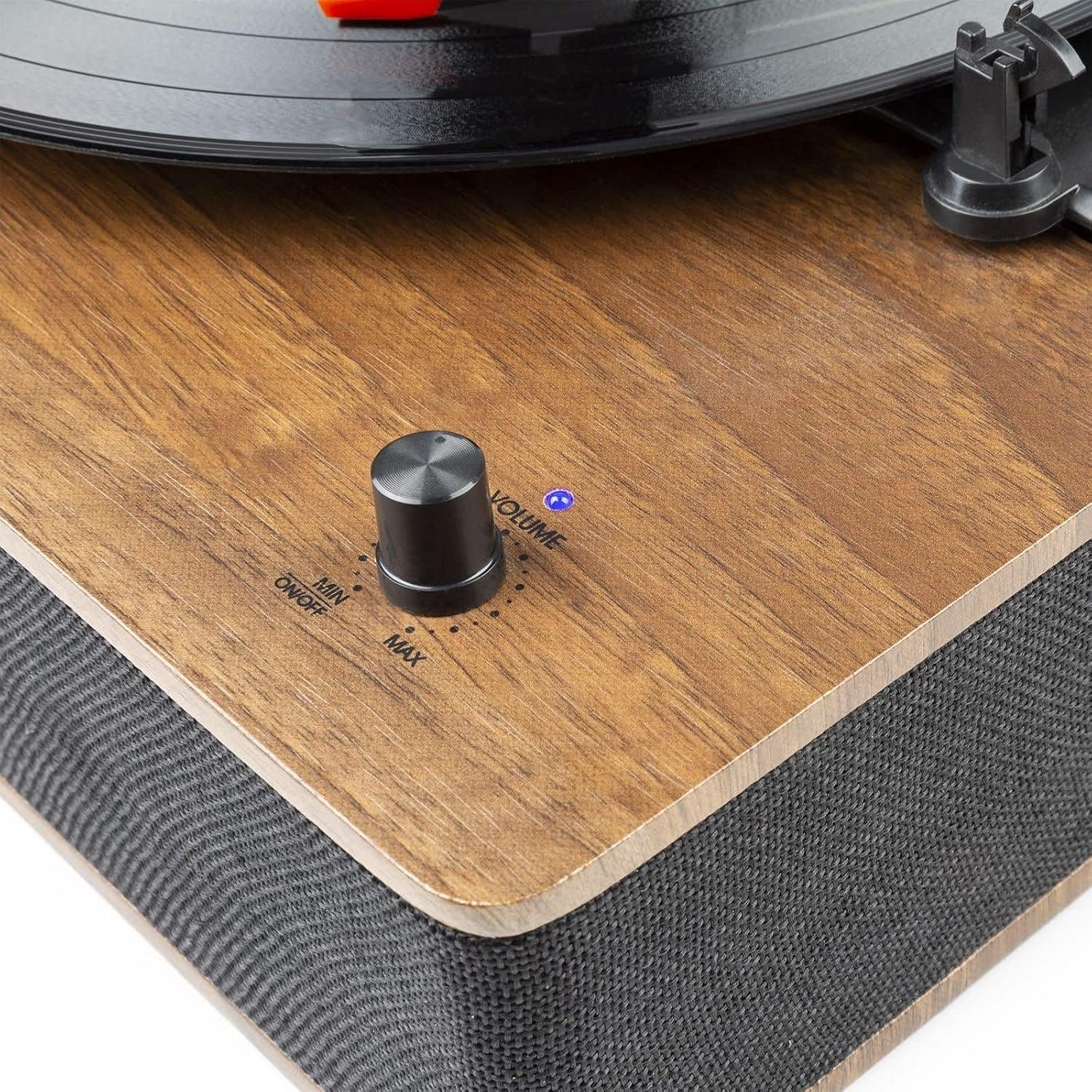

Figure 2.3: Volume and Power Knob.

Figure 2.4: Rear Panel with RCA Output and DC Input.

3. Persediaan

Membongkar:

1. Keluarkan meja putar dari bungkusannya dengan berhati-hati.
2. Remove all protective materials, including the stylus protector.
3. Ensure all components are present: turntable unit, dust cover, 45 RPM adapter, and power adapter.

penempatan:

• Place the turntable on a flat, stable, and level surface to prevent vibrations and ensure proper playback.
• Avoid placing it near speakers or other vibration-producing equipment.

Sambungan Kuasa:

• Connect the supplied power adapter to the DC 5V 1A input port on the rear of the turntable.
• Pasangkan penyesuai ke soket dinding yang sesuai.

External Audio Connection (Optional):

• Untuk menyambung ke luaran amplifier or powered speakers, use an RCA cable (not included) to connect the RCA Line Output ports on the rear of the turntable to the corresponding input on your audio system.

4. Arahan Operasi

4.1 Playing Records:

1. Hidupkan kuasa: Rotate the Volume/Power knob clockwise until it clicks and the indicator light illuminates. Adjust to a low volume setting initially.
2. Pilih Kelajuan: Set the speed selector switch to the appropriate speed for your record (33, 45, or 78 RPM). For 7-inch records with a large center hole, place the 45 RPM adapter on the spindle.
3. Rekod Tempat: Carefully place your record on the turntable platter.
4. Auto Stop: Set the AUTO STOP switch to ON if you want the platter to stop rotating automatically when the record finishes. Set to OFF for continuous rotation.
5. Tonearm Kedudukan: Gently lift the tonearm using the tonearm lift lever. Move the tonearm over the desired starting groove of the record.
6. Tonearm Bawah: Slowly lower the tonearm onto the record using the tonearm lift lever. The music will begin to play.
7. Laraskan Kelantangan: Adjust the Volume/Power knob to your desired listening level.
8. Tamat Main Semula: When the record finishes, if AUTO STOP is ON, the platter will stop. If AUTO STOP is OFF, manually lift the tonearm and return it to its rest.
9. Matikan: Rotate the Volume/Power knob counter-clockwise until it clicks to turn off the unit.

4.2 Operasi Bluetooth:

The RP161 can receive audio wirelessly from a Bluetooth-enabled device.

1. Hidupkan kuasa: Turn on the turntable by rotating the Volume/Power knob. The unit will automatically enter Bluetooth pairing mode, indicated by a flashing blue LED light.
2. Dayakan Bluetooth: Pada telefon pintar, tablet atau peranti Bluetooth anda yang lain, dayakan Bluetooth dan cari peranti yang tersedia.
3. pasangan: Select 'Fenton RP161' from the list of devices. Once paired, the blue LED light will stop flashing and remain solid.
4. Mainkan Audio: You can now play music from your Bluetooth device through the turntable's speakers. Adjust the volume using the Volume/Power knob on the turntable and/or your connected device.
5. Putuskan sambungan: To disconnect, turn off Bluetooth on your device or power off the turntable.

5. Penyelenggaraan

Membersihkan Unit:

• Sentiasa cabut plag unit daripada salur keluar kuasa sebelum membersihkan.
• Gunakan kain lembut dan kering untuk mengelap permukaan luar.
• Jangan gunakan pembersih, lilin atau pelarut yang melelas kerana ia boleh merosakkan kemasan.

Penjagaan Stylus:

• Stilus ini halus. Kendalikan dengan sangat berhati-hati.
• Bersihkan stylus secara berkala menggunakan berus lembut, berus perlahan-lahan dari belakang ke hadapan.
• A worn stylus can damage records and degrade sound quality. Replace the stylus approximately every 200-300 hours of playback.

Penjagaan Penutup Habuk:

• Wipe the dust cover gently with a soft, damp kain.
• Avoid using harsh chemicals that could scratch or cloud the plastic.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

This product is covered by a warranty in accordance with local regulations. Please refer to your purchase documentation for specific terms and conditions.

Ketersediaan Alat Ganti: Spare parts for the Fenton RP161 are guaranteed to be available for 2 years from the date of purchase.

For technical support or service inquiries, please contact your retailer or the Fenton customer service department.
