MAXTRA E120 Electric Scooter User Manual

pengenalan

This manual provides essential instructions for the safe operation, assembly, and maintenance of your MAXTRA E120 Electric Scooter. Please read this manual thoroughly before first use to ensure proper function and safety.

The MAXTRA E120 is designed for children aged 6-12, offering two riding styles: standing and seated. It features an adjustable handlebar and seat, solid tires, and a hand-operated rear brake for a controlled riding experience.

Maklumat Keselamatan

AMARAN: Kegagalan mematuhi arahan keselamatan ini boleh mengakibatkan kecederaan serius.

• Sentiasa memakai topi keledar dan peralatan keselamatan yang sesuai (pelapik lutut, pelapik siku) semasa menunggang.
• Ensure the rider's weight does not exceed the maximum limit of 155 lbs (70 kg).
• Recommended age for riders is 6-12 years.
• Supervise young riders at all times.
• Do not ride in traffic, on uneven surfaces, or near water.
• Check all components, including brakes, tires, and battery charge, before each ride.
• Keep fingers and other body parts clear of moving parts.
• Use the hand-operated rear brake for smooth and controlled stopping.
• Do not modify the scooter. Any modifications may compromise safety and void the warranty.

Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• MAXTRA E120 Electric Scooter
• Pengecas
• Manual Pengguna (dokumen ini)

Persediaan dan Perhimpunan

The MAXTRA E120 Electric Scooter requires minimal assembly. Follow these steps:

1. Membuka skuter: Carefully remove the scooter from its packaging. Locate the folding mechanism and unfold the handlebar stem until it locks securely into place.
2. Attaching the Seat (Optional): The seat can be attached or removed as desired. Insert the seat post into the designated slot on the scooter deck and secure it using the quick-release clamp. Ensure it is firmly tightened before use.
3. Caj Permulaan: Before first use, fully charge the scooter's battery. Connect the charger to the scooter's charging port and then to a standard wall outlet. The charging indicator light on the charger will typically change color when charging is complete (e.g., red to green). This process usually takes approximately 6 hours.

Image: The MAXTRA E120 Electric Scooter shown with the removable seat attached, ready for use.

Image: A child demonstrating how the MAXTRA E120 Electric Scooter can be folded for easy storage and transport, fitting into a car trunk.

Arahan Operasi

Biasakan diri anda dengan kawalan sebelum menunggang.

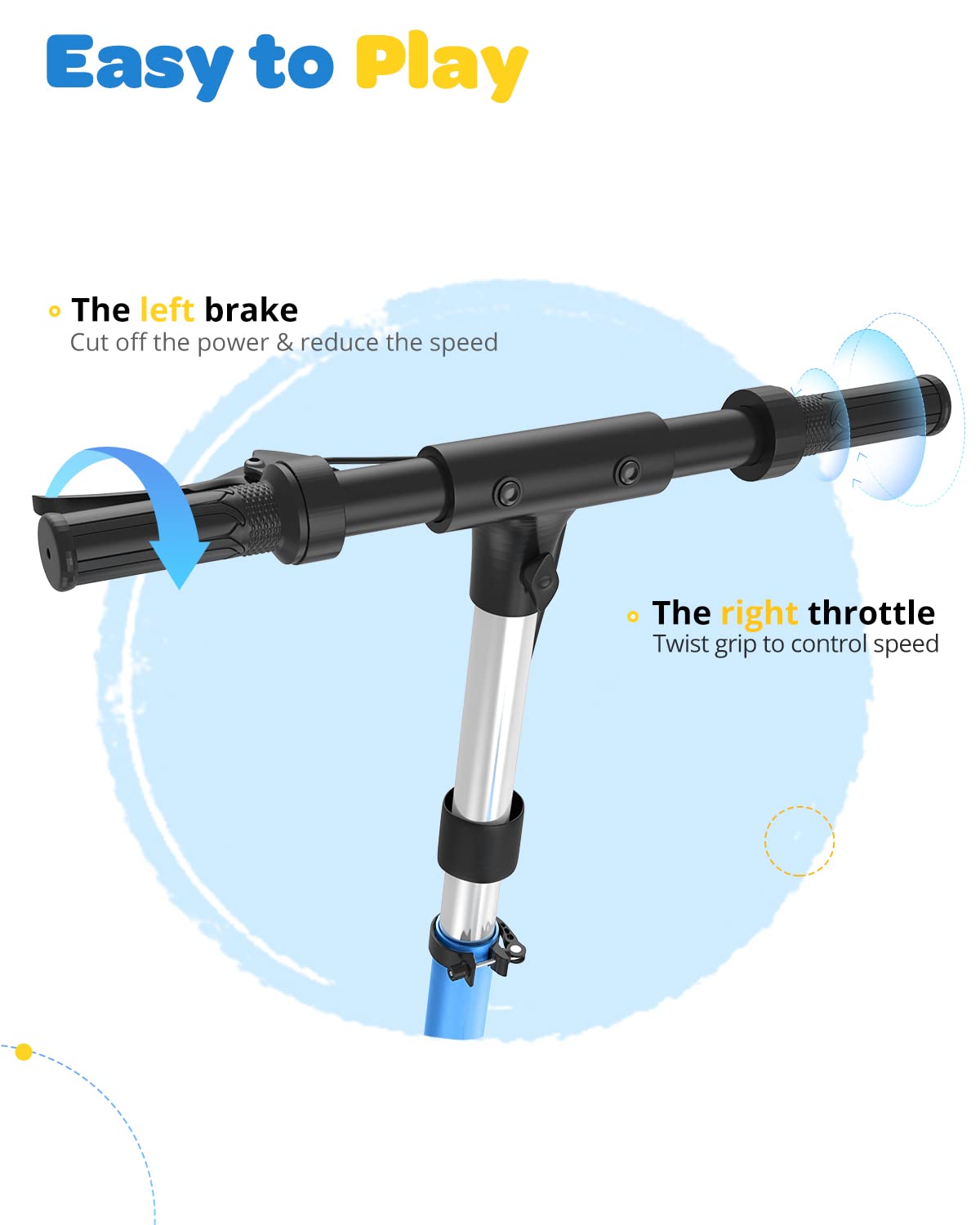

Imej: A terperinci view of the scooter's handlebars, highlighting the left-hand brake lever for stopping and the right-hand twist grip for acceleration.

1. Hidupkan kuasa: Locate the power button, usually on the deck or near the battery compartment. Press it to turn on the scooter.
2. Pecutan: To move forward, gently twist the right-hand throttle grip. The scooter will accelerate up to 10 mph.
3. Brek: To slow down or stop, squeeze the left-hand brake lever. This activates the rear brake and cuts power to the motor, ensuring a smooth stop.
4. Riding Styles: The E120 supports two riding styles. You can ride standing up or seated, depending on whether the seat is attached.

Image: Illustration of the two available riding styles for the MAXTRA E120 Electric Scooter: standing without the seat and seated with the seat attached.

Pelarasan

The MAXTRA E120 features adjustable components to accommodate different rider heights.

• Ketinggian Hendal: The handlebar can be adjusted to four different height levels (30/31/32/33 inches). Loosen the quick-release clamp on the handlebar stem, adjust to the desired height, and securely tighten the clamp. No tools are required.
• Ketinggian tempat duduk: The seat height can be adjusted to 17/18/19/20 inches. Loosen the quick-release clamp on the seat post, adjust to the desired height, and securely tighten the clamp. No tools are required.

Image: A diagram illustrating the four adjustable height levels for the handlebar of the MAXTRA E120 Electric Scooter, allowing it to grow with the child.

Penyelenggaraan

Penyelenggaraan tetap memastikan umur panjang dan operasi selamat skuter anda.

• Pengecasan Bateri: Recharge the battery after each use. A full charge takes approximately 6 hours. Do not overcharge. The scooter can run for up to 60 minutes on a single charge.
• Tayar: The scooter is equipped with 6-inch solid tires, which require no inflation and are puncture-resistant. No maintenance is needed for the tires.
• Pembersihan: Lap skuter dengan iklanamp cloth to clean. Do not use harsh chemicals or immerse the scooter in water.
• Storan: When not in use, store the scooter in a dry, cool place, away from direct sunlight and extreme temperatures. The scooter can be folded for compact storage.

Imej: Dari dekat view of the 6-inch solid wheel, highlighting its durable, maintenance-free, and puncture-resistant design.

Menyelesaikan masalah

If you encounter issues with your MAXTRA E120 Electric Scooter, refer to the following common problems and solutions:

Spesifikasi

Waranti dan Sokongan

MAXTRA provides a 1-year all parts replacement service for the E120 Electric Scooter. For any questions, concerns, or technical assistance, please contact the MAXTRA support team. They are committed to providing timely and effective help.

Please refer to your purchase documentation for specific contact details or visit the official MAXTRA webtapak.
