Honbike UNI4 Commuter Electric Bicycle User Manual

pengenalan

Welcome to the Honbike UNI4 Commuter Electric Bicycle user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before first use and retain it for future reference.

Maklumat Keselamatan

Always wear a helmet when riding. Obey all local traffic laws and regulations.

Langkah Keselamatan Am

• Pastikan semua komponen diikat dengan selamat sebelum setiap perjalanan.
• Jangan menunggang di bawah pengaruh alkohol atau dadah.
• Berhati-hati dengan persekitaran anda dan pengguna jalan raya yang lain.
• Avoid riding in adverse weather conditions.

Keselamatan Bateri

• Use only the original charger provided with the bicycle.
• Jangan dedahkan bateri kepada suhu yang melampau atau cahaya matahari langsung.
• Jangan cuba membuka atau mengubah suai pek bateri.
• Isi bateri di tempat yang berventilasi baik.

Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• Honbike UNI4 Commuter Electric Bicycle (main unit)
• Pengecas Bateri
• Manual Pengguna (dokumen ini)
• Basic Tool Kit (if included)

If any items are missing or damaged, contact your retailer.

Persediaan

Membongkar dan Pemeriksaan Awal

Carefully remove the bicycle from its packaging. Inspect for any visible damage during transit.

Pemasangan Hendal

The handlebar may need to be adjusted or secured. Ensure it is centered and tightened to the recommended torque.

Pemasangan Pedal

Identify the left (L) and right (R) pedals. Thread them into the crank arms carefully. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Tighten securely.

Pelarasan Jawatan Tempat Duduk

Adjust the seat height for comfortable pedaling, ensuring your leg has a slight bend at the bottom of the pedal stroke. Secure the quick-release lever or bolt firmly.

Inflasi Tayar

Masukkan angin ke dalam tayar mengikut tekanan yang disyorkan yang ditunjukkan pada dinding sisi tayar.

Caj Permulaan

Fully charge the battery before the first ride. Connect the charger to the bicycle's charging port and then to a power outlet. The indicator light on the charger will change when charging is complete.

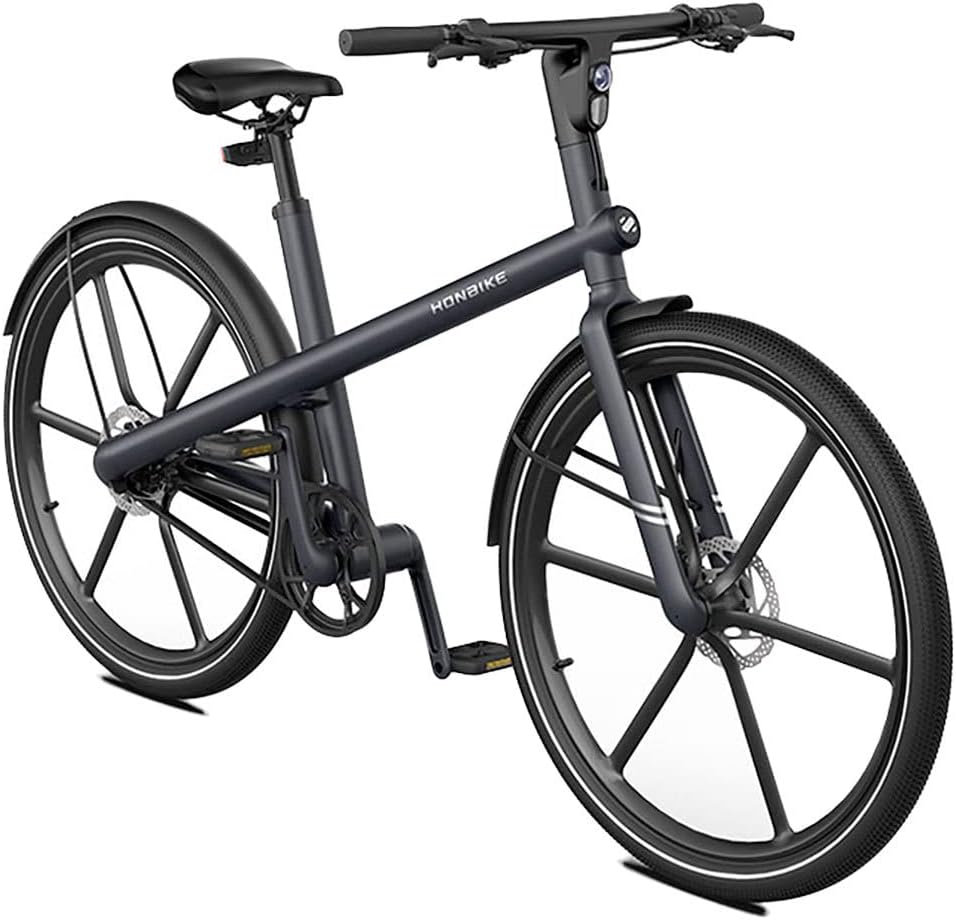

Figure 1: The Honbike UNI4 Commuter Electric Bicycle, ready for assembly.

Arahan Operasi

Menghidupkan/Mematikan

To power on the bicycle, press and hold the power button on the handlebar display. To power off, press and hold the same button.

Paparan Lebihview

Figure 2: Handlebar display and controls. (1) Power button, (2) Plus button/Light button, (3) Minus button/Walk mode, (4) Light indicator, (5) Speed display, (6) Walk mode indicator, (7) Riding mode indicator, (8) Battery power, (9) Error indicator, (10) Lock indicator, (11) Bluetooth, (12) Speed unit switch (km/h & mph), (13) Throttle.

Mod Menunggang

The Honbike UNI4 offers multiple riding modes to assist your pedaling. Use the '+' and '-' buttons to cycle through the assistance levels.

• Mode 0 (Off)Tiada bantuan elektrik.
• Mode 1 (Eco): Minimal assistance for extended range.
• Mode 2 (Standard): Balanced assistance for general riding.
• Mode 3 (Sport): Maximum assistance for hills or quick acceleration.

Mod Berjalan

To activate walk mode, press and hold the '-' button. The bicycle will move at a slow, steady pace, assisting you when walking alongside it. Release the button to disengage.

lampu

Press the '+' button briefly to turn the front and rear lights on or off.

Brek

The bicycle is equipped with disc brakes for reliable stopping power. Apply both brake levers smoothly and evenly for effective braking.

Figure 3: Front wheel with disc brake system.

Penyelenggaraan

Pemeriksaan Biasa

Perform the following checks before each ride:

• tayar: Check pressure and condition.
• Brek: Ensure levers are firm and brakes engage properly.
• Bolts & Fasteners: Verify all critical bolts (handlebars, seat post, wheels) are tight.
• Bateri: Check charge level.

Pembersihan

Clean the bicycle regularly with a damp kain dan sabun lembut. Elakkan mesin basuh tekanan tinggi, terutamanya berhampiran komponen elektrik.

Penjagaan Bateri

For optimal battery life, avoid fully discharging the battery frequently. Store the bicycle and battery in a cool, dry place when not in use. If storing for an extended period, charge the battery to 50-70% every 2-3 months.

Sistem Pemacu Tali Pinggang

The Honbike UNI4 features a Gates Carbon Belt Drive, which is designed to be maintenance-free for up to 10,000 km. No lubrication is required. Keep the belt clean from excessive dirt or debris.

Figure 4: Gates Carbon Belt Drive system.

Menyelesaikan masalah

If the problem persists after attempting these solutions, please contact Honbike customer support.

Spesifikasi

Figure 5: Detailed dimensions and key specifications of the Honbike UNI4 Commuter.

Waranti dan Sokongan

The Honbike UNI4 Commuter Electric Bicycle comes with a Waranti pengilang 2 tahun. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.

Menuntut Waranti

To make a warranty claim, please contact your original retailer or Honbike customer support with your proof of purchase and a detailed description of the issue.

Sokongan Pelanggan

For technical assistance, spare parts, or any other inquiries, please refer to the contact information provided by your retailer or visit the official Honbike webtapak.
