Ganiza V25 Cordless Stick Vacuum Cleaner User Manual

1. Arahan Keselamatan Penting

Sila baca semua arahan dengan teliti sebelum menggunakan perkakas ini. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

• Perkakas ini adalah untuk kegunaan rumah sahaja. Jangan gunakan di luar atau di permukaan basah.
• Jangan benarkan kanak-kanak mengendalikan pembersih vakum. Pengawasan rapi adalah perlu apabila digunakan berhampiran kanak-kanak.
• Jangan ambil cecair mudah terbakar atau mudah terbakar, seperti petrol, atau gunakan di kawasan yang mungkin terdapat.
• Jangan ambil apa-apa yang terbakar atau berasap, seperti rokok, mancis, atau abu panas.
• Jangan gunakan tanpa bekas habuk dan penapis di tempatnya.
• Turn off the appliance before connecting or disconnecting the motorized brush, charging, or performing any maintenance.
• Use only the charger supplied by the manufacturer to recharge the appliance.
• Simpan pembersih vakum di dalam rumah di tempat yang kering.

2. Produk Lebihview

The Ganiza V25 Cordless Stick Vacuum Cleaner is designed for efficient cleaning of various surfaces. It features a powerful brushless motor, multi-stage filtration, and versatile attachments.

Ciri-ciri Utama:

• 28Kpa Max Suction: Provides strong cleaning power for various debris.
• 280W Brushless Digital Motor: Ensures efficient and quiet operation.
• 4-Stage High-Efficient Filter System: Includes Cyclone Filter, Stainless Steel Strainer, HEPA Filter, and Sponge Filter for thorough air purification.
• Sehingga 45 Minit Masa Jalanan: Long-lasting battery for extended cleaning sessions.
• Kepelbagaian 6-dalam-1: Easily converts to a handheld vacuum with multiple attachments.
• Lampu LED: Menerangi kawasan gelap untuk penglihatan yang lebih baik semasa pembersihan.
• Reka bentuk ringan: Easy to maneuver and carry.

Komponen:

Familiarize yourself with the main components of your Ganiza V25 vacuum cleaner.

Image: Main components of the Ganiza V25 Cordless Vacuum Cleaner, including the motor unit, extension wand, floor brush, and various accessories.

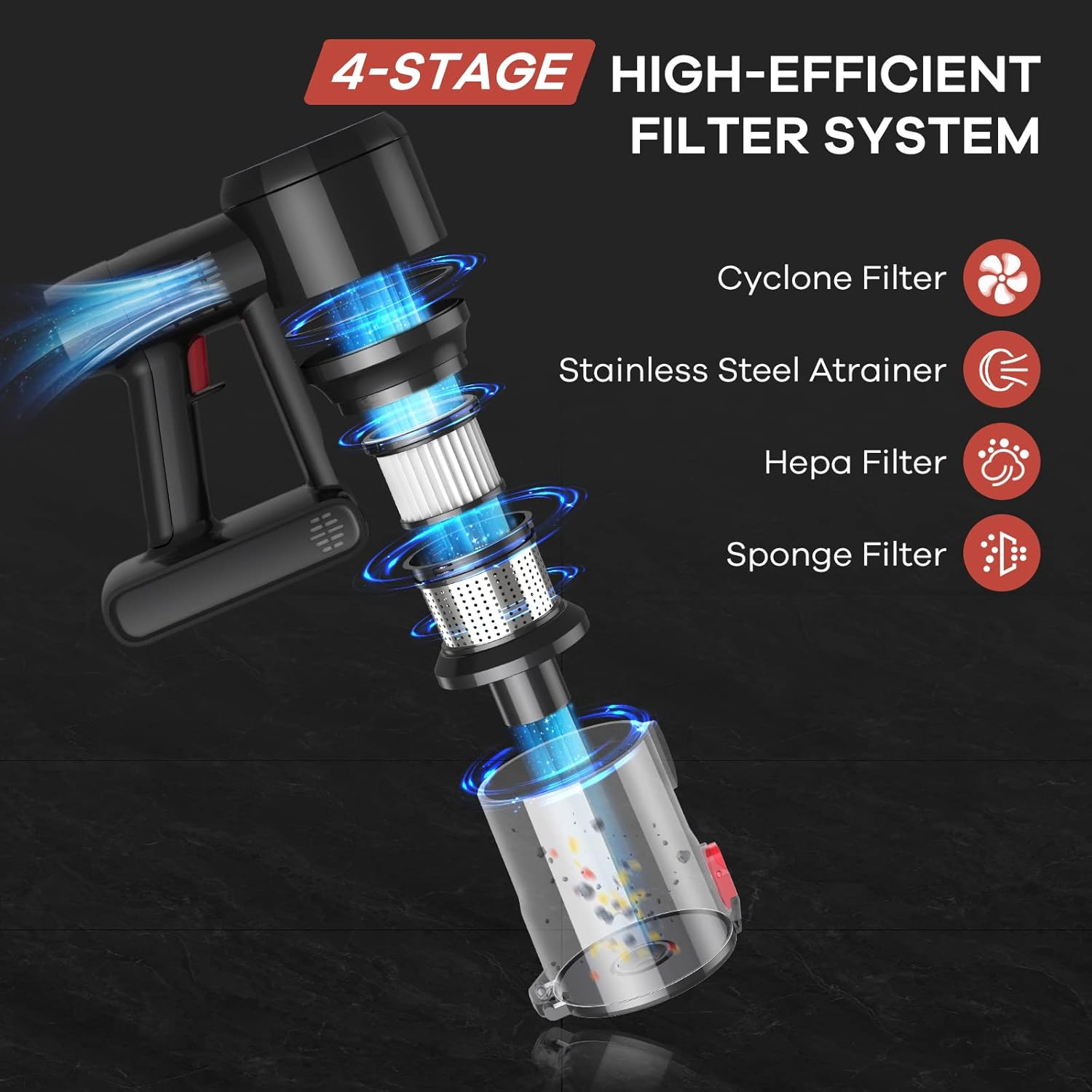

Imej: Meletup view illustrating the 4-stage high-efficient filter system, including the cyclone filter, stainless steel strainer, HEPA filter, and sponge filter.

3. Perhimpunan

Follow these steps to assemble your Ganiza V25 Cordless Stick Vacuum Cleaner.

1. Pasang Tongkat Sambungan: Insert the metal extension wand into the main motor unit until it clicks securely into place.
2. Sambungkan Berus Lantai: Attach the motorized floor brush to the other end of the extension wand, ensuring it locks firmly.
3. Install Dust Cup: Ensure the dust cup is properly attached to the main motor unit.
4. Lampirkan Aksesori (Pilihan): For handheld use, detach the extension wand and connect desired accessories (crevice tool, brush tool) directly to the main motor unit.

Image: Visual guide demonstrating the simple steps for installing and removing the main components of the vacuum cleaner.

4. Mengecas Bateri

Before first use, fully charge the battery. The battery takes approximately 45 minutes to fully charge.

1. Pengecasan Terus: Connect the charger adapter directly to the charging port on the main motor unit.
2. Wall Mount Charging: If using the wall mount, place the vacuum cleaner on the wall mount and connect the charger adapter to the charging port on the wall mount.
3. The LED display on the main unit will indicate the charging status and battery level.

Image: Illustration of the two available charging methods: direct charging and charging via the wall-mounted dock.

5. Arahan Operasi

Learn how to effectively use your Ganiza V25 vacuum cleaner for various cleaning tasks.

1. Hidupkan/Mati Kuasa: Tekan butang kuasa pada unit utama untuk menghidupkan atau mematikan vakum.
2. Laraskan Kuasa Sedutan: The vacuum features 3 power levels. Press the mode button to cycle through Eco, Standard, and Max suction modes.
3. Using the Floor Brush: The motorized floor brush is ideal for carpets and hard floors. The integrated LED headlight will illuminate the cleaning path. The brush head offers 180° wide-angle cleaning for easy maneuverability.
4. Menggunakan Lampiran:
   • Muncung Crevice: Use for narrow gaps, corners, and edges.
   • Berus Habuk: Ideal for delicate surfaces, upholstery, and curtains.

Image: The flexible LED power brush in action, highlighting its ability to clean various areas and illuminate dark spots.

Image: Display of the Crevice Nozzle, Dust Brush, and Electric Floor Brush attachments, demonstrating their specific uses for different cleaning needs.

6. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat pembersih vakum anda.

Mengosongkan Cawan Debu:

Kosongkan cawan habuk selepas setiap penggunaan atau apabila garisan pengisian MAKSIMUM tercapai.

1. Pastikan vakum dimatikan.
2. Press the one-click release button on the dust cup to open the bottom flap.
3. Empty contents into a trash bin.
4. Close the dust cup flap securely.

Image: Demonstration of the one-click dust emptying feature, showing how to release collected debris from the dust cup.

Membersihkan Penapis:

The filters should be cleaned regularly to maintain suction power. The HEPA and sponge filters are washable.

1. Putar dan tarik untuk menanggalkan cawan habuk dari unit utama.
2. Remove the internal filter components (stainless steel strainer, HEPA filter, sponge filter).
3. Tap off loose dirt from the stainless steel strainer.
4. Rinse the HEPA filter and sponge filter under cold running water until the water runs clear.
5. Allow all filter parts to air dry completely for at least 24 hours before reassembling. Do not use a dryer or heat to dry.
6. Reassemble the filters and dust cup, ensuring all parts are securely in place.

Image: Close-up of the washable filter components, indicating they can be rinsed with water for cleaning.

Membersihkan Gulungan Berus:

Periodically check the brush roll for tangled hair or debris and remove as needed.

1. Matikan vakum dan tanggalkan berus lantai.
2. Locate the brush roll release tab/button and remove the brush roll.
3. Gunakan gunting atau alat pembersih untuk memotong dan membuang sebarang rambut atau gentian yang kusut.
4. Reinsert the brush roll, ensuring it clicks into place.

7. Penyelesaian masalah

If you encounter issues with your Ganiza V25, refer to the following common problems and solutions.

8. Spesifikasi

Detailed technical specifications for the Ganiza V25 Cordless Stick Vacuum Cleaner.

9. Waranti dan Sokongan

Ganiza products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your product, please refer to the warranty card included in your packaging or contact Ganiza customer service directly.

Sila simpan bukti pembelian anda untuk tuntutan waranti.
