Manual Pengguna Peti Sejuk Inverter Tanpa Frost 4 Pintu Haier

1. Produk Lebihview

The Haier HRF-530TDPD is a 502-liter, 4-door refrigerator designed for efficient and versatile food storage. It incorporates advanced No Frost technology to prevent ice buildup, an inverter compressor for energy efficiency, and dedicated zones to maintain optimal humidity levels for various food types. The sleek Onyx Silver finish and external control screen enhance its functionality and aesthetic appeal.

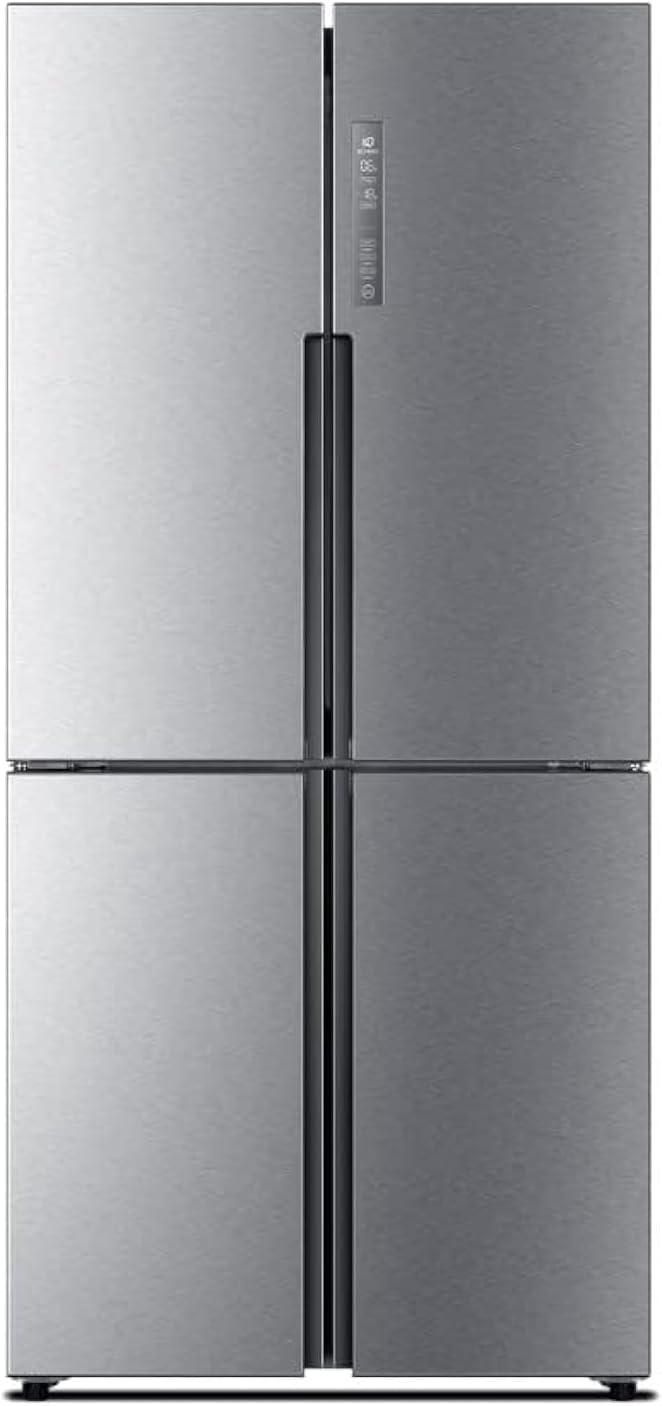

Imej 1.1: Depan view of the Haier 4-Door No Frost Inverter Refrigerator. This image displays the appliance's modern Onyx Silver exterior and its four distinct doors, two for the upper refrigerator compartment and two for the lower freezer section.

Ciri-ciri Utama:

• kapasiti: 502 Liters total.
• Reka bentuk: 4-Door configuration with bottom freezer.
• Sistem nyahbeku: Automatic No Frost technology.
• Prestasi Penyejukan: Super Cooling and Super Freezing functions.
• Dalaman: 3 durable glass shelves and 6 plastic door shelves.
• Specialized Zones: Dedicated Dry Zone and Wet Zone for optimized food preservation.
• Kawalan: External control screen for easy temperature adjustments.
• warna: Onyx Silver finish.

2. Maklumat Keselamatan

Before operating your new refrigerator, please read all safety instructions carefully to prevent injury or damage. Keep this manual for future reference.

• Keselamatan Elektrik: Pastikan peti sejuk disambungkan ke salur keluar kuasa yang dibumikan dengan voltan yang betultage. Jangan gunakan kord sambungan atau penyesuai.
• Pengudaraan: Allow adequate space around the appliance for proper ventilation to prevent overheating.
• Bahan mudah terbakar: Jangan simpan bahan letupan atau bahan mudah terbakar di dalam atau berhampiran peti sejuk.
• Keselamatan Kanak-kanak: Keep children away from the appliance, especially when the doors are open. Ensure they do not play with the controls.
• Pengendalian: Use caution when moving the refrigerator due to its weight. Always lift with assistance and use appropriate moving equipment.

3. Persediaan dan Pemasangan

Pemasangan yang betul adalah penting untuk prestasi dan jangka hayat peti sejuk anda.

3.1 Membongkar

• Keluarkan semua bahan pembungkusan, termasuk pita dan filem pelindung.
• Periksa perkakas untuk sebarang kerosakan penghantaran. Laporkan sebarang kerosakan kepada peruncit anda dengan segera.

3.2 Penempatan

• Place the refrigerator on a flat, stable surface away from direct sunlight, heat sources (e.g., stoves, radiators), and moisture.
• Ensure sufficient clearance around the appliance for proper air circulation. Recommended clearances: 10 cm at the back, 5 cm on the sides, and 30 cm at the top.
• Product dimensions: Approximately 67 cm (Depth) x 84 cm (Width) x 181 cm (Height).

3.3 Meratakan

• Use the adjustable leveling feet at the bottom of the refrigerator to ensure it is perfectly level. This prevents vibrations and ensures proper door sealing.

3.4 Pembersihan Awal

• Sebelum penggunaan pertama, bersihkan bahagian dalam dan luar peti sejuk dengan kain lembut dan larutan detergen yang lembut. Bilas dan keringkan dengan teliti.

3.5 Sambungan Kuasa

• After placement and cleaning, wait at least 2-4 hours before plugging in the appliance. This allows the refrigerant to settle.
• Palamkan peti sejuk ke dalam salur keluar elektrik khusus yang dibumikan.

3.6 Door Reversal (if applicable)

• This model features reversible door hinges, allowing you to change the door swing direction if needed. Refer to the detailed instructions in the separate installation guide for this procedure.

4. Arahan Operasi

Familiarize yourself with the controls and features for optimal performance.

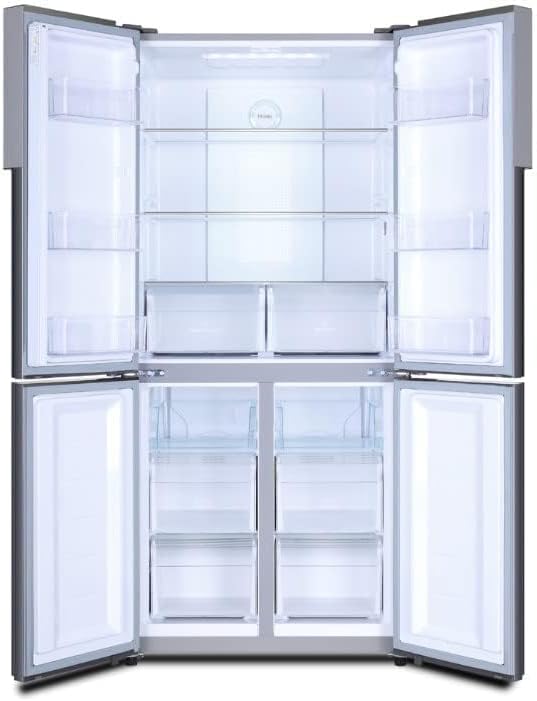

Imej 4.1: Dalaman view of the Haier 4-Door Refrigerator with empty shelves. This image shows the spacious interior of both the refrigerator and freezer compartments, highlighting the glass shelves and door bins, ready for organization.

4.1 External Control Screen

• The external control screen allows you to adjust temperature settings for both the refrigerator and freezer compartments without opening the doors.
• Refer to the display icons for current temperature, mode selection, and special functions.

4.2 Pelarasan Suhu

• Use the temperature control buttons on the external screen to set desired temperatures for the refrigerator and freezer sections.
• Recommended refrigerator temperature: 2°C to 4°C (35°F to 40°F).
• Recommended freezer temperature: -18°C to -20°C (0°F to -4°F).

4.3 Super Cooling and Super Freezing Functions

• Activate the Super Cooling function to rapidly cool down the refrigerator compartment, ideal for quickly chilling newly added groceries.
• Activate the Super Freezing function to rapidly lower the freezer temperature, suitable for freezing large quantities of fresh food quickly to preserve nutrients.
• These functions will automatically deactivate after a set period or when the target temperature is reached.

4.4 Dry Zone and Wet Zone

This refrigerator features specialized compartments to optimize storage conditions for different food types.

Imej 4.2: Illustration of the Humidity Zone feature. This image depicts how the Plant HCS breathable membrane technology intelligently senses room humidity to release or retain moisture, keeping fresh fruits and vegetables at approximately 90% humidity for extended freshness.

Imej 4.3: Diagram illustrating the Dry & Wet Zone functionality. This image shows the patented air cooling system that intelligently adjusts temperature and humidity. The Dry Zone maintains humidity below 40% for items like dried mushrooms or tea, preventing moisture loss and nutrient degradation.

• Zon Basah: Ideal for fresh fruits and vegetables. This zone maintains higher humidity (around 90%) to prevent dehydration and keep produce crisp for longer periods.
• Zon Kering: Suitable for items that require low humidity, such as dried goods, nuts, or certain cheeses. This zone helps prevent moisture absorption and spoilage.

Imej 4.4: Dalaman view of the Haier 4-Door Refrigerator with various food items. This image demonstrates the practical storage capacity and organization possibilities within both the refrigerator and freezer sections, including bottles, produce, and frozen goods.

5. Penyelenggaraan

Regular maintenance ensures the efficiency and longevity of your appliance.

5.1 Pembersihan

• Dalaman: Clean the interior regularly with a solution of mild detergent and warm water. Wipe dry with a soft cloth. Remove shelves and drawers for thorough cleaning.
• Luaran: Lap permukaan luar dengan lembut, damp kain. Untuk kotoran degil, gunakan pembersih yang lembut dan tidak kasar.
• Gasket Pintu: Clean door gaskets regularly to ensure a tight seal. Use warm water and a soft cloth.
• Gegelung pemeluwap: Periodically clean the condenser coils located at the back or bottom of the refrigerator. Dust and debris can reduce efficiency. Unplug the appliance before cleaning coils.

5.2 Tiada Sistem Frost

• The No Frost system automatically defrosts the freezer compartment, eliminating the need for manual defrosting.
• Ensure that food packaging does not block air vents inside the freezer, as this can interfere with the No Frost system's effectiveness.

5.3 Anti-Bacterial Technology

This refrigerator is equipped with anti-bacterial technology to help maintain a hygienic storage environment.

Imej 5.1: Visual representation of the Anti-Bacterial Technology. This image highlights the 99.99% bacterial reduction rate achieved by the natural stone bactericidal technology, which utilizes Tourmaline and Cordierite to release negative ions and nano-anions, inhibiting bacterial growth and reducing food metabolic enzymes.

• The integrated anti-bacterial system helps to inhibit bacterial growth and reduce odors within the refrigerator compartments.
• While this technology provides an added layer of hygiene, regular cleaning is still recommended to maintain optimal conditions.

6. Penyelesaian masalah

Before contacting customer service, try these simple troubleshooting steps.

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi khidmat pelanggan Haier.

7. Spesifikasi

Detailed technical specifications for the Haier HRF-530TDPD Refrigerator.

8. Waranti dan Sokongan

Your Haier HRF-530TDPD Refrigerator comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and what is covered.

Sokongan Pelanggan:

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Haier customer service through their official website or the contact number provided in your product documentation. When contacting support, please have your model number (HRF-530TDPD) and serial number ready.

You may also visit the official Haier store on Amazon for additional product information and support: Haier Egypt Store
