Instruction Manual for Starax Narrow Sliding Two Rack Cabinet Organizer

pengenalan

The Starax Narrow Sliding Two Rack Cabinet Organizer is designed to maximize storage efficiency in narrow kitchen cabinets. Featuring two levels of storage and Blum soft-close undermount slides, this organizer provides convenient pull-out access for bottles, spices, and other kitchen essentials, transforming previously unused spaces into functional storage.

This manual provides detailed instructions for the proper installation, operation, and maintenance of your new cabinet organizer.

Maklumat Keselamatan

• Sentiasa pastikan semua komponen dipasang dengan kukuh sebelum digunakan.
• Do not overload the organizer beyond its intended weight capacity.
• Jauhkan bahagian kecil daripada kanak-kanak semasa pemasangan.
• Use appropriate tools and follow all instructions carefully to prevent injury or damage.
• If any parts are missing or damaged, do not proceed with assembly. Contact customer support.

Kandungan Pakej

Sila sahkan bahawa semua komponen berikut disertakan dalam pakej anda:

• 1x Two-tier wire basket frame with integrated Blum undermount slides
• Pemasangan kurungan dan skru
• Installation template (if applicable, otherwise refer to measurements)
• Manual arahan

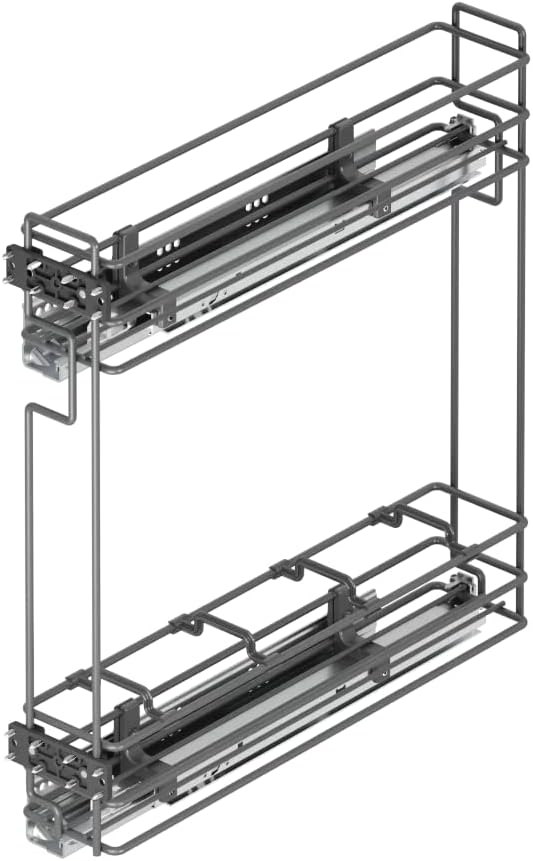

Image: The main components of the Starax Narrow Sliding Cabinet Organizer, including the two-tier wire basket frame with integrated Blum undermount slides.

Persediaan dan Pemasangan

The Starax cabinet organizer is designed for easy installation. Follow these steps carefully:

1. Sediakan Kabinet: Ensure the cabinet interior is clean and clear of any obstructions. Measure the available space to confirm it accommodates the organizer's dimensions (4 3/16 inches Wide, 18 11/16 inches Deep, 19.5 inches High).
2. Position the Organizer: Place the organizer inside the cabinet at the desired location. Ensure it is flush against the back wall and centered within the narrow opening.


   Image: The Starax Narrow Sliding Cabinet Organizer shown installed in a kitchen cabinet, demonstrating its pull-out functionality with bottles and spices.

3. Tandakan Titik Pelekap: Using a pencil, mark the screw holes for the mounting brackets on the cabinet floor. If an installation template is provided, use it for precise marking.
4. Selamatkan Pangkalan: Using a screwdriver or drill, fasten the organizer's base to the cabinet floor using the provided screws. Ensure it is firmly secured and does not wobble.
5. Operasi Ujian: Gently pull the organizer out and push it back in to ensure the Blum soft-close slides operate smoothly and without obstruction.

Arahan Operasi

Using your Starax Narrow Sliding Cabinet Organizer is straightforward:

• Memuatkan: Place bottles, spices, or other items into the two baskets. The bottom basket is ideal for taller items like bottles, while the top basket is suitable for smaller items.
• Mengakses Item: Gently pull the organizer forward to extend it from the cabinet. The Blum soft-close slides will ensure a smooth and quiet operation.
• Penutup: Push the organizer back into the cabinet. The soft-close mechanism will engage, pulling the organizer fully into the cabinet without slamming.

Penyelenggaraan

To ensure the longevity and optimal performance of your Starax cabinet organizer, follow these maintenance tips:

• Pembersihan: Wipe down the wire baskets and slides with a damp cloth and mild detergent as needed. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Pengeringan: Ensure all parts are thoroughly dried after cleaning to prevent rust or corrosion.
• Slide Care: The Blum slides are designed for maintenance-free operation. Avoid applying lubricants unless specifically instructed by the manufacturer, as this can attract dust and debris.
• Pemeriksaan biasa: Periksa semua skru dan pengikat secara berkala untuk memastikan ia kekal ketat. Ketatkan semula jika perlu.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

Starax products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official Starax webtapak.

If you encounter any issues or require assistance with your product, please contact Starax customer support. Have your model number (S-2477) and purchase details ready when contacting support.
