Manual Arahan Basikal Elektrik Bezior XF001

pengenalan

The Bezior XF001 is an electric bike designed for adults, featuring a powerful 1000W motor, a removable 48V 12.5Ah lithium battery, and robust 20" x 4.0 fat pneumatic tires. Engineered for versatility, it is suitable for various terrains including snow, beach, and mountain paths, offering speeds up to 45km/h. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your Bezior XF001 electric bike.

Figure 1: The Bezior XF001 Electric Bike in black, showcasing its robust design and fat tires.

Garis Panduan Keselamatan

Prior to operating the Bezior XF001 electric bike, it is imperative to read and understand all safety instructions. Failure to comply with these guidelines may result in injury or damage to the product.

• Sentiasa pakai topi keledar dan peralatan keselamatan yang sesuai semasa menunggang.
• Biasakan diri anda dengan undang-undang dan peraturan lalu lintas tempatan mengenai basikal elektrik.
• Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level.
• Jangan kendalikan basikal di bawah pengaruh alkohol atau dadah.
• Avoid riding in adverse weather conditions, such as heavy rain or snow, if visibility is compromised.
• Pastikan bateri dikunci dengan selamat di tempatnya sebelum menunggang.

Komponen Lebihview

The Bezior XF001 electric bike is equipped with several key components that contribute to its performance and functionality.

Gambar 2: Lebihview of key components including the 5-Gear Multifunctional LCD Instrument, Shimano 7-speed transmission, and 20" Aluminum Alloy Frame.

• Motor: 1000W rear hub motor, providing robust power for various terrains.
• Bateri: Removable 48V 12.5Ah Lithium Battery, located under the long saddle.
• Bingkai: Durable 20" Aluminum Alloy Frame.
• Tayar: 20" x 4.0 Fat Pneumatic Tires, designed for stability and traction.
• Gear: Shimano 7-Speed Transmission system.
• paparan: 5-Gear Multifunctional LCD Instrument (Linghui M5) for speed, battery, and assist level monitoring.
• Penggantungan: Front suspension for improved ride comfort.
• Brek: Brek cakera untuk kuasa henti yang boleh dipercayai.
• Pencahayaan: Integrated LED headlight and rear light. The rear light unit also features a USB charging port.
• Passenger Footpegs: Foldable footpegs located near the rear wheel for a passenger.

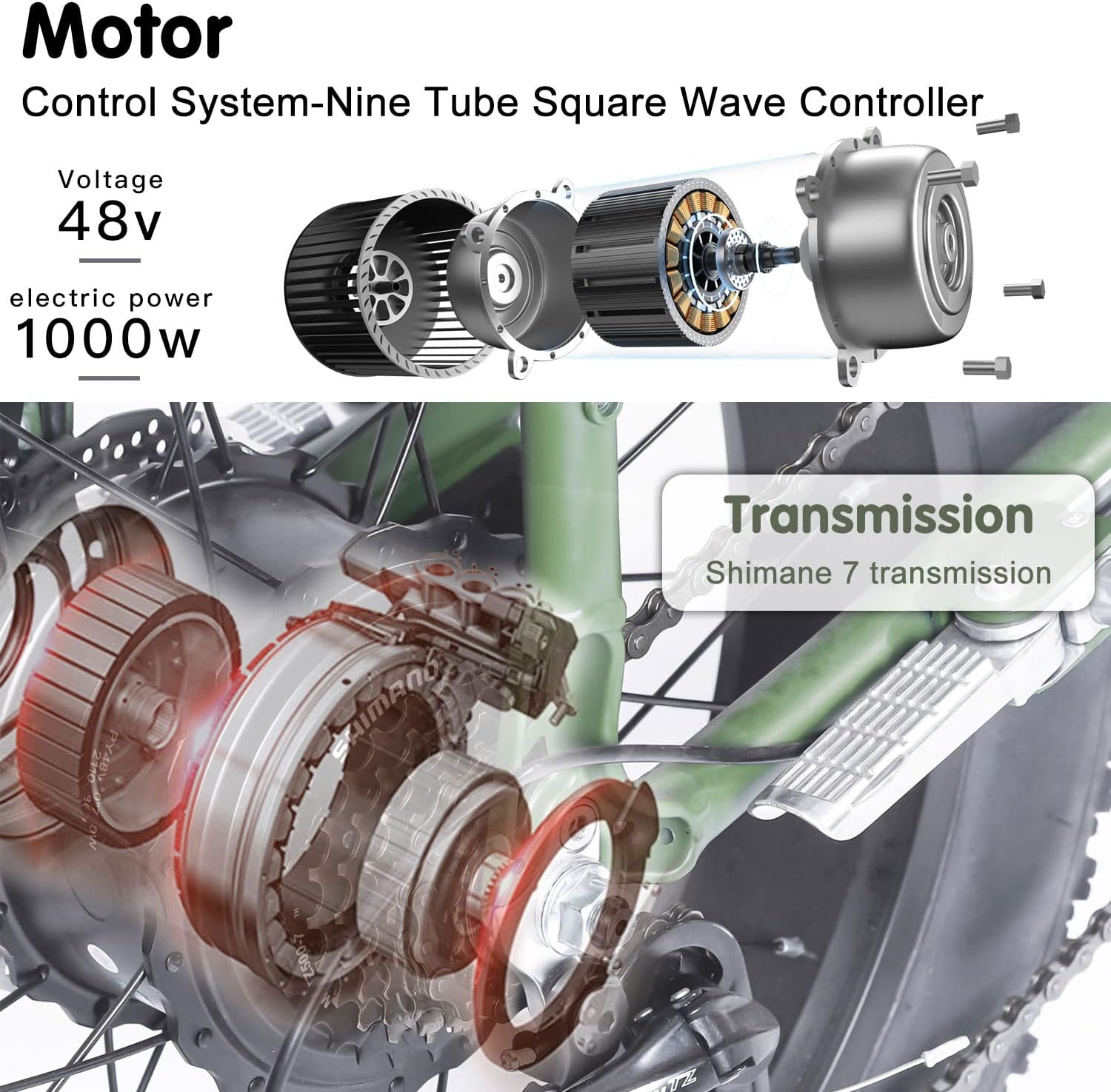

Rajah 3: Terperinci view of the 1000W 48V motor and Shimano 7-speed transmission system.

Persediaan

The Bezior XF001 electric bike requires some assembly upon arrival. Follow these steps for proper setup:

1. Membuka kotak: Carefully remove all components from the packaging. Retain the original packaging for potential returns or future transport.
2. Pemasangan Hendal: Attach the handlebars to the stem, ensuring all bolts are tightened securely.
3. Pemasangan Pedal: Identify the left (L) and right (R) pedals. Thread the pedals into the crank arms. Note that the left pedal threads counter-clockwise. Tighten firmly.
4. Inflasi Tayar: Inflate both front and rear tires to the recommended pressure indicated on the tire sidewall.
5. Pemasangan Bateri: Insert the removable lithium battery into its compartment under the seat and ensure it clicks securely into place. Use the provided key to lock it.
6. Caj Permulaan: Fully charge the battery before the first ride. Connect the charger to the bike's charging port (located near the rear light unit) and then to a power outlet.
7. Semakan Pra-Tunggangan: Before your first ride, double-check all connections, brakes, and tire pressure.

Beroperasi

Operating your Bezior XF001 electric bike involves understanding its power system, pedal-assist modes, and gear shifting.

1. Hidupkan/Mati Kuasa: To power on the bike, ensure the main power switch under the rear light is engaged, then press and hold the power button on the LCD display. To power off, press and hold the power button again.
2. Paparan Digital: The LCD display shows current speed, battery level, assist level (PAS), and odometer readings. Familiarize yourself with the display interface.
3. Sistem Bantuan Pedal (PAS): The bike offers multiple levels of pedal assistance. Use the '+' and '-' buttons on the handlebar control to adjust the assist level (1-5). Higher levels provide more motor assistance.
4. Operasi Pendikit: The Bezior XF001 includes a throttle for pure electric mode. Gently twist the throttle on the right handlebar to engage the motor without pedaling. Note: Local regulations may restrict throttle use on public roads.
5. Penukaran Gear: Utilize the Shimano 7-speed gear shifter on the right handlebar to change gears according to terrain and desired pedaling effort. Shift gears smoothly to avoid strain on the drivetrain.
6. Brek: The bike is equipped with disc brakes. Squeeze the brake levers on the handlebars to slow down or stop. Apply both brakes simultaneously for optimal stopping power.
7. Passenger Use: The long saddle and foldable footpegs allow for a passenger. Ensure the combined weight does not exceed the maximum weight recommendation.

Penyelenggaraan

Regular maintenance is crucial for the longevity and safe operation of your Bezior XF001 electric bike.

• Penjagaan Bateri:
  • Charge the battery fully after each ride, especially if it's been heavily discharged.
  • If storing the bike for an extended period, charge the battery to 50-70% and store it in a cool, dry place. Recharge every 2-3 months.
  • Elakkan daripada mendedahkan bateri kepada suhu yang melampau.
• Tekanan Tayar: Check tire pressure regularly (weekly or before each ride). Maintain the recommended PSI for optimal performance and safety.
• Pemeriksaan Brek: Periodically inspect brake pads for wear and ensure brake levers provide firm and responsive braking. Adjust or replace as needed.
• Pelinciran rantai: Pastikan rantai bersih dan dilincirkan untuk memastikan pertukaran gear yang lancar dan mencegah karat.
• Pembersihan Am: Bersihkan basikal dengan damp kain. Elakkan menggunakan pencuci tekanan tinggi secara langsung pada komponen elektrik.
• Pemeriksaan Pengikat: Regularly check all bolts and fasteners for tightness, especially on the handlebars, seat, and wheels.

Menyelesaikan masalah

This section addresses common issues you might encounter with your Bezior XF001 electric bike.

Spesifikasi

Figure 4: Product parameters for the Bezior XF001, including dimensions, weight, and speed.

Waranti dan Sokongan

Bezior provides comprehensive support for your electric bike.

• Sokongan Sepanjang Hayat: We offer lifelong support for key components including the battery, charger, motor, and controller.
• Penggantian bahagian: Parts replacements are accepted within 7 days after the item arrives, specifically for no reason or malfunction. Please retain the original packaging for a while in case a return is necessary.
• Hubungi Sokongan: For any inquiries or support needs, please contact the seller directly. Bezior aims to respond within 24 hours. You can typically find the 'Contact this Seller' option by clicking on the store name "BEZIOR Official" and scrolling down.
