1. Pengenalan
Thank you for choosing the LAVOR DIVE Plus 130 Cold Water High-Pressure Washer. This powerful and compact unit is designed for various domestic cleaning tasks, including vehicles, patios, sidewalks, barbecues, garden furniture, and exterior walls. Its ergonomic handle, wheels, and lightweight design ensure easy transport and maneuverability. Please read this manual thoroughly before operation to ensure safe and efficient use of your pressure washer.
2. Arahan Keselamatan
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or property damage.
- Baca keseluruhan manual: Biasakan diri anda dengan kawalan dan penggunaan mesin basuh tekanan yang betul.
- Wear appropriate safety gear: Always wear eye protection (safety glasses or goggles) and hearing protection. Protective clothing and non-slip footwear are also recommended.
- Keselamatan Elektrik: Ensure the power outlet is properly grounded. Do not operate the pressure washer with damaged cords or plugs. Keep all connections dry and off the ground. Never touch the plug or outlet with wet hands.
- Sambungan Air: Connect the pressure washer to a cold water supply only. Ensure the water supply hose is free from kinks and damage.
- Bahaya Tekanan Tinggi: The high-pressure jet can be dangerous if misused. Never direct the water jet at people, animals, electrical equipment, or the unit itself.
- Kanak-kanak dan Haiwan Kesayangan: Jauhkan kanak-kanak dan haiwan peliharaan dari kawasan operasi.
- Kestabilan: Kendalikan mesin basuh tekanan pada permukaan yang stabil dan rata untuk mengelakkan terbalik.
- Bahan kimia: Use only detergents recommended for pressure washers. Follow detergent manufacturer's instructions for use and disposal.
- Penyelenggaraan: Putuskan sambungan daripada bekalan kuasa sebelum melakukan sebarang penyelenggaraan atau pembersihan.
3. Kandungan Pakej
Buka bungkusan kotak dengan berhati-hati dan pastikan semua barang ada dan tidak rosak. Jika terdapat barang yang hilang atau rosak, hubungi peruncit anda.
- LAVOR DIVE Plus 130 High-Pressure Washer Unit
- Pistol grip (spray gun)
- High-pressure hose (4 meters)
- Lance with Vario-jet nozzle
- Lance with Turbo nozzle
- Detergent diffuser
4. Persediaan dan Pemasangan
Ikuti langkah-langkah ini untuk memasang dan menyediakan mesin basuh tekanan anda untuk kegunaan pertama.
- Buka bungkusan Unit: Keluarkan semua komponen dari pembungkusan.
- Pasang Roda dan Pemegang: Secure the wheels and ergonomic handle to the main unit as per the diagrams. The unit features an integrated accessory holder.
Image 1: Main unit of the LAVOR DIVE Plus 130 high-pressure washer, showing its compact design and integrated handle.
Imej 2: Jarak dekat view of the integrated accessory holder and handle on the pressure washer, designed for convenient storage of the spray gun and lance.
- Sambungkan Bekalan Air: Connect a garden hose (not included) to the water inlet on the pressure washer. Ensure the water supply is clean and free of debris. Turn on the water tap fully.
- Sambungkan Hos Tekanan Tinggi: Attach one end of the 4-meter high-pressure hose to the high-pressure outlet on the unit and the other end to the pistol grip. Ensure connections are secure.
- Pasang Lance dan Nozel: Select the desired lance (Vario-jet or Turbo) and attach it to the pistol grip.
- Sambungkan Kuasa: Palamkan kord kuasa ke soket elektrik yang dibumikan yang sesuai.
5. Arahan Operasi
Sebelum memulakan, pastikan semua sambungan ketat dan bekalan air dihidupkan.
- Singkirkan Udara daripada Sistem: Squeeze the trigger on the pistol grip until a steady stream of water flows from the nozzle, indicating all air has been purged from the pump and hose.
- Mulakan Unit: Turn the ON/OFF switch to the 'ON' position. The motor will start, and the pump will build pressure. The Automatic Stop System will engage when the trigger is released.
- Mulakan Pembersihan: Point the nozzle at the surface to be cleaned, keeping a safe distance. Squeeze the trigger to start the high-pressure jet.
Image 3: A person using the LAVOR DIVE Plus 130 to clean a child's toy car, demonstrating its suitability for various domestic cleaning tasks.
Image 4: A person effectively cleaning a car with the high-pressure washer, highlighting its use for vehicle maintenance.
- Using Nozzles:
- Vario-jet Nozzle: Allows adjustment of the spray pattern from a concentrated jet to a wide fan spray by rotating the nozzle.
- Muncung Turbo: Provides a rotating pencil jet for intense cleaning of stubborn dirt. Use with caution on delicate surfaces.
- Menyapu Detergen: Fill the detergent diffuser with appropriate pressure washer detergent. Attach the diffuser to the pistol grip. The pressure washer will draw detergent at low pressure.
- Tutup: Release the trigger. Turn the ON/OFF switch to the 'OFF' position. Turn off the water supply. Squeeze the trigger to release any remaining pressure in the system. Disconnect the power cord.
6. Penyelenggaraan
Regular maintenance ensures optimal performance and extends the life of your pressure washer. Always disconnect the unit from the power supply before performing any maintenance.
- muncung bersih: Periodically check nozzles for blockages. Use the provided nozzle cleaning tool (if applicable) to clear any debris.
- Penapis Masuk Air: Inspect and clean the water inlet filter regularly to prevent debris from entering the pump.
- Hos dan Sambungan: Check the high-pressure hose and all connections for wear, leaks, or damage before each use. Replace damaged parts immediately.
- Storan: Before storing, especially in freezing temperatures, ensure all water is drained from the pump and hoses to prevent damage. Store the unit in a dry, frost-free location.
7. Penyelesaian masalah
Rujuk bahagian ini untuk isu biasa dan penyelesaiannya.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Motor tidak hidup | No power supply; Faulty switch; Thermal overload activated | Check power connection; Ensure switch is ON; Allow unit to cool down |
| Tiada tekanan atau tekanan rendah | No water supply; Kinked hose; Clogged nozzle; Air in pump | Check water supply; Straighten hose; Clean nozzle; Purge air from system |
| Tekanan berdenyut | Air in pump; Water inlet filter clogged; Insufficient water supply | Purge air from system; Clean water inlet filter; Ensure adequate water flow |
| Kebocoran air | Loose connections; Damaged O-rings or seals | Tighten all connections; Replace damaged O-rings or seals |
8. Spesifikasi
Key technical specifications for the LAVOR DIVE Plus 130 high-pressure washer.
- Nombor Model: 8.106.0097C
- Tekanan Maksimum: 130 bar
- Kadar Aliran Maksimum: 390 liter sejam
- Kuasa Motor: 1800 Watt
- Jenis Pam: 3 steel pistons, aluminum pump head, built-in bypass valve
- Sumber Kuasa: Kabel elektrik
- Panjang hos: 4 meter
- Dimensi Produk (L x W x H): 27.5 x 40 x 52 cm
- Berat Barang: 5 Kilogram
- warna: Kuning/Kelabu
- Pematuhan: CE diperakui

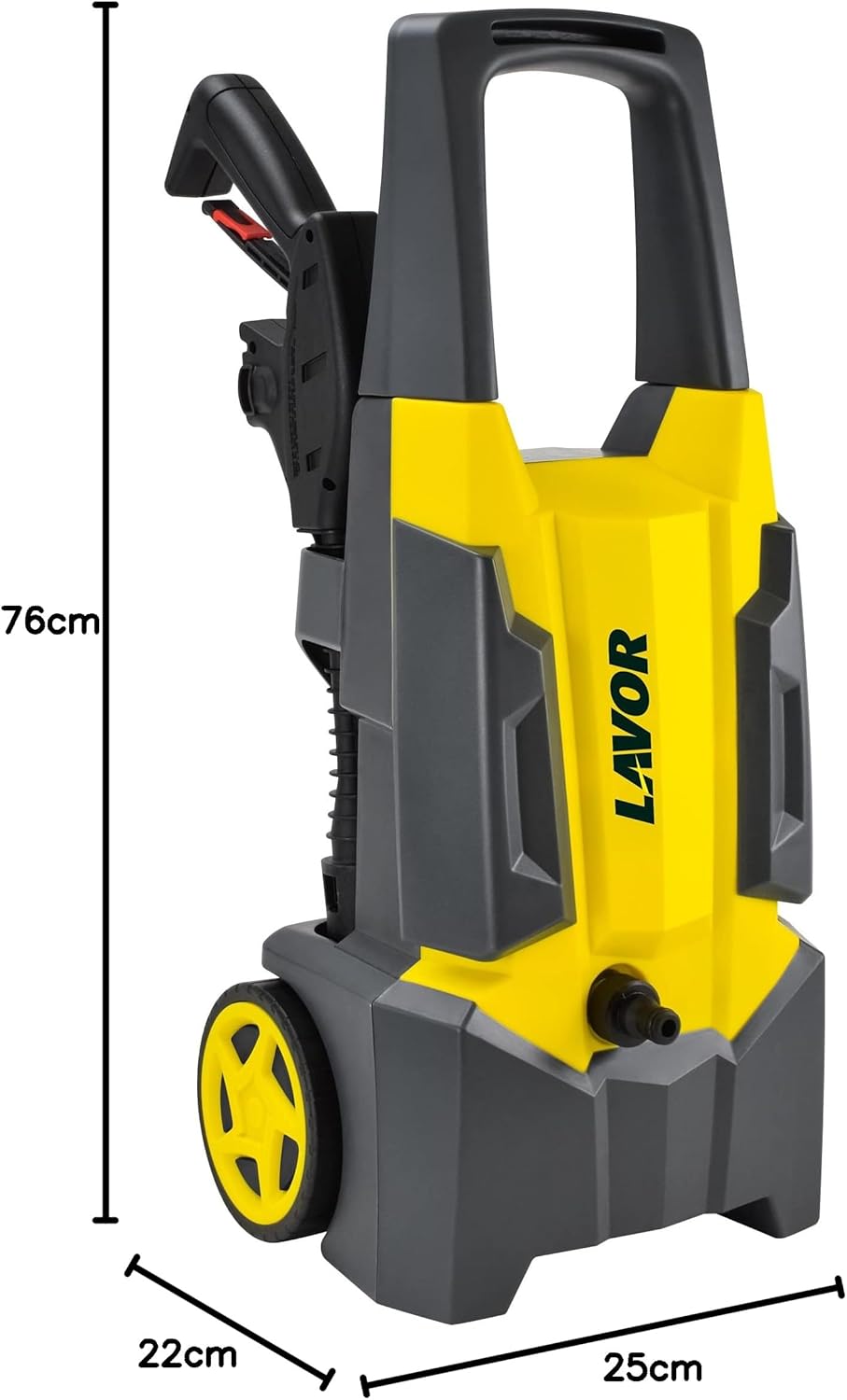

Image 5: Diagram illustrating the dimensions of the LAVOR DIVE Plus 130 pressure washer: 76cm height, 22cm width, and 25cm depth.
Image 6: The product's Repairability Index, rated at 8.3 out of 10, indicating ease of repair and availability of spare parts.
9. Waranti dan Sokongan
Lavor is committed to providing reliable and durable products. Spare parts for this model are available for up to 10 years from the date of purchase.
For warranty claims, technical support, or to inquire about spare parts, please contact your retailer or visit the official Lavor website for customer service information. Please have your model number (8.106.0097C) and proof of purchase ready when contacting support.
