OXS Soundbar S3 Instruction Manual

1. Produk Lebihview

The OXS Soundbar S3 is designed to enhance your audio experience with immersive 3D surround sound. It features multiple connectivity options and sound modes to suit various content types.

Image: The OXS Soundbar S3 featuring 4 powerful speakers, delivering 96dB sound output and 80W power, creating an immersive audio environment.

Ciri-ciri Utama:

• Immersive 3D Surround Sound System
• Dynamic Bass Boost with Special Port Tube Reflection
• Multiple Equalizer Modes: Movie, Music, News
• Maximum 96 dB of Room-Filling Crystal Clear Sound
• Low Total Harmonic Distortion (<1%) for Original Sound Reproduction
• Multiple Wireless (Bluetooth 5.0) and Wired Connections (USB, AUX, Optical, Coaxial)

Image: A living room setting with the OXS Soundbar S3 delivering an immersive 3D sound experience, indicated by virtual surround technology graphics.

2. Kandungan Pakej

Pastikan semua item ada dalam pakej:

• OXS Soundbar S3 Unit
• Penyesuai Kuasa
• Alat Kawalan Jauh
• Kabel Optik
• Kabel sepaksi
• Auxiliary (Aux) Cable
• Wall Brackets (2)
• Expansion Tubes (for wall mounting)
• Skru (untuk pemasangan dinding)
• Manual Arahan (dokumen ini)

3. Arahan Persediaan

3.1 Penempatan

Place the soundbar on a stable, flat surface in front of your television or mount it on the wall using the provided brackets. Ensure there are no obstructions in front of the speakers for optimal sound delivery.

3.2 Menyambung ke TV Anda

The Soundbar S3 offers multiple connection options. Choose the method that best suits your television and desired audio quality.

Image: The rear panel of the OXS Soundbar S3 displaying various input ports including USB, AUX, Optical, and Coaxial, alongside Bluetooth 5.0 connectivity.

1. Sambungan Optik (Disyorkan): Connect one end of the optical cable to the 'OPTICAL OUT' port on your TV and the other end to the 'OPTICAL IN' port on the soundbar. Select 'Optical' input on the soundbar.
2. Sambungan Koaksial: Connect one end of the coaxial cable to the 'COAXIAL OUT' port on your TV and the other end to the 'COAXIAL IN' port on the soundbar. Select 'Coaxial' input on the soundbar.
3. Sambungan AUX: Connect one end of the 3.5mm AUX cable to the 'AUX OUT' port on your TV (or other audio source) and the other end to the 'AUX IN' port on the soundbar. Select 'AUX' input on the soundbar.
4. Sambungan Bluetooth:
   • Hidupkan bar bunyi.
   • Press the 'Bluetooth' button on the soundbar or remote control to enter Bluetooth pairing mode (indicator light will flash).
   • On your device (e.g., smartphone, tablet), search for 'OXS Soundbar S3' in the Bluetooth settings and pair.
   • Once connected, the indicator light will be solid.
5. Sambungan USB: Masukkan pemacu USB yang mengandungi audio files into the 'USB' port on the soundbar. The soundbar will automatically switch to USB mode and begin playback.

3.3 Sambungan Kuasa

Connect the power adapter to the 'DC IN' port on the soundbar and then plug the adapter into a wall outlet.

4. Arahan Operasi

4.1 Hidupkan/Mati Kuasa

• Tekan ke kuasa butang pada bar bunyi atau alat kawalan jauh untuk menghidupkan atau mematikan unit.

4.2 Pemilihan Input

• Tekan ke Sumber button on the soundbar or the remote control to cycle through available inputs: Bluetooth, USB, AUX, Optical, Coaxial.

4.3 Kawalan Kelantangan

• Gunakan + dan - buttons on the soundbar or remote control to adjust the volume.

4.4 Mod Bunyi

The Soundbar S3 offers three distinct equalizer modes to optimize your listening experience:

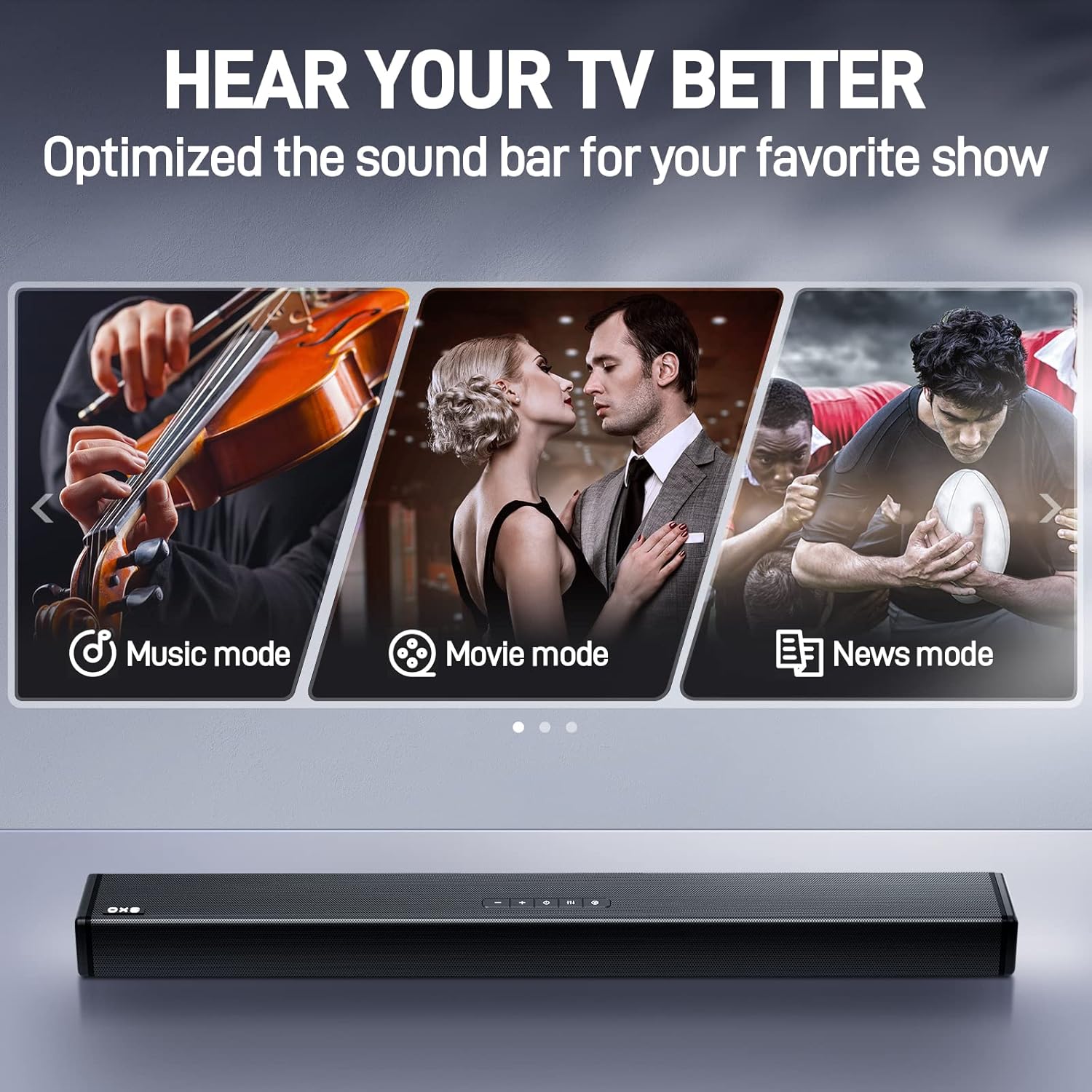

Image: The OXS Soundbar S3 with visual indicators for its three optimized sound modes: Music, Movie, and News, designed to enhance specific audio content.

• Mod Muzik: Ideal for listening to music, providing a balanced audio profile.
• Mod Filem: Enhances cinematic audio with dynamic range and surround effects.
• Mod Berita: Optimizes vocal clarity for news broadcasts and dialogue-heavy content.

Tekan ke EQ button on the remote control to switch between these modes.

Image: A hand holding the remote control for the OXS Soundbar S3, demonstrating its use for controlling the device from a distance.

5. Penyelenggaraan

To ensure the longevity and optimal performance of your OXS Soundbar S3, follow these maintenance guidelines:

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan permukaan soundbar. Jangan gunakan pembersih cecair atau bahan kasar, kerana ia boleh merosakkan kemasannya.
• Pengudaraan: Ensure the soundbar has adequate ventilation. Do not block any ventilation openings.
• Storan: Jika menyimpan bar bunyi untuk tempoh yang lama, putuskan sambungannya daripada kuasa dan simpannya di tempat yang sejuk dan kering jauh daripada cahaya matahari langsung dan suhu yang melampau.

6. Penyelesaian masalah

Jika anda menghadapi masalah dengan bar bunyi anda, rujuk masalah dan penyelesaian biasa berikut:

• Tiada Bunyi:
  • Pastikan bar bunyi dihidupkan dan kelantangan tidak disenyapkan atau ditetapkan terlalu rendah.
  • Verify that the correct input source is selected on the soundbar (e.g., Optical, AUX, Bluetooth).
  • Check all cable connections (Optical, Coaxial, AUX) between the soundbar and your TV/audio source. Ensure they are securely plugged in.
  • Confirm that your TV's audio output settings are configured to send audio to the selected output (e.g., PCM for optical/coaxial).
• Kualiti Bunyi Lemah / Statik:
  • Check for loose or damaged cables. Try replacing the audio cable if necessary.
  • Ensure the soundbar is not placed too close to other electronic devices that might cause interference.
  • Adjust the sound modes (Movie, Music, News) to see if a different mode improves clarity for your content.
  • For Bluetooth connections, ensure your device is within range and there are no major obstructions.
• Alat Kawalan Jauh Tidak Berfungsi:
  • Periksa sama ada bateri dalam alat kawalan jauh perlu diganti.
  • Pastikan tiada halangan antara alat kawalan jauh dan sensor bar bunyi.
• Isu Berpasangan Bluetooth:
  • Make sure the soundbar is in Bluetooth pairing mode (indicator light flashing).
  • Lumpuhkan dan dayakan semula Bluetooth pada peranti anda.
  • Forget the soundbar from your device's Bluetooth list and attempt to pair again.

7. Spesifikasi

8. Waranti dan Sokongan

For detailed warranty information and customer support, please refer to the warranty card included with your product packaging or visit the official OXS website. The manufacturer, ShenZhen Rango Innovation Technology Co.Ltd, provides support for this product.
