BLACK+DECKER BES510K-GB 400W Corded Mini Circular Saw Instruction Manual

1. Pengenalan dan Lebihview

This manual provides essential information for the safe and efficient operation of your BLACK+DECKER BES510K-GB 400W Corded Mini Circular Saw. Please read these instructions carefully before using the tool and keep them for future reference. This mini circular saw is designed for cutting various materials including wood, plastic, and certain metals, offering precision and control for a range of DIY tasks.

Ciri-ciri Utama:

• Powerful 400W motor for efficient cutting across multiple materials.
• Quick and easy depth adjustment for cutting depths up to 27 mm.
• Enhanced comfort and control with multiple grip positions and an easy-to-use trigger.
• Includes two high-quality blades for versatile cutting applications.
• Spindle lock mechanism for fast and simple blade changes.

Image 1.1: The BLACK+DECKER BES510K-GB 400W Corded Mini Circular Saw. This image shows the compact design of the saw, highlighting its ergonomic handle and blade guard.

2. Arahan Keselamatan

Sentiasa ikuti langkah berjaga-jaga keselamatan asas untuk mengurangkan risiko kebakaran, renjatan elektrik dan kecederaan diri apabila menggunakan alatan kuasa.

• Keselamatan Kawasan Kerja: Pastikan kawasan kerja anda bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
• Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan alur keluar. Jangan sekali-kali mengubah suai palam dalam apa jua cara. Elakkan sentuhan badan dengan permukaan yang dibumikan atau dibumikan seperti paip, radiator, julat dan peti sejuk.
• Keselamatan Diri: Always wear eye protection. Use a dust mask, non-skid safety shoes, hard hat, or hearing protection for appropriate conditions. Do not overreach. Keep proper footing and balance at all times.
• Penggunaan dan Penjagaan Alat: Jangan paksa alat kuasa. Gunakan alat kuasa yang betul untuk aplikasi anda. Putuskan sambungan palam daripada sumber kuasa sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.
• Specific Circular Saw Safety: Keep hands away from the cutting area and the blade. Do not reach underneath the workpiece. Ensure the blade guard is functioning correctly before each use.

3. Kandungan Pakej

Carefully unpack your BLACK+DECKER BES510K-GB Mini Circular Saw and check for the following components:

• BLACK+DECKER Corded Mini Circular Saw Unit
• 24-tooth TCT (Tungsten Carbide Tipped) Blade
• HSS (High-Speed Steel) Wood and Metal Blade
• Penyesuai Pengekstrakan Habuk
• Hex Key for blade changes
• Panduan Selari
• Kitbox (Storage Case)

Image 3.1: The mini circular saw shown with its included kitbox, two blades, dust extraction adapter, and parallel guide. This image illustrates all components provided in the package.

4. Persediaan

4.1 Pemasangan dan Pembuangan Bilah

1. Pastikan alat dicabut dari sumber kuasa.
2. Tekan dan tahan butang kunci gelendong.
3. Using the provided hex key, loosen the blade retaining screw by turning it counter-clockwise.
4. Tanggalkan bebibir luar dan bilah lama.
5. Place the new blade onto the spindle, ensuring the teeth are pointing in the direction of rotation indicated by the arrow on the blade guard.
6. Replace the outer flange and tighten the blade retaining screw clockwise with the hex key while holding the spindle lock button. Do not overtighten.

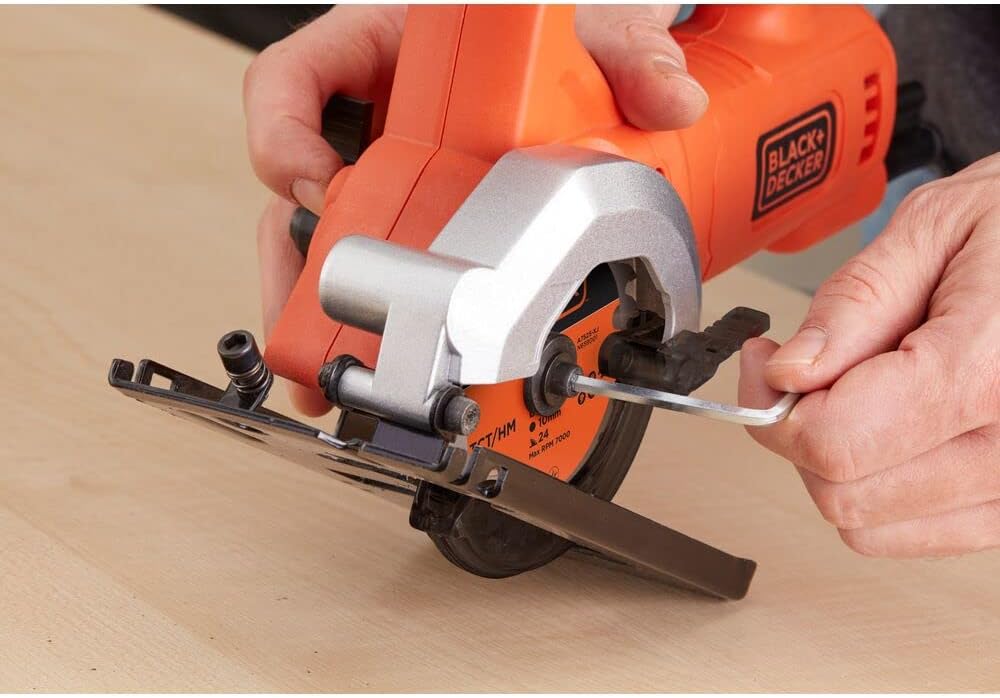

Image 4.1: A user demonstrating how to change the blade on the mini circular saw using the hex key and spindle lock. This image highlights the blade changing process.

4.2 Melaraskan Kedalaman Pemotongan

The cutting depth can be adjusted to match the thickness of your workpiece, up to a maximum of 27 mm.

1. Longgarkan tuil pelarasan kedalaman yang terletak di sisi gergaji.
2. Move the base plate up or down to achieve the desired cutting depth.
3. Tighten the depth adjustment lever securely to lock the setting.

4.3 Attaching Dust Extraction

For a cleaner work environment, attach the dust extraction adapter to the saw's dust port and connect it to a suitable vacuum cleaner.

5. Arahan Operasi

5.1 Operasi Am

1. Pastikan bahan kerja berada dalam keadaan selamatampdipegang atau diikat untuk mengelakkan pergerakan semasa memotong.
2. Pasangkan gergaji ke soket kuasa yang sesuai.
3. Hold the saw firmly with both hands, utilizing the multiple grip positions for optimal control.
4. Press the trigger to start the saw. Allow the blade to reach full speed before beginning the cut.
5. Bimbing gergaji dengan lancar di sepanjang garis pemotongan, berikan tekanan yang stabil dan sekata. Jangan paksa gergaji.
6. Release the trigger to stop the saw. Wait for the blade to come to a complete stop before setting the tool down.

5.2 Cutting Wood and Plastic

Use the TCT blade for general wood cutting and the HSS blade for finer cuts in wood and plastic. Ensure the cutting depth is set correctly to just clear the bottom of the workpiece.

Image 5.1: A user cutting a wooden board with the mini circular saw, demonstrating proper grip and control. This image shows the saw in action on a common material.

Image 5.2: A user cutting a PVC pipe using the mini circular saw, illustrating its versatility for plastic materials. This image demonstrates cutting a cylindrical object.

5.3 Cutting Metal

For cutting thin metals, use the HSS blade. Always wear appropriate personal protective equipment, including gloves and eye protection. Ensure the workpiece is firmly secured. Proceed with a slower, steady feed rate compared to wood cutting.

Image 5.3: A user cutting a piece of sheet metal with the mini circular saw, showcasing its capability for metalwork. This image emphasizes safety gear during metal cutting.

6. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your tool.

• Pembersihan: Keep the ventilation slots clear and clean. Regularly clean the tool housing with a soft cloth, preferably after each use. Do not use abrasive cleaners or solvents.
• Pemeriksaan Bilah: Periodically inspect the blades for sharpness and damage. Replace dull or damaged blades immediately to ensure safe and efficient cutting.
• Pemeriksaan Kord: Regularly check the power cord for any signs of damage, cuts, or fraying. If damaged, have it repaired by a qualified service technician.
• Storan: Store the tool in its kitbox in a dry, secure place out of reach of children.

7. Penyelesaian masalah

If you encounter issues with your mini circular saw, refer to the following common problems and solutions:

8. Spesifikasi

9. Waranti dan Sokongan

BLACK+DECKER provides a warranty for its products. For detailed warranty information, including terms, conditions, and registration, please refer to the official BLACK+DECKER webtapak atau kad jaminan yang disertakan dengan produk anda.

For technical support, spare parts, or service inquiries, please contact BLACK+DECKER customer service or visit their official support page. Ensure you have your model number (BES510K-GB) and purchase details available when contacting support.

rasmi Webtapak: www.blackanddecker.com
