Rintuf Portable Air Conditioner User Manual

pengenalan

Thank you for choosing the Rintuf Portable Air Conditioner. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.

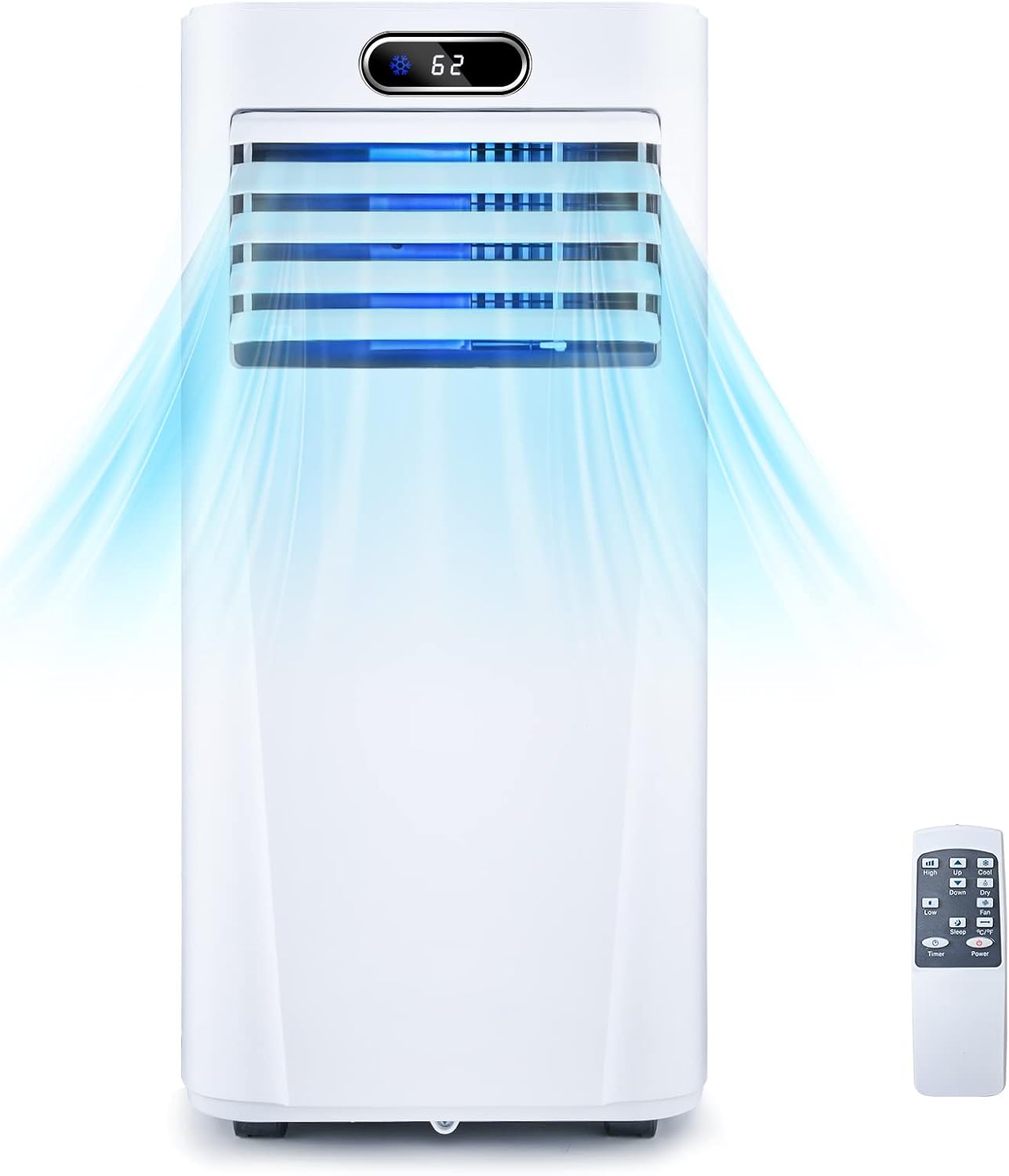

Figure 1: Rintuf Portable Air Conditioner Unit with Remote Control

Arahan Keselamatan

Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan apabila menggunakan penghawa dingin anda, ikut langkah berjaga-jaga asas ini:

• Always plug into a grounded 3-prong outlet. Do not remove the grounding prong.
• Jangan gunakan penyesuai atau kord sambungan.
• Jangan kendalikan penghawa dingin dengan kord kuasa atau palam yang rosak.
• Do not block air vents or exhaust openings.
• Pastikan unit diletakkan pada permukaan yang stabil dan rata.
• Jauhkan bahan mudah terbakar dari unit.
• Cabut plag unit sebelum membersihkan atau menservis.

Produk Selesaiview

The Rintuf Portable Air Conditioner is designed for efficient cooling and dehumidification in spaces up to 300 square feet. It features multiple operating modes and easy mobility.

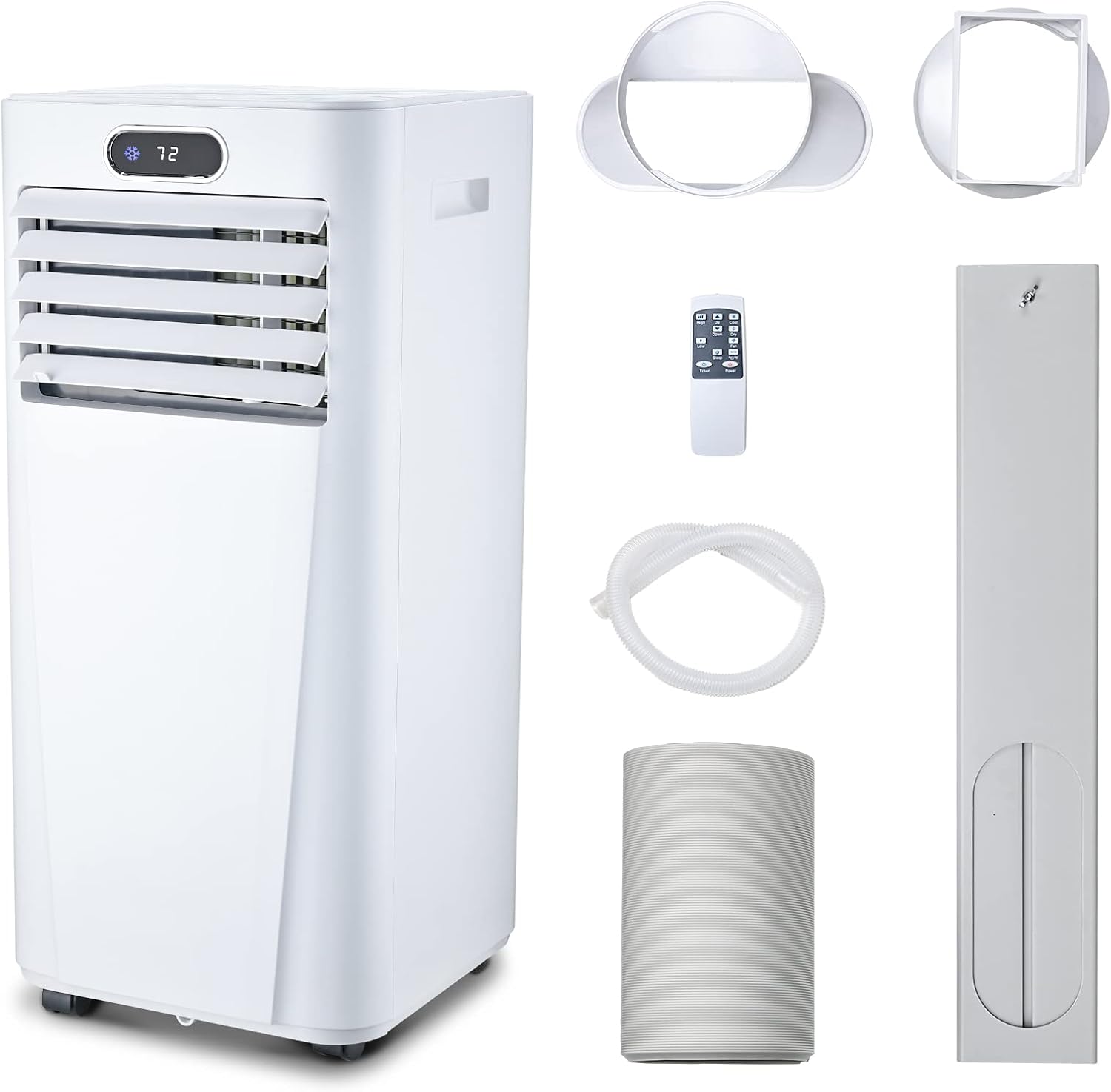

Figure 2: Main Unit and Accessories (Exhaust Hose, Window Kit, Remote Control, Drainage Tube)

Ciri-ciri Utama:

• Kapasiti Penyejukan 8000 BTU: Sesuai untuk bilik sehingga 300 kaki persegi.
• Fungsi 3-dalam-1: Cool, Dry (Dehumidify), and Fan modes.
• Operasi Bunyi Rendah: Designed for quiet performance, especially in Sleep Mode (approx. 53dB).
• Kawalan Mudah: Top-mounted control panel and remote control for easy operation.
• Mobiliti Mudah: Equipped with wheels for effortless movement between rooms.
• Reusable Air Filter: Washable filter for easy maintenance.

Persediaan

Proper setup is crucial for optimal performance. Follow these steps to install your portable air conditioner:

1. Buka bungkusan Unit: Keluarkan penghawa dingin dan semua aksesori dari bungkusan dengan berhati-hati.
2. Letakkan Unit: Letakkan unit pada permukaan yang rata dan stabil berhampiran tingkap dan salur keluar elektrik yang dibumikan. Pastikan terdapat sekurang-kurangnya 20 inci ruang di sekeliling unit untuk aliran udara yang betul.
3. Pasang Kit Tetingkap:
   • Adjust the window slide kit to fit your window opening (suitable for both vertical and horizontal windows).
   • Pasangkan kit tingkap di tempatnya.


   Figure 3: Easy Mobility and Window Kit Installation
4. Sambungkan Hos Ekzos:
   • Attach one end of the exhaust hose to the air conditioner's exhaust port.
   • Attach the other end of the exhaust hose to the window slide kit. Ensure a secure connection to prevent hot air from re-entering the room.
5. Set up Drainage (Optional for Cooling Mode, Recommended for Dehumidifier Mode):
   • For continuous drainage, connect the drainage tube to the designated drainage hole at the bottom of the unit.
   • Direct the other end of the tube into a suitable container or floor drain.


   Figure 4: Water Drainage Hole Location
6. Pasangkan: Insert the power plug into a grounded electrical outlet.

Panduan Video:

Arahan Operasi

Your Rintuf Portable Air Conditioner can be operated using the control panel on the unit or the included remote control.

Rajah 5: Panel Kawalan dan Alat Kawalan Jauh

Fungsi Panel Kawalan:

• Butang Kuasa: Menghidupkan atau Mematikan unit.
• Butang Mod: Cycles through operating modes: Cool, Dry (Dehumidify), and Fan.


  Rajah 6: Mod Operasi Tersedia

• Anak panah atas/bawah: Adjust the desired temperature setting (in Cool mode) or timer settings.
• Butang Kelajuan: Selects fan speed (Low, High).
• Butang Pemasa: Menetapkan pemasa auto hidup atau mati (sehingga 24 jam).
• Butang Tidur: Activates Sleep Mode for quieter operation and energy saving during sleep.


  Figure 7: Sleep Mode for Quiet Operation
• Butang Kunci: Engages the Child Lock function to prevent accidental changes to settings.


  Rajah 8: Fungsi Kunci Kanak-kanak

Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan kecekapan penghawa dingin anda.

Membersihkan Penapis Udara:

The reusable air filter should be cleaned every two weeks or more frequently depending on usage and air quality.

1. Cabut plag penghawa dingin dari salur keluar kuasa.
2. Cari dan keluarkan penapis udara dari belakang unit.
3. Basuh penapis dengan air suam dan sabun. Bilas sebersih-bersihnya.
4. Benarkan penuras kering sepenuhnya sebelum memasukkannya semula ke dalam unit.

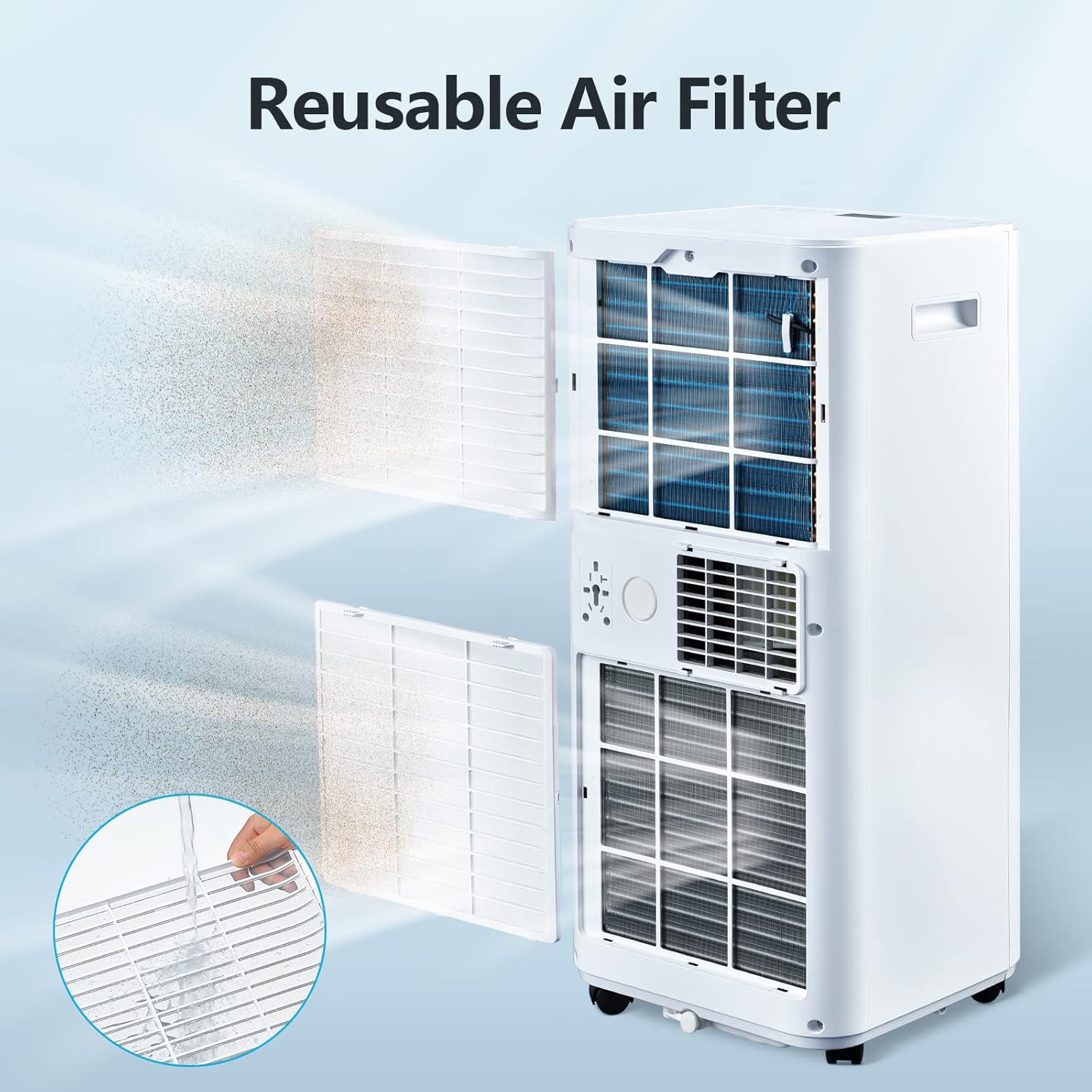

Figure 9: Reusable Air Filter Access

Mengeringkan Air Terkumpul:

In high humidity conditions or when using the Dehumidify mode, water will accumulate in the internal reservoir. If continuous drainage is not set up, you will need to manually drain the water.

1. Matikan unit dan cabut plagnya.
2. Place a shallow pan or bucket under the drainage hole at the bottom of the unit.
3. Tanggalkan palam longkang untuk membolehkan air mengalir keluar.
4. Setelah disalirkan, pasangkan palam saliran dengan selamat.

Menyelesaikan masalah

Sebelum menghubungi sokongan pelanggan, cuba langkah penyelesaian masalah biasa ini:

Spesifikasi

Waranti dan Sokongan Pelanggan

For warranty information or technical assistance, please refer to the warranty card included with your product or visit the official Rintuf website. You can also contact Rintuf customer support directly for further assistance.

Untuk sokongan tambahan, anda boleh melawati Rintuf Store on Amazon.
