1. Pengenalan
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Generic 006-IFC Stainless Steel Circulator Pump. The 006-IFC is designed for circulating hot or chilled fresh water in both open and closed loop applications. Its integral flow check feature simplifies piping and enhances system performance. Please read this manual thoroughly before installation and operation.
2. Maklumat Keselamatan
Sentiasa patuhi langkah keselamatan berikut untuk mengurangkan risiko kecederaan atau kerosakan harta benda:
- Bahaya Elektrik: Disconnect power before servicing. Ensure all electrical connections comply with local codes.
- Permukaan Panas: The pump and connected piping may become hot during operation. Allow to cool before handling.
- Pressure Hazard: Ensure system pressure is relieved before opening any connections.
- Kakitangan Berkelayakan: Pemasangan dan servis hanya boleh dilakukan oleh kakitangan yang berkelayakan.
- Penggunaan yang Dimaksudkan: Use this pump only for circulating fresh water as specified. Do not use with flammable or corrosive liquids.
3. Produk Lebihview
The Generic 006-IFC circulator pump features a durable stainless steel construction and an integral flow check (IFC) valve. This design prevents gravity flow and reverse flow, eliminating the need for a separate in-line flow check valve and reducing installation costs.

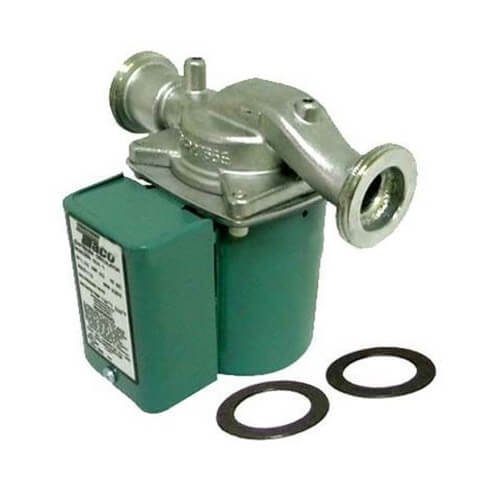

Rajah 1: Generic 006-IFC Stainless Steel Circulator Pump. This image shows the compact design of the circulator pump, highlighting its stainless steel body and connection points.
Ciri-ciri utama termasuk:
- Integral Flow Check (IFC) for simplified piping and improved system performance.
- Unique replaceable cartridge design for easy field servicing.
- Quiet, efficient, and maintenance-free operation.
- Self-lubricating, eliminating the need for a mechanical seal.
- Stainless Steel construction for durability and corrosion resistance.
4. Persediaan dan Pemasangan
Proper installation is crucial for the optimal performance and longevity of your circulator pump. Follow these general guidelines:
- Penyediaan Sistem: Ensure the system is drained and free of debris before installation.
- Pemasangan: Mount the pump in an accessible location, ensuring it is level and securely supported. The motor should be horizontal.
- Sambungan Paip: Connect the pump to the system piping using appropriate union connections (1/2" & 3/4" Sweat or Stainless Steel Union Connections depending on model). Ensure all connections are watertight. The IFC is located at the impeller inlet.
- Pendawaian elektrik: Connect the pump to a dedicated electrical circuit according to local electrical codes. Ensure the voltage (115V) and frequency (60Hz) match the pump's requirements. A qualified electrician should perform all wiring.
- Isi Sistem: After installation, slowly fill the system with water, bleeding air from all high points.
- Semak Kebocoran: Inspect all connections for leaks before operating the pump.
Refer to local plumbing and electrical codes for specific requirements.
5. Arahan Operasi
Once installed and the system is filled and purged of air, the circulator pump is ready for operation.
- Permulaan permulaan: Turn on the electrical power to the pump. The pump should start circulating water immediately.
- Semak Bunyi: Listen for any unusual noises. A properly operating pump should run quietly. Excessive noise may indicate air in the system or an obstruction.
- Aliran Pantau: Observe the system's flow to ensure proper circulation.
- Operasi Berterusan: The 006-IFC is designed for continuous operation in suitable applications.
- Menutup: To stop the pump, turn off the electrical power supply.
6. Penyelenggaraan
The Generic 006-IFC circulator pump is designed for maintenance-free operation due to its self-lubricating design and lack of a mechanical seal. However, periodic checks are recommended:
- Pemeriksaan Tahunan: Annually inspect the pump for any signs of leaks, corrosion, or unusual wear.
- Kualiti Air Sistem: Ensure the system water quality is maintained to prevent scale buildup or corrosion, which can affect pump performance.
- Penggantian Kartrij: The unique replaceable cartridge contains all moving parts. If the pump requires service beyond basic inspection, the cartridge can be easily replaced without removing the entire unit from the piping. Consult a qualified technician for cartridge replacement.
- Pembersihan: Keep the exterior of the pump clean and free of dust or debris to ensure proper heat dissipation.
7. Penyelesaian masalah
Bahagian ini menyediakan penyelesaian kepada isu-isu biasa yang mungkin anda hadapi. Untuk masalah yang tidak disenaraikan di sini, hubungi kakitangan servis yang berkelayakan.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Pam tidak bermula | No power; Blown fuse/tripped breaker; Motor seized. | Check power supply; Reset breaker/replace fuse; Contact service for motor inspection/cartridge replacement. |
| Pump runs but no flow | Air in system; Closed isolation valves; Impeller obstruction. | Bleed air from system; Open all isolation valves; Contact service for impeller inspection. |
| Bunyi/getaran yang berlebihan | Air in system; Loose mounting; Foreign object in pump; Worn bearings. | Bleed air from system; Tighten mounting bolts; Contact service for inspection/cartridge replacement. |
| Leaking from pump | Loose connections; Damaged O-rings/gaskets; Cracked housing. | Tighten connections; Replace O-rings/gaskets; Contact service for housing inspection/replacement. |
8. Spesifikasi
| Nombor Model | 006-SC7-IFC |
| Permohonan | Zoning, Hot/Chilled Fresh Water Circulation |
| bahan | Keluli Tahan Karat |
| Kuasa Kuda (HP) | 1 / 40 HP |
| Amppemadam | 0.52 A |
| Voltage | 115 V |
| Hertz | 60 Hz |
| fasa | 1 |
| Max Flow (GPM) | GPN 9 |
| Max Head (Ft) | 8.5 Kaki |
| Julat Suhu | 40°F hingga 220°F |
| Max Pressure (PSI) | 125 PSI |
| Jenis Sambungan | Union (1/2" & 3/4" Sweat or Stainless Steel Union) |
9. Maklumat Waranti
The Generic 006-IFC Stainless Steel Circulator Pump comes with a Waranti 3 Tahun from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation provided with your product or contact customer support.
10. Sokongan
If you have any questions regarding the installation, operation, or maintenance of your Generic 006-IFC Circulator Pump, or if you require technical assistance, please contact your supplier or a qualified plumbing professional. Always provide the model number (006-SC7-IFC) when seeking support.
