1. Pengenalan
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Sokply C2 Series 60W 8400LM LED Explosion Proof Light. This luminaire is designed for hazardous locations, certified to UL844 standards for Class I, Division 1 and 2, or Class II, Division 1 and 2 environments. Please read this manual thoroughly before installation or use.
2. Maklumat Keselamatan
WARNING: Failure to follow these safety instructions may result in fire, electric shock, serious injury, or death.
- Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes and ordinances.
- Ensure power is disconnected at the source before installation, maintenance, or servicing.
- This fixture is certified for use in hazardous locations as specified: Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G. Do not install in environments exceeding these classifications.
- Sahkan bekalan voltage (100-277V AC) matches the fixture's requirements.
- Do not open the fixture in a hazardous atmosphere.
- Ensure all connections are secure and properly sealed to maintain the IP66 rating.
- Avoid direct eye exposure to the light source when operating.
3. Produk Lebihview
The Sokply C2 Series LED Explosion Proof Light is engineered for durability and performance in demanding industrial environments. Key features include:
- Kecerahan yang tinggi: 8400 Lumens output at 60W.
- Jangka hayat yang panjang: Over 50,000 hours of operation.
- Pembinaan Teguh: Light-weight aircraft aluminum housing with marine-grade powder coating for corrosion resistance.
- Advanced Components: High-quality SMT LED chips and Meanwell LED driver for reliable performance.
- Perlindungan Alam Sekitar: IP66 waterproof, anti-moisture, and anti-dust enclosure with 10KV surge protection.
- Mesra Alam: No mercury, UV, or IR radiation.
Dimensi Produk
Image 3.1: Product dimensions for the Sokply C2 Series LED Explosion Proof Light. The diagram indicates a height of 9.88 inches, a light handle length of 14.09 inches, and overall dimensions of 9.88"L x 14.09"W x 19.53"H.
Internal Components and Materials
Imej 3.2: Terperinci view of the light's construction, highlighting the high-quality SMT LED chips, the Meanwell LED driver, the lightweight aircraft aluminum design, and the marine-rated powder-coated finish for enhanced durability.
4. Pemasangan
The Sokply C2 Series LED Explosion Proof Light offers various mounting options to suit different application needs. Always ensure power is off before beginning installation.
Kaedah Pemasangan

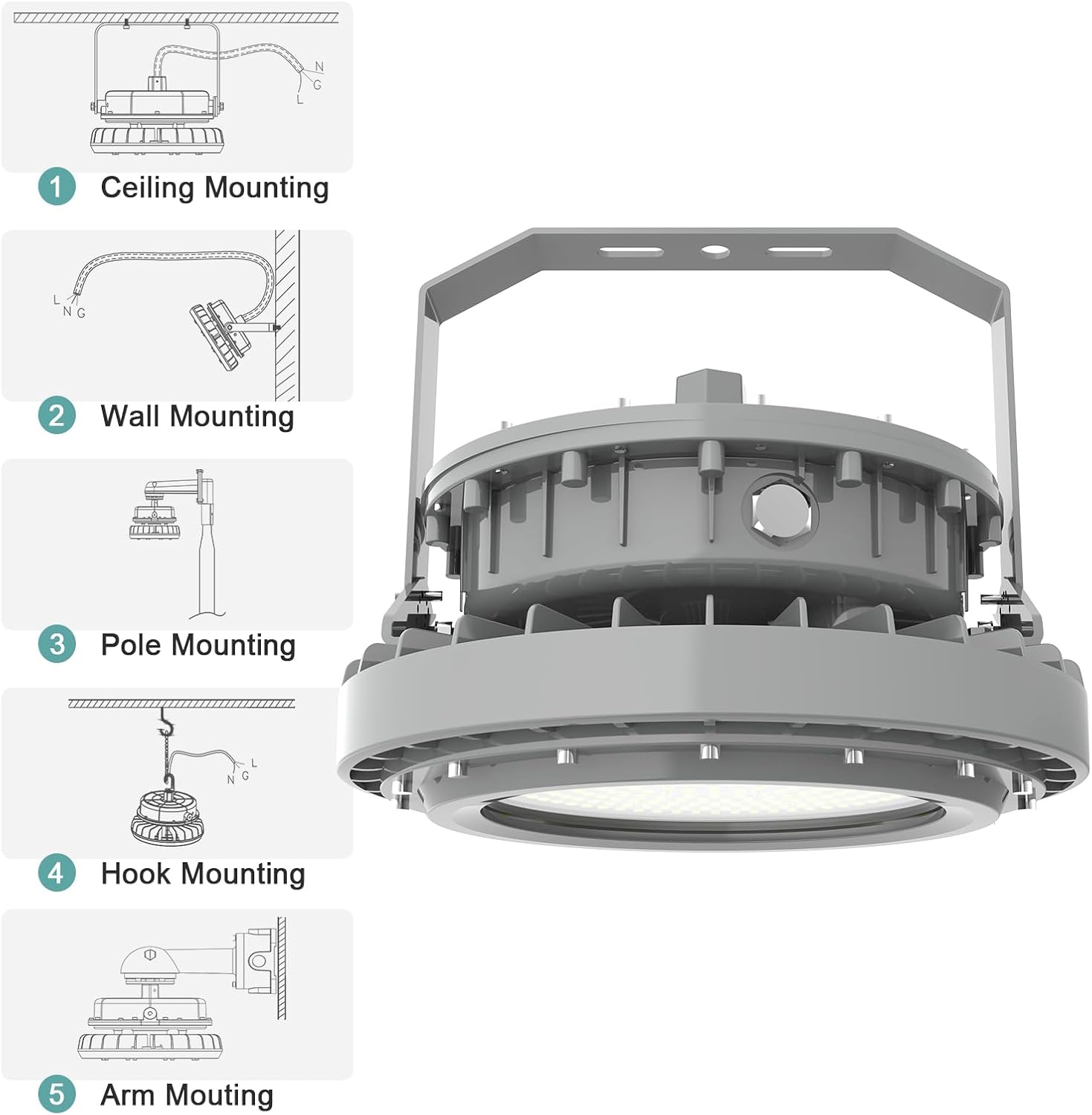

Image 4.1: Visual guide to the available mounting configurations, including ceiling, wall, pole, hook, and arm mounting. Each method requires appropriate hardware and secure attachment to ensure stability and safety.
- Pemasangan siling: Secure the mounting bracket to the ceiling structure using appropriate fasteners. Attach the light fixture to the bracket, ensuring all connections are tight.
- Pemasangan Dinding: Fasten the bracket to a sturdy wall surface. Position the light fixture and secure it to the wall-mounted bracket.
- Pemasangan tiang: Utilize a pole mounting adapter (if not included, acquire separately) to attach the fixture to a vertical pole. Ensure the adapter is rated for the fixture's weight and environmental conditions.
- Pemasangan Cangkuk: For suspended installations, attach a suitable hook to a secure overhead point. Hang the fixture using its integrated hook or a compatible accessory.
- Pemasangan Lengan: Install the arm bracket to a flat surface or pole. Adjust the angle of the fixture on the arm for optimal light direction.
Sambungan elektrik
- Connect the live wire (L) to the corresponding terminal.
- Sambungkan wayar neutral (N) ke terminal yang sepadan.
- Connect the ground wire (G) to the ground terminal.
- Ensure all wiring is properly insulated and protected.
5. Arahan Operasi
Once properly installed and wired, operating the Sokply LED Explosion Proof Light is straightforward:
- After completing the installation and ensuring all safety checks are performed, restore power to the circuit.
- The light will illuminate immediately.
- To turn off the light, disconnect power at the circuit breaker or switch controlling the fixture.
6. Penyelenggaraan
Regular maintenance ensures optimal performance and longevity of your explosion-proof light.
- Pembersihan: Bersihkan bahagian luar lekapan secara berkala dengan kain lembutamp cloth. Do not use abrasive cleaners or solvents. Ensure the fixture is de-energized before cleaning.
- Pemeriksaan: Annually inspect the fixture for any signs of damage, corrosion, or loose connections. Pay close attention to the lens, housing, and mounting hardware.
- Integriti Meterai: Verify that all seals and gaskets are intact and free from damage to maintain the IP66 rating.
- Pendawaian: Check wiring for fraying, cuts, or loose connections. Tighten any loose terminals.
CAUTION: Do not attempt to repair or modify the internal components of the fixture. Contact qualified personnel for any repairs.
7. Penyelesaian masalah
If you encounter issues with your Sokply LED Explosion Proof Light, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Lampu tidak menyala | Tiada bekalan kuasa Sambungan pendawaian longgar Faulty circuit breaker/switch | Periksa sumber kuasa dan pemutus litar. Sahkan semua sambungan pendawaian selamat (pastikan kuasa dimatikan dahulu). Test or replace the switch/breaker. |
| Cahaya malap atau berkelip | vol. salahtage Sambungan longgar Environmental factors (extreme temperature) | Sahkan bekalan voltage berada dalam lingkungan 100-277V. Periksa sambungan pendawaian. Ensure operating environment is within specified temperature range. |
| Water or moisture inside fixture | Seal atau gasket rosak Pemasangan yang tidak betul | Immediately de-energize the fixture. Inspect and replace damaged seals/gaskets. Re-install ensuring proper sealing. Contact support if issue persists. |
8. Spesifikasi
| Spesifikasi | Perincian |
|---|---|
| Jenama | Sokply |
| Nombor Model | SK-EX-60WC2N50D120-N |
| Wattage | 60 watt |
| Kecerahan | 8400 Lumen |
| Voltage | 100-277 Volt (AC) |
| Penarafan IP | IP66 (kalis air) |
| bahan | Aluminium, Plastik |
| Dimensi Produk (L x W x H) | 9.88" x 14.09" x 19.53" |
| Sumber Cahaya | LED |
| Warna Cerah | Putih Sejuk |
| Kaedah Kawalan | App (Note: Specific app details not provided in product data) |
| Pensijilan | UL844, ETL, DLC Rated, Class I Division I |
| Jangka hayat | 50,000+ jam |
| Komponen yang Disertakan | Mentol (LED bersepadu) |
9. Aplikasi
The Sokply C2 Series LED Explosion Proof Light is suitable for a wide range of hazardous industrial environments, ensuring continuous and safe illumination.
Imej 9.1: Cthamples of typical installation environments for the explosion-proof light, such as gas stations, oil and gasoline loading docks, oil refineries, distilleries, oil tankers, and mines, where flammable gases or dust may be present.
10. Video Produk Tamatview
Tonton video produk rasmi ini untuk visual seterusnyaview of the Sokply LED Explosion Proof Light C Series, highlighting its features and mounting options.
Video 10.1: Official product video from Sokply Office USA showcasing the features, durability, and various mounting methods of the C Series LED Explosion Proof Light. The video demonstrates the light's robust construction and suitability for hazardous environments.
11. Waranti dan Sokongan
Sokply offers a Waranti 5 tahun against any manufacturing defects for this LED Explosion Proof Light. For technical support, warranty claims, or any questions regarding your product, please contact Sokply customer service.
Sila simpan resit pembelian anda sebagai bukti pembelian untuk tujuan waranti.
