Huepar B011R 2-Line Red Cross Line Laser Level User Manual

1. Pengenalan

This manual provides detailed instructions for the safe and effective operation of your Huepar B011R 2-Line Red Cross Line Laser Level. Please read this manual thoroughly before use and keep it for future reference.

2. Maklumat Keselamatan

Always follow basic safety precautions to reduce the risk of personal injury and damage to the product.

• Keselamatan Laser: This product emits a Class II laser. Do not stare directly into the laser beam. Avoid direct eye exposure.
• Keselamatan Bateri: Ensure correct battery polarity when installing. Do not mix old and new batteries, or different types of batteries. Remove batteries if the device will not be used for an extended period.
• Persekitaran: Use the device within its specified operating temperature range. Keep the device away from water and dust unless it is rated for such conditions.
• Penyelenggaraan: Jangan cuba membuka atau membaiki peranti sendiri. Rujuk kepada kakitangan perkhidmatan yang berkelayakan.

3. Kandungan Pakej

Sahkan bahawa semua item ada semasa membongkar:

• Huepar B011R 2-Line Red Cross Line Laser Level
• Magnetic Pivoting Base
• Bateri AA (2x)
• Manual Pengguna
• Portable Pouch

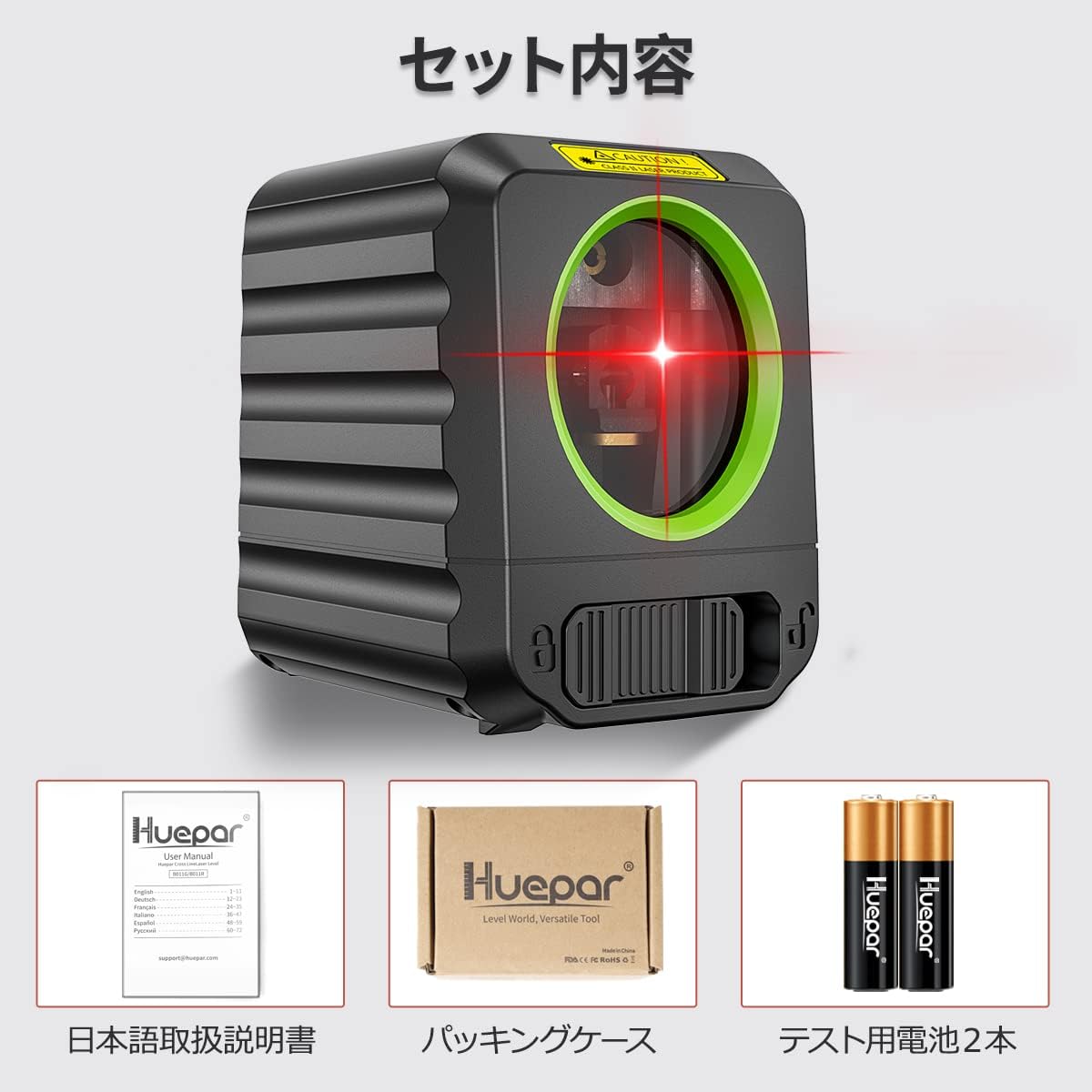

Figure 3.1: Included accessories with the Huepar B011R laser level.

4. Persediaan

4.1 Pemasangan Bateri

1. Buka penutup petak bateri.
2. Insert two AA batteries, ensuring correct polarity (+ and - terminals match the markings inside the compartment).
3. Tutup penutup petak bateri dengan selamat.

Figure 4.1: Correct battery installation.

4.2 Memasang Peranti

The Huepar B011R features a 1/4-inch screw thread for versatile mounting options:

• Pemasangan Tripod: Attach the device to any standard tripod using the 1/4-inch thread on its base.
• Tapak Berputar Magnetik: Use the included magnetic pivoting base to attach the laser level to metal surfaces. This allows for flexible positioning and angle adjustments.

Figure 4.2: Device mounted on a tripod using the 1/4-inch thread.

5. Mod Operasi

The Huepar B011R offers two primary operating modes: Automatic Leveling Mode and Manual Tilt Mode.

5.1 Automatic Leveling Mode

This mode automatically levels the laser lines within a 4-degree range. It is ideal for tasks requiring precise horizontal and vertical alignment.

1. Slide the pendulum lock to the unlocked position.
2. Press the power button to turn on the device. The laser lines will self-level.
3. If the device is tilted beyond 4 degrees, the laser lines will flash continuously to indicate it is out of self-leveling range. Adjust the device's position until the lines stop flashing.

5.2 Manual Tilt Mode

This mode allows you to project laser lines at any desired angle, useful for non-level applications like staircases or decorative patterns.

1. Slide the pendulum lock to the locked position.
2. Press the power button to turn on the device. The laser lines will be projected, but they will not self-level.
3. The laser lines will flash every 3-5 seconds to remind you that the device is in manual mode and not self-leveling.

Figure 5.1: Automatic Leveling and Manual Tilt Modes.

6. Ciri dan Aplikasi

The Huepar B011R is designed for ease of use and durability across various tasks.

• Padat dan Ringan: At just 175g, its mini size allows for easy portability and single-handed operation.
• Perlindungan IP54: Dustproof and splashproof design ensures reliable performance in various working conditions.
• High Brightness Red Laser: Utilizes a German-made laser unit for stable and bright red laser lines, even in challenging environments.

Figure 6.1: Compact design for easy handling.

Figure 6.2: IP54 dust and splash protection.

6.1 Aplikasi Biasa

This laser level is suitable for a wide range of professional and DIY projects:

• Furniture installation
• Tile laying
• Hiasan dinding
• Stair handrail installation
• Pemasangan paip

Figure 6.3: Versatile applications.

7. Penyelenggaraan

• Keep the laser level clean and dry. Wipe off any dust or debris with a soft, dry cloth.
• Jangan gunakan bahan kimia atau pembersih kasar.
• Store the device in its portable pouch in a cool, dry place when not in use.
• Remove batteries during long periods of storage to prevent leakage.

8. Penyelesaian masalah

• Laser lines are flashing continuously in Auto-Leveling Mode: This indicates the device is tilted beyond its 4-degree self-leveling range. Adjust the device's position until the lines stabilize.
• Laser lines are flashing every 3-5 seconds: This is normal behavior for Manual Tilt Mode, indicating that the pendulum is locked and the lines are not self-leveling.
• No laser lines or dim lines: Check battery installation and ensure batteries are not depleted. Replace with fresh batteries if necessary.

9. Spesifikasi

10. Video Produk

Watch these official videos for visual guidance on using your Huepar laser level:

11. Waranti dan Sokongan

Huepar products are backed by a manufacturer's warranty. For warranty details, technical support, or service inquiries, please refer to the official Huepar webtapak atau hubungi perkhidmatan pelanggan mereka secara langsung. Simpan resit pembelian anda sebagai bukti pembelian.

For more information, visit the official Huepar store: Huepar Store
