1. Produk Lebihview
The Tefal X-Pert 3.60 Cordless Stick Vacuum Cleaner is designed for quick and efficient cleaning of various surfaces. Its lightweight and versatile design allows for easy transition between stick and handheld modes, providing convenience for everyday cleaning tasks. The integrated lithium battery offers extended runtime for comprehensive cleaning.

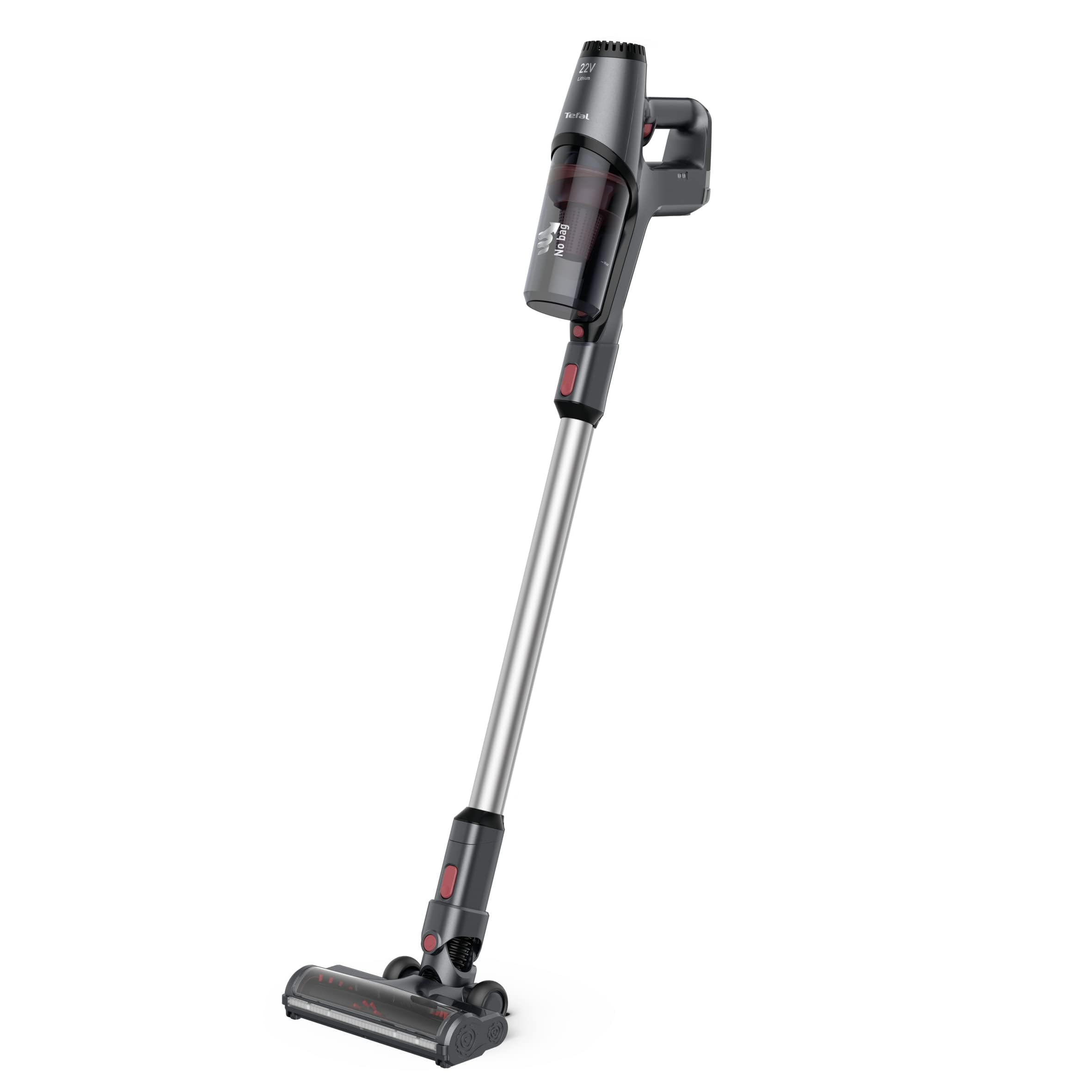

Figure 1: Tefal X-Pert 3.60 Cordless Stick Vacuum Cleaner with included accessories.
2. Apa yang ada di dalam Kotak
Your Tefal X-Pert 3.60 package includes the following components:
- Unit Motor Utama (Vakum Genggam)
- Tiub Sambungan
- Motorized Brush Head with LED lights
- Narrow Crevice Tool
- Easy Brush (2-in-1 brush tool)
- Pangkalan Pemasangan Dinding
- Pengecas
- Lithium-Ion Battery (integrated or separate, depending on model variant)
Rajah 2: Terperinci view of the box contents, highlighting the main unit, narrow crevice tool, easy brush, and wall mount base.
3. Persediaan dan Pemasangan
Ikuti langkah ini untuk memasang pembersih vakum anda:
- Pasangkan Tiub Sambungan: Masukkan tiub sambungan ke dalam unit motor utama sehingga ia berbunyi klik dengan selamat di tempatnya.
- Pasangkan Kepala Berus Bermotor: Connect the motorized brush head to the other end of the extension tube, ensuring it locks firmly.
- Mengecas Bateri: Before first use, fully charge the vacuum cleaner. Connect the charger to the charging port on the main motor unit or the wall mount base, then plug it into a power outlet. The charging indicator will show the battery status.
- Pemasangan Dinding (Pilihan): Choose a suitable location for the wall mount. Secure it to the wall using appropriate screws and anchors (not included). This provides convenient storage and charging.
4. Arahan Operasi
4.1 Kuasa Hidup/Mati dan Pemilihan Mod
- To turn the vacuum cleaner on or off, press the power button located on the main motor unit.
- The vacuum cleaner features 2 power levels. Press the mode selection button to cycle through the available suction modes (e.g., Eco, Max).
4.2 Pembersihan Lantai
For cleaning floors, attach the extension tube and the motorized brush head. The LED lights on the brush head illuminate dust particles, ensuring thorough cleaning on all floor types.

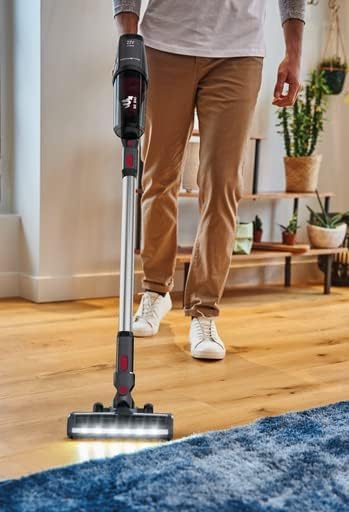

Figure 3: Vacuum cleaner in action, demonstrating the LED lights on the brush head for enhanced visibility.
4.3 Handheld Use and Accessories
Detach the extension tube and brush head to use the main motor unit as a handheld vacuum. Attach the appropriate accessory for specific cleaning tasks:
- Narrow Crevice Tool: Sesuai untuk mencapai ruang, sudut dan tepi yang sempit.
- Berus Mudah: Use for upholstery, curtains, and delicate surfaces. It combines a brush and a nozzle for versatile cleaning.

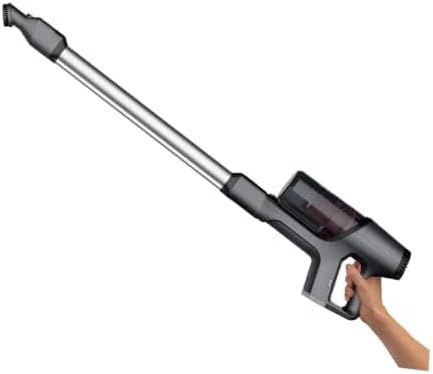

Figure 4: Using the vacuum in handheld mode with the extension tube for elevated cleaning.

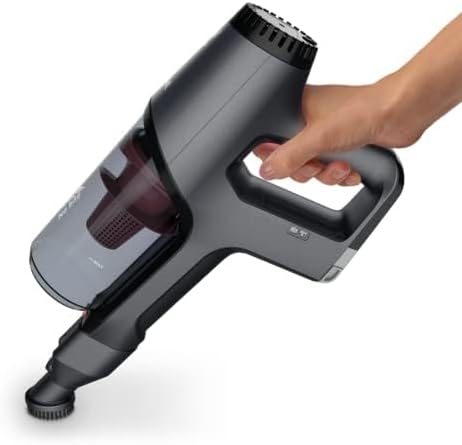

Figure 5: The main motor unit used as a compact handheld vacuum.
5. Penyelenggaraan
Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan hayat pembersih vakum anda.
5.1 Mengosongkan Tong Sampah
- Ensure the vacuum cleaner is turned off and disconnected from the charger.
- Locate the dustbin release button, usually near the handle. Press it to detach the dustbin from the main motor unit.
- Buka penutup tong sampah dan buang isinya ke dalam tong sampah.
- Close the dustbin lid and reattach the dustbin to the main motor unit until it clicks securely.
5.2 Membersihkan Penapis
The foam filter should be cleaned regularly to maintain suction power. The product features a HEPA filtration system.
- Keluarkan tong sampah seperti yang diterangkan di atas.
- Carefully remove the foam filter and any other filter components from the dustbin.
- Tap the filters gently to remove loose dust. For a more thorough clean, rinse the foam filter under cold running water.
- Biarkan semua komponen penapis kering sepenuhnya selama sekurang-kurangnya 24 jam sebelum memasang semula. Jangan gunakan pengering atau haba langsung.
- Reassemble the filters and dustbin once completely dry.
5.3 Cleaning the Motorized Brush Head
- Matikan pembersih vakum.
- If hair or debris is tangled around the brush roll, use scissors to carefully cut and remove it.
- Wipe the exterior of the brush head with a damp kain.
6. Penyelesaian masalah
Jika anda menghadapi masalah dengan pembersih vakum anda, rujuk kepada masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Pembersih hampagas tidak dihidupkan. | Bateri tidak dicas atau tidak dimasukkan dengan betul. | Ensure the battery is fully charged and correctly seated in the unit. |
| Kuasa sedutan berkurangan. | Dustbin is full, filters are clogged, or there is a blockage. | Empty the dustbin. Clean or replace the filters. Check the brush head, extension tube, and nozzles for blockages. |
| Kepala berus tidak berputar. | Hair or debris tangled in the brush roll, or a blockage. | Turn off the vacuum and remove any obstructions from the brush roll. |
| Masa operasi yang singkat. | Battery not fully charged, or operating in Max power mode. | Ensure the battery is fully charged. Use Eco mode for longer runtime. Battery life naturally decreases over time. |
7. Spesifikasi
Key technical specifications for the Tefal X-Pert 3.60 Cordless Stick Vacuum Cleaner:
| Ciri | Perincian |
|---|---|
| Jenama | Tefal |
| Nama Model | TY6983TR |
| Ciri Utama | Tanpa wayar |
| Jenis Penapis | buih |
| Syor Permukaan | Semua tingkat |
| Sumber Kuasa | Dikuasakan Bateri |
| warna | Kelabu |
| Mudah alih | ya |
| Bilangan Tahap Kuasa | 2 |
| Penggunaan Dalaman/Luar | Dalaman |
| Berat Barang | 3.85 Kilogram |
| Jenis Pengawal | Butang Tekan |
| Kaedah Kawalan | Sentuh |
| Faktor Bentuk | tongkat |
| Negara Asal | Perancis |
| Penerangan Bateri | Litium Ion |
| Masa jalan | 45 minit |
8. Waranti dan Sokongan
For detailed warranty information, please refer to the warranty card included with your product packaging. In case of technical issues or for customer support, please contact Tefal customer service through their official webtapak atau maklumat hubungan yang diberikan dalam dokumentasi produk anda.
