1. Pengenalan
This manual provides essential information for the proper installation, operation, and maintenance of your Anytek 8mm Ignition Spark Plug Wires 6PC Set. These wires are designed to deliver high-voltage current from the ignition coil to the spark plugs, ensuring efficient engine combustion. Please read this manual thoroughly before installation to ensure correct procedure and safe operation.
2. Keserasian Produk
This Anytek 8mm Ignition Spark Plug Wires 6PC Set is specifically designed for vehicles equipped with a V6 4.0L engine. Refer to the list below for compatible vehicle models and years:
- Ford Aerostar: 1990, 1991, 1992, 1993, 1994, 1995, 1996
- Ford Explorer: 1991, 1992, 1993, 1994, 1995, 1996
- Ford Ranger: 1990, 1991, 1992, 1993, 1994, 1995, 1996
- Mazda B4000: 1994, 1995, 1996, 1997, 1998, 1999, 2000
- Mazda Navajo: 1991, 1992, 1993, 1994
3. Kandungan Pakej
Sahkan bahawa semua komponen ada dan tidak rosak semasa membuka bungkusan:
- 6 x Anytek 8mm Ignition Spark Plug Wires

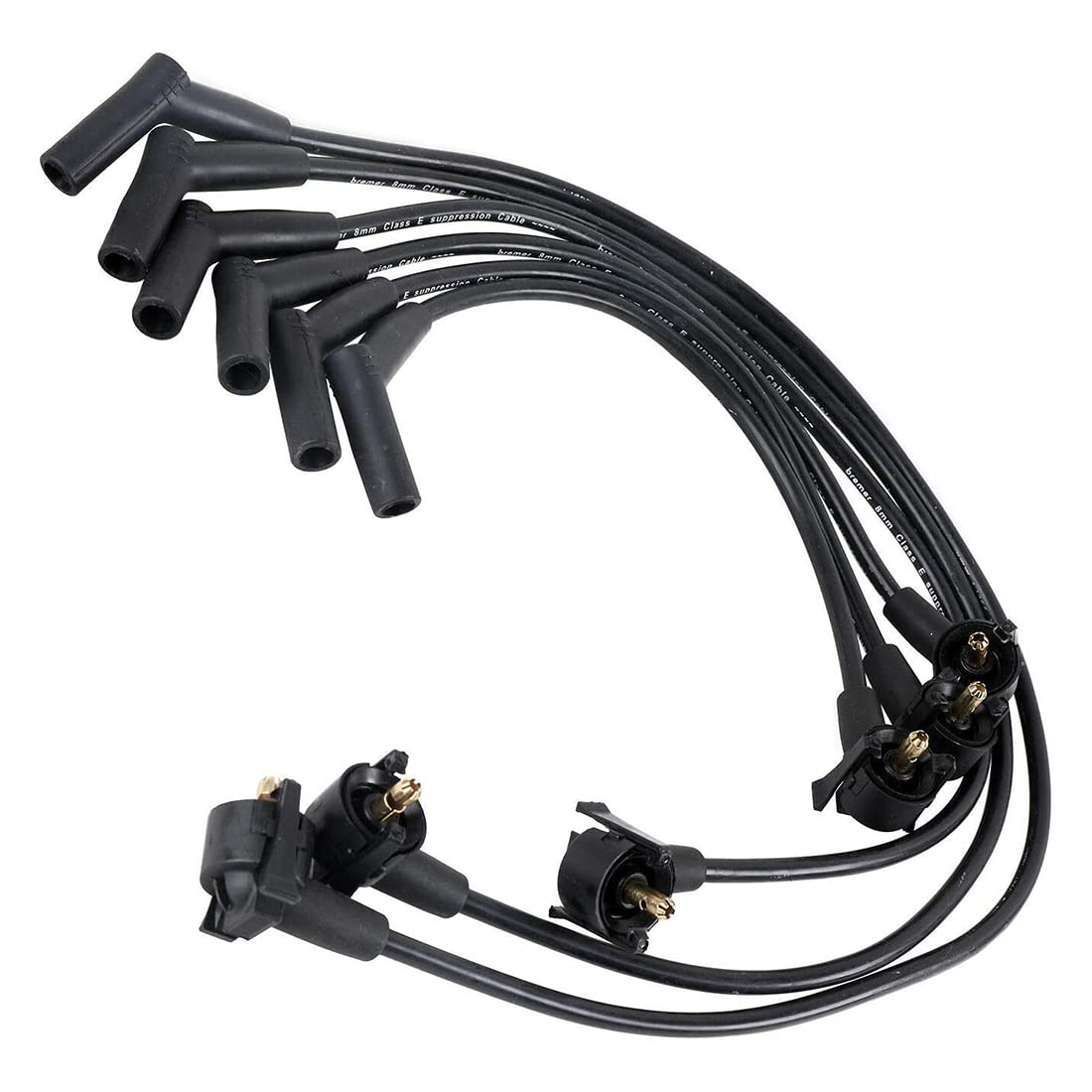

Image: Complete set of Anytek 8mm Ignition Spark Plug Wires.
4. Maklumat Keselamatan
Always prioritize safety when working on your vehicle's ignition system. High voltage is present and can cause serious injury.
- Pastikan enjin dimatikan sepenuhnya dan sejuk sebelum memulakan sebarang kerja.
- Disconnect the negative terminal of the vehicle's battery to prevent accidental starting or electrical shorts.
- Pakai peralatan pelindung diri yang sesuai, termasuk cermin mata keselamatan dan sarung tangan.
- Avoid touching spark plug wires or ignition components while the engine is running or recently shut off.
5. Arahan Pemasangan
Replacing spark plug wires requires careful attention to ensure correct firing order. It is highly recommended to replace one wire at a time to avoid mixing up the connections.
- Penyediaan: Park the vehicle on a level surface and engage the parking brake. Turn off the engine and allow it to cool completely. Disconnect the negative battery terminal.
- Kenal pasti wayar: Locate the existing spark plug wires. Note their routing and how they connect to both the spark plugs and the distributor cap/ignition coil pack.
- Remove Old Wire (One at a Time): Starting with one spark plug wire, firmly grasp the boot at the spark plug end and twist slightly while pulling to remove it from the spark plug. Do not pull on the wire itself. Repeat this process for the distributor cap/ignition coil pack end.
- Compare Wires: Select a new Anytek spark plug wire that matches the length and bend of the old wire you just removed. This helps ensure proper fitment and routing.
- Pasang Wayar Baharu:
- Connect one end of the new wire to the corresponding spark plug. Push firmly until you feel or hear a click, indicating a secure connection.
- Connect the other end of the new wire to the correct terminal on the distributor cap or ignition coil pack. Ensure it is fully seated.
Image: Close-up of the spark plug boot end, showing the internal contact.
Image: Close-up of the distributor or ignition coil pack end of the wire.
- Ulang: Continue this one-by-one replacement process for all remaining spark plug wires. Double-check that each new wire is correctly routed and securely connected at both ends.
- Langkah Akhir: Reconnect the negative battery terminal. Start the engine and check for smooth operation and any misfires.
6. Operasi
Once installed, the Anytek 8mm Ignition Spark Plug Wires function automatically as part of your vehicle's ignition system. They are designed to efficiently transfer high voltage from the ignition coil to the spark plugs, initiating combustion in the engine cylinders. Proper operation is indicated by a smooth-running engine, consistent power delivery, and optimal fuel efficiency.
7. Penyelenggaraan
Regular inspection of your spark plug wires can help prevent potential engine issues.
- Pemeriksaan Visual: Periodically inspect the wires for cracks, fraying, burns, or any signs of damage to the insulation. Check the boots at both ends for tears or looseness.
- Pembersihan: Keep the wires and surrounding engine area clean from oil, grease, and dirt, which can degrade wire insulation over time. Use a clean cloth to wipe down wires if necessary.
- Selang Penggantian: Spark plug wires typically last between 30,000 to 50,000 miles, but this can vary based on driving conditions and engine type. Consult your vehicle's service manual for specific recommendations. Replace wires if any signs of damage or performance issues are observed.
8. Penyelesaian masalah
If you experience engine performance issues after installation or during normal operation, consider the following troubleshooting steps related to spark plug wires:
| simptom | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Enjin Macet / Melahu Kasar | Loose or incorrect wire connection; damaged wire; incorrect firing order. | Check all wire connections for security. Verify correct firing order. Inspect wires for damage and replace if necessary. |
| Ekonomi Bahan Api Dikurangkan | Inefficient spark delivery due to faulty wires. | Inspect wires for damage. Consider replacing if they are old or show signs of wear. |
| Engine Hesitation / Lack of Power | Weak spark due to high resistance in wires. | Check wire resistance with a multimeter (consult a professional if unsure). Replace wires if resistance is out of specification. |
| Visible Arcing / Spark Jump | Damaged insulation on wires. | Immediately replace the arcing wire to prevent further damage to ignition components. |
Jika langkah penyelesaian masalah tidak menyelesaikan isu tersebut, adalah disyorkan untuk berunding dengan juruteknik automotif yang bertauliah.
9. Spesifikasi
- Diameter wayar: 8mm
- Set Kuantiti: 6 keping
- Keserasian Enjin: V6 4.0L
- Material (Insulation): Polycarbonate (PC) - Note: This refers to specific components, not the entire wire.
- Dimensi Produk: Lebih kurang 15 x 11.5 x 1.18 inci (pembungkusan)
- Berat Barang: Kira-kira 1.04 paun
10. Maklumat Waranti
For detailed warranty information regarding your Anytek 8mm Ignition Spark Plug Wires, please refer to the official Anytek website or contact Anytek customer service directly. Keep your proof of purchase for warranty claims.
11. Sokongan Pelanggan
If you have any questions, require assistance with installation, or need to report an issue, please contact Anytek customer support through their official website or the retailer from whom you purchased the product. Provide your product model and purchase details for efficient service.
