Recaro J1 Neo Child Car Seat Instruction Manual

1. Pengenalan

This manual provides essential information for the correct installation, safe use, and maintenance of your Recaro J1 Neo child car seat. Please read it thoroughly before using the product and keep it in a safe place for future reference. Proper installation and use are crucial for your child's safety.

2. Maklumat Keselamatan

Ensuring your child's correct seating posture is paramount for both comfort and safety. The Recaro J1 Neo is designed to support a natural and correct sitting position throughout your child's growth. Always ensure:

• The child's bottom is pushed all the way back into the seat.
• Their back is flat against the seat backrest.
• The shoulder belts are adjusted snugly across the child's chest, with no slack.

The car seat features impact-absorbing cushions in the headrest and side protection areas to provide enhanced safety in the event of a collision.

Image: Impact-absorbing cushions in the headrest and side protection areas.

3. Ciri-ciri

3.1. HERO Harness System with One-Touch Adjustment

The Recaro J1 Neo incorporates the unique, patented HERO harness system. This innovative design allows the head support and shoulder belts to move simultaneously, enabling one-touch adjustment of both head and shoulder belt positions to perfectly fit your child's body as they grow. This eliminates the need to re-thread the shoulder belts.

Image: One-touch adjustment of head support and shoulder belts.

3.2. Secure and Twist-Resistant Belts

The shoulder belt pads are designed to be long and resistant to twisting. They provide broad support across the child's body, helping to prevent slippage and ensuring a secure fit.

Image: Child demonstrating secure and twist-resistant shoulder belts.

3.3. Pressure-Distributing Cushion

The seat surface features a high-density urethane pad engineered to effectively distribute body pressure. This moderate firmness prevents the child from 'bottoming out' and helps maintain a naturally correct sitting posture, making it ideal for extended journeys.

Image: High-density urethane pad for pressure distribution.

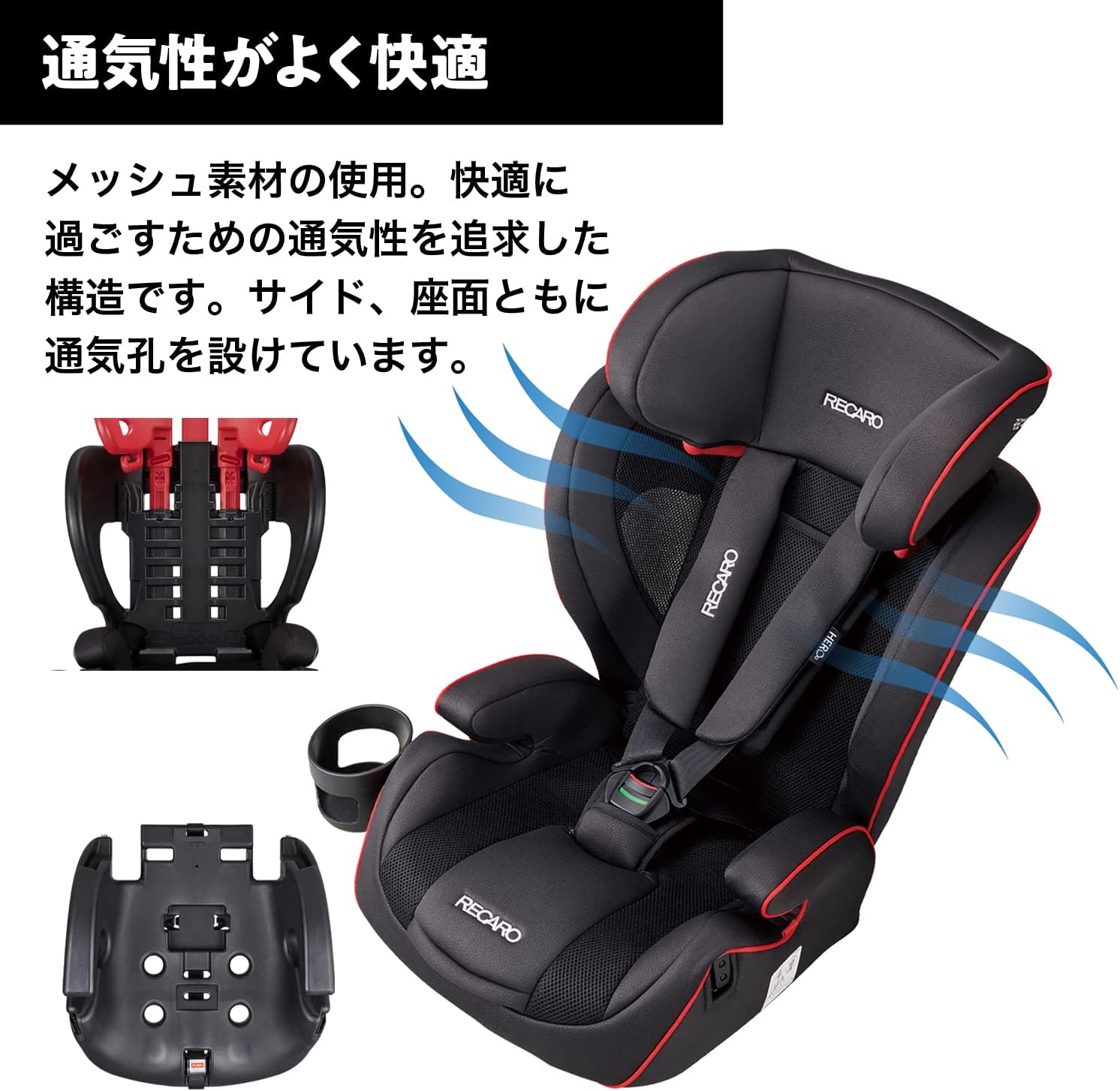

3.4. Excellent Breathability

The car seat is constructed with mesh materials and a design that prioritizes ventilation for comfort, without compromising safety. Ventilation holes are strategically placed on both the sides and the seat surface to ensure optimal airflow.

Image: Ventilation design for enhanced breathability.

3.5. Washable Cover

For easy cleaning, the car seat cover is designed to separate into three distinct parts, allowing for convenient removal and washing.

Image: Detachable and washable car seat cover parts.

3.6. Easy Parts Storage

As your child grows and certain components are no longer needed, they can be conveniently stored within the car seat itself.

Image: Internal storage for unused car seat components.

3.7. Penyesuaian Sudut

The car seat features an angle adjustment mechanism, allowing it to be precisely fitted to the angle of your vehicle's seat for optimal stability and comfort.

Image: Car seat angle adjustment feature.

4. Persediaan dan Pemasangan

The Recaro J1 Neo is designed for installation using your vehicle's seat belt system. Always refer to your vehicle's owner's manual for specific instructions regarding child restraint installation points.

4.1. Perhimpunan Permulaan

Unpack all components. Ensure the headrest and backrest are securely attached to the base. If any parts are detached for shipping, reassemble them according to the diagrams in the full manual.

4.2. Vehicle Installation (Forward-Facing)

1. Place the car seat on the desired vehicle seat, ensuring it is forward-facing.
2. Route the vehicle's 3-point seat belt through the designated belt paths on the car seat. Follow the color-coded guides (usually red for forward-facing).
3. Pasangkan tali pinggang keledar kenderaan.
4. Press down firmly on the car seat while pulling the vehicle's seat belt tight to remove all slack. The car seat should not move more than 1 inch (2.5 cm) from side to side or front to back at the belt path.
5. Adjust the car seat's angle to match the vehicle seat for a snug fit.

Important: Never install the car seat on a vehicle seat equipped with an active front airbag.

5. Arahan Operasi

The Recaro J1 Neo is suitable for children weighing 9 kg to 36 kg, and approximately 1 to 12 years old (up to 125 cm in height). The head support position can be adjusted in 7 stages to accommodate your child's growth.

Image: Usability across different age groups.

5.1. Adjusting the Harness and Headrest

To adjust the headrest and shoulder belts, use the one-touch adjustment mechanism. Simply squeeze the adjustment handle (usually located at the top of the headrest) and slide the headrest up or down until the shoulder belts are at or just above your child's shoulders.

5.2. Menjaga Anak Anda

1. Place your child in the car seat, ensuring their back is flat against the backrest and their bottom is fully against the seat.
2. Bring the shoulder belts over your child's shoulders and buckle the harness.
3. Pull the harness adjustment strap (usually located at the front of the seat) until the harness is snug against your child's body. You should not be able to pinch any slack in the harness webmenyentuh tulang selangka kanak-kanak itu.

5.3. Booster Seat Mode

For children over 125 cm in height and weighing more than 22 kg, the Recaro J1 Neo can be converted into a booster seat. In this mode, the internal harness is removed, and the child is secured using the vehicle's 3-point seat belt. Ensure the vehicle's seat belt is properly positioned across the child's shoulder and lap.

Image: Booster seat mode with vehicle seat belt.

6. Penyelenggaraan

6.1. Membersihkan Penutup

The car seat cover is washable. To clean:

1. Remove the cover by separating its three parts.
2. Follow the washing instructions on the care label, typically machine wash on a gentle cycle with cold water and mild detergent. Do not bleach.
3. Air dry the cover completely before reattaching it to the car seat.

6.2. Cleaning the Harness and Buckle

Wipe the harness straps and buckle with a damp cloth and mild soap. Do not immerse the buckle in water or use harsh chemicals, as this can compromise its performance.

6.3. Penjagaan Am

Regularly inspect the car seat for any signs of wear, damage, or loose parts. Ensure all components are securely fastened. Do not use the car seat if it has been involved in a crash, even if there is no visible damage.

7. Penyelesaian masalah

7.1. Car Seat Feels Loose After Installation

If the car seat moves more than 1 inch (2.5 cm) at the belt path, it is not installed securely. Re-read the installation instructions carefully and ensure the vehicle's seat belt is pulled as tight as possible while pressing down on the car seat.

7.2. Harness is Difficult to Tighten or Loosen

Check for any twists in the harness straps. Ensure the harness adjustment strap is not obstructed. If the issue persists, inspect the buckle mechanism for debris.

7.3. Headrest Adjustment is Stiff

Ensure no fabric or debris is obstructing the headrest's sliding mechanism. Apply gentle, even pressure when adjusting. If it remains stiff, consult the full product manual or contact customer support.

8. Spesifikasi

9. Maklumat Waranti

For detailed warranty information, please refer to the warranty card included with your product or contact your retailer. Warranty terms and conditions may vary by region and purchase location.

10. Sokongan Pelanggan

If you have any questions, require assistance with installation, or need to report a problem, please contact Recaro customer service or your authorized Recaro retailer. Contact details can typically be found on the Recaro official webtapak atau pada pembungkusan produk.

11. Video Produk Rasmi

Tiada video produk rasmi daripada penjual ditemui dalam data yang disediakan.
