Netspa Octopus 6-Person Portable Spa

1. Pengenalan

Thank you for choosing the Netspa Octopus 6-person portable spa with furniture modules. This manual provides essential information for the safe installation, operation, maintenance, and troubleshooting of your spa. Please read this manual thoroughly before setting up and using your spa to ensure proper function and longevity of the product. Keep this manual for future reference.

2. Maklumat Keselamatan

Always prioritize safety when operating your spa. Failure to follow these instructions could result in serious injury or damage to the product.

• Keselamatan Elektrik: Ensure the spa is connected to a grounded electrical outlet with a Residual Current Device (RCD) or Ground Fault Circuit Interrupter (GFCI). Do not use extension cords.
• Suhu Air: The water temperature should not exceed 40°C (104°F). For prolonged use, a lower temperature is recommended.
• Kanak-kanak: Always supervise children in and around the spa. Install a cover when not in use.
• Bahan kimia: Handle spa chemicals with care. Follow manufacturer's instructions for dosage and storage. Never mix different chemicals.
• Pertimbangan Kesihatan: Consult a doctor before use if you have health conditions, are pregnant, or are taking medication. Avoid using the spa under the influence of alcohol or drugs.
• penempatan: Place the spa on a flat, stable, and level surface capable of supporting the weight of the filled spa and occupants. Ensure adequate drainage.

3. Komponen Selesaiview

Your Netspa Octopus portable spa package includes the main spa unit and five modular furniture pieces designed to complement its octagbentuk badan.

This image displays the complete Netspa Octopus portable spa setup, featuring the octagonal spa unit surrounded by its five complementary furniture modules. The arrangement includes seating, storage, and access steps, creating a cohesive outdoor relaxation area.

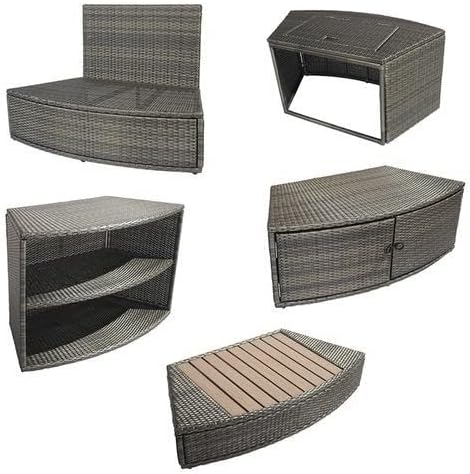

This image presents the five distinct furniture modules that accompany the Netspa Octopus spa. These modules are designed to be arranged around the spa, providing various functionalities such as seating, storage, and steps.

Furniture Modules:

• Comfort Bench: Provides comfortable seating adjacent to the spa.
• Rak Rendah: Offers convenient surface space or open storage.
• High Step: Facilitates easier entry and exit from the spa.
• Double Shelf: Provides two levels of storage for towels or accessories.
• Motor Block Cover: Designed to conceal and protect the external pump and heating unit.

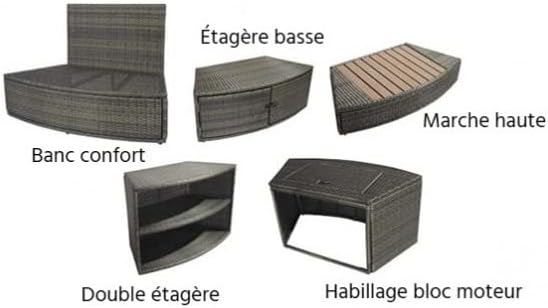

An illustrative diagram showing the five furniture modules for the Netspa Octopus spa, each labeled with its specific function: 'Banc confort' (Comfort bench), 'Étagère basse' (Low shelf), 'Marche haute' (High step), 'Double étagère' (Double shelf), and 'Habillage bloc moteur' (Motor block cover).

4. Arahan Persediaan

1. Membongkar: Keluarkan semua komponen daripada pembungkusan dengan berhati-hati. Periksa sebarang kerosakan atau bahagian yang hilang.
2. Pemilihan Tapak: Choose a flat, stable, and level surface for your spa. Ensure the area can support the weight of the filled spa (approximately 95 kg dry weight + water weight + occupants). Consider proximity to a grounded electrical outlet and a drainage point.
3. Spa Placement: Position the octagonal spa unit in the desired location.
4. Furniture Assembly & Arrangement: The furniture modules require minimal assembly. Arrange the five modules around the spa unit according to your preference. Ensure the 'Motor Block Cover' module is positioned to house the external pump/heater unit.
5. Connecting the Pump/Heater Unit: Connect the external pump/heater unit to the spa according to the markings on the spa and unit. Ensure all connections are secure and watertight.


A terperinci view of the Netspa Octopus portable spa unit, highlighting the external pump and control panel connected to its side. This unit manages heating, filtration, and the bubble function.

6. Mengisi Spa: Fill the spa with fresh water using a garden hose. Fill to the recommended water level indicated inside the spa. Do not overfill.
7. Kuasa Permulaan: Once filled, connect the spa to the grounded electrical outlet. The control panel on the pump/heater unit should illuminate.

5. Arahan Operasi

The spa's functions are controlled via the digital control panel on the external pump/heater unit.

• Butang Kuasa: Press to turn the spa system on or off.
• Tetapan Suhu: Use the up/down arrows to set your desired water temperature. The spa will automatically heat the water to the set temperature.
• Fungsi gelembung: Press the bubble button to activate the air jet massage system. Press again to turn off. Do not run the bubble function for extended periods without occupants, as it can cool the water.
• Sistem Penapisan: The filtration system runs automatically to keep the water clean. You can typically set a filtration cycle duration or activate it manually. Refer to the control panel's specific icons for detailed operation.
• Penunjuk Pemanasan: An indicator light will show when the heater is active.

6. Penyelenggaraan

Regular maintenance is crucial for the performance and longevity of your spa.

• Kualiti Air: Regularly test your spa water using test strips. Adjust pH, alkalinity, and sanitizer levels (e.g., chlorine or bromine) as needed to maintain proper water balance.
• Kartrij Penapis: Clean the filter cartridge regularly (e.g., weekly) by rinsing it with a hose. Replace the filter cartridge every 1-3 months, depending on usage and water quality.
• Pengeringan dan Pembersihan: Drain the spa completely every 1-3 months. Clean the interior surface with a soft cloth and a mild, non-abrasive cleaner. Rinse thoroughly before refilling.
• Musim sejuk: If you plan to store the spa during winter, ensure it is completely drained, cleaned, and dried. Disconnect and store the pump/heater unit indoors in a dry, frost-free environment.
• Furniture Care: Clean the furniture modules with a damp cloth and mild soap. Avoid harsh chemicals. Store indoors or cover during prolonged periods of non-use or harsh weather.

7. Penyelesaian masalah

Rujuk bahagian ini untuk isu biasa dan kemungkinan penyelesaiannya.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information, technical support, or to order replacement parts, please refer to the warranty card included with your product or contact the retailer or manufacturer directly. Keep your proof of purchase for warranty claims.
