Manual Pengguna Penerima DVD Multimedia Pioneer AVH-240EX

pengenalan

This manual provides essential instructions for the safe and efficient use of your Pioneer AVH-240EX Multimedia DVD Receiver. Please read this manual thoroughly before operating the unit to ensure proper usage and to prevent potential damage or injury. Keep this manual for future reference.

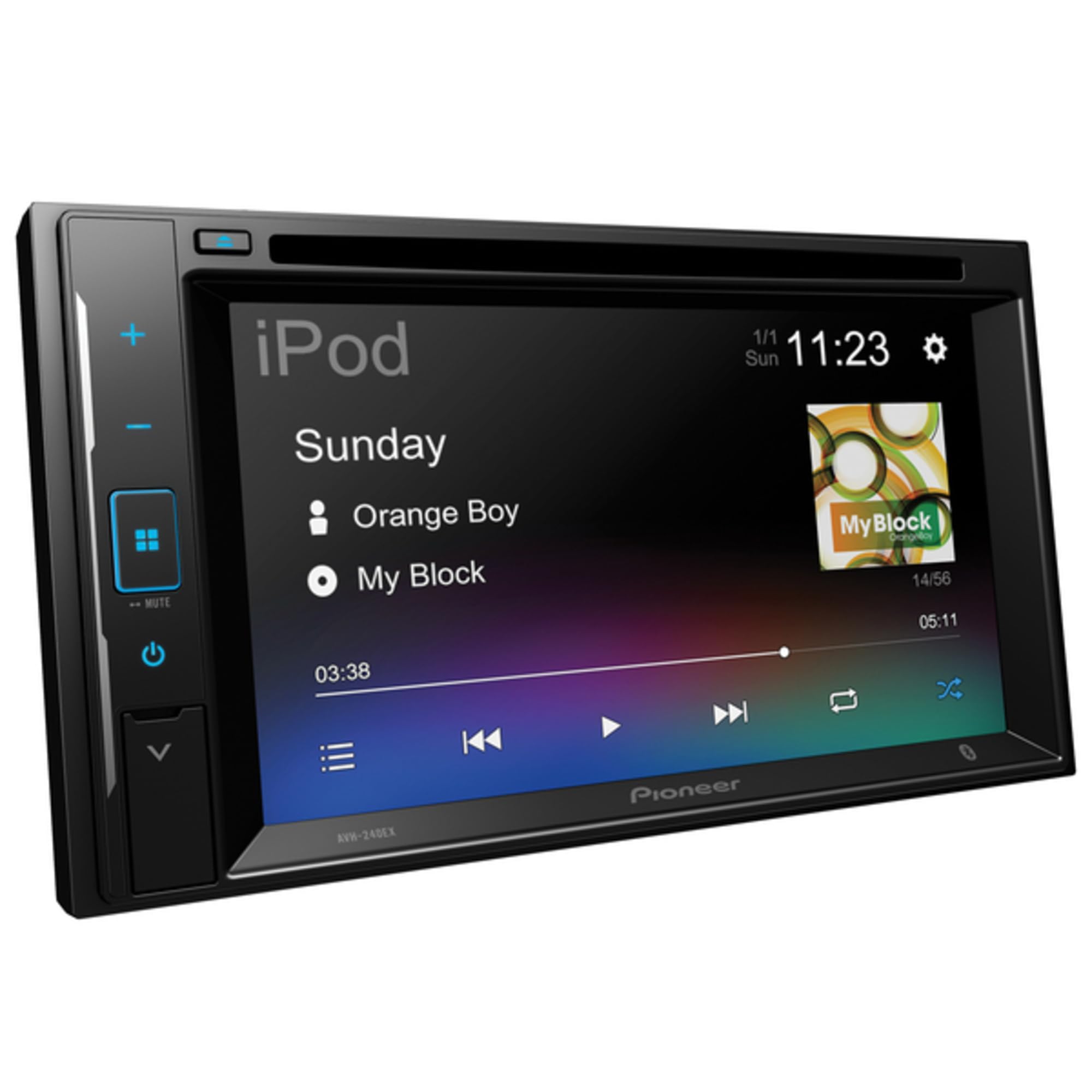

Figure 1: Pioneer AVH-240EX Multimedia DVD Receiver front view.

Maklumat Keselamatan

AMARAN: Read all safety instructions in the product documentation before use. Distracted driving can result in serious injury, or death. Only use a function when it is safe and legal in your location, pay attention to the road and your surroundings, and obey all traffic rules.

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, please refer to the product packaging or manufacturer's webtapak.

Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system's compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.

Persediaan dan Pemasangan

Pemasangan yang betul adalah penting untuk prestasi dan keselamatan yang optimum. Adalah disyorkan agar pemasangan dilakukan oleh profesional yang berkelayakan.

Komponen Lebihview

The Pioneer AVH-240EX includes the main multimedia receiver unit. Additional wiring harnesses and a dash kit may be required depending on your vehicle's make and model to ensure compatibility and a seamless fit. Consult your vehicle's specific requirements.

Figure 2: Pioneer AVH-241EX (similar model) installed in a vehicle dashboard, showing the 6.2" resistive touch screen.

Pendawaian dan Sambungan

The unit features multiple input/output options for system flexibility, including a dedicated backup camera input. Ensure all connections are secure and correctly matched to avoid electrical issues or malfunction.

Kuasa Awal Hidup

1. After installation, turn on your vehicle's ignition.
2. The unit should power on automatically. A safety warning screen will appear.
3. Tap "OK" to proceed to the main menu.

Arahan Operasi

Kawalan Asas

• Butang Kuasa: Tekan untuk menghidupkan/mematikan unit.
• Kawalan Kelantangan: Use the +/- buttons on the side panel or the touch screen interface to adjust volume.
• Pemilihan Sumber: Tap the "Source" button or the corresponding icon on the home screen to switch between Radio, Disc, Bluetooth Audio, USB, Pandora, Spotify, AUX, and other AV inputs.
• Paparan Dimatikan: Press the dedicated button to turn the display off while audio continues to play. Press again to turn it back on.

Operasi Radio

• Pilih "Radio" daripada menu sumber.
• Use the FM1, FM2, FM3, AM bands.
• Tap the frequency numbers to select preset stations.
• Use the seek arrows to tune to the next available station.
• The unit supports FM/AM RDS Radio with 30 presets.

Main Balik Media

• DVD/CD: Masukkan cakera ke dalam slot. Unit ini akan mengesan dan memulakan main balik secara automatik.
• USB: Connect a USB device to the USB port. The unit supports MP3, WAV, MPEG-4, FLAC, and other digital media playback.
• Audio Bluetooth: Pair your smartphone or other Bluetooth device to stream audio wirelessly.
• iPod: Connect your iPod via USB for direct control and playback.

Fungsi Bluetooth

The AVH-240EX features built-in Bluetooth for hands-free calling and audio streaming. Ensure your device's Bluetooth is enabled and visible for pairing.

• To pair, navigate to the Bluetooth menu on the receiver and search for available devices on your phone.
• Select "Pioneer AVH-240EX" from your device's Bluetooth list.
• Sahkan kod pasangan jika digesa.

Penyesuaian dan Tetapan

Access the settings menu (gear icon) to customize various aspects of your receiver:

• Tetapan Audio: Adjust the 13-band graphic equalizer, fader/balance, source level adjuster, and subwoofer settings (if connected).
• Tetapan Sistem: Configure AV source settings, beep tone, auto mix, input/output settings, camera settings, demo mode, system language, and restore settings.
• Theme/Display: Change the background, illumination color, and overall theme of the user interface.

The unit also supports Alexa Built-in when paired with the Pioneer Vozsis app. For information on supported languages and services, visit pioneerelectronics.com/PUSA/Car/Alexa.

Penyelenggaraan

Membersihkan Unit

Wipe the front panel and screen with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the surface.

Penjagaan Cakera

Handle discs by their edges to prevent fingerprints and scratches. Store discs in their cases when not in use. Clean dirty discs with a soft, lint-free cloth, wiping from the center outwards.

Menyelesaikan masalah

If you encounter issues with your AVH-240EX, refer to the following common troubleshooting steps. For more detailed solutions, consult the comprehensive owner's manual available on the Pioneer webtapak.

Spesifikasi

• Nombor Model: AVH-240EX
• Jenama: PERINTIS
• Saiz Skrin: 6.2 Inci
• Jenis Paparan: Resistive WVGA Touch Screen
• Jenis Media: DVD R, CD
• Berat Barang: 4.84 paun
• Dimensi Produk: 11 x 11 x 7 inci
• Ketersambungan: Bluetooth, USB, AUX, RCA (multiple input/output)
• Ciri-ciri audio: 13-band Graphic Equalizer, Subwoofer Control
• Ciri Khas: Alexa Built-in (via Pioneer Vozsis app), Backup Camera Input

Waranti dan Sokongan

For warranty information, technical support, or to download the full owner's manual, please visit the official Pioneer Electronics (USA) Inc. website or contact their customer service. Pioneer Electronics (USA) Inc. proudly supports and encourages you to support the Consumer Technology Association (CTA), Mobile Electronics Certification Program (MECP) for installers and the Specialty Equipment Market Association (SEMA).

rasmi Webtapak: www.pioneerelectronics.com
