LLIVEKIT 7L Large Air Fryer Instruction Manual

1. Pengenalan

Thank you for choosing the LLIVEKIT 7L Large Air Fryer. This appliance is designed to provide a healthier alternative to traditional frying by using rapid hot air circulation to cook your favorite foods with little to no oil. This manual provides essential information for safe operation, maintenance, and optimal performance of your air fryer.

The LLIVEKIT Air Fryer features a powerful 1800W heating element, a 7-liter capacity, and a user-friendly digital touchscreen with 10 preset cooking modes, making it ideal for family meals and gatherings.

Rajah 1.1: Depan view of the LLIVEKIT 7L Large Air Fryer, showcasing its sleek black design and digital touchscreen display.

2. Arahan Keselamatan Penting

Please read all instructions carefully before using the appliance to prevent personal injury or property damage. Keep this manual for future reference.

• Jangan rendam unit utama, kord, atau palam ke dalam air atau cecair lain.
• Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage.
• Always unplug the air fryer from the outlet when not in use and before cleaning. Allow it to cool down completely before handling.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• Jauhkan perkakas dan kordnya daripada jangkauan kanak-kanak.
• Jangan letakkan perkakas pada dinding atau perkakas lain. Tinggalkan sekurang-kurangnya 10 cm (4 inci) ruang kosong di bahagian belakang dan sisi serta 10 cm (4 inci) ruang kosong di atas perkakas.
• Jangan letakkan apa-apa di atas perkakas.
• Semasa menggoreng udara panas, wap panas dilepaskan melalui bukaan saluran keluar udara. Jauhkan tangan dan muka anda pada jarak yang selamat dari wap dan dari bukaan alur keluar udara.
• Always use the handle to remove the frying basket.
• The air fryer is equipped with a heat ring protection net, anti-scalding handle, protective pads against the wall, non-slip feet, and high-temperature protection for enhanced safety.

3. Produk Lebihview dan Komponen

Familiarize yourself with the different parts of your LLIVEKIT Air Fryer.

• Unit utama
• Digital Touchscreen Display
• Saluran Masuk Udara
• Air Outlet
• Bakul Goreng Boleh Ditanggalkan
• Non-Stick Pan (Outer Basket)
• Handle with Release Button and Safety Guard

Rajah 3.1: Close-up of the digital touchscreen, highlighting controls for temperature setting (80-200°C), 10 menu presets, time setting (1-60 minutes), and the ON/OFF button.

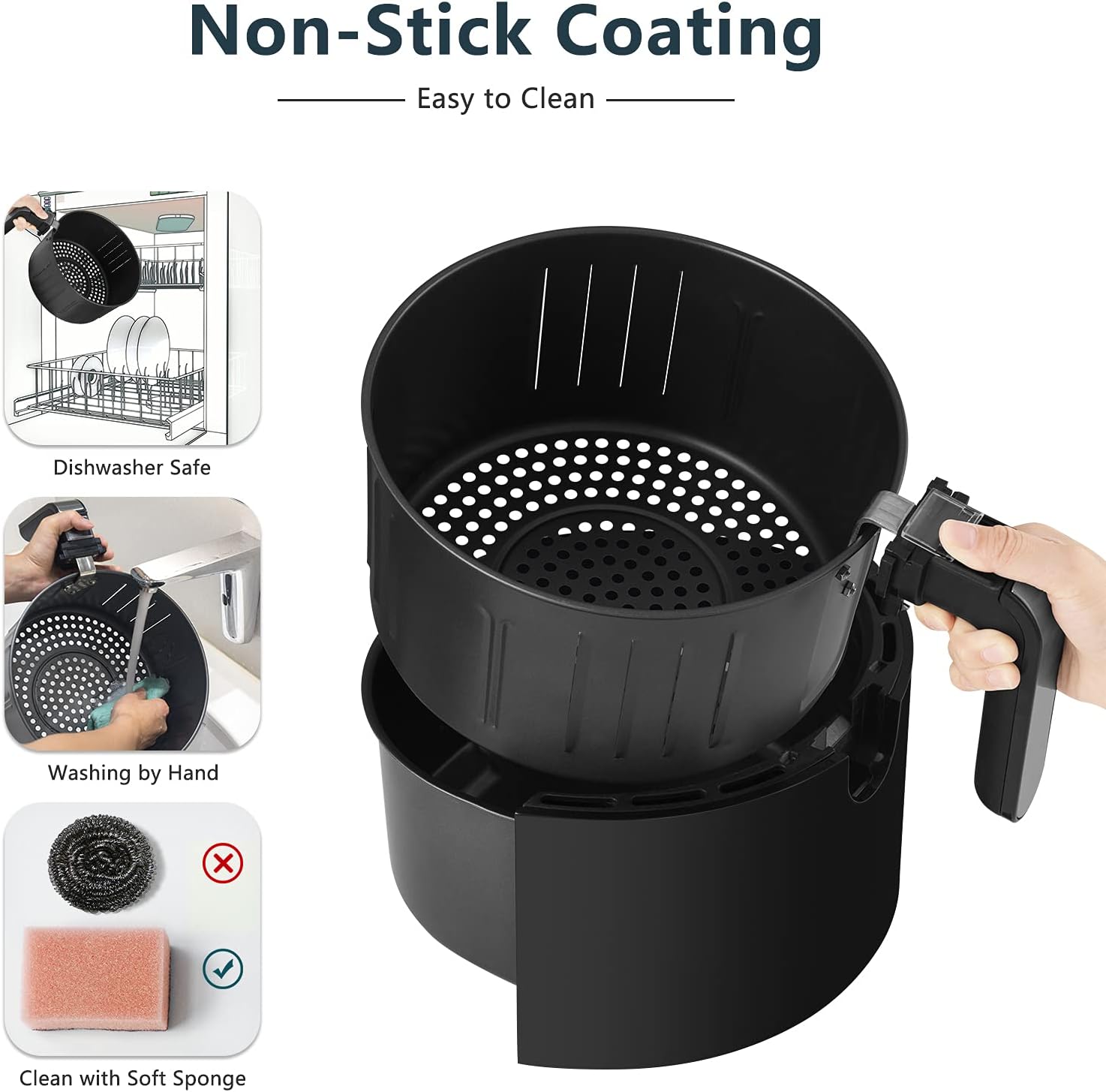

Rajah 3.2: Illustration of the non-stick coating on the frying basket and pan, demonstrating ease of cleaning by hand or in a dishwasher, and advising against abrasive scrubbers.

4. Persediaan dan Penggunaan Pertama

Sebelum menggunakan penggoreng udara anda buat kali pertama, ikuti langkah berikut:

1. Bongkar: Keluarkan semua bahan pembungkusan dan pelekat dari perkakas.
2. Bersih: Wash the frying basket and pan thoroughly with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the main unit with a damp kain.
3. Berhimpun: Ensure the frying basket is securely placed inside the pan, and the pan is correctly inserted into the main unit.
4. Pra-panas (Pilihan): For the first use, it is recommended to run the air fryer empty for about 10 minutes at 180°C (356°F) to eliminate any manufacturing odors. Ensure good ventilation during this process.

5. Arahan Operasi

Operating your LLIVEKIT Air Fryer is straightforward with its digital touchscreen.

5.1 Operasi Asas

1. Letakkan penggoreng udara di atas permukaan yang stabil dan tahan panas.
2. Pull out the frying basket assembly using the handle.
3. Letakkan bahan-bahan anda ke dalam bakul penggorengan. Jangan isi secara berlebihan.
4. Slide the frying basket assembly back into the air fryer until it clicks into place.
5. Plug the power cord into a grounded wall outlet. The display will light up.
6. Tekan butang kuasa untuk menghidupkan perkakas.
7. Tetapan Manual: Use the temperature and time adjustment buttons (+/-) to set your desired cooking temperature (80-200°C) and time (1-60 minutes).
8. Mod Pratetap: Alternatively, press the 'M' (Menu) button to cycle through the 10 preset cooking modes. Once a preset is selected, the air fryer will automatically set the optimal temperature and time.
9. Tekan butang mula/jeda untuk mula memasak.
10. Some foods may require shaking halfway through cooking. Pull out the basket, shake, and reinsert. The air fryer will resume cooking automatically.
11. When cooking is complete, the timer will sound. Carefully pull out the basket and remove food using tongs.

Rajah 5.1: Step-by-step guide for safely removing the frying basket: 1. Pull the basket out. 2. Slide the clear button guard forward. 3. Press the release button to separate the basket and the pan.

5.2 Menu Pratetap

The air fryer comes with 10 convenient preset modes for common dishes:

Rajah 5.2: Visual representation of the air fryer's preset menu options, including French fries, steak, chicken, fish, pizza, roast meat, cake, and shrimp, along with suggested temperatures and times.

While the image shows 8, the product description states 10 presets. These typically include options like:

• Kentang goreng
• Steak
• ayam
• ikan
• Pizza
• Daging panggang
• kek
• udang
• Keep Warm (up to 2 hours)
• Dehydrate/Ferment (check manual for specific icon)

Refer to the icons on your air fryer's display for the exact 10 preset options.

6. Panduan dan Petua Memasak

Untuk hasil terbaik, pertimbangkan petua berikut:

• Bahan yang lebih kecil biasanya memerlukan masa memasak yang sedikit lebih pendek daripada bahan yang lebih besar.
• Jumlah bahan yang lebih besar hanya memerlukan masa memasak yang lebih lama sedikit.
• Menggoncang bahan-bahan yang lebih kecil pada separuh masa memasak mengoptimumkan hasil akhir dan boleh membantu mengelakkan bahan-bahan yang digoreng tidak sekata.
• Add a little oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil.
• Makanan ringan yang boleh disediakan di dalam ketuhar juga boleh disediakan di dalam air fryer.
• The air fryer is also suitable for reheating food. To reheat food, set the temperature to 150°C (300°F) for approximately 10 minutes.

7. Penyelenggaraan dan Pembersihan

Pembersihan tetap memastikan jangka hayat dan prestasi optimum penggoreng udara anda.

1. Cabut dan Sejukkan: Sentiasa cabut plag penggoreng udara dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
2. Bakul dan Kuali Bersih: The non-stick frying basket and pan are dishwasher safe. Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn food residue, soak the basket and pan in hot water with some dish soap for about 10 minutes.
3. Unit Utama Bersih: Lap bahagian luar penggoreng udara dengan iklanamp kain. Jangan sekali-kali merendam unit utama dalam air.
4. Elemen Pemanas Bersih: Gunakan berus pembersih untuk membuang sebarang sisa makanan daripada elemen pemanas di dalam penggoreng udara.
5. Storan: Ensure all parts are completely dry before storing the appliance in a cool, dry place.

8. Penyelesaian masalah

Jika anda menghadapi masalah dengan penggoreng udara anda, rujuk masalah dan penyelesaian biasa berikut:

9. Spesifikasi

• Jenama: LIVEKIT
• model: 7L Digital Touchscreen Air Fryer
• kapasiti: 7 Liter
• Kuasa: 1800W
• Voltage: 220 Volt
• Julat Suhu: 80-200°C
• Julat Pemasa: 1-60 minit
• Bahan: Aluminium, Plastik
• Dimensi Produk: 41 x 37 x 37 cm (lebih kurang)
• Berat Barang: 6.2 kg
• Ciri Khas: Oil-Less Air Fryer, 7L large capacity and 6L Non-Stick Removable Basket, 10 Cooking Presets, LED Touchscreen, Keep Warm function.

10. Waranti dan Sokongan

LLIVEKIT products are manufactured to high-quality standards. For any warranty claims or technical support, please refer to the warranty card included with your purchase or contact LLIVEKIT customer service directly. Keep your proof of purchase for warranty validation.

For further assistance, you may visit the official LLIVEKIT store online: LLIVEKIT Store
