LLIVEKIT 7L XXL Air Fryer User Manual

1. Arahan Keselamatan Penting

Sila baca manual pengguna ini dengan teliti sebelum menggunakan perkakas dan simpan untuk rujukan masa hadapan. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

• Keselamatan Elektrik: Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage before you connect the appliance. Do not immerse the main unit, cord, or plug in water or other liquids.
• Permukaan Panas: Permukaan perkakas menjadi panas semasa digunakan. Sentiasa gunakan sarung tangan ketuhar apabila mengendalikan komponen panas. Jangan sentuh permukaan panas secara langsung.
• Pengudaraan: Do not block any ventilation openings. Allow sufficient free space (at least 10 cm) around the appliance for proper air circulation.
• penempatan: Place the appliance on a stable, heat-resistant surface, away from walls and flammable materials.
• Melebihi: Do not overfill the frying basket. Overfilling may cause food to contact the heating element.
• Kanak-kanak: Perkakas ini tidak bertujuan untuk digunakan oleh kanak-kanak. Jauhkan perkakas dan kordnya daripada jangkauan kanak-kanak.
• Ciri-ciri perlindungan: The LLIVEKIT Air Fryer is equipped with a high-temperature resistant PP shell, a protective net for the heating ring, an anti-scald handle, anti-slip pads, and an overheating protection system to ensure safe operation.

2. Produk Lebihview

The LLIVEKIT 7L XXL Air Fryer is designed for healthy, oil-free cooking, utilizing 360° high-speed hot air circulation to prepare crispy and tender dishes with significantly less fat.

Depan view of the LLIVEKIT 7L XXL Air Fryer, showcasing its sleek black design and intuitive digital LED display.

This image illustrates the complete package contents, including the 7-quart air fryer unit, a recipe book with 21 recipes, the user manual, and the non-stick basket.

Ciri-ciri Utama:

• Kapasiti 7L Besar: Ideal for family meals or entertaining guests.
• Kuasa 1800W: Memastikan memasak yang cepat dan cekap.
• Peredaran Udara Panas 360°: Cooks food evenly and thoroughly, reducing fat by up to 85% compared to traditional deep frying.
• Skrin Sentuh LED: User-friendly interface for easy control and monitoring.
• 10 Pre-programmed Settings: Simplifies cooking for various dishes like fries, chicken, steak, pizza, and more.
• Adjustable Temperature & Time: Customize cooking settings from 80-200°C and 0-60 minutes.
• Bakul Tidak Tongkat: Memastikan pelepasan makanan mudah dan memudahkan pembersihan.
• Pelbagai fungsi: Can be used for frying, baking, grilling, and roasting, offering versatility beyond a traditional fryer.

This diagram illustrates the 360-degree hot air circulation technology, which cooks food thoroughly and reduces fat content by 85% compared to conventional deep frying methods.

The image highlights the versatility of the air fryer, demonstrating its capability to perform functions similar to a microwave oven, deep fryer, frying pan, grill, hot oven, and toaster.

3. Persediaan

Follow these steps to set up your LLIVEKIT Air Fryer for first use:

1. Bongkar: Carefully remove the air fryer and all packaging materials from the box. Keep the packaging for future storage or transport.
2. Bersihkan Sebelum Penggunaan Pertama: Lap bahagian luar perkakas dengan iklanamp cloth. Wash the frying basket and crisper plate with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
3. penempatan: Place the main unit on a stable, level, and heat-resistant surface. Ensure there is at least 10 cm of clear space around the back and sides of the appliance for proper ventilation. Do not place it directly against a wall or under cabinets.
4. Sambungan Kuasa: Palamkan kord kuasa ke salur keluar elektrik yang dibumikan.
5. Larian Awal (Pilihan tetapi Disyorkan): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (356°F) to eliminate any manufacturing odors. A slight odor may be present, which is normal and will dissipate.

The air fryer is shown placed on a clean kitchen counter, ready for use, emphasizing proper placement for ventilation.

4. Arahan Operasi

The LLIVEKIT Air Fryer features an intuitive LED touch screen for easy operation.

Operasi asas:

1. Menyediakan makanan: Letakkan bahan-bahan anda ke dalam bakul penggorengan. Jangan melebihi garisan isi MAKSIMUM.
2. Masukkan Bakul: Luncurkan bakul goreng kembali ke dalam unit utama sehingga ia berbunyi klik pada tempatnya.
3. Hidupkan kuasa: Plug in the appliance. The LED screen will light up. Press the power button to turn on the air fryer.
4. Tetapkan Suhu dan Masa:
   • Use the temperature control buttons (usually '+' and '-') to set the desired cooking temperature (80-200°C).
   • Use the time control buttons (usually '+' and '-') to set the desired cooking time (0-60 minutes).
5. Mula Memasak: Tekan butang mula/jeda untuk memulakan proses memasak.
6. Shake/Flip Food: For even cooking, especially for fries or smaller items, pull out the basket halfway through the cooking time and shake or flip the food. The air fryer will pause automatically when the basket is removed and resume when reinserted.
7. Tamat Memasak: The air fryer will beep when the cooking time is complete. Carefully pull out the basket and transfer the cooked food.

A terperinci view of the air fryer's LED touch screen, highlighting the adjustable temperature range (80-200°C), time settings (1-60 minutes), and the power button.

The air fryer is shown with its smart LED screen illuminated, displaying cooking information, alongside a basket of perfectly cooked fries.

Using Pre-programmed Settings:

The air fryer comes with 10 pre-programmed settings for common dishes:

This image displays the air fryer with its basket open, containing cooked chicken, and a graphic illustrating 8 common preset menus with their recommended cooking temperatures and times, such as French fries, Steak, Chicken, Fish, Pizza, Roast Meat, Cake, and Shrimp.

• Press the 'M' (Menu) button to cycle through the 10 pre-programmed cooking modes.
• Sebaik sahaja anda memilih program, penggoreng udara secara automatik akan menetapkan suhu dan masa yang optimum.
• You can adjust the temperature and time manually even after selecting a preset, if desired.

Fungsi Kekal Panas:

After cooking, you can select the 'Keep Warm' function (indicated by 'SSS' on the display) to keep your food warm for up to 2 hours.

5. Pembersihan dan Penyelenggaraan

Pembersihan tetap memastikan prestasi optimum dan memanjangkan jangka hayat penggoreng udara anda.

1. Cabut plag dan Sejukkan: Sentiasa tanggalkan plag penggoreng udara daripada soket kuasa dan biarkan ia sejuk sepenuhnya sebelum membersihkannya.
2. Bakul Bersih dan Pinggan Rangup: The frying basket and crisper plate have a non-stick coating and are dishwasher safe. For hand washing, use hot water, dish soap, and a soft sponge. Do not use abrasive cleaning materials like steel wool or harsh detergents, as they can damage the non-stick coating.
3. Luaran Bersih: Lap bahagian luar penggoreng udara dengan iklanamp kain. Jangan gunakan pembersih yang kasar.
4. Dalaman Bersih: For the interior, including the heating element, use a non-abrasive sponge or cloth. For stubborn residue, a small amount of baking soda paste can be used, then wiped clean. Ensure no water enters the main unit.
5. Storan: Setelah bersih dan kering, simpan penggoreng udara di tempat yang sejuk dan kering.

This image demonstrates the ease of cleaning the non-stick basket, showing it is dishwasher safe, can be washed by hand, and should be cleaned with a soft sponge, not a steel wool scrubber.

6. Penyelesaian masalah

If you encounter any issues with your LLIVEKIT Air Fryer, refer to the following common problems and solutions:

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.

7. Spesifikasi

Detailed technical specifications for the LLIVEKIT 7L XXL Air Fryer:

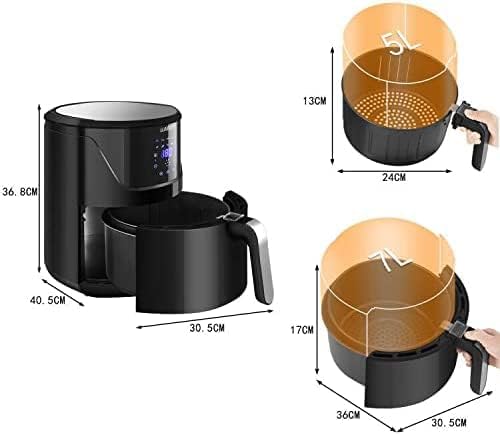

A technical diagram illustrating the precise dimensions of the LLIVEKIT Air Fryer unit and its internal baskets (5L and 7L capacities).

8. Waranti dan Sokongan

LLIVEKIT is committed to providing high-quality products and excellent customer service.

Maklumat Waranti:

This product typically comes with a manufacturer's warranty. Please refer to your purchase documentation or the product packaging for specific warranty terms and conditions, including the warranty period and coverage details. Keep your proof of purchase for warranty claims.

Sokongan Pelanggan:

For any questions, technical assistance, or warranty claims, please contact LLIVEKIT customer support through the retailer where you purchased the product or visit the official LLIVEKIT webtapak untuk maklumat hubungan.

We are dedicated to ensuring your satisfaction with your LLIVEKIT Air Fryer.
