Manual Arahan Penulen Udara HEPA Keylitos

1. Pengenalan

The Keylitos HEPA Air Purifier is designed to provide a cleaner, healthier indoor environment by effectively removing airborne contaminants. Equipped with an H13 True HEPA filter, it captures 99.9% of nano particles including pollen, pet dander, smoke, dust, mold spores, and odors. Ideal for homes, offices, and large rooms up to 560 sq ft, this air purifier operates quietly to ensure minimal disturbance while delivering powerful air purification.

Figure 1.1: Enjoying fresh air with the Keylitos Air Purifier.

2. Maklumat Keselamatan

Sila baca semua arahan dengan teliti sebelum menggunakan perkakas ini untuk memastikan operasi yang selamat dan berkesan. Simpan manual ini untuk rujukan pada masa hadapan.

• Perkakas ini adalah untuk kegunaan dalaman sahaja.
• Jangan letakkan apa-apa di atas perkakas ini.
• Ensure the plastic bag is removed from the filter before operating the air purifier.
• Jangan gunakan mesin tanpa penapis dipasang.
• Do not allow any liquid to enter the machine. If liquid enters, disconnect the power supply immediately and contact customer support.
• Do not attempt to repair or disassemble the product yourself. All servicing should be performed by qualified personnel.
• Always unplug the air purifier when not in use, before cleaning, or when changing filters.

3. Produk Lebihview

The Keylitos Air Purifier features a compact design with intuitive controls. Its multi-layer filtration system ensures comprehensive air purification.

3.1 Komponen

• Unit Utama: Houses the fan and control system.
• Penapis HEPA Benar H13: A 3-in-1 composite filter including a pre-filter, charcoal filter, and HEPA filter for comprehensive purification.
• Tombol Kawalan Putar: For power and speed selection.
• Panel Depan: Removable for filter access.

Figure 3.1: Keylitos HEPA Air Purifier with indicated airflow.

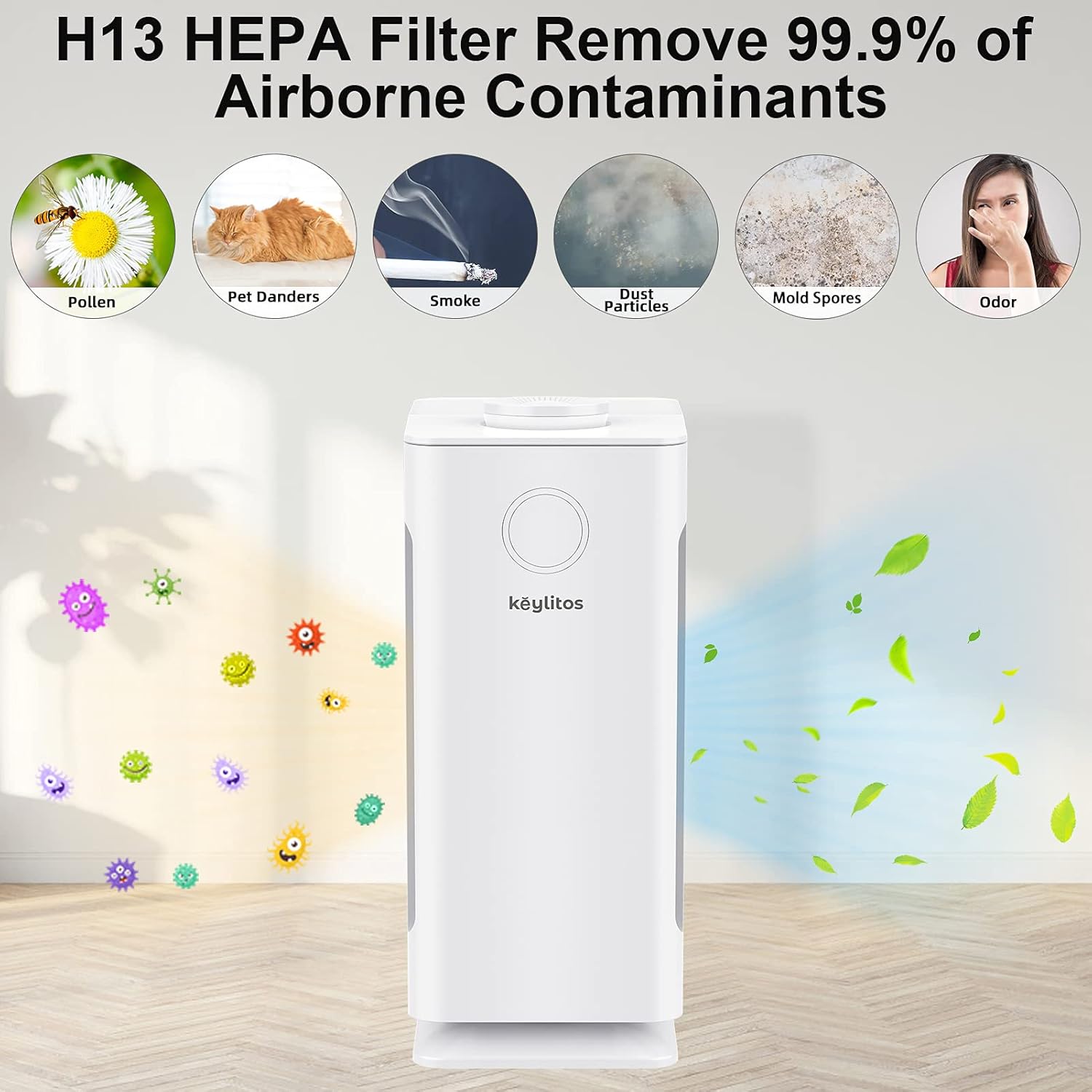

Figure 3.2: H13 True HEPA Filter's effectiveness against various contaminants.

4. Persediaan

Before first use, the filter must be removed from its plastic packaging and installed correctly.

1. Buka Panel Depan: Gently hold both sides of the front panel with both hands and open the device outwards.
2. Keluarkan Pembungkusan Penapis: Take out the combination filter from its plastic packaging.
3. Pasang Penapis: Install the combination filter back into the unit. Ensure the cloth strip on the filter is facing outwards for easy removal later.
4. Close Front Panel: Align the matching slots and install the front panel securely.

Figure 4.1: Filter installation steps.

5. Operasi

5.1 Menghidupkan dan Kawalan Kelajuan

The Keylitos Air Purifier is operated using a simple rotary knob on the top of the unit.

• Hidupkan: Rotate the knob clockwise from 'OFF' to select a speed mode.
• Mod Kelajuan: Choose from 'WHISPER CLEAN' (Low), 'MED' (Medium), or 'QUICK CLEAN' (High).
• Matikan: Rotate the knob counter-clockwise back to 'OFF'.

Figure 5.1: Rotary control knob for power and speed selection.

5.2 Penempatan

The device can be used in various settings and orientations:

• Standing Type: Suitable for living rooms, bedrooms, offices, and kitchens.
• Lying Type: The unit can also be placed horizontally. Ensure the air inlet and outlet are not blocked.

Figure 5.2: Versatile placement options for the air purifier.

5.3 Operasi Senyap

At its lowest setting ('WHISPER CLEAN'), the air purifier operates at a mere 28dB, making it almost voiceless and ideal for use in bedrooms or quiet environments.

Figure 5.3: Ultra-quiet operation for a peaceful environment.

5.4 Demonstrasi Video

6. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan jangka hayat pembersih udara anda.

6.1 Pembersihan/Penggantian Penapis

The filter element cannot be washed. It is recommended to replace the filter every 3-6 months, depending on usage and air quality. Certified replacement filters can be found using ASIN: B09XQSGYDF.

1. Matikan peranti dan cabut palamnya daripada salur keluar kuasa.
2. Open the front panel of the device as described in the Setup section.
3. Take out the used combination filter. It is recommended to wrap the used filter in a garbage bag to avoid releasing pollutants.
4. Install a new combination filter, ensuring the cloth strip is facing outwards.
5. Align the matching slots and install the front panel.
6. Plug in the device and turn it on to resume operation.

7. Penyelesaian masalah

If you encounter any issues with your Keylitos Air Purifier, please refer to the following common solutions. If the problem persists, contact customer support.

• Unit tidak dihidupkan: Ensure the power cord is securely plugged into a working outlet. Check if the rotary knob is turned to an 'ON' position (Whisper Clean, Med, or Quick Clean).
• Reduced airflow or unusual odor: The filter may be dirty or clogged. Replace the filter as per the maintenance instructions. Ensure the plastic packaging has been removed from the new filter.
• Peningkatan bunyi bising: Check if the unit is placed on a stable, flat surface. Ensure no objects are obstructing the air inlets or outlets.

8. Spesifikasi

9. Waranti dan Sokongan

Keylitos offers a 5-year warranty for this product. If you have any questions, require technical assistance, or need to claim warranty service, please contact Keylitos customer support through the retailer's platform or the official Keylitos webtapak. Sila sediakan nombor model dan butiran pembelian anda semasa menghubungi sokongan.
