1. Pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your Hampton Bay Mena 54-inch Ceiling Fan. This versatile fan is designed for both indoor and covered outdoor locations, such as porches and patios. It features an integrated 21.5-Watt dimmable LED light kit with color-changing technology and a convenient remote control for ease of use.
The fan incorporates QuickFit installation features, including a slide-on mounting bracket, a magnetic light kit with a pre-attached shade, and Quick Install blades, designed to simplify the setup process.

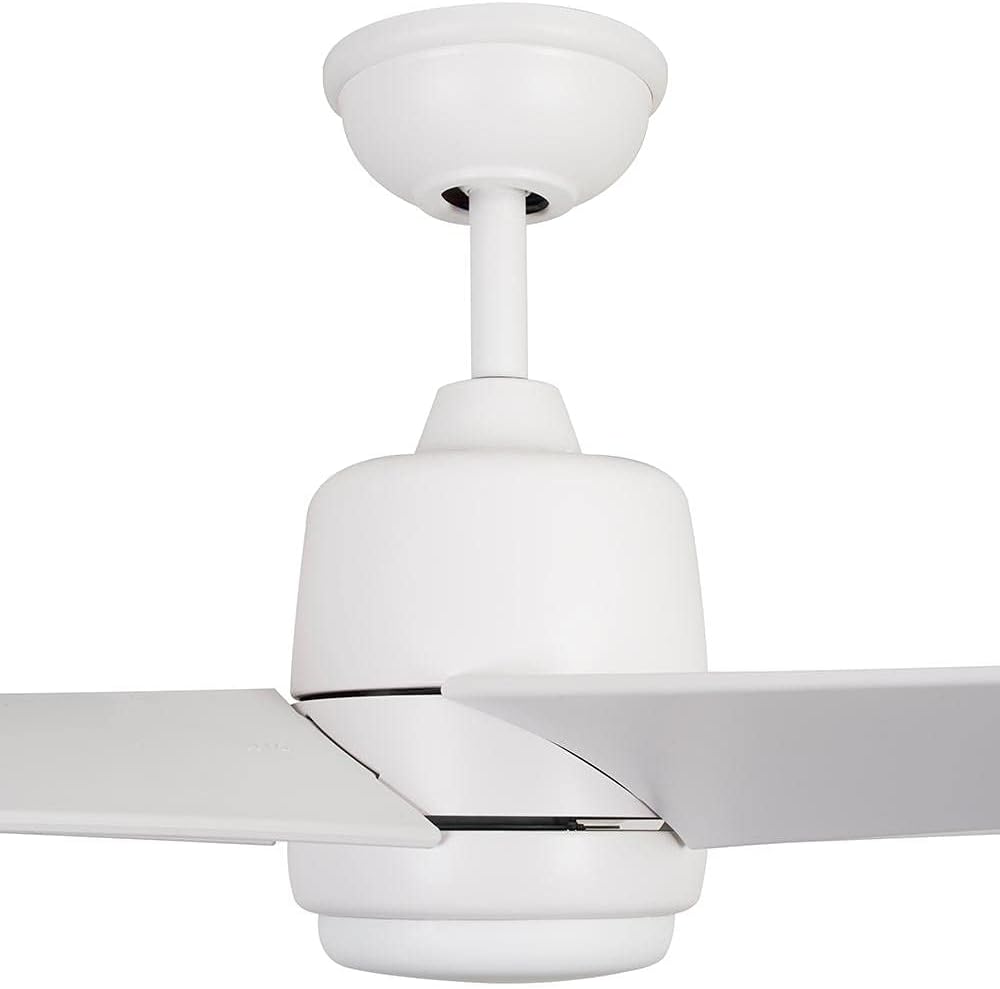

Image 1.1: Hampton Bay Mena 54-inch Ceiling Fan, showcasing its modern design and matte white finish.
2. Maklumat Keselamatan
Please read and understand all safety instructions before beginning installation. Failure to follow these instructions could result in electric shock, fire, or personal injury.
- Pastikan kuasa pada pemutus litar telah diputuskan sambungannya sebelum pemasangan atau servis.
- Semua pendawaian mestilah mengikut kod elektrik nasional dan tempatan. Jika anda tidak biasa dengan pendawaian, rujuk juruelektrik yang bertauliah.
- The mounting structure must be capable of supporting the weight of the fan (at least 35 lbs).
- Jangan kendalikan kipas dengan bilah atau perumah yang rosak.
- Jauhkan tangan, pakaian dan objek lain daripada bilah kipas apabila kipas sedang beroperasi.
- Kipas ini ialah damp rated for use in covered outdoor locations. Do not expose to direct water spray.
3. Persediaan & Pemasangan
Hampton Bay Mena ceiling fan features QuickFit installation for a faster and easier setup process.
3.1. Pemasangan Braket Pemasangan
Begin by securely attaching the slide-on mounting bracket to your ceiling junction box. Ensure the bracket is firmly fastened to a structural support capable of holding the fan's weight.
Image 3.1: A hand demonstrating the installation of the slide-on mounting bracket to the ceiling.
3.2. Pemasangan Bilah
The Quick Install ABS blades attach in seconds without the need for screws. Align each blade with its slot on the motor housing and click it into place until it is secure.
Imej 3.2: Gambar jarak dekat view showing a fan blade being clicked and locked into its position on the fan's motor housing.
3.3. Perhimpunan Kit Ringan
The magnetic light kit attaches quickly and easily. Connect the wiring harness from the fan to the remote receiver, then align the magnetic light kit with the fan's base and allow it to snap into place. Finally, twist and lock the frosted white plastic shade onto the light kit.
Image 3.3: A hand holding the magnetic light kit, illustrating its design for easy attachment.
Image 3.4: A hand demonstrating the twist and lock mechanism for securing the light shade.
3.4. Dual-Mount Option
This fan can be installed on flat or angled ceilings. For angled ceilings, an extension downrod (sold separately) may be required.
4. Arahan Operasi
H andaampton Bay Mena ceiling fan is operated using the included remote control.
4.1. Fungsi Alat Kawalan Jauh
- Butang Kuasa: Turns the fan and light on/off. The fan remembers the last settings when powered on.
- Butang Kelajuan Kipas: Adjusts the fan speed (3-speed reversible motor).
- Butang Hidup/Mati Lampu: Mengawal lampu LED bersepadu.
- Color Changing Button: Cycles through the three available light temperature settings.
4.2. Light Temperature Settings
The integrated LED module features Color Changing technology, allowing you to select from three distinct light output settings:
- 2700K: Putih Hangat
- 3000K: Putih Lembut
- 5000K: siang hari
Press the color changing button on the remote to cycle through these options.
4.3. Dimmable LED
The 21.5-Watt LED light kit is dimmable. Use the appropriate button on your remote control to adjust the brightness to your preference.
4.4. Reversible Motor
The fan features a reversible motor for year-round comfort. In warm weather, operate the fan in a counter-clockwise direction to create a cooling breeze. In cool weather, operate the fan in a clockwise direction at a low speed to circulate warm air near the ceiling.
5. Penyelenggaraan
Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum kipas siling anda.
- Pembersihan: Untuk membersihkan kipas, lap dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang kasar, kerana ini boleh merosakkan kemasan atau komponen elektrik.
- Penjagaan Bilah: The ABS blades are designed for durability. Avoid using harsh chemicals on the blades.
- Kit Cahaya: The integrated LED module does not require bulb replacement. If the light is not functioning, refer to the troubleshooting section.
- Keketatan: Periksa secara berkala semua skru dan sambungan untuk memastikan ia ketat.
Always ensure power is turned off at the circuit breaker before performing any cleaning or maintenance.
6. Penyelesaian masalah
If you experience issues with your Hampton Bay Mena ceiling fan, consult the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kipas tidak bermula | Tiada kuasa kepada kipas; Sambungan wayar longgar; Bateri kawalan jauh lemah atau tidak berpasangan. | Check circuit breaker; Verify all wire connections are secure; Replace remote battery or re-pair remote. |
| Cahaya tidak berfungsi | No power to the light; Loose wire connections; Integrated LED module failure. | Check circuit breaker; Verify light kit wiring; Contact customer support if LED module is faulty. |
| Kipas bergoyang | Loose blades or mounting bracket; Unbalanced blades. | Ensure all blade screws and mounting bracket screws are tight; Use a balancing kit (not included) if necessary. |
| Alat kawalan jauh tidak bertindak balas | Low battery; Remote not paired with receiver. | Replace remote battery; Follow pairing instructions (refer to remote control manual if separate). |
7. Spesifikasi
Detailed technical specifications for the Hampton Bay Mena 54-inch Ceiling Fan (Model 99918).
- Nombor Model: 99918
- Jenama: Hampton Bay
- Saiz Kipas: 54 inci
- warna: White (Matte finish)
- Bilangan bilah: 5
- Bahan Bilah: Plastik Acrylonitrile Butadiene Styrene (ABS).
- Motor: 3-speed reversible motor
- Jenis Cahaya: LED bersepadu
- LED Wattage: 21.5 Watt
- Suhu Warna Cahaya: 2700K (Warm White), 3000K (Soft White), 5000K (Daylight)
- Boleh dimalapkan: ya
- Kaedah Kawalan: Alat Kawalan Jauh
- Jenis Pemasangan: Ceiling Mount (Dual-mount for flat or angled ceilings)
- Penggunaan Dalaman/Luar: Indoor / Covered Outdoor (Damp Dinilai)
- Sumber Kuasa: Elektrik Bertali
- Kecekapan Tenaga: Energy Star compliant, Energy Efficient Standby Power Shutoff
- GTIN/UPC: 082392999186
Image 7.1: Dimensional diagram of the Hampton Bay Mena 54-inch Ceiling Fan.
8. Waranti & Sokongan
Hampton Bay Mena 54-inch Ceiling Fan comes with a lifetime motor warranty, ensuring peace of mind regarding the core functionality of your fan.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Hampton Bay Customer Support. Keep your purchase receipt and model number (99918) handy when contacting support.
Hampton Bay Customer Support:
- Refer to the contact information provided in your product packaging or visit the official Hampton Bay webtapak.
