NUTRI FIT EB9233 Ultra-Wide Digital Bathroom Scale Instruction Manual

1. Pengenalan

This manual provides instructions for the proper use and maintenance of your NUTRI FIT EB9233 Ultra-Wide Digital Bathroom Scale. This scale is designed to provide accurate body weight measurements for individuals up to 400 pounds (180 kg). Please read this manual thoroughly before use to ensure safe and effective operation.

2. Maklumat Keselamatan

• Always place the scale on a hard, flat surface. Using it on carpet or uneven surfaces may affect accuracy.
• The scale surface is made of tempered glass. It can be slippery when wet. Ensure the surface is dry before stepping on.
• Do not jump on the scale or drop heavy objects on it, as this may damage the glass or internal components.
• Jauhkan skala dari suhu dan kelembapan yang melampau.
• This scale is for personal use only and not intended for medical diagnosis or treatment.
• If the unit displays 'Lo', replace the batteries promptly.
• If the unit displays 'O-Ld', the maximum weight capacity has been exceeded.

3. Kandungan Pakej

• NUTRI FIT EB9233 Timbangan Bilik Mandi Digital
• 2 x Bateri AAA (dipasang atau disertakan secara berasingan)
• Manual Arahan

4. Ciri-ciri Produk

• Extra-Wide Platform: Provides a comfortable and stable weighing surface.
• Kapasiti Tinggi: Supports weights up to 400 lbs (180 kg).
• Ketepatan Tinggi: Measures with an accuracy of +/- 0.1 lb (50g).
• Permukaan Kaca Terbaja: Durable 6mm thick tempered glass with rounded corners for safety.
• Paparan LCD dengan lampu latar: Large, easy-to-read 3.25-inch LCD with backlight for clear visibility.
• Step-on Technology: Provides immediate weight readings upon stepping on the scale.
• 4 Precision G Sensors: Ensures consistent and accurate measurements.
• Fungsi Automatik: Features auto-power-off, auto-zero, and auto-calibration.
• Petunjuk: Includes low battery and overload indications.
• Penukaran Unit: Easily switch between pounds (lb) and kilograms (kg).
• Pad Anti-Skid: Located on the bottom for stability and safety.

Imej: Selesaiview of the NUTRI FIT EB9233 Digital Bathroom Scale's key features, including weight capacity, display type, and sensor technology.

Imej: Side profile of the scale, illustrating its slim design and the durable tempered glass surface.

5. Persediaan

5.1 Pemasangan Bateri

1. Buka penutup petak bateri di belakang penimbang.
2. Masukkan 2 bateri AAA, pastikan kekutuban (+/-) yang betul.
3. Tutup penutup petak bateri.

5.2 Penentukuran Awal

For the first use or after moving the scale, it needs to be calibrated:

1. Letakkan penimbang pada permukaan yang keras dan rata.
2. Step on the scale briefly, then step off. The display will show '0.0' or a reading, then turn off.
3. Skala itu kini ditentukur dan sedia untuk digunakan.

5.3 Pemilihan Unit

To switch between pounds (lb) and kilograms (kg):

• Locate the unit conversion button on the back of the scale, usually near the battery compartment.
• Press the button to toggle between 'lb' and 'kg'.

Imej: Bawah view of the scale, highlighting the battery compartment and the unit conversion button.

6. Arahan Operasi

6.1 Mengambil Pengukuran

1. Letakkan penimbang pada permukaan yang keras dan rata.
2. Melangkah ke penimbang dengan berkaki ayam, berdiri diam dan berpusat.
3. The scale will automatically turn on and display your weight.
4. The reading will flash a few times and then lock.
5. Step off the scale. It will automatically turn off after a few seconds.

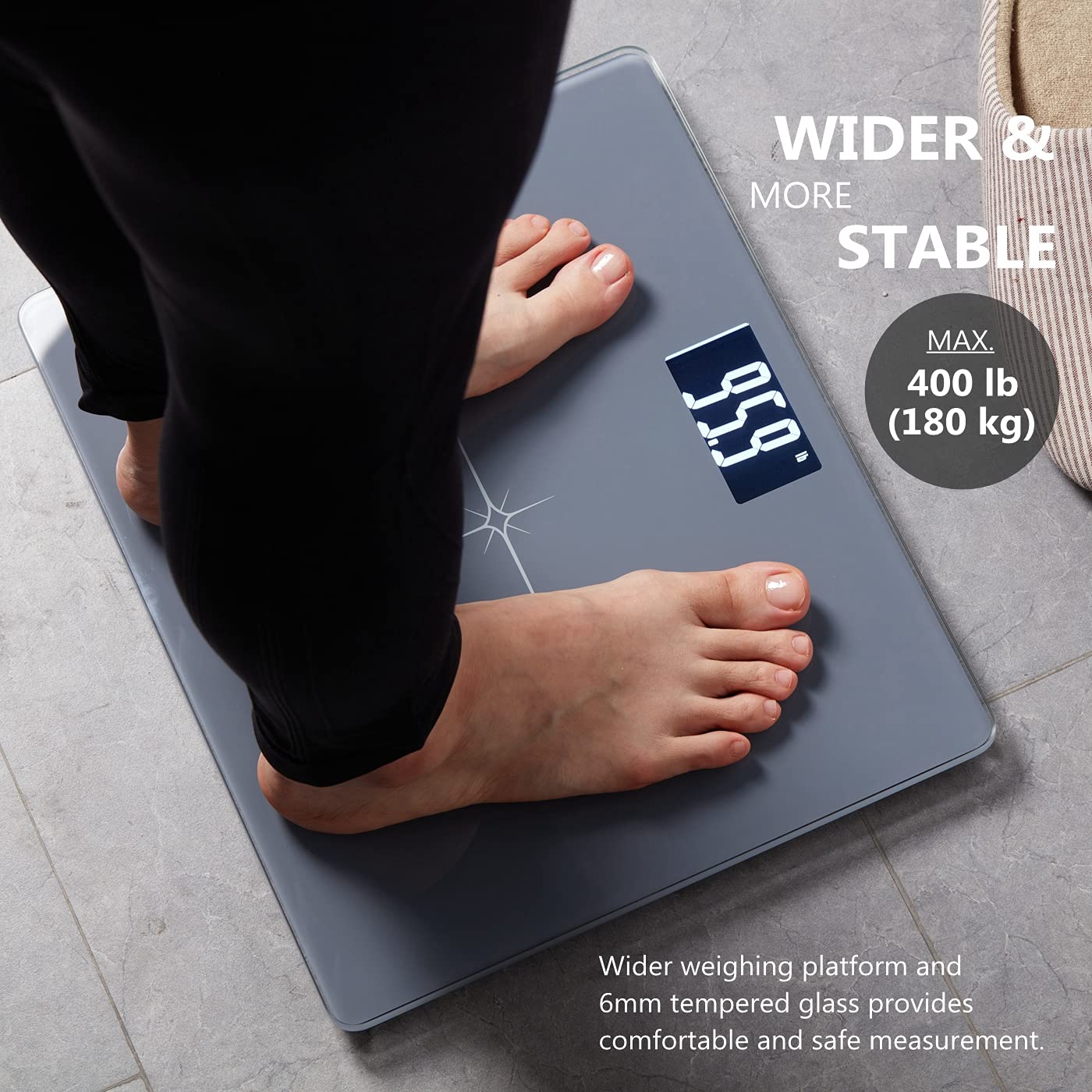

Image: A person standing on the scale, demonstrating the wide platform and digital display during a weight measurement.

Imej: Jarak dekat view of the scale's large, backlit LCD display, showing clear and easy-to-read numbers.

6.2 Petua untuk Pengukuran yang Tepat

• For consistent results, weigh yourself at the same time each day, preferably in the morning before breakfast or exercise.
• Ensure the scale is on a firm, level surface.
• Berdiri tegak dan berpusat pada penimbang.
• Avoid weighing yourself immediately after heavy meals or intense exercise.

7. Penyelenggaraan dan Penjagaan

• Bersihkan skala dengan iklanamp kain dan detergen ringan. Jangan gunakan pembersih yang kasar atau rendam penimbang di dalam air.
• Simpan skala di tempat yang sejuk dan kering.
• Jika penimbang tidak akan digunakan untuk tempoh yang lama, tanggalkan bateri untuk mengelakkan kebocoran.

8. Penyelesaian masalah

9. Spesifikasi

10. Waranti dan Sokongan

NUTRI FIT provides a standard warranty for this product. For detailed warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official NUTRI FIT webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.
