Fossil FB-01 FS5837 Analog Watch User Manual

1. Pengenalan

This manual provides essential instructions for the proper setup, operation, and maintenance of your Fossil FB-01 FS5837 Analog Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece. Keep this manual for future reference.

2. Produk Lebihview

The Fossil FB-01 FS5837 is a men's analog watch featuring a black dial, chronograph functionality, and a silver-tone stainless steel band. It is designed for everyday wear and includes a second hand for precise timekeeping.

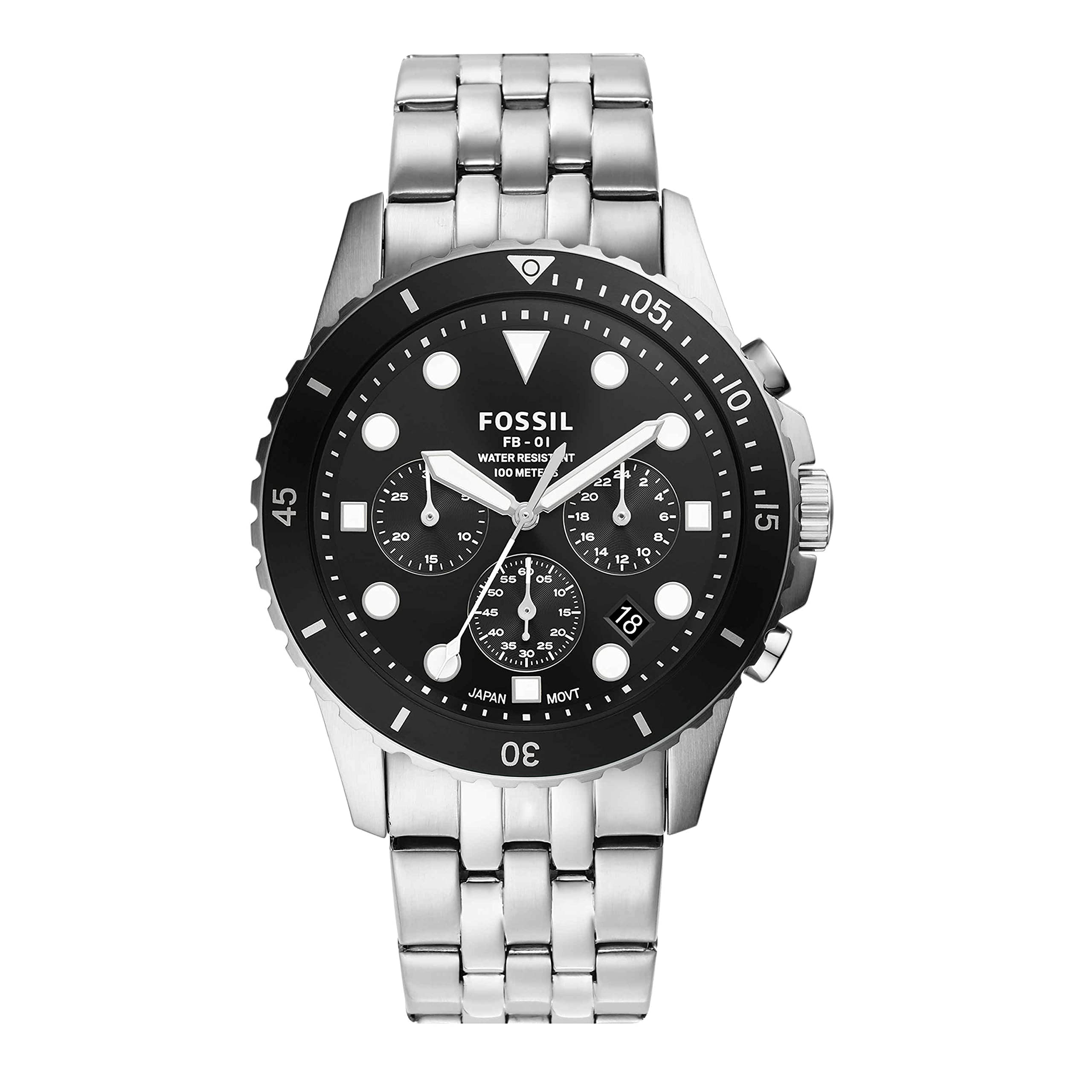

Rajah 2.1: Depan view of the Fossil FB-01 FS5837 Analog Watch.

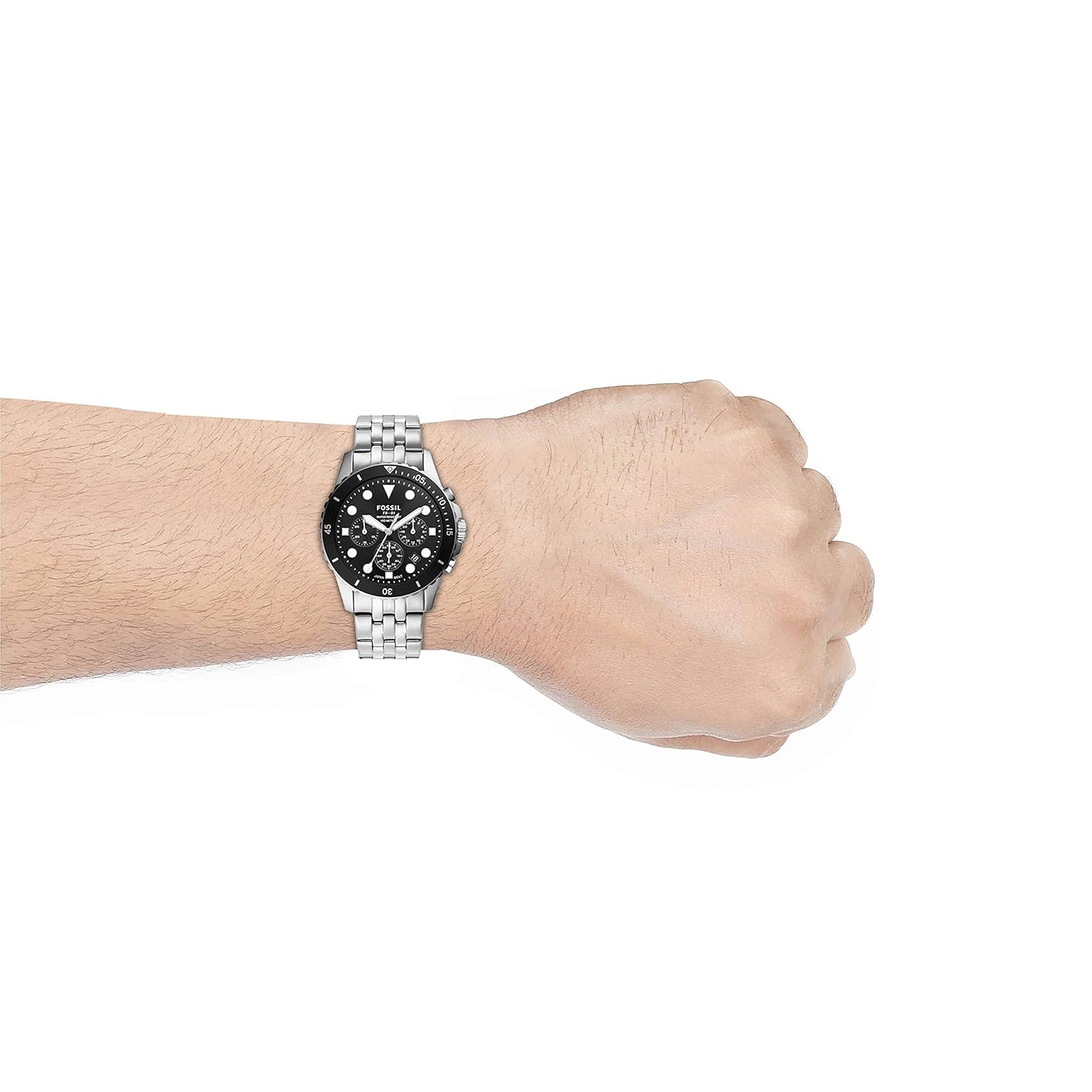

Figure 2.2: The Fossil FB-01 FS5837 Analog Watch worn on a wrist.

3. Persediaan

3.1 Menetapkan Masa

1. Tarik mahkota (tombol di sisi jam tangan) keluar ke kedudukan klik kedua.
2. Putar mahkota untuk menetapkan jarum jam dan minit pada masa yang betul.
3. Tolak mahkota kembali ke kedudukan normalnya untuk menghidupkan jam tangan.

3.2 Adjusting the Date (if applicable)

1. Tarik mahkota keluar ke kedudukan klik pertama.
2. Rotate the crown clockwise or counter-clockwise (depending on the model) to set the correct date.
3. Tolak mahkota kembali ke kedudukan normalnya.

3.3 Melaraskan Jalur

The metal band can be adjusted by adding or removing links. This procedure typically requires specialized tools and is best performed by a professional jeweler or watch repair service to avoid damage.

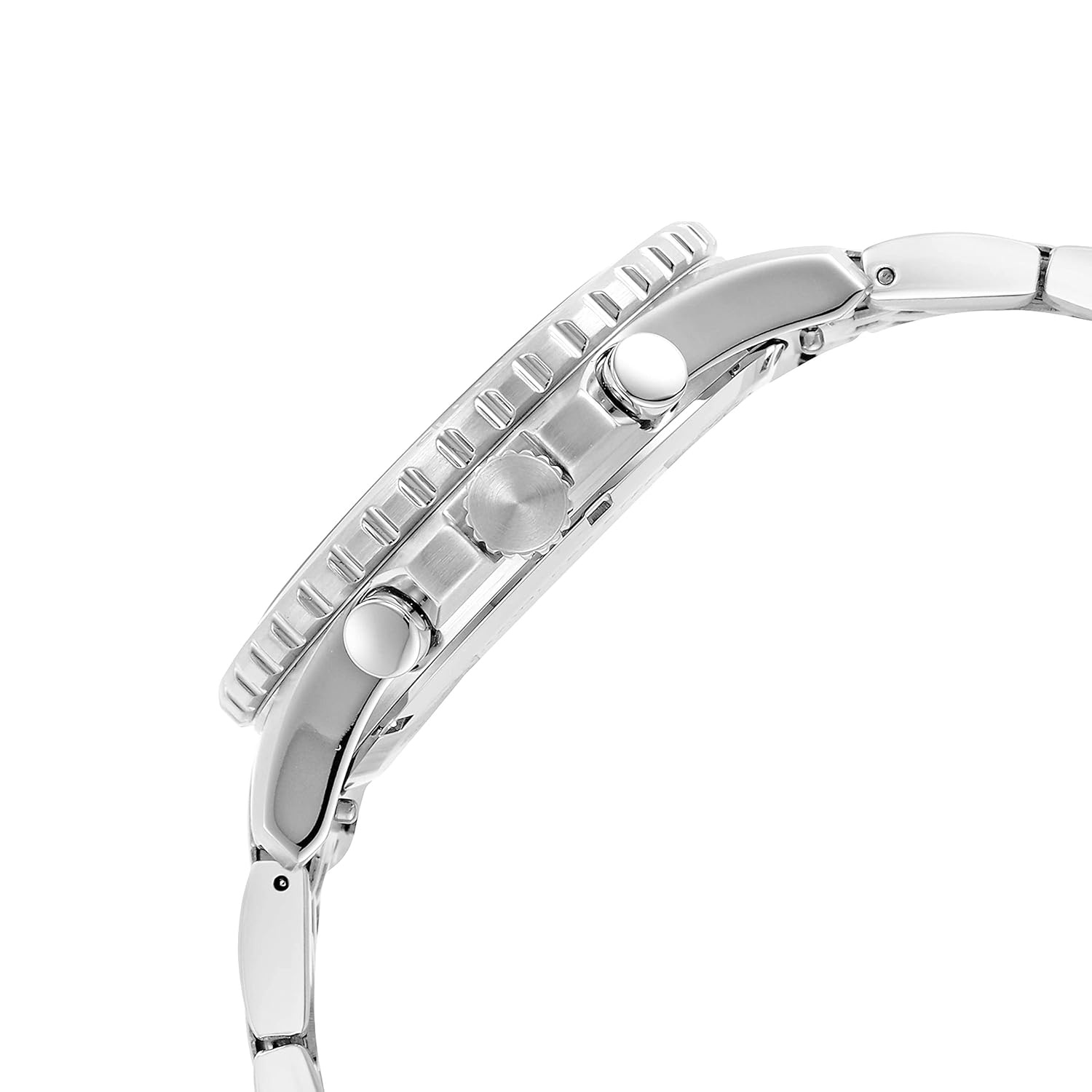

Rajah 3.1: Sisi view illustrating the crown and pushers for time and chronograph adjustments.

4. Arahan Operasi

4.1 Penjagaan Masa Asas

Your watch displays hours, minutes, and seconds. The second hand moves continuously, indicating the current second.

4.2 Menggunakan Chronograph

Fungsi kronograf membolehkan anda mengukur masa berlalu secara bebas daripada paparan masa utama.

1. Mulakan: Press the upper pusher (button) to start the chronograph. The chronograph second hand will begin to move.
2. Berhenti: Press the upper pusher again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
3. Tetapkan semula: With the chronograph stopped, press the lower pusher to reset all chronograph hands to their zero positions.

4.3 Tahan Air

This watch has a water resistance depth of 30 meters (3 ATM). This rating means the watch is suitable for everyday use and can withstand splashes or brief immersion in water, such as washing hands or light rain. It is bukan suitable for swimming, showering, or diving. Ensure the crown is fully pushed in before any contact with water.

5. Penyelenggaraan

5.1 Membersihkan Jam Tangan Anda

Wipe the watch case and metal band regularly with a soft, dry cloth to remove dirt and perspiration. For stubborn dirt, a slightly damp kain boleh digunakan, diikuti dengan kain kering. Elakkan menggunakan pembersih kimia atau bahan kasar.

5.2 Penggantian Bateri

The watch is powered by a quartz movement with a battery. When the watch stops or the second hand begins to jump erratically (indicating a low battery), it is time for a battery replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.

5.3 Penyimpanan

When not in use, store your watch in a cool, dry place away from direct sunlight and extreme temperatures. Avoid storing it near magnetic fields, which can affect the watch's accuracy.

6. Penyelesaian masalah

• Tonton tidak berjalan: Periksa sama ada mahkota ditolak masuk sepenuhnya. Jika ya, bateri mungkin memerlukan penggantian.
• Masa yang salah: Tetapkan semula masa seperti yang diterangkan dalam Bahagian 3.1. Jika masa masih tidak tepat, jam tangan mungkin perlu diservis.
• Chronograph not resetting to zero: This may indicate a need for chronograph hand calibration, which should be performed by a professional.
• Pemeluwapan di bawah kristal: This indicates a loss of water resistance. Avoid further contact with water and seek professional service immediately to prevent internal damage.

7. Spesifikasi

Detailed specifications for the Fossil FB-01 FS5837 Analog Watch:

Figure 7.1: Watch dimensions, showing a height of 53 mm and length of 48 mm.

Rajah 7.2: Belakang view of the watch, displaying model number FS5837 and 'STAINLESS STEEL'.

8. Waranti dan Sokongan

Your Fossil watch is covered by a limited warranty against defects in materials and workmanship. For specific warranty terms, duration, and to register your product, please refer to the warranty card included with your purchase or visit the official Fossil website. For technical support, service, or inquiries, please contact Fossil customer service through their official channels.
