AURLANE Bathroom Set Instruction Manual

pengenalan

Welcome to your new AURLANE Bathroom Set. This manual provides essential information for the safe and correct installation, operation, and maintenance of your bathroom cabinet, ceramic sink, and LED mirror. Please read these instructions carefully before beginning installation and retain them for future reference.

Maklumat Keselamatan

Untuk memastikan operasi yang selamat dan mengelakkan kerosakan, sila patuhi garis panduan keselamatan berikut:

• Pemasangan Profesional: Electrical connections for the LED mirror should be performed by a qualified electrician in accordance with local electrical codes.
• Air dan Elektrik: Keep electrical components away from direct water exposure. Ensure all connections are dry before powering on.
• Tangani dengan Berhati-hati: The ceramic sink and mirror are fragile. Handle all glass and ceramic components with extreme care to prevent breakage.
• Pemasangan selamat: Ensure the mirror is securely mounted to a sturdy wall structure using appropriate hardware for your wall type.
• Had Berat: Do not overload the cabinet drawers. Refer to specifications for weight capacities if available.
• Pembersihan: Use only recommended cleaning agents and methods to avoid damaging surfaces.

Kandungan Pakej

Sila sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

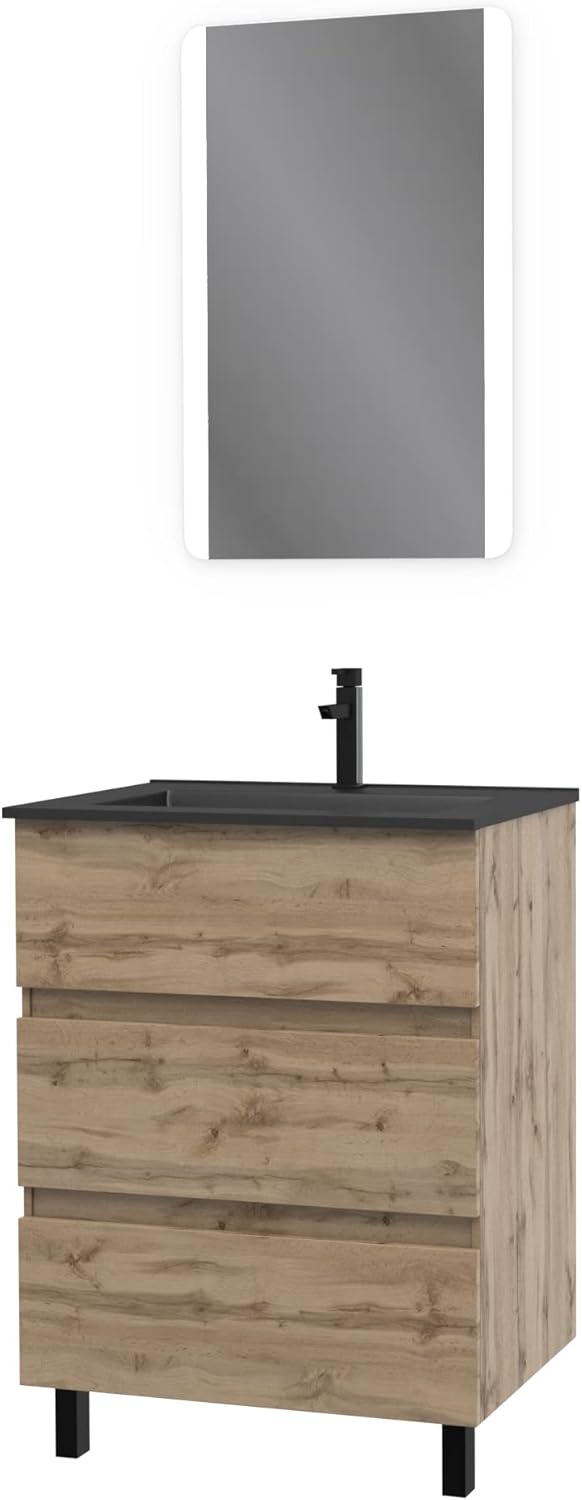

• 1 x Bathroom Cabinet (MDF and melamine wood, natural oak finish)
• 1 x Black Ceramic Rectangular Washbasin dengan Limpahan
• 1 x LED Mirror (IP44 rated, with MDF stand)
• 4 x Black Aluminum Legs
• Mounting Hardware for Legs (screws, etc.)

Nota: Faucets and drain assembly are tidak termasuk dan mesti dibeli secara berasingan.

Persediaan dan Pemasangan

Sebelum Anda Bermula

• Ensure you have all necessary tools (e.g., screwdriver, drill, level, measuring tape).
• Clear the installation area and protect surrounding surfaces.
• Familiarize yourself with all components and instructions.

1. Cabinet Assembly and Leg Installation

The bathroom cabinet is delivered pre-assembled. To install the legs:

1. Carefully lay the cabinet on its back on a soft, protected surface to avoid scratching.
2. Attach the four black aluminum legs to the designated mounting points on the bottom corners of the cabinet using the provided screws.
3. Ensure each leg is securely fastened and tightened.
4. Carefully lift the cabinet upright and place it in its desired position. Verify stability.

2. Ceramic Sink Placement

Once the cabinet is in place:

1. Carefully place the black ceramic rectangular washbasin onto the top surface of the cabinet.
2. Ensure the sink is properly aligned with the cabinet edges and the drain opening.
3. Install your chosen faucet and drain assembly according to their respective manufacturer's instructions. Ensure all connections are watertight.

3. LED Mirror Mounting

The LED mirror is designed for wall mounting:

1. Determine the desired height and position for the mirror above the sink. Use a level to mark the mounting points accurately.
2. Drill pilot holes and insert appropriate wall anchors suitable for your wall material (e.g., drywall, tile, concrete).
3. Mount the mirror securely to the wall using screws. Ensure it is stable and level.
4. Sambungan Elektrik: Connect the mirror's electrical wiring to a 220V 50 Hz power supply. This connection should be made by a qualified electrician to ensure safety and compliance with local electrical codes. The mirror has an IP44 protection rating.

4. Overall Dimensions and Components Diagram

Arahan Operasi

Operasi Cermin LED

The LED mirror is equipped with an ON/OFF switch, typically located on the side or bottom edge of the mirror frame. Press the switch to turn the LED lighting on or off. The mirror provides 4W LED lighting with a luminous flux of 420 lm and a color temperature of 4100K (daylight) for optimal illumination.

Penyelenggaraan dan Penjagaan

Pembersihan

• Cabinet and Mirror: Wipe surfaces with a dry, soft cloth. For stubborn marks, a slightly damp cloth with mild soap can be used, followed immediately by drying with a clean, dry cloth. Avoid abrasive cleaners, harsh chemicals, or solvents that may damage the finish or mirror surface.
• Sinki Seramik: Use a mild, non-abrasive cleaner and a soft sponge or cloth. Rinse thoroughly with water and dry to prevent water spots.

Penjagaan Am

• Do not overload the drawers to ensure smooth operation of the progressive closing mechanism.
• Avoid prolonged exposure to excessive moisture or standing water on the cabinet surfaces.
• Regularly check all connections and mounting hardware for tightness.

Menyelesaikan masalah

Jika anda menghadapi sebarang masalah, sila rujuk masalah dan penyelesaian biasa berikut:

• LED Mirror Not Lighting Up:
  • Check that the mirror's ON/OFF switch is in the 'ON' position.
  • Verify that the mirror is properly connected to the power supply.
  • Check your household circuit breaker to ensure power is supplied to the outlet.
• Laci Tidak Ditutup Dengan Lancar:
  • Check for any obstructions inside the drawer or along the drawer runners.
  • Ensure items within the drawer are not interfering with the soft-closing mechanism.
  • Clean the drawer runners to remove any dust or debris.
• Water Leaks from Sink Area:
  • Inspect all faucet connections (if installed) for tightness.
  • Check the drain assembly connections for proper sealing and tightness.
  • Ensure the sink's overflow channel is clear of blockages.

Spesifikasi

Waranti dan Sokongan

For detailed warranty information, terms, and conditions, please refer to the documentation provided at the time of purchase or visit the official AURLANE website. For technical support, replacement parts, or any other inquiries, please contact AURLANE customer service directly through the contact information provided with your product or on the brand's official channels.
