JACKYLED 1000 Lumens 299 LED Solar Lights Instruction Manual

pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your JACKYLED 1000 Lumens 299 LED Solar Lights. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Maklumat Keselamatan

Pastikan semua komponen dipasang dengan kukuh semasa pemasangan untuk mengelakkan terjatuh secara tidak sengaja.
Do not attempt to disassemble or modify the product. This may void the warranty and cause damage or injury.
Pastikan panel solar bersih untuk memastikan kecekapan pengecasan yang optimum.
Avoid placing the solar panel in shaded areas, as this will reduce its charging capability.
Produk ini direka bentuk untuk kegunaan luar dan kalis air IP65. Walau bagaimanapun, elakkan daripada merendamnya di dalam air.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

1 x LED Light Panel (299 LEDs)
1 x Panel Suria
1 x 16.4ft Extension Cord
2 x Pendakap Pemasangan
Screws and Anchors for installation

Components of the JACKYLED Solar Light including the solar panel, LED light, extension cord, and mounting hardware. — Imej: Selesaiview of the product components, including the solar panel, LED light unit, extension cable, and mounting accessories. Dimensions for the solar panel (8.8" x 4.8") and light unit (7.5" x 4.3") are also shown.

Ciri-ciri Produk

Kecerahan yang tinggi: Equipped with 299 LEDs, providing 1000 lumens of brightness.
Pencahayaan boleh laras: LED lamp panel can be adjusted left, right, up, and down to customize the lighting direction, covering a 120° area.
Pengecasan Suria yang Cekap: Features a monocrystalline solar panel for faster charging, reducing full recharge time to 6.25 hours for the 4000mAh battery.
Pencahayaan Lanjutan: Provides up to 15 hours of light on a full charge.
Long Extension Cord: A 16.4ft extension cord allows flexible placement of the solar panel for optimal sun exposure and the light panel in desired locations.
Reka bentuk tahan lasak: IP65 waterproof rating with high-strength PC/ABS material, suitable for various outdoor weather conditions.

Comparison of the upgraded solar light version 2.0 with previous version 1.0, highlighting improvements in charging time, solar panel size, lighting duration, LED count, and orientation flexibility. — Image: This graphic illustrates the enhancements of the Version 2.0 solar light. Key improvements include a shorter charging time of 6.25 hours, a larger 8.5"x5" solar panel, a longer lighting duration of up to 15 hours, an increased LED count of 299, and more flexible orientation with left-right and up-down adjustments.

Illustration showing how lensed LEDs concentrate light for brighter and longer distance illumination compared to bare LEDs. — Image: A visual comparison demonstrating the effectiveness of lensed LEDs. Convex lenses are used to concentrate light, resulting in a brighter and more focused beam that illuminates a longer distance, as opposed to bare LEDs which provide a more diffused light.

The JACKYLED solar light installed outdoors, demonstrating its IP65 weatherproof rating during rainfall. — Image: The solar light is shown mounted on an outdoor fence during a rain shower, illustrating its IP65 weatherproof construction designed to withstand various elements throughout the year.

Persediaan dan Pemasangan

Follow these three steps for easy installation:

Sambungkan Kord: Connect the extension cord between the solar panel and the LED light panel. Ensure the connection is secure.
Assemble Light and Panel: Attach the solar panel and the LED light panel to their respective mounting brackets.
Komponen Gunung: Choose suitable locations for both the solar panel and the LED light panel. Mount them using the provided screws and anchors. The 16.4ft extension cord allows for separate installation, enabling the solar panel to be placed in an area with maximum sunlight exposure (e.g., rooftop) and the light panel in the desired illumination area.

After installation, locate the power switch behind the solar panel and turn it ON. The light will automatically recharge during the day and illuminate at night.

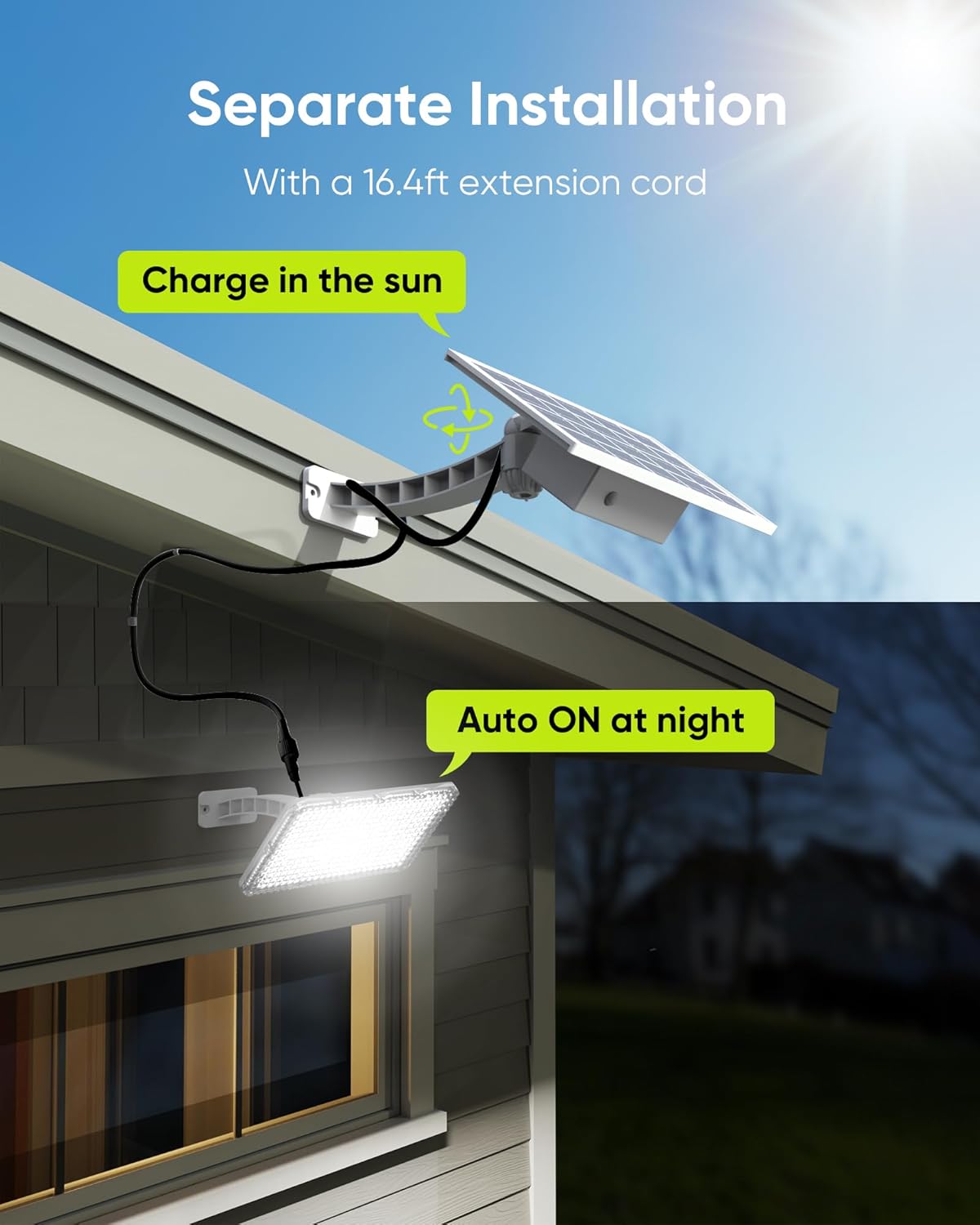

Diagram showing separate installation of the solar panel on a roof for charging and the LED light unit mounted below a window for illumination, connected by a 16.4ft extension cord. — Image: This diagram illustrates the separate installation capability of the solar light. The solar panel is positioned on a roof to maximize sun exposure for charging, while the LED light unit is mounted below a window to provide illumination. Both components are connected by a 16.4ft extension cord.

Arahan Operasi

The JACKYLED Solar Light operates automatically once the power switch is turned ON.

Operasi automatik: The solar panel charges the internal battery during daylight hours. At dusk, the light sensor detects low light conditions and automatically turns the LED light ON. At dawn, it automatically turns OFF and begins recharging.
Tiada Penderia Gerakan: Please note that this specific model operates on a dusk-to-dawn cycle and does not include a motion sensor feature.

An outdoor scene showing the solar panel charging during the day (6.5 hours) and the LED light illuminating at night (12-15 hours). — Image: This image depicts the operational cycle of the solar light. During the day, the solar panel charges the battery, with a full charge achieved in approximately 6.5 hours. At night, the light automatically activates, providing illumination for 12 to 15 hours.

Penyelenggaraan

Regular maintenance ensures optimal performance of your solar light.

Panel Suria Bersih: Lap panel solar secara berkala dengan lembut, damp kain untuk menanggalkan habuk, kotoran atau serpihan. Panel yang bersih memastikan penyerapan cahaya matahari maksimum dan kecekapan pengecasan.
Periksa Sambungan: Occasionally check the connection between the solar panel and the light unit to ensure it remains secure and free from corrosion.
Halangan yang jelas: Ensure no new obstructions (e.g., growing tree branches, new structures) are shading the solar panel, especially during peak sunlight hours.

Menyelesaikan masalah

Masalah	Kemungkinan Punca	Penyelesaian
Lampu tidak menyala pada waktu malam.	1. Suis kuasa DIMATIKAN. 2. Insufficient sunlight exposure for charging. 3. Panel solar kotor atau tersumbat. 4. Battery charge is depleted.	1. Ensure the power switch behind the solar panel is ON. 2. Relocate the solar panel to an area with direct sunlight for at least 6-8 hours daily. 3. Clean the solar panel surface. Remove any obstructions. 4. Biarkan lampu dicas selama sehari penuh di bawah cahaya matahari langsung.
Cahaya malap atau hanya menyala untuk tempoh yang singkat.	1. Pengecasan tidak mencukupi disebabkan oleh cuaca mendung atau teduh. 2. Panel solar kotor. 3. Kapasiti bateri berkurangan dari semasa ke semasa.	1. Ensure the solar panel receives maximum direct sunlight. Allow several sunny days for a full charge. 2. Bersihkan panel solar. 3. While the battery is designed for longevity, extreme temperatures or prolonged use may affect capacity. Ensure optimal charging conditions.
Water ingress in the light unit.	Damage to the housing or seals.	Contact customer support if the product is within its warranty period.

Spesifikasi

Ciri	Perincian
Jenama	JACKYLED
Model	1000 Lumens 299 LED Solar Lights
Jenis Sumber Cahaya	LED (299 units)
Kecerahan	1000 Lumen
Sumber Kuasa	Berkuasa Suria
Kapasiti Bateri	4000mAh (dalaman)
Masa Mengecas	Approx. 6.25 hours (in direct sunlight)
Tempoh Pencahayaan	Sehingga 15 jam (dengan cas penuh)
Panjang Kord Sambungan	16.4 kaki (5 meter)
bahan	Polycarbonate, Acrylonitrile Butadiene Styrene (PC/ABS)
Penilaian Kalis Air	IP65
Penggunaan Dalaman/Luar	Luar
Voltage	5.5 Volt
Jenis Pemasangan	Lekap di dinding

Waranti

JACKYLED products are manufactured to high-quality standards. For specific warranty details, including duration and coverage, please refer to the product packaging or contact JACKYLED customer support. Keep your purchase receipt as proof of purchase.

Sokongan Pelanggan

If you have any questions, require assistance with installation, or encounter any issues with your JACKYLED Solar Lights, please contact our customer support team. Refer to the contact information provided on the product packaging or the official JACKYLED webtapak untuk saluran sokongan yang paling terkini.
