ARIEL Cambridge 43-Inch White Bathroom Vanity Instruction Manual

1. Pengenalan

This manual provides essential information for the installation, operation, and maintenance of your ARIEL Cambridge 43-inch White Bathroom Vanity. Please read these instructions thoroughly before beginning installation to ensure proper setup and to maximize the lifespan of your product. Keep this manual for future reference.

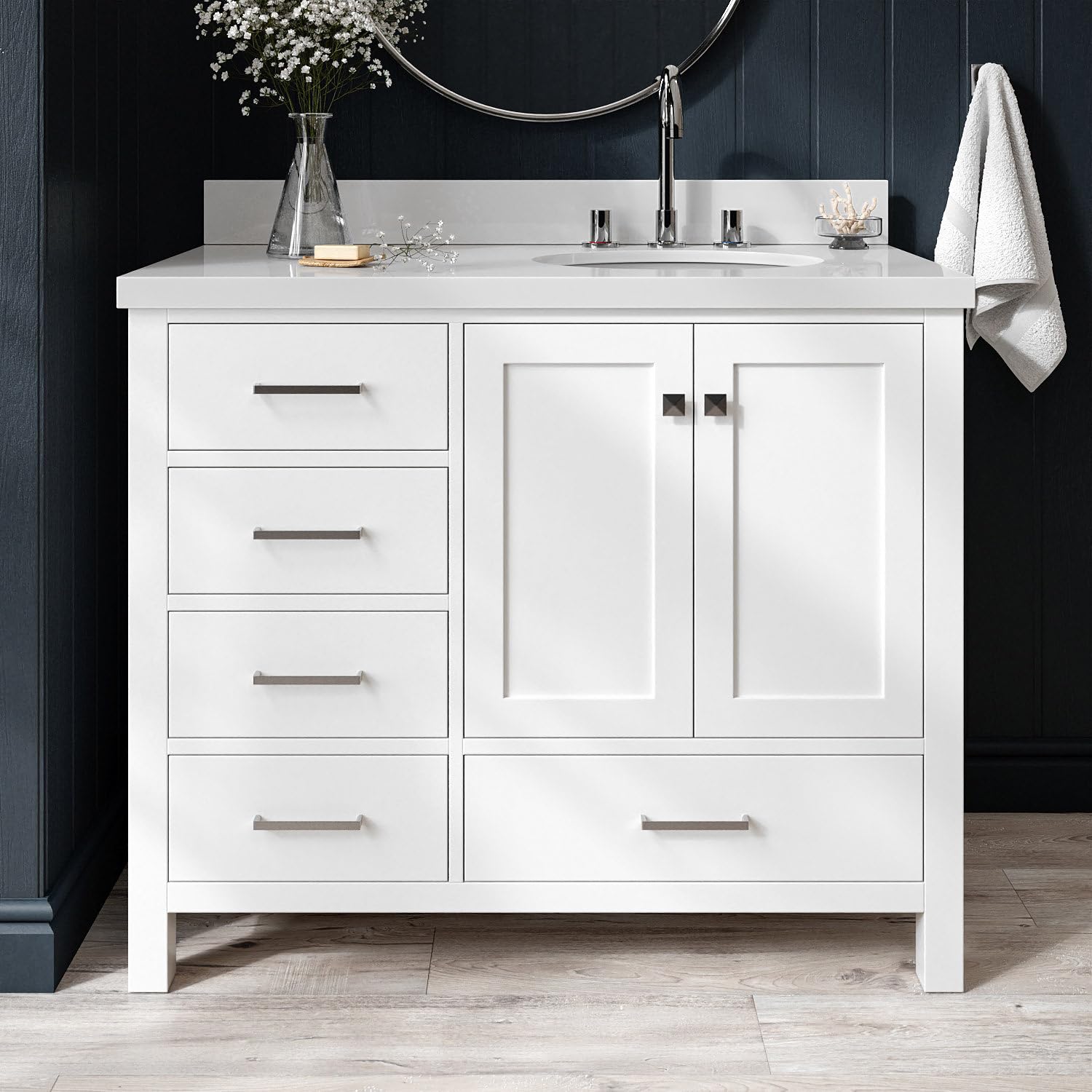

Figure 1: ARIEL Cambridge 43-inch White Bathroom Vanity with Single Sink.

2. Maklumat Keselamatan

WARNING: Failure to follow these safety guidelines may result in injury or property damage.

• Always use proper lifting techniques when handling the vanity to avoid injury. The vanity is heavy (approximately 208 pounds).
• Lindungi meja solek pada dinding menggunakan perkakasan yang sesuai untuk mengelakkan tipping.
• Always turn off the water supply and drain the pipes before installing or removing the faucet.
• Use appropriate safety gear, such as gloves and eye protection, when handling heavy components or tools.
• Ensure all plumbing and electrical connections are performed by a qualified professional if you are unsure.

3. Kandungan Pakej

3.1 What's Included:

• Solid wood base cabinet (fully assembled)
• Polished, predrilled, double-sealed Pure White Quartz countertop (ships separately)
• Oval porcelain undermount sink (ships separately)
• 4-inch backsplash
• Brushed nickel hardware (handles and knobs)
• Adjustable soft-close drawer glides
• Soft-close door hinges

3.2 What's Not Included:

• Keran
• Cermin
• Plumbing supplies (e.g., P-trap, water supply lines)
• Mounting hardware for securing to the wall (may vary based on wall type)

Gambar 2: Lebihview of included and not included components.

4. Persediaan dan Pemasangan

The ARIEL Cambridge vanity is designed for easy installation. The base cabinet arrives fully assembled. The countertop and sink are shipped separately to prevent damage during transit.

4.1 Pemeriksaan Pra-Pemasangan:

• Inspect all components for damage before beginning installation.
• Ensure the installation area has adequate plumbing access. The vanity features an open back for plumbing installation.
• Verify that the floor is level. The vanity includes hidden leveling feet for minor adjustments.

4.2 Langkah Pemasangan:

1. Position the Base Cabinet: Carefully place the fully assembled base cabinet in its desired location. Adjust the hidden leveling feet to ensure the cabinet is stable and level.
2. Pasang Sinki: Attach the oval porcelain undermount sink to the underside of the quartz countertop using a silicone sealant and mounting clips (not included, typically supplied with the sink). Allow adequate curing time as per sealant instructions.
3. Secure the Countertop: Carefully place the countertop with the attached sink onto the base cabinet. Apply a bead of silicone sealant along the top edges of the cabinet before placing the countertop to secure it.
4. Pasang Faucet: The countertop is predrilled for an 8-inch widespread, 3-hole faucet. Install your chosen faucet according to the manufacturer's instructions.
5. Sambung Paip: Connect the water supply lines and drain assembly to the faucet and sink. Ensure all connections are tight and leak-free.
6. Pasang Backsplash: Affix the 4-inch backsplash to the wall behind the vanity using a suitable adhesive.
7. Lampirkan Perkakasan: Install the brushed nickel handles and knobs to the doors and drawers.

Figure 3: Easy installation features of the ARIEL Cambridge Vanity.

4.3 Installation Video:

5. Ciri-ciri dan Operasi Produk

5.1 Solid Wood Construction:

The ARIEL Cambridge vanity is constructed from real solid wood with dense hardwood framing and furniture-grade moisture-resistant plywood panels, ensuring durability and longevity. No MDF or poplar wood is used.

Figure 4: Detail of solid wood construction.

5.2 Durable Finish:

The vanity features a Sherwin-Williams polyurethane paint finish, selected for its ability to retain color, resist surface wear, and withstand daily bathroom humidity. This finish helps maintain the vanity's smooth, vibrant appearance over time.

5.3 Pure White Quartz Countertop:

The vanity includes a polished, double-sealed Pure White Quartz countertop with a 1.5-inch thick mitered edge. Quartz is non-porous, resisting stains, scratches, and moisture, and does not require sealing after installation.

Figure 5: Detail of the Pure White Quartz countertop.

5.4 Pintu dan Laci yang Ditutup Lembut:

The vanity is equipped with 2 soft-closing doors and 5 full-extension dovetail drawers. These features ensure smooth, quiet operation and prevent slamming. The drawers are constructed with dovetail joints for enhanced strength and durability.

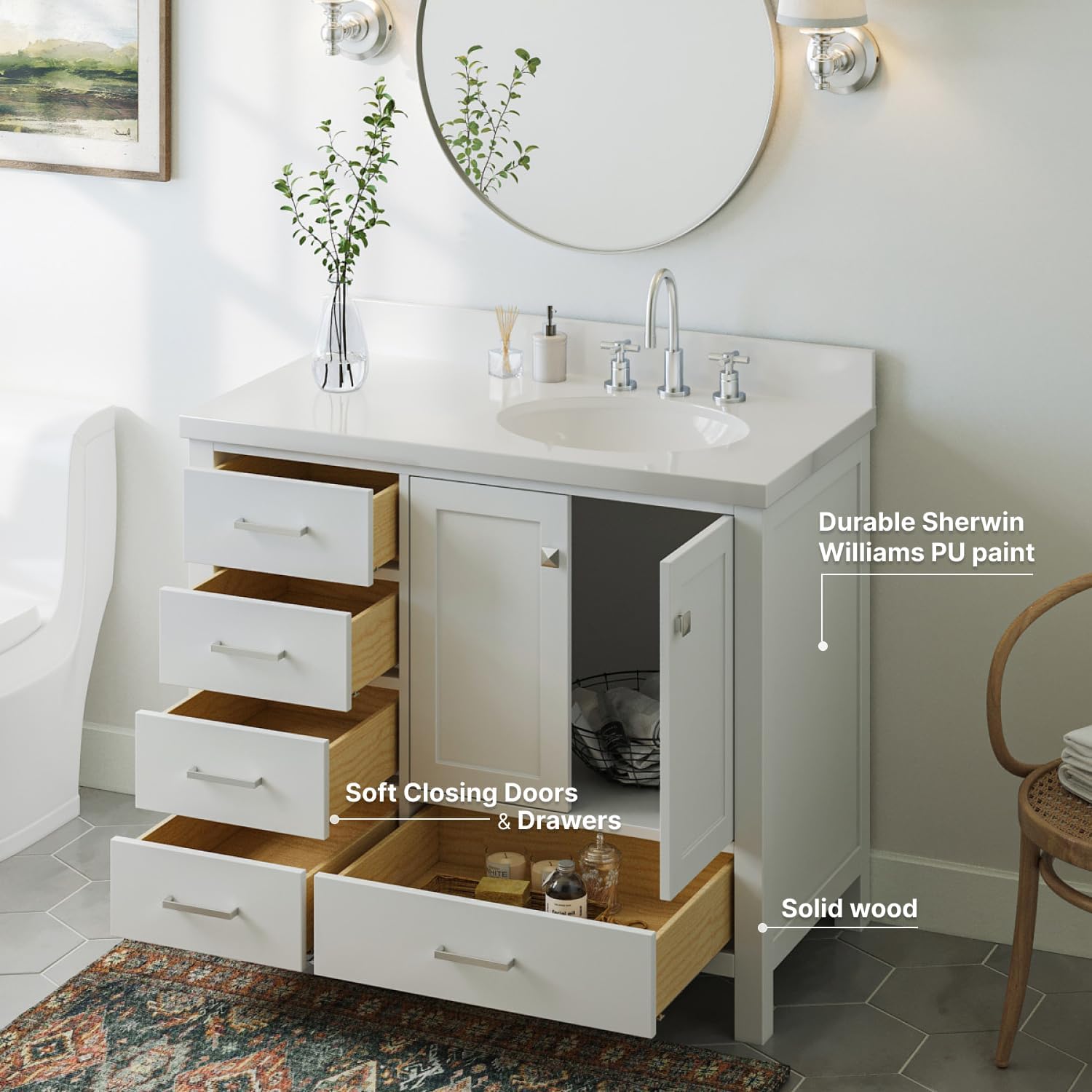

Figure 6: Vanity with soft-closing doors and drawers open, showcasing storage.

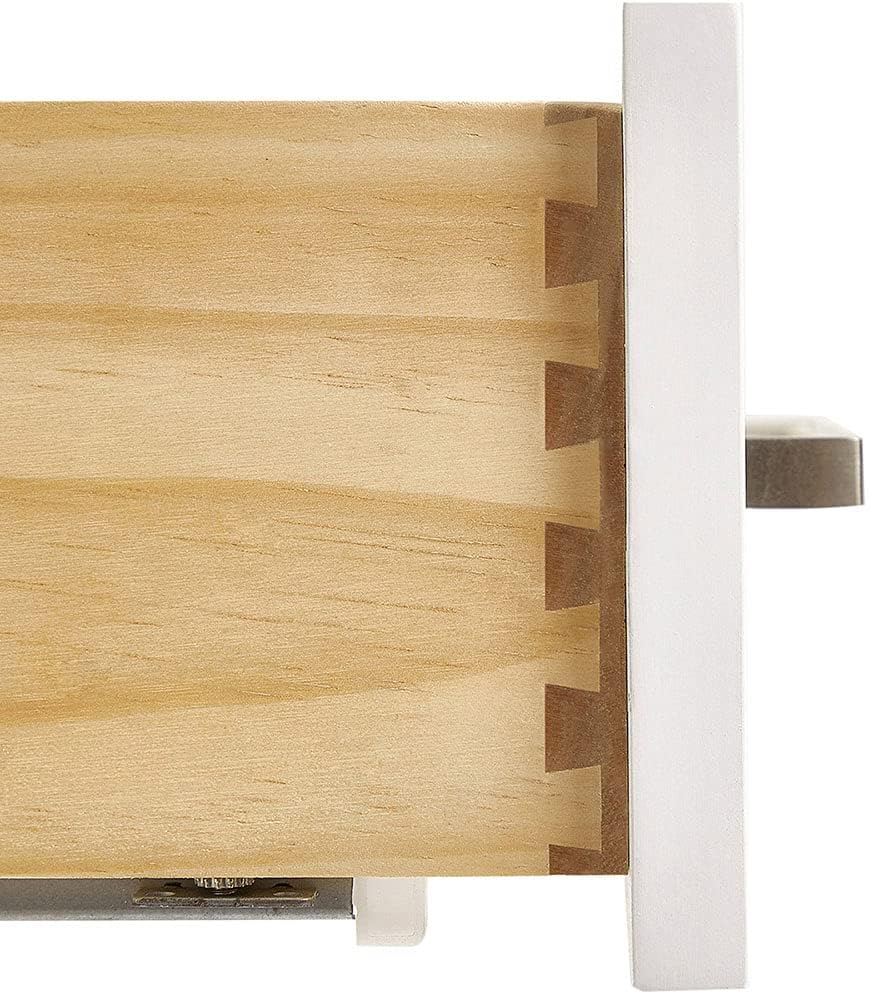

Figure 7: Detail of strong dovetail joint construction in drawers.

5.5 Product Feature Video:

6. Penyelenggaraan

Proper care and maintenance will help preserve the beauty and functionality of your ARIEL Cambridge vanity.

• Membersihkan Kabinet: Lap permukaan kabinet dengan kain lembut,amp cloth. Avoid abrasive cleaners or harsh chemicals that can damage the paint finish.
• Cleaning the Countertop: For the Pure White Quartz countertop, use a mild soap and water solution. Quartz is non-porous and resistant to most stains, but promptly wipe up spills. Avoid strong acids or alkalis.
• Penjagaan Perkakasan: Clean brushed nickel hardware with a soft, dry cloth. Avoid metal polishes or abrasive cleaners.
• Drawer and Door Mechanisms: Periodically check that soft-close mechanisms are functioning correctly. If a drawer or door does not close smoothly, inspect the glides and hinges for any obstructions or misalignment.
• Kawalan Kelembapan: Ensure proper ventilation in the bathroom to minimize humidity, which can affect wood products over time. Wipe away any standing water on the vanity surfaces immediately.

7. Penyelesaian masalah

Berikut ialah penyelesaian kepada isu biasa yang mungkin anda hadapi:

• Laci atau Pintu Tidak Ditutup dengan Baik:
  • Check for obstructions within the drawer or cabinet.
  • Inspect soft-close glides and hinges for damage or misalignment. Adjust hinges if necessary (refer to hinge manufacturer's instructions).
• Kebocoran air:
  • Tighten all plumbing connections (faucet, supply lines, drain).
  • Inspect the silicone seal around the sink and countertop for any gaps or deterioration. Reapply sealant if needed.
• Scratches or Chips on Cabinet:
  • For minor scratches, touch-up paint may be available from the manufacturer.
  • For significant damage, professional repair may be required.

8. Spesifikasi

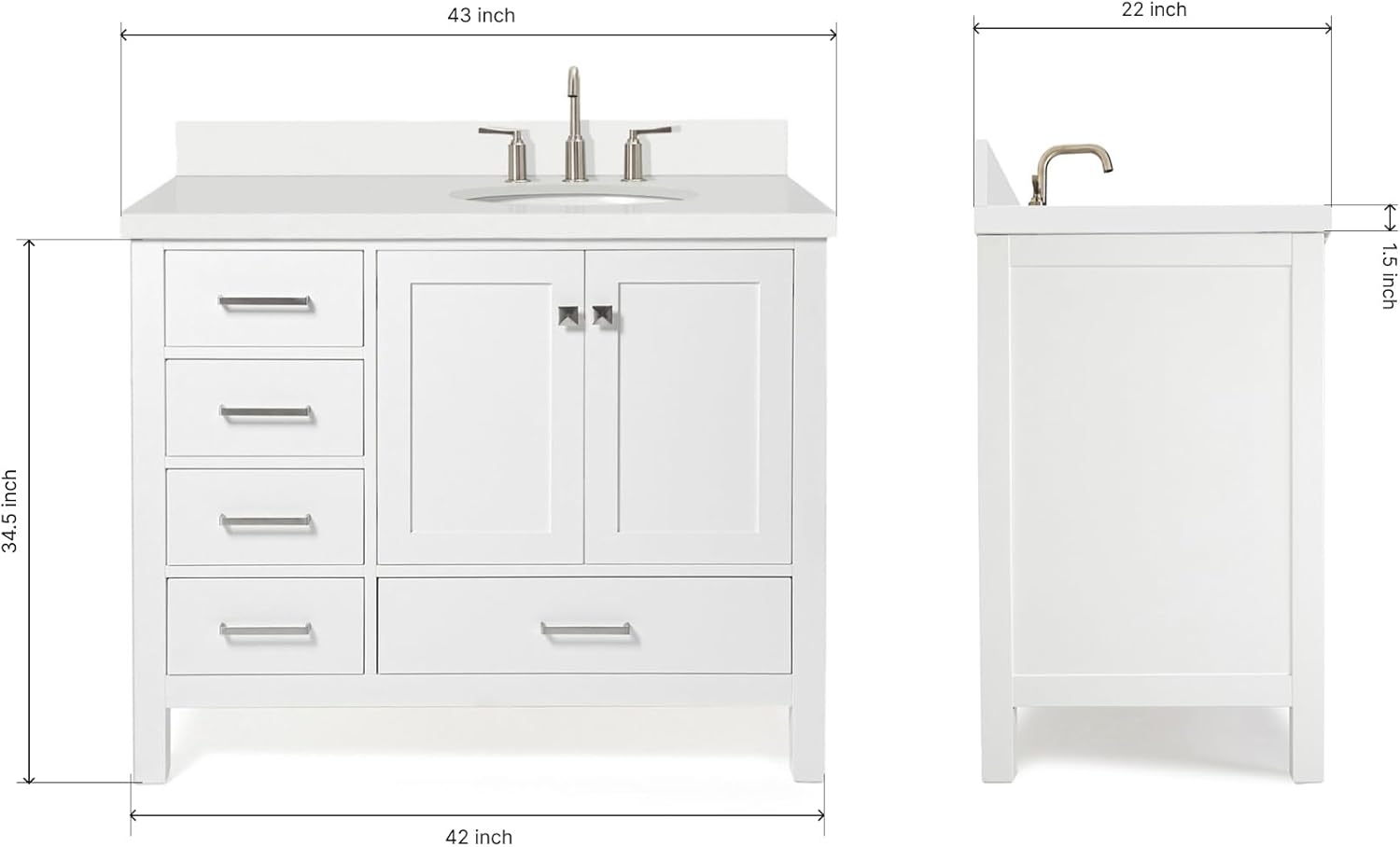

Figure 8: Dimensional drawing of the ARIEL Cambridge 43-inch vanity.

9. Waranti dan Sokongan

For warranty information or technical support, please contact ARIEL customer service. Details are typically provided with your purchase documentation or can be found on the official ARIEL webtapak.

Maklumat Hubungan: Refer to your purchase receipt or the manufacturer's webtapak untuk butiran hubungan terkini.
