Manual Pengguna Pemula Jump Starter IDEAPLAY

1. Pengenalan

The IDEAPLAY Jump Starter is a portable and powerful device designed to jump start vehicles with dead batteries, and also serves as a versatile power bank for charging electronic devices. It features advanced safety protections and a built-in LED flashlight for emergency situations.

Figure 1.1: The IDEAPLAY Jump Starter, showing the main unit, intelligent jumper cable clamps, USB-C fast charging cable, and carrying case.

This jump starter provides 1500A peak current with a 12000mAh capacity, capable of jump starting up to 7.0L Gas or 5.5L Diesel 12V vehicles, including hybrid and electric cars, motorcycles, ATVs, UTVs, RVs, boats, trucks, lawn mowers, and snowmobiles. A full charge supports up to 15 jump starts and maintains standby power for up to 6 months.

2. Kandungan Pakej

Selepas membuka bungkusan, pastikan semua item berikut ada:

• 1 x Portable Battery Jump Starter Unit
• 1 x Intelligent Jumper Cable Clamps
• 1 x Kabel Pengecasan Pantas USB-C
• 1 x Sarung Pembawa
• 1 x Manual Pengguna

Figure 2.1: Contents of the IDEAPLAY Jump Starter package, including the main unit, jumper cables, charging cable, and case.

3. Spesifikasi Produk

Rajah 3.1: Terperinci view of the jump starter's ports and features, including indication display, outputs, and power button.

4. Persediaan dan Pengecasan Awal

Before first use, fully charge the IDEAPLAY Jump Starter. It is recommended to keep the unit charged above 60% for optimal performance when jump starting a vehicle.

4.1 Mengecas Pemula Lompat

Use the provided USB-C Fast Charging Cable to charge the unit. Connect the USB-C end to the "In (Out)" port on the jump starter and the USB-A end to a compatible USB wall adapter or power source. The digital display will show the charging progress.

5. Arahan Pengendalian: Menghidupkan Kenderaan Secara Langsung

Ikuti langkah-langkah ini dengan teliti untuk menghidupkan kenderaan anda dengan selamat:

1. Ensure Sufficient Charge: Verify that the jump starter unit has at least 60% charge. The display will show the current battery percentage.
2. Connect Jumper Cables to Unit: Insert the blue end of the intelligent jumper cable clampke dalam port yang ditetapkan pada unit penghidup lompat.
3. Sambungkan Clamps kepada Bateri:
   • Sambungkan merah (+) clamp ke terminal positif bateri kenderaan anda.
   • Sambungkan hitam (-) clamp ke terminal negatif bateri kenderaan anda.
   The intelligent jumper cables indicator will flash green and red for safe use. Once a stable connection is established, the light will turn solid green. If it remains red or flashes red, check connections or refer to troubleshooting.
4. Mulakan Kenderaan Anda: Once the indicator light on the intelligent clamps is solid green, start your car engine.
5. Keluarkan Clamps: Selepas kenderaan dihidupkan, segera tanggalkan penutupamps daripada bateri kereta, pertama sekali kap hitam (-)amp, maka cl merah (+)amp. Then, disconnect the jumper cables from the jump starter unit.

Figure 5.1: Visual steps for using the jump starter: Insert, Connect, Start.

6. Multifunctionality

6.1 Bank Kuasa Mudah Alih

The IDEAPLAY Jump Starter doubles as a 12000mAh portable charger. It features two USB-A 18W Quick Charge ports and one 30W two-way USB-C port, allowing you to charge multiple devices such as phones, tablets, cameras, and Kindles. The two-way USB-C port provides faster charging for the jump starter itself.

Figure 6.1: The jump starter functioning as a power bank, charging a smartphone and a tablet simultaneously.

6.2 Ultra-Brightness LED Flashlight

The unit includes a super bright LED flashlight with three modes: Flashlight (continuous light), SOS (strobe), and Strobe (continuous flash). This feature is useful for illuminating dark engine compartments, acting as a camp light, or signaling in emergency situations.

Figure 6.2: The LED flashlight feature, illustrating its continuous light, SOS strobe, and continuous flash modes for various uses.

7. Ultra-Safe Protection

The IDEAPLAY Jump Starter is UL2743 certified and incorporates advanced safety features to protect both the user and the vehicle. The intelligent jumper cables provide visual and audible notifications for incorrect operation.

Key safety protections include:

• Perlindungan Litar pintas
• Spark-Proof Technology
• Perlindungan Terlebih Arus
• Perlindungan Over-Charge
• Perlindungan Lebihan Beban
• Perlindungan Lebihan Caj
• Perlindungan Suhu Tinggi
• Perlindungan Polariti Terbalik

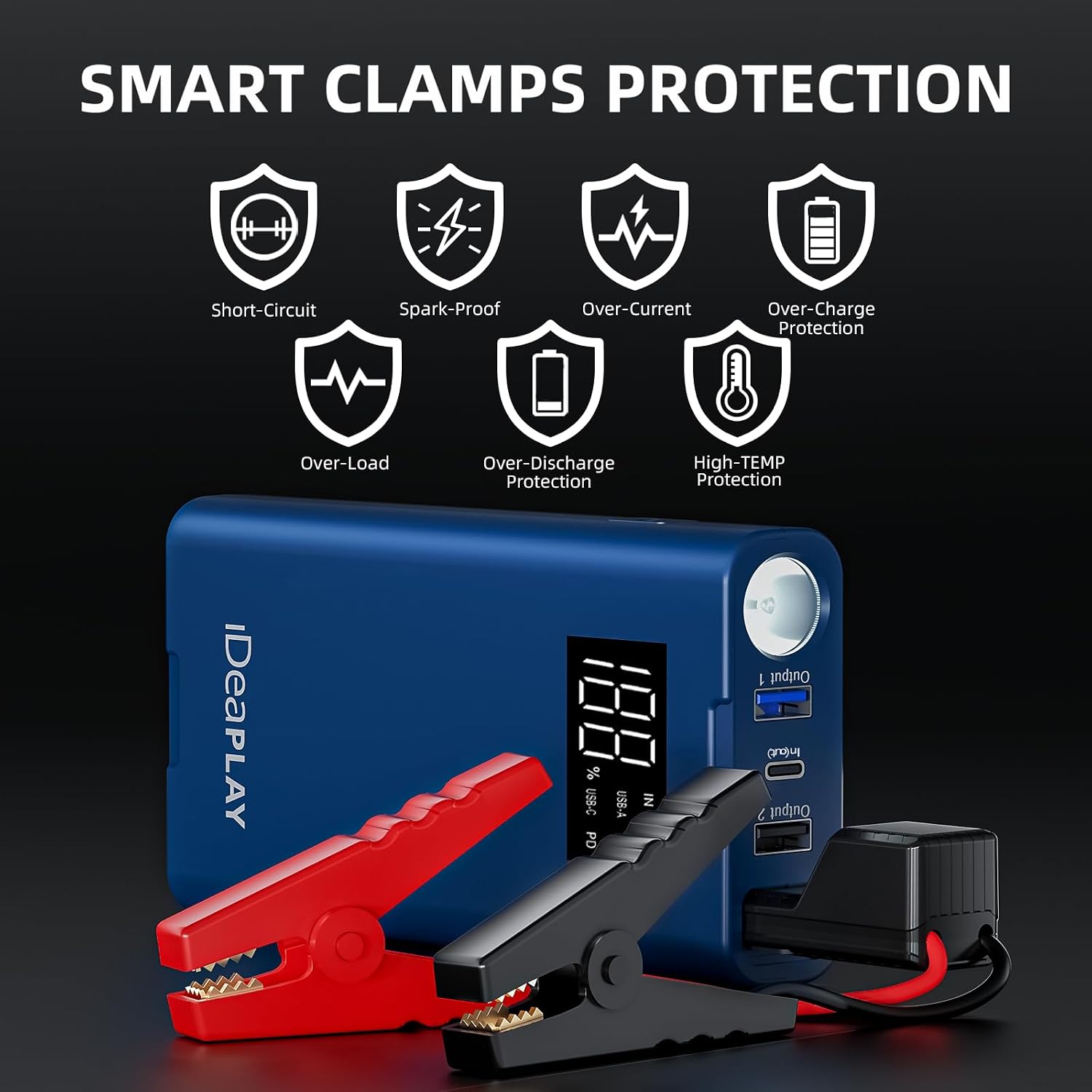

Figure 7.1: Icons representing the various smart clamp protections, ensuring safe operation.

8. Penyelenggaraan

To ensure the longevity and readiness of your IDEAPLAY Jump Starter, observe the following maintenance guidelines:

• Pengecasan Biasa: Cas semula unit setiap 3-6 bulan, walaupun tidak digunakan, untuk mengekalkan kesihatan bateri.
• Storan: Store the jump starter in its carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan unit ini. Jangan gunakan bahan kimia yang keras atau bahan yang melelas.
• Pemeriksaan Kabel: Periksa kabel jumper dan kli secara berkalaamps for any signs of damage, corrosion, or wear. Replace if necessary.

9. Penyelesaian masalah

If you encounter issues with your IDEAPLAY Jump Starter, refer to the following common problems and solutions:

• Unit Tidak Dihidupkan: Ensure the power button is pressed firmly. If the battery is completely drained, it may take a few minutes of charging before the display activates.
• Kenderaan Tidak Berhidup:
  • Check if the jump starter has at least 60% charge.
  • Verify that the intelligent clamps' indicator light is solid green. If it's red or flashing, re-check the connections to the battery terminals for proper polarity and secure contact.
  • Pastikan terminal bateri kenderaan bersih dan bebas daripada kakisan.
  • If the vehicle still doesn't start after a few attempts, the battery might be severely damaged or there might be another issue with the vehicle.
• Device Not Charging from USB Ports:
  • Ensure the jump starter unit is powered on.
  • Check the charging cable and the device being charged for compatibility and proper connection.

10. Waranti dan Sokongan

The IDEAPLAY Jump Starter comes with a 2-Year Protection Plan. For any problems with the product or for technical assistance, please reach out to IDEAPLAY customer service. They provide 24/7 service to assist you.

For further support, visit the official IDEAPLAY store or contact their customer service through the details provided in your product packaging.
