EDILKAMIN Pellet Stove Igniter Resistance R207780 User Manual

pengenalan

This manual provides essential instructions for the EDILKAMIN R207780 igniter resistance, an original replacement part designed for specific EDILKAMIN pellet stoves. It covers important safety information, product overview, installation guidelines, operational context, maintenance advice, troubleshooting tips, and detailed specifications. Please read this manual thoroughly before attempting any installation or maintenance procedures.

Maklumat Keselamatan

• Bahaya Elektrik: Always disconnect the pellet stove from the main power supply before attempting any installation, inspection, or maintenance. Failure to do so can result in electric shock or serious injury.
• Bahaya Bakar: Allow the pellet stove and all its components to cool down completely before handling. The igniter and surrounding parts can reach very high temperatures.
• Pemasangan Profesional Disyorkan: Installation of this component should ideally be performed by a qualified technician to ensure proper function and safety. Incorrect installation can lead to damage to the stove or create fire hazards.
• Gunakan Bahagian Asal: Only use original EDILKAMIN replacement parts to ensure compatibility and maintain the safety and performance standards of your appliance.
• Peralatan Pelindung Diri: Pakai peralatan pelindung diri yang sesuai, seperti sarung tangan dan pelindung mata, semasa pemasangan atau penyelenggaraan.

Produk Selesaiview

The EDILKAMIN R207780 igniter resistance is a critical component for the automatic ignition of wood pellets in compatible EDILKAMIN pellet stoves. It functions by heating up rapidly to ignite the pellets in the combustion chamber, initiating the stove's operation.

Key features of this igniter include:

• Execution with flange for secure mounting.
• Diameter: 12.5mm.
• Total Length: 280 mm.
• Length under flange (sub-battuta): 270 mm.
• Power Rating: 470 Watt.

Imej 1: Penuh view of the EDILKAMIN R207780 igniter resistance. This image shows the cylindrical heating element and the attached electrical cable.

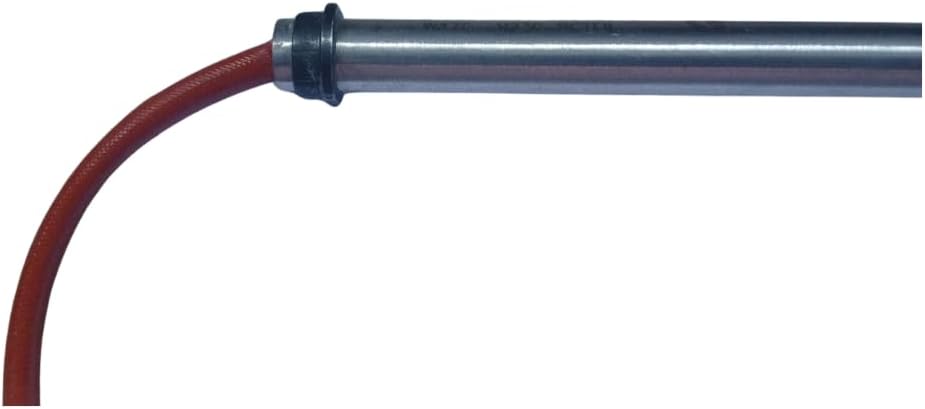

Image 2: Close-up of the igniter's connection end, showing the flange and the protective sleeve around the electrical cable.

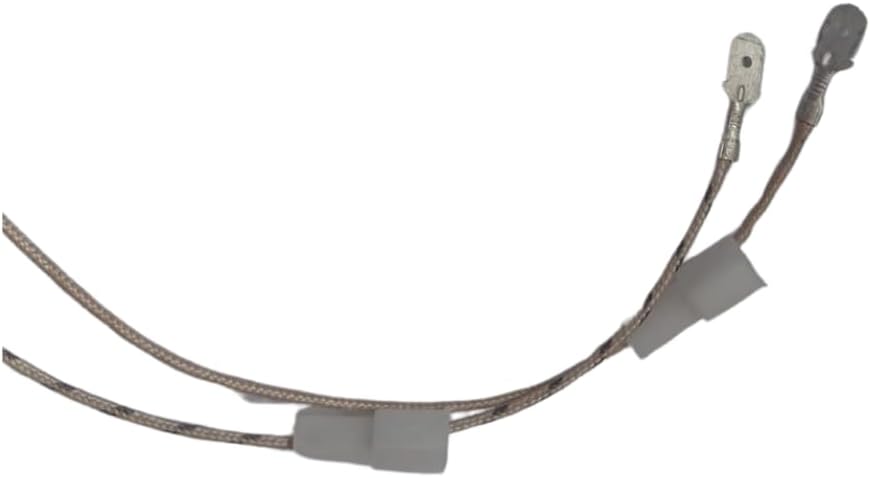

Image 3: Detail of the electrical terminals at the end of the igniter's cable, ready for connection.

Keserasian

This igniter resistance is compatible with the following EDILKAMIN pellet stove models:

• Alba Marea 2003
• Alba Marea 2004
• Arianna
• Artemide
• Atena
• Musang 1
• Musang 2
• Musang 3

Always verify the compatibility with your specific stove model before purchase and installation.

Persediaan dan Pemasangan

The installation of the igniter resistance typically involves replacing an existing faulty unit. Follow these general steps, but always refer to your specific pellet stove's service manual for detailed instructions.

1. Pemutusan Kuasa: Ensure the pellet stove is completely disconnected from the electrical power supply.
2. Sejukkan Diri: Allow the stove to cool down completely to avoid burns.
3. Access the Igniter: Locate the igniter within your pellet stove. This usually requires removing access panels or components as per your stove's manual.
4. Disconnect Old Igniter: Carefully disconnect the electrical wiring from the old igniter. Note the wiring configuration if not clearly marked.
5. Remove Old Igniter: Unscrew or unfasten the old igniter from its mounting point. The flange on the igniter helps secure it in place.
6. Install New Igniter: Insert the new EDILKAMIN R207780 igniter into the designated opening. Ensure the flange is properly seated and secure it with the appropriate fasteners.
7. Sambungan Pendawaian: Reconnect the electrical wiring to the new igniter's terminals. Ensure connections are secure and correct.
8. Reassemble Stove: Reattach any removed panels or components.
9. Ujian: Reconnect the stove to the power supply and perform a test ignition cycle to ensure the new igniter functions correctly.

Penting: Jika anda tidak pasti tentang sebarang langkah, rujuk juruteknik bertauliah.

Arahan Operasi

The EDILKAMIN R207780 igniter resistance operates automatically as part of your pellet stove's ignition sequence. Once installed, its operation is controlled by the stove's internal system. There are no direct user controls for the igniter itself.

To operate your pellet stove and initiate the igniter's function, refer to your specific EDILKAMIN pellet stove's user manual. Generally, the process involves:

1. Ensuring the pellet hopper is filled with appropriate wood pellets.
2. Setting the desired temperature or operating mode on your stove's control panel.
3. Initiating the ignition cycle, which will activate the igniter to heat and ignite the pellets.

Penyelenggaraan

The igniter resistance is a wear-and-tear component and does not typically require routine cleaning or maintenance. Its lifespan depends on usage frequency and operating conditions. However, regular inspection of the igniter and its connections during routine stove maintenance is recommended.

• Pemeriksaan Visual: Periodically inspect the igniter for signs of physical damage, excessive carbon buildup, or corrosion.
• Sambungan Elektrik: Ensure all electrical connections to the igniter are clean, tight, and free from damage.
• Penggantian: If the igniter shows signs of failure (e.g., stove fails to ignite, igniter does not heat up), it should be replaced.

Always ensure the stove is disconnected from power and cooled down before any inspection.

Menyelesaikan masalah

If your pellet stove is experiencing ignition issues, the igniter resistance may be a contributing factor. Here are some common troubleshooting steps:

• Stove Fails to Ignite:
  • Check if the igniter is receiving power during the ignition cycle (requires a multimeter and technical knowledge).
  • Inspect the igniter element for visible breaks or damage.
  • Ensure there is a sufficient supply of pellets in the burn pot.
• Slow Ignition:
  • The igniter may be weakening. While it still heats, it might not reach optimal temperature quickly enough.
  • Check for excessive ash or debris around the igniter, which can hinder heat transfer.
• Kod Ralat: Refer to your pellet stove's user manual for specific error codes related to ignition failure.

Nota: If the igniter is confirmed to be faulty, it typically requires replacement rather than repair. Always ensure power is disconnected before inspection or replacement.

Spesifikasi

Waranti dan Sokongan

For information regarding the warranty period and terms for the EDILKAMIN R207780 igniter resistance, please refer to the documentation provided with your purchase or contact your authorized EDILKAMIN dealer or the point of sale (e.g., XODO STORE if purchased via Amazon).

For technical support, spare parts inquiries, or further assistance, please contact EDILKAMIN customer service or an authorized EDILKAMIN service center. Contact details can typically be found on the official EDILKAMIN website or in your stove's main user manual.
