FUERS G95 GSM/WIFI Smart Home Alarm System User Manual

1. Lebihview

The FUERS G95 is an advanced GSM/WIFI dual-network smart home alarm system designed to provide comprehensive security for your property. It supports both 2.4GHz Wi-Fi and standard GSM SIM cards, offering flexible connectivity options. The system integrates with the Tuya Smart APP (Smart Life) and is compatible with Amazon Alexa and Google Assistant for convenient voice control.

This manual provides detailed instructions for setting up, operating, and maintaining your FUERS G95 alarm system.

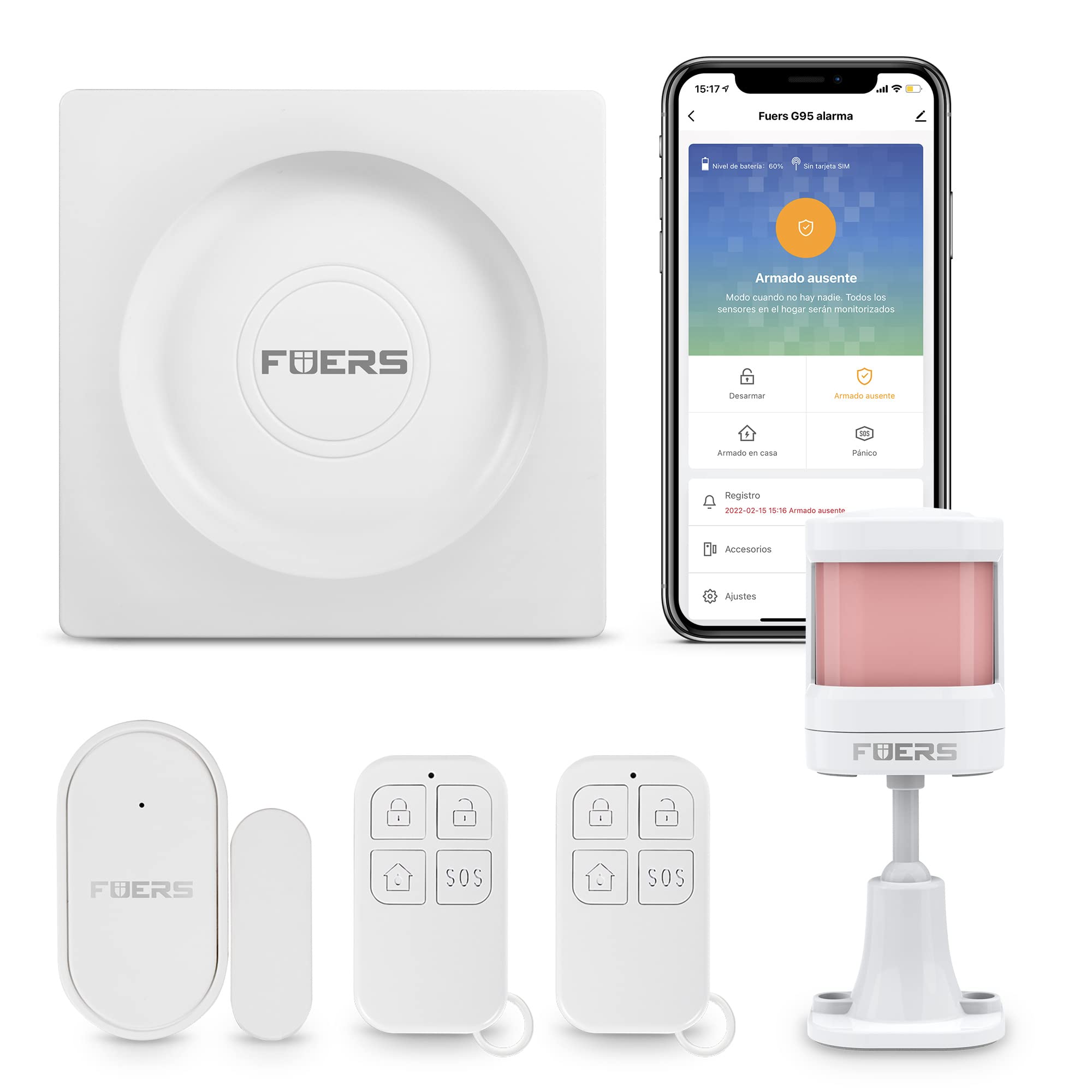

2. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

• 1 x FUERS G95 Alarm Host (GSM SIM card not included)
• 1 x Wireless Pet-Immune Infrared Detector (PIR Motion Sensor)
• 1 x Sensor Pintu/Tingkap Tanpa Wayar
• 2 x Alat Kawalan Jauh
• 1 x EU Power Plug

3. Komponen Sistem

The FUERS G95 system includes various components for comprehensive security:

• Alarm Host: The central unit that manages all sensors and communicates alerts.
• PIR Motion Detector (P20): Detects movement within its range, designed to be pet-immune to reduce false alarms.
• Door/Window Sensor (D30): Mencetuskan penggera apabila pintu atau tingkap yang dilindungi dibuka.
• Remote Control (R10): Allows for convenient arming, disarming, and emergency functions.
• Aksesori Pilihan: The system supports additional wired sirens, wireless indoor/outdoor sirens, smart plugs, and indoor cameras.

4. Panduan Persediaan

4.1 Pemasangan Kad SIM

The FUERS G95 uses a Micro SIM card for GSM functionality. Ensure the SIM card is active and has sufficient credit for calls and SMS.

1. Locate the SIM card slot on the side or back of the alarm host.
2. Insert the Micro SIM card into the slot with the metal contacts facing down, ensuring it clicks into place.
3. Do not force the SIM card. If it does not fit, verify it is a Micro SIM and oriented correctly.

4.2 Menghidupkan

1. Sambungkan penyesuai kuasa yang disediakan kepada hos penggera dan pasangkannya ke soket kuasa.
2. The system will power on automatically. Wait for the indicator lights to stabilize.

4.3 App Installation and Pairing (Tuya Smart / Smart Life)

The FUERS G95 system is controlled via the Tuya Smart or Smart Life mobile application.

1. Download the "Tuya Smart" or "Smart Life" app from your smartphone's app store (Google Play Store for Android, Apple App Store for iOS).
2. Daftar untuk akaun baharu atau log masuk jika anda sudah mempunyai akaun.
3. Dalam aplikasi, ketik "Tambah Peranti" atau ikon "+".
4. Select "Security & Video Surveillance" > "Alarm (Wi-Fi)" or search for "G95".
5. Follow the on-screen instructions to connect the alarm host to your 2.4GHz Wi-Fi network. Ensure your phone is connected to the same 2.4GHz Wi-Fi network during pairing.

4.4 Adding Sensors and Remotes

The system supports up to 100 sensors and 10 remote controls.

1. In the Tuya Smart app, navigate to the G95 alarm system interface.
2. Select "Accessories" or "Sensors" to enter the pairing mode.
3. Activate the sensor (e.g., open a door/window for a door sensor, press the button on a remote, or trigger the PIR motion sensor). The alarm host will confirm successful pairing.
4. You can customize the name and zone type for each added sensor within the app.

5. Arahan Operasi

5.1 Mempersenjatai dan Melucutkan senjata

You can arm or disarm the system using the remote control, the mobile app, or via SMS/phone call.

• lengan: Mengaktifkan semua sensor. Mana-mana sensor yang dicetuskan akan memulakan penggera.
• Lumpuhkan senjata: Menyahaktifkan semua sensor, membolehkan pergerakan bebas tanpa mencetuskan penggera.
• Lengan Rumah: Activates perimeter sensors (e.g., door/window sensors) while allowing movement within the home (e.g., motion sensors are disarmed).

5.2 Zone Types

The G95 supports 6 types of defense zones, configurable via the app:

• Biasa: Triggers an immediate alarm when activated.
• kelewatan: Provides a delay before triggering the alarm, allowing time to disarm the system upon entry.
• 24-Jam: Always active, even when the system is disarmed (e.g., for smoke detectors).
• Rumah: Active only when the system is in Home Arm mode.
• 24-Hour Silent: Triggers a silent alarm (notifications only, no siren) 24/7.
• Rumah dengan Kelewatan: Active in Home Arm mode with an entry delay.

5.3 Pemberitahuan Penggera

Apabila penggera dicetuskan, sistem akan:

• Sound the siren.
• Automatically dial up to 5 pre-set phone numbers sequentially.
• Send SMS notifications to pre-set numbers.
• Send push notifications to the Tuya Smart app.

5.4 Kawalan Suara (Alexa/Google Home)

Integrate your FUERS G95 with Amazon Alexa or Google Home for hands-free control:

1. Ensure your G95 is successfully paired with the Tuya Smart app.
2. Buka apl Alexa atau Google Home.
3. Dayakan kemahiran/perkhidmatan "Tuya Smart" atau "Smart Life".
4. Link your Tuya Smart account to Alexa/Google Home.
5. Discover devices. You can now use voice commands to arm or disarm your system.

5.5 Timed Arm/Disarm

Schedule automatic arming and disarming times through the Tuya Smart app for daily routines.

6. Ciri-ciri Utama

• Kesambungan Rangkaian Dwi: Supports both 2.4GHz Wi-Fi and GSM SIM cards for reliable communication.
• Extensive Zone Support: Up to 100 wireless defense zones with customizable types (Normal, Delay, 24-Hour, Home, 24-Hour Silent, Home with Delay).
• Sokongan Berbilang Bahasa: The system supports 11 international languages, configurable via the Tuya Smart app.
• Kawalan Jauh: Arm, disarm, and manage settings via phone calls, SMS, or the Tuya Smart app.
• Integrasi Rumah Pintar: Sesuai dengan Amazon Alexa dan Google Assistant untuk kawalan suara.
• Fungsi Kecemasan: One-key emergency button in the app triggers immediate siren and notifications.
• Sensor Naming: Customize names for each sensor (e.g., "Front Door," "Living Room PIR") for clear notifications.
• Timed Arm/Disarm: Schedule automatic security routines.
• Low Battery Reminders: Receive app notifications for low battery levels on connected sensors.
• Kuasa Outage Perlindungan: Built-in rechargeable lithium battery provides backup power for 4-6 hours.
• Door/Window Unclosed Reminder: Prevents arming if doors or windows are left open, indicating which zones are affected.
• Alarm Log Review: Review alarm events and sensor status logs within the app.
• Perkongsian Keluarga: Share control of the alarm system with family members through the app.

7. Penyelenggaraan

7.1 Battery Low Reminders

The system monitors the battery levels of connected sensors and the main alarm host. You will receive notifications via the Tuya Smart app when a sensor's battery is low, prompting you to replace it.

7.2 Pembersihan

Wipe the alarm host and sensors with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

7.3 Sandaran Kuasa

The built-in rechargeable battery provides backup power. Ensure the alarm host is regularly connected to power to keep the internal battery charged.

8. Penyelesaian masalah

• Sistem tidak bersambung ke Wi-Fi: Ensure your Wi-Fi network is 2.4GHz. The system does not support 5GHz Wi-Fi. Check Wi-Fi password and signal strength.
• Kad SIM tidak dikesan: Verify the SIM card is a Micro SIM, correctly inserted, and active. Ensure it has credit for calls/SMS.
• Sensor tidak berpasangan: Ensure the alarm host is in pairing mode in the app. Activate the sensor correctly (e.g., open/close for door sensor, trigger for PIR).
• Penggera palsu: Check sensor placement. For PIR detectors, ensure they are not facing direct sunlight, heat sources, or areas with pets if not pet-immune. Adjust zone types as needed (e.g., use "Home Arm" or "Delay" zones).
• Tiada pemberitahuan aplikasi: Check your phone's notification settings for the Tuya Smart/Smart Life app. Ensure the app has background data access and is not restricted by power-saving modes.
• Kawalan suara tidak berfungsi: Confirm the Tuya Smart/Smart Life skill is enabled and linked in your Alexa/Google Home app. Ensure device discovery is complete.

9. Spesifikasi

10. Waranti dan Sokongan

For warranty information, technical support, or any inquiries regarding your FUERS G95 alarm system, please refer to the official FUERS website or contact their customer service directly. Contact details are typically found on the product packaging or the manufacturer's official support page.

Sila simpan bukti pembelian anda untuk tuntutan waranti.
