SUNGOLDPOWER 18000W 48V Inverter Charger User Manual

1. Pengenalan

This manual provides essential information for the safe and efficient operation of your SUNGOLDPOWER 18000W 48V Inverter Charger. Please read this manual thoroughly before installation and use, and retain it for future reference. The LF-PV Series Pure Sine Wave Inverter integrates an inverter, AC charger, and auto-transfer switch into a single system, offering advanced features for various power needs.

Figure 1: SUNGOLDPOWER 18000W 48V Inverter Charger. This image displays the inverter unit and its remote control, highlighting key specifications such as 18000W AC output, 95±5Amp AC battery charger, and 50Hz/60Hz output frequency.

2. Maklumat Keselamatan

Arahan Keselamatan Penting:

• Pemasangan dan penyelenggaraan mesti dilakukan oleh kakitangan yang berkelayakan sahaja.
• Pastikan semua pendawaian mematuhi kod elektrik tempatan dan nasional.
• Disconnect all power sources (AC and DC) before performing any service or maintenance.
• Do not operate the inverter in wet conditions or near flammable materials.
• Sahkan vol bateri yang betultage and polarity before connecting to the inverter.
• This inverter is not designed for grid-tied applications.

3. Komponen dan Aksesori Produk

The SUNGOLDPOWER 18000W 48V Inverter Charger package includes the following items:

• SUNGOLDPOWER 18000W 48V Inverter Charger Unit
• Alat Kawalan Jauh Pintar
• Manual Pengguna
• BTS Cable (Battery Temperature Sensor Cable)
• Protective Covers (Red and Black)

Figure 2: Product Size and Accessories. This image illustrates the dimensions of the inverter (16.5in x 28.7in x 8.7in, Net Weight: 197.1 lbs) and shows the included User's Manual, Remote Control, BTS Cable, and Protective Covers.

4. Spesifikasi

5. Persediaan dan Pemasangan

Proper installation is crucial for the safe and efficient operation of your inverter charger. Consult a qualified electrician for installation if you are not experienced with high-voltage sistem elektrik.

5.1 Gambarajah Pendawaian

The inverter supports various application wiring configurations, including solar charging, battery storage, and AC/grid charging, providing AC output to various appliances.

Figure 3: Application Wiring. This diagram illustrates how the inverter connects to an MPPT solar charger, battery storage, AC/Grid charging, and provides AC output to household appliances.

5.2 Tatarajah Awal

• Sambungan Bateri: Connect the 48V battery bank to the inverter. Ensure correct polarity.
• Sambungan Input AC: Connect the 240V AC input source.
• Sambungan Output AC: Connect your 120V/240V split-phase loads to the inverter output.
• Pemilihan Jenis Bateri: Use the 8 pre-set battery type selector, including a de-sulphation option for flat batteries.
• Charge Current Adjustment: The maximum charge current can be adjusted from 0% to 100% via a linear switch. This is useful for matching the charger output to smaller capacity battery banks.
• AC Priority / Battery Priority: The inverter is designed with AC priority by default. When AC input is present, the battery charges first, and the inverter transfers the input AC to power the load. The AC Priority and Battery Priority switch (SW5) allows you to select battery priority, where the inverter will draw power from the battery even if AC input is available.

Figure 4: Battery Compatibility. This image displays the inverter's compatibility with various battery types, including GEL, LiFePO4, AGM, Lithium, Sealed Lead Acid, Open Lead Acid, and De-sulphation batteries.

6. Arahan Operasi

Once installed and configured, the inverter charger operates largely automatically. Monitor the display for status information.

6.1 Display and Remote Control

The inverter features a large color screen for displaying operational parameters. A smart remote control is included for convenient monitoring and control.

Figure 5: Screen Upgrades. This image shows a close-up of the inverter's large color screen display, indicating inverter mode, grid voltage, bateri voltage, and load percentage.

6.2 Ciri-ciri Operasi Utama

• Automatic Generator Starting (AGS): The inverter supports AGS, allowing for automatic startup of a connected generator when battery levels are low or load demand is high.
• Intelligent Battery Charging: Features 4-step intelligent battery charging for optimal battery health and longevity.
• Pembetulan Faktor Kuasa (PFC): Integrated PFC for the charger improves efficiency.
• Seamless Transfer: An 8 ms typical transfer time between utility and battery ensures power continuity for connected loads.
• Perlindungan Beban: Includes a 15-second delay before transfer when AC resumes, providing protection for loads, especially when used with a generator.

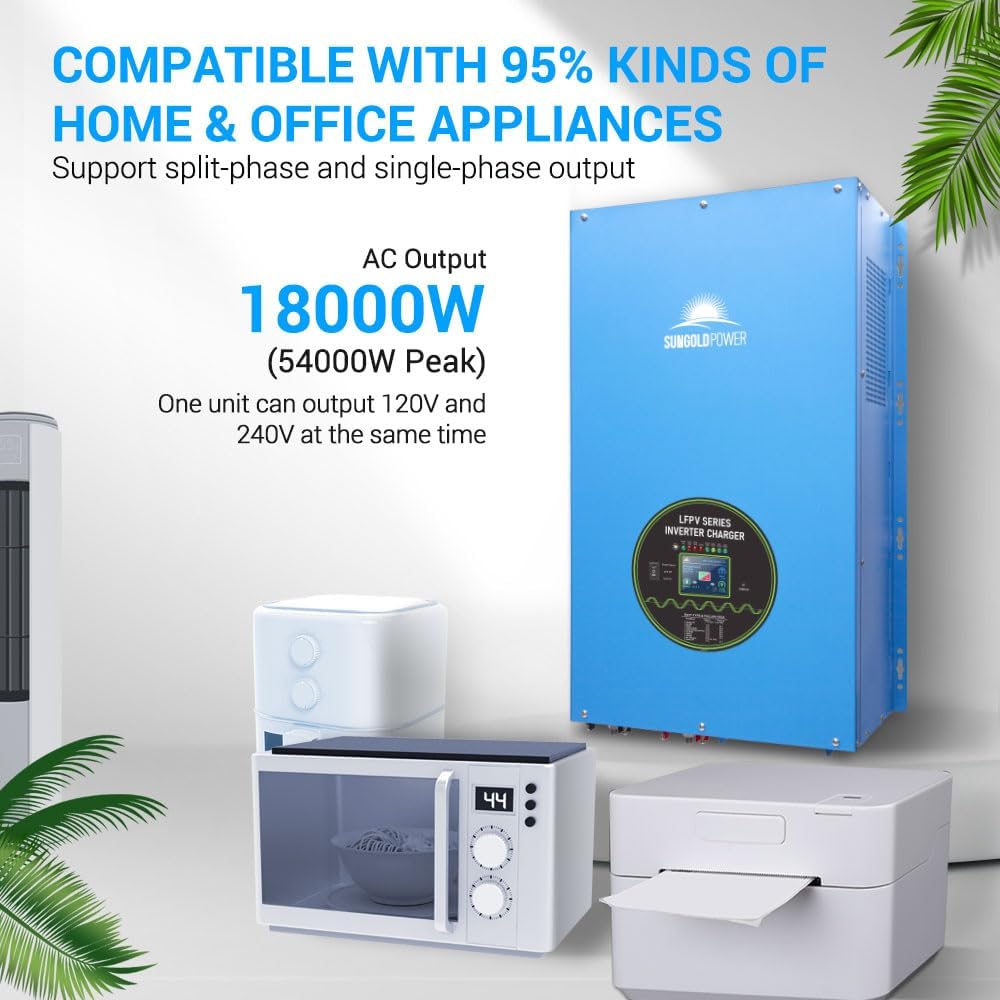

Figure 6: Appliance Compatibility. This image demonstrates the inverter's ability to power a wide range of home and office appliances, supporting both split-phase and single-phase output.

7. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your inverter charger.

• Pembersihan: Keep the inverter clean and free from dust and debris. Ensure ventilation openings are not blocked.
• Pemeriksaan Sambungan: Periodically inspect all electrical connections for tightness and signs of corrosion.
• Pemeriksaan Bateri: Check battery terminals for corrosion and ensure battery fluid levels (if applicable) are correct.
• Keadaan Persekitaran: Ensure the inverter is operating within its specified temperature and humidity ranges.

8. Penyelesaian masalah

If you encounter issues with your inverter charger, refer to the following general troubleshooting steps. For specific error codes or persistent problems, consult the detailed troubleshooting section in the full product manual or contact customer support.

• Tiada Output Kuasa: Check AC input, battery connections, and circuit breakers. Ensure the inverter is turned on.
• Amaran Lebihan: Reduce the connected load. The inverter has a 300% overload capacity for up to 20 seconds, but sustained overloads will trigger protection.
• Bateri Tidak Dicas: Verify AC input is present and stable. Check battery connections and charge current settings.
• Bunyi Luar Biasa: Ensure the inverter is properly mounted and that cooling fans are not obstructed.

9. Waranti dan Sokongan

The SUNGOLDPOWER 18000W 48V Inverter Charger comes with a Waranti 1 tahun. For warranty claims, technical support, or further assistance, please contact SUNGOLDPOWER customer service. Many users have reported positive experiences with responsive and knowledgeable customer support.
