1. Pengenalan
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Home Decorators Collection Hansfield 56-inch LED Outdoor Natural Iron Ceiling Fan. Please read this manual thoroughly before installation and retain it for future reference. This ceiling fan is designed for both indoor and outdoor use, offering efficient air circulation and integrated LED lighting.
Image 1.1: The Hansfield 56-inch LED Outdoor Natural Iron Ceiling Fan with its remote control.
2. Maklumat Keselamatan
AMARAN: Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan diri, sentiasa ikuti arahan ini:
- Pastikan tapak pemasangan adalah kukuh dari segi struktur dan boleh menyokong berat kipas (kira-kira 24 lbs).
- Semua pendawaian mesti mengikut kod elektrik kebangsaan dan tempatan. Rujuk juruelektrik yang berkelayakan jika anda tidak pasti.
- Putuskan kuasa pada pemutus litar utama sebelum pemasangan atau servis.
- Jangan kendalikan kipas dengan bilah atau perumah yang rosak.
- Elakkan meletakkan objek di laluan bilah kipas.
- This fan is wet-rated, suitable for outdoor use in covered areas.
3. Kandungan Pakej
Sahkan bahawa semua komponen yang disenaraikan di bawah disertakan dalam pakej anda:
- Perumahan Motor Kipas Siling
- 5 Seasoned Wood Plastic Blades
- Dome Style Light Kit with Frosted Glass
- Downrod 4.5 inci
- Perkakasan Pemasangan
- Handheld Remote Control (with battery)
- Receiver for Remote Control (pre-installed)
- Decorative Canopy Ring and Coupling Cover
4. Persediaan dan Pemasangan
Sebelum Anda Bermula: Ensure power is disconnected at the circuit breaker. Read all instructions carefully.
Image 4.0: The Hansfield ceiling fan installed, demonstrating its appearance with a downrod.
4.1 Pilihan Pemasangan
The Hansfield fan supports Angled Mount, Downrod Mount, and Flush Mount installations. A 4.5-inch downrod is included. For higher ceilings, longer downrods may be required for optimal performance.
Image 4.1: Recommended downrod lengths based on ceiling height for optimal air circulation.
4.2 Pendawaian
The receiver for the remote control is pre-installed for simplified wiring. Follow the detailed wiring diagrams provided in the separate installation guide (if applicable) or consult a qualified electrician. Ensure all connections are secure.
4.3 Lampiran Bilah
Attach the five seasoned wood plastic blades securely to the motor housing. Ensure all screws are tightened to prevent wobbling during operation.
Image 4.2: Detail of blade attachment to the fan motor housing.
4.4 Light Kit Installation
The dome-style light kit features frosted glass and a twist-and-lock mechanism for quick installation. Ensure the integrated 14-Watt Samsung LED module is properly seated before securing the glass dome.
Imej 4.3: View of the fan's motor housing and the integrated LED light fixture.
5. Arahan Operasi
Your Hansfield ceiling fan is operated using the included handheld remote control.

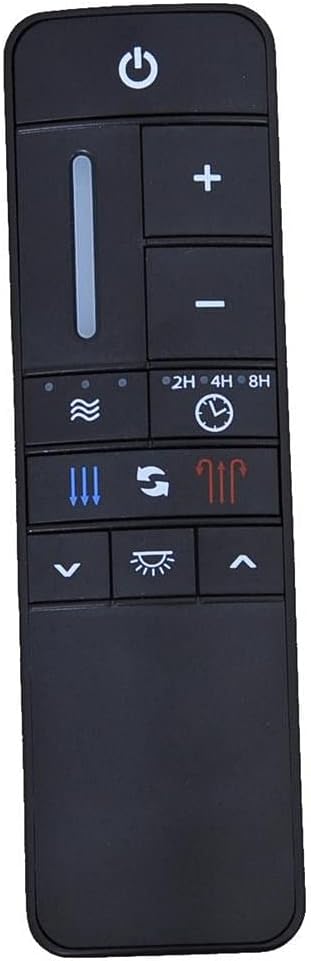

Image 5.1: The handheld remote control for the Hansfield ceiling fan.
5.1 Fungsi Kawalan Jauh
- Butang Kuasa: Menghidupkan/mematikan kipas dan lampu.
- Kawalan Kelajuan Kipas (+/-): Melaraskan antara 9 kelajuan kipas.
- Light Dimming (Up/Down arrows): Adjusts the brightness of the integrated LED light.
- Reverse Function (Arrow icon): Changes the direction of blade rotation for summer (downward airflow) or winter (upward airflow) operation.
- Pemasa (2H, 4H, 8H): Menetapkan kipas supaya mati secara automatik selepas 2, 4 atau 8 jam.
- Random Breeze Function: Mensimulasikan angin semula jadi dengan mengubah kelajuan kipas.
The DC motor provides up to 70% energy efficiency compared to conventional AC motors and allows for 9 speeds and reverse function directly from the remote.
6. Penyelenggaraan
Penyelenggaraan tetap memastikan prestasi optimum dan jangka hayat kipas siling anda.
- Pembersihan: Untuk membersihkan kipas, lap dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas. Pastikan kuasa dimatikan sebelum membersihkan.
- Penjagaan Bilah: The seasoned wood plastic blades are designed for wet weather use. Periodically check for dust buildup and clean as needed.
- Ketatkan Pengikat: Periksa secara berkala semua skru dan pengikat pada kipas dan perkakasan pelekap untuk memastikan ia selamat.
- Kit Cahaya: The integrated LED module is designed for long life and typically does not require replacement. If issues arise, consult customer support.
7. Penyelesaian masalah
Jika anda mengalami masalah dengan kipas anda, rujuk masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kipas tidak bermula | No power to the fan; loose wire connections; remote control battery low. | Check circuit breaker. Ensure all wiring connections are secure. Replace remote control battery. |
| Kipas bergoyang | Loose blade screws; unbalanced blades; loose mounting hardware. | Tighten all blade screws. Check for balanced blades (use a balancing kit if necessary). Ensure mounting hardware is secure. |
| Cahaya tidak berfungsi | Loose wire connection to light kit; LED module issue. | Check light kit wiring. Contact customer support if the integrated LED module is faulty. |
| Alat kawalan jauh tidak bertindak balas | Low battery; remote not paired. | Replace remote battery. Refer to the installation guide for remote pairing instructions. |
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | YG656-NI |
| Saiz Kipas | 56 inci |
| Jenis Motor | Motor DC |
| Bilangan Bilah | 5 |
| Bahan Bilah | Acrylonitrile Butadiene Styrene (ABS) - Seasoned Wood Plastic |
| Jenis Cahaya | LED bersepadu |
| LED Wattage | 14 Watts (Samsung LED module) |
| Suhu Warna | 3000K (Putih Hangat) |
| Aliran Udara (CFM) | 6411 CFM |
| Jenis Kawalan | Remote Control (9 speeds, light dimming, timer, random breeze, reverse) |
| Penggunaan Dalaman/Luar | Dalaman, Luaran (Kadar Basah) |
| Pilihan Pemasangan | Angled Mount, Downrod Mount, Flush Mount |
| Berat Produk | 19.36 lbs (Fan), 24 lbs (Package) |
| UPC | 792145372127 |
Image 8.1: Key dimensions of the Hansfield 56-inch ceiling fan.
9. Waranti dan Sokongan
For warranty information or technical support, please refer to the documentation included with your purchase or contact Home Decorators Collection customer service. Keep your proof of purchase for warranty claims.
Untuk bantuan lanjut, lawati Koleksi Penghias Rumah webtapak or contact their support line.
