Cadence US10D4 Car Subwoofer Instruction Manual

pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Cadence US10D4 10-inch car subwoofer. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

Maklumat Keselamatan

Sentiasa patuhi langkah keselamatan berikut:

• Disconnect the vehicle's battery before beginning any installation.
• Pastikan semua pendawaian disambung dengan betul dan berpenebat untuk mengelakkan litar pintas.
• Pasang subwufer dengan selamat untuk mengelakkan pergerakan semasa pengendalian kenderaan.
• Elakkan daripada mendedahkan subwufer kepada kelembapan atau suhu yang melampau.
• Rujuk pemasang audio kereta profesional jika anda tidak pasti tentang sebarang langkah pemasangan.
• Do not operate the subwoofer beyond its specified power ratings to prevent damage.

Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• Cadence US10D4 10-inch Subwoofer x 1
• Manual Arahan (dokumen ini)
• Perkakasan Pemasangan (skru, klip)
• Templat Potongan

Penerangan Imej: A visual representation of the Cadence US10D4 subwoofer, including its dimensions and a list of typical package contents such as the subwoofer itself, manual, wires, mounting hardware, and a cutout template.

Persediaan dan Pemasangan

Pemasangan yang betul adalah penting untuk prestasi dan keselamatan yang optimum. Ikuti langkah-langkah ini dengan teliti:

1. Planning the Enclosure: The US10D4 subwoofer is designed for various enclosure types. Refer to the specifications for recommended enclosure volumes.
2. Lokasi Pemasangan: Choose a secure location in your vehicle, typically the trunk or a dedicated subwoofer box. Ensure adequate clearance around the subwoofer for proper air circulation and excursion.
3. Memotong Pembukaan: Use the provided cutout template to mark and cut the mounting hole. The cutout diameter is 9.1 inches.
4. Pendawaian: The US10D4 features a Dual 4 Ohm voice coil. Connect the subwoofer to a compatible amplifier. Ensure correct polarity for all connections. Refer to your amplifier's manual for specific wiring diagrams for dual voice coil subwoofers (series or parallel wiring).
5. Pemasangan selamat: Place the subwoofer into the cutout and secure it using the provided mounting screws. Ensure a tight, vibration-free fit.

Penerangan Imej: Bahagian hadapan yang terperinci view of the Cadence US10D4 10-inch car subwoofer, highlighting its black cone and the distinctive orange outer trim. This image shows the overall design and appearance of the subwoofer unit.

Penerangan Imej: An image depicting two Cadence US10D4 subwoofers professionally installed within a custom enclosure in the trunk of a red car. Overlaid graphics indicate key performance metrics such as Max Power (1200W), Frequency Response (31 Hz - 500 Hz), and Sensitivity (91 dB).

Penerangan Imej: A person is shown carefully sliding a custom-built subwoofer enclosure, containing two Cadence subwoofers, into the trunk of a car. This illustrates a typical installation scenario for the product.

Arahan Operasi

Once installed, follow these guidelines for optimal performance:

• Pecah Masuk Awal: Allow a break-in period of approximately 10-20 hours of normal listening before operating the subwoofer at high volumes. This allows the suspension components to loosen and perform optimally.
• AmpTetapan penguat: Laraskan anda amplifier's gain, crossover, and bass boost settings according to your system's requirements and the subwoofer's specifications. Start with low gain and gradually increase.
• Kawalan Kelantangan: Avoid excessive volume levels that cause audible distortion or "clipping" from your amplifier, as this can damage the subwoofer.
• Persekitaran Mendengar: The acoustics of your vehicle will significantly impact sound quality. Experiment with subwoofer placement and amplifier settings to achieve the desired bass response.

Penyelenggaraan

The Cadence US10D4 subwoofer requires minimal maintenance:

• Pembersihan: Use a soft, dry cloth to wipe down the cone and surround. Avoid using harsh chemicals or abrasive cleaners.
• Pemeriksaan: Periodically check all wiring connections for tightness and ensure no wires are frayed or exposed.
• Pemasangan selamat: Verify that the subwoofer remains securely mounted and that no mounting screws have loosened over time.
• Perlindungan Alam Sekitar: Keep the subwoofer free from dust, debris, and direct sunlight when not in use or if exposed in the vehicle.

Menyelesaikan masalah

If you experience issues with your subwoofer, consult the following table:

Penerangan Imej: A view of the rear of the Cadence US10D4 subwoofer, highlighting its robust motor structure and the aero-style vent designed for cooling. This image illustrates the components responsible for heat dissipation and linearity.

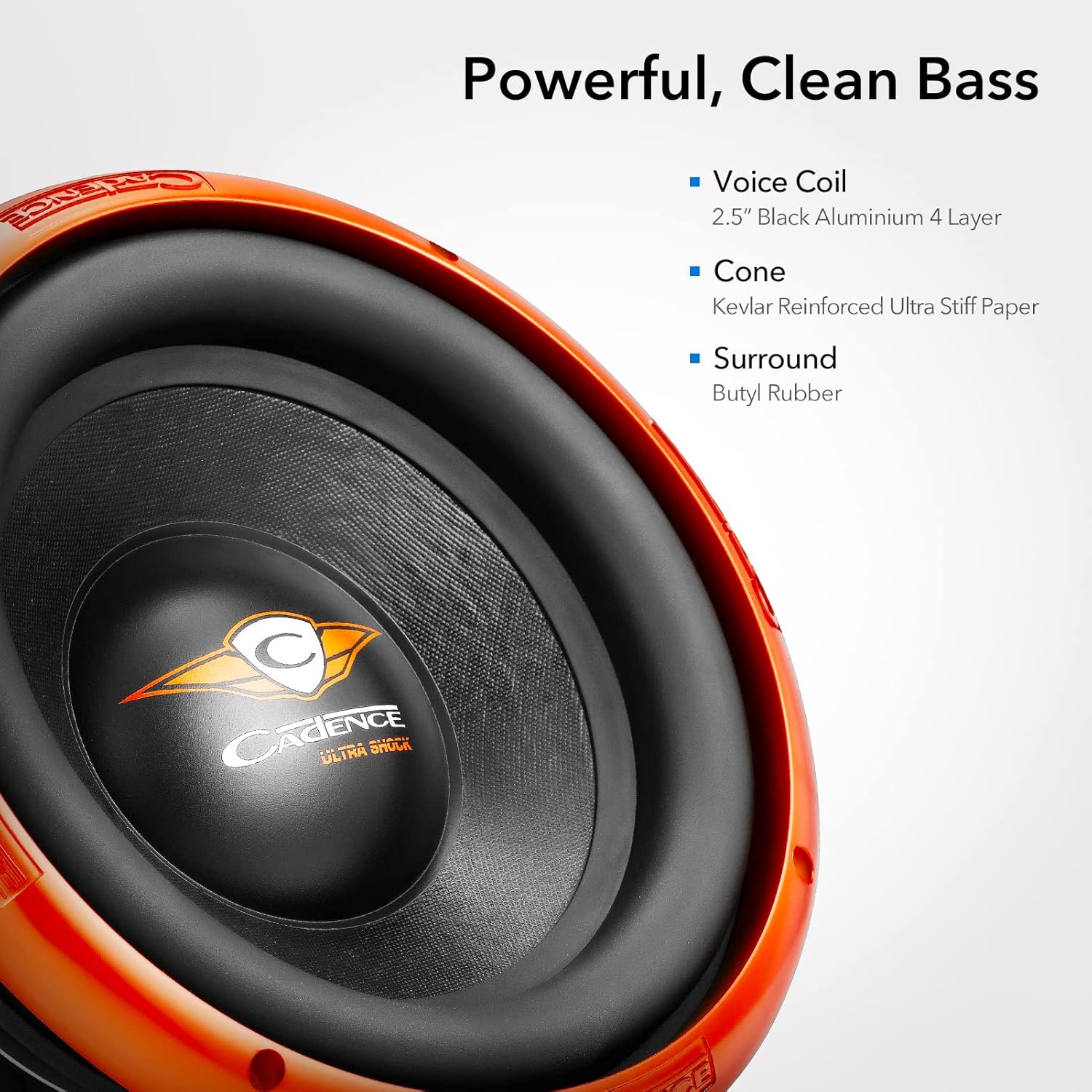

Penerangan Imej: A close-up shot of the Cadence US10D4 subwoofer's cone, voice coil, and surround. Text overlays indicate key features such as the 2.5" Black Aluminium 4 Layer Voice Coil, Kevlar Reinforced Ultra Stiff Paper Cone, and Butyl Rubber Surround, emphasizing the materials used for powerful and clean bass.

Penerangan Imej: This image displays the various high-quality components of the Cadence US10D4 subwoofer, including the Dual Layer Linear Conex Spider, Stamped Metal Basket, and Dual Nickel Plated Terminals, showcasing the robust construction of the unit.

Spesifikasi

Waranti dan Sokongan

Cadence products are designed for durability and performance. For warranty information and technical support, please refer to the official Cadence webtapak atau hubungi perkhidmatan pelanggan mereka. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.

Untuk bantuan lanjut, lawati Cadence Store on Amazon.
