The YEHUA 1080P 2-in-1 USB Type C/Micro USB to HDMI Adapter Cable is designed to connect your Android and iOS devices to a larger screen, such as a TV, projector, or monitor. This cable facilitates the mirroring of files, movies, games, photos, and applications directly from your mobile device to the display.
It features wide compatibility with various Android phones equipped with Type C or Micro USB ports, including Samsung Galaxy, HTC, LG, Google Pixels, Nokia, One Plus, Sony, Moto models, Huawei, and Xiaomi. It also supports iPhone models from iPhone 6 to iPhone 11 Pro Max.

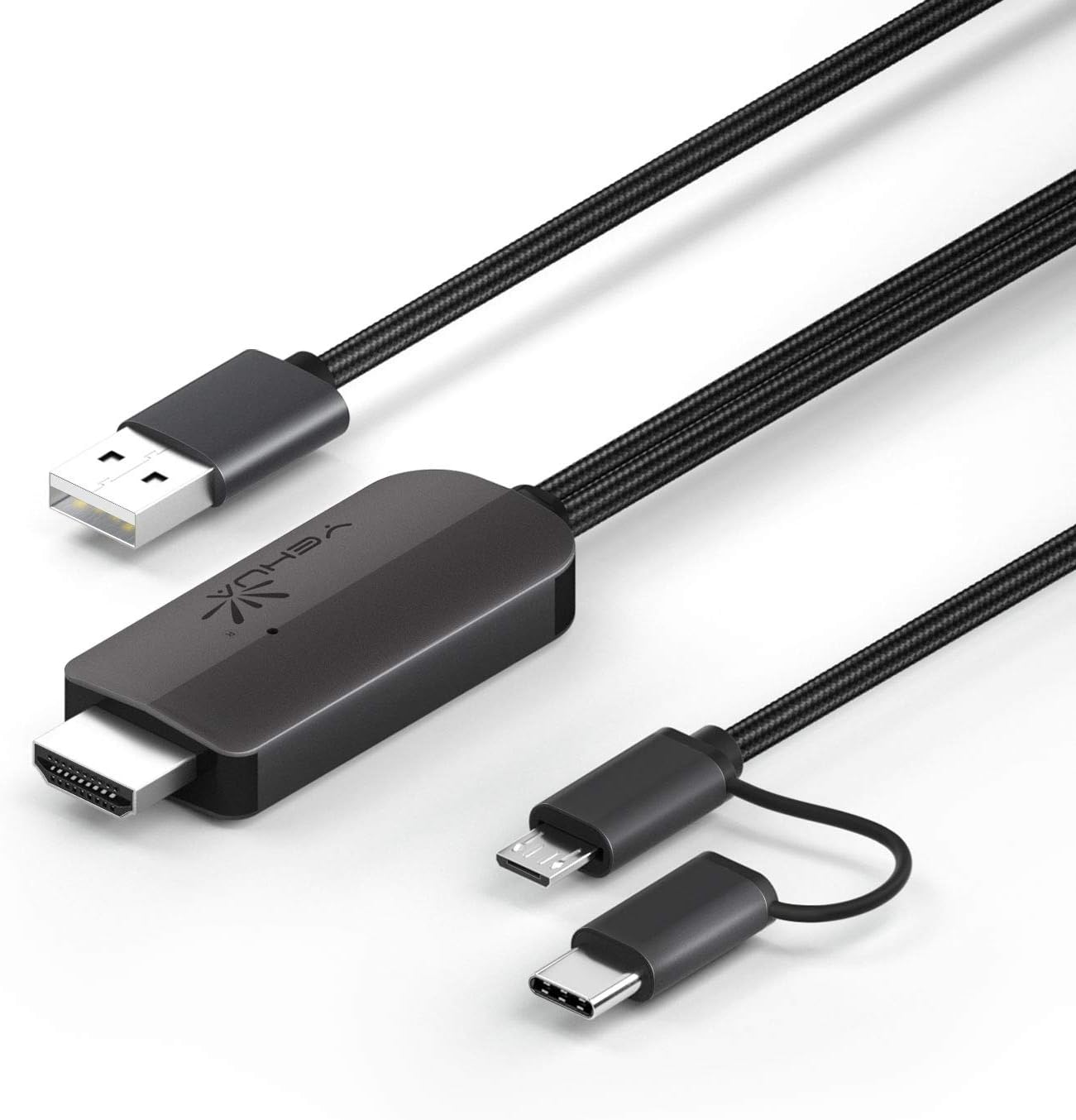

Rajah 1: YEHUA HDMI Adapter Cable showing its various connectors: USB-A for power, HDMI for display output, and a combined Micro USB/USB-C for device input.
Ciri-ciri Utama
- 1080P Resolution Support: Delivers high-definition video output for clear visuals.
- Kesambungan 2-dalam-1: Features both USB Type-C and Micro USB connectors for broad compatibility with Android devices.
- Bluetooth 5.0 Audio Synchronization: Ensures audio plays directly from the TV/projector without delay, addressing a common issue with older HDMI adapters for Android.
- Plug and Play (with App): Requires the "MiraPlug" application for full functionality.
- Reka bentuk tahan lasak: Features quality cords and plugs for enhanced longevity.
Rajah 2: Visual representation of the cable's compatibility with both Type-C and Micro USB interfaces found on various Android smartphones.
Rajah 3: An illustration of the upgraded Bluetooth 5.0 chip integrated into the adapter, which enables audio synchronization with the connected display.
Arahan Persediaan
- Sambungan Kuasa: Connect the USB-A end of the YEHUA HDMI Adapter Cable to a 5V/2A (or 1A minimum) power source. This can be a USB wall charger, a power bank, or a USB port on your TV/projector. Ensure the adapter is powered before connecting your mobile device.
- Sambungan HDMI: Plug the HDMI connector of the cable into an available HDMI input port on your TV, monitor, or projector.
- Sambungan Peranti: Connect the appropriate mobile device connector (Micro USB or USB Type-C) to your smartphone or tablet.
- Pemasangan Apl: Download and install the "MiraPlug" application from your device's app store (e.g., Google Play Store for Android, Apple App Store for iOS). This app is essential for the adapter to function correctly.
- Bluetooth Pairing (for Audio): After connecting, turn on Bluetooth on your mobile device. Cari untuk and connect to the adapter's Bluetooth signal. This step is crucial for audio to transmit directly from the TV/projector. If Bluetooth is not connected, audio may play through your phone or other paired Bluetooth devices.
Rajah 4: Berakhirview of compatible devices and connection types for the YEHUA HDMI adapter, illustrating how phones, tablets, monitors, TVs, and projectors connect, along with power options like USB wall chargers and power banks.
Arahan Operasi
Once all connections are made and the MiraPlug app is installed and running, your mobile device's screen should be mirrored to the connected display. The adapter supports 1080P resolution for clear mirroring.
- Pencerminan Skrin: The adapter will automatically mirror your phone's display to the TV or projector.
- Output Audio: With Bluetooth connected, audio will be routed through the TV or projector's speakers. If you prefer audio through headphones or your phone's speakers, disconnect the Bluetooth pairing with the adapter.
- Keserasian Apl: The adapter works with most applications for mirroring. However, please note that some streaming services (e.g., Netflix, Amazon Prime Video, Disney+) may have content protection (DRM) that prevents mirroring of their video content. You may see menus and subtitles, but the video itself might appear black.
- Permainan: The adapter provides minimal lag, making it suitable for playing mobile games on a larger screen.
Rajah 5: Seorang bekasample of the YEHUA HDMI adapter being used to mirror a mobile device's screen to a television, displaying a streaming service interface. Note that some streaming services may restrict video playback due to DRM.
Rajah 6: A collage illustrating diverse applications of the YEHUA HDMI adapter, from casual home viewing and gaming to professional presentations and educational content sharing.
Penyelenggaraan dan Penjagaan
- Storan: Simpan kabel di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
- Pembersihan: Gunakan kain lembut dan kering untuk membersihkan kabel dan penyambung. Jangan gunakan pembersih cecair atau pelarut.
- Pengendalian: Avoid bending the cable sharply or pulling it by the cord. Always grasp the connector when plugging or unplugging.
- haba: It is normal for the HDMI cable to become warm during extended use. This does not indicate a malfunction.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| No display on TV/Projector. | Insufficient power supply; Incorrect HDMI input selected; MiraPlug app not running or installed; Loose connections. | Ensure the USB-A end is connected to a 5V/2A (or 1A) power source. Check if the TV/projector is set to the correct HDMI input. Verify MiraPlug app is installed and open. Reconnect all cables securely. |
| No audio from TV/Projector. | Bluetooth not paired; Phone audio settings. | Ensure Bluetooth is enabled on your phone and paired with the adapter. Check your phone's audio output settings. |
| Video content (e.g., Netflix) shows black screen. | Digital Rights Management (DRM) restrictions. | This is typically due to content protection policies of streaming services. The adapter cannot bypass these restrictions. Try mirroring content from other apps (e.g., YouTube, local videos). |
| Cable gets hot during use. | Operasi biasa. | This is expected behavior and does not indicate a fault. Ensure adequate ventilation around the adapter. |
Spesifikasi
- Jenama: YEHUA
- Nombor Model: 6972313151837
- Jenis Penyambung: HDMI, USB-A, Micro USB, USB Type-C
- Jenis Kabel: HDMI, USB
- Peranti Serasi: Cellular Phones (Android with Type-C/Micro USB, iPhone 6-11 Pro Max)
- Resolusi yang Disokong: 1080P HDTV
- Penyegerakan Audio: Bluetooth 5.0
- Input Kuasa: 5V/2A (minimum 1A)
- Panjang kabel: Kira-kira 6.6 kaki (2 meter)
- warna: Hitam
- Berat Barang: 2.6 auns
Sokongan
For further assistance or inquiries, please refer to the official YEHUA support channels or the retailer where the product was purchased.
Manual pengguna dalam format PDF juga tersedia untuk dimuat turun: Muat turun Manual Pengguna (PDF)
